Description

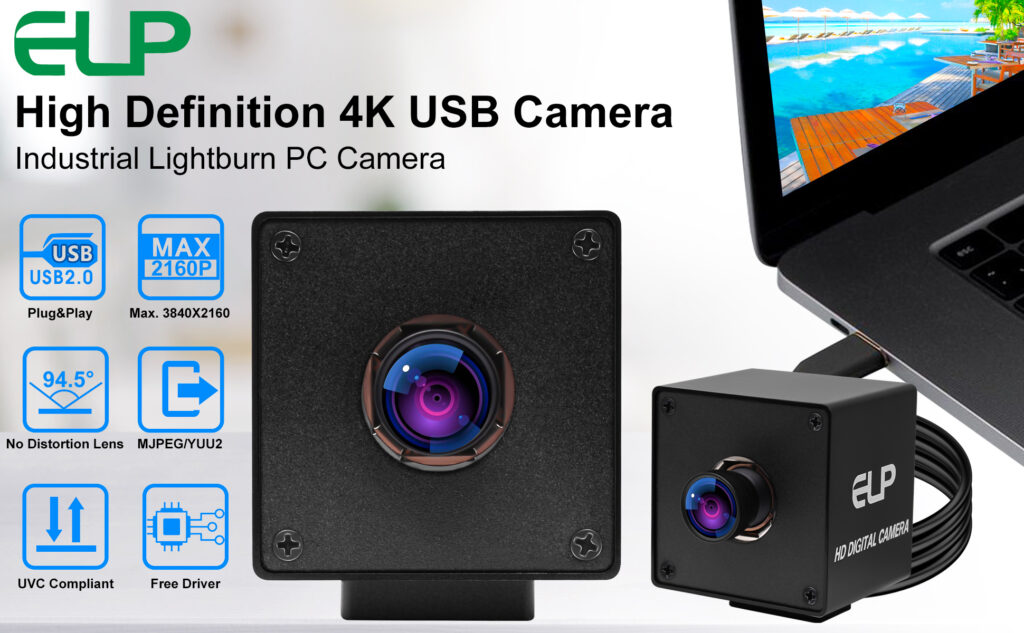

Based on 1/2.8″ 4K IMX415 image sensor, autofocus, no distortion lens, built-in Microphone, UVC compliant USB 2.0 camera. This is a mini 4K webcam, Max resolution 8MP 3840 x 2160 output, mini size, light weight usb camera. No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera. Shoot objects at millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera. Ultra HD resolution meets your request for higher quality video still pictures resolution.
Features
* 3840*2160 4K Autofocus USB Camera Module with Microphone
* 1/2.8” Sony IMX415 sensor for high quality image
* HD 83 degree no distortion M12 lens
* on board microphone for audio recording
* High frame rate – MJPEG 3840*2160 30fps
* MJPEG/YUY2 dual outpu format optional
* Mini board size 38x38mm for embedded application

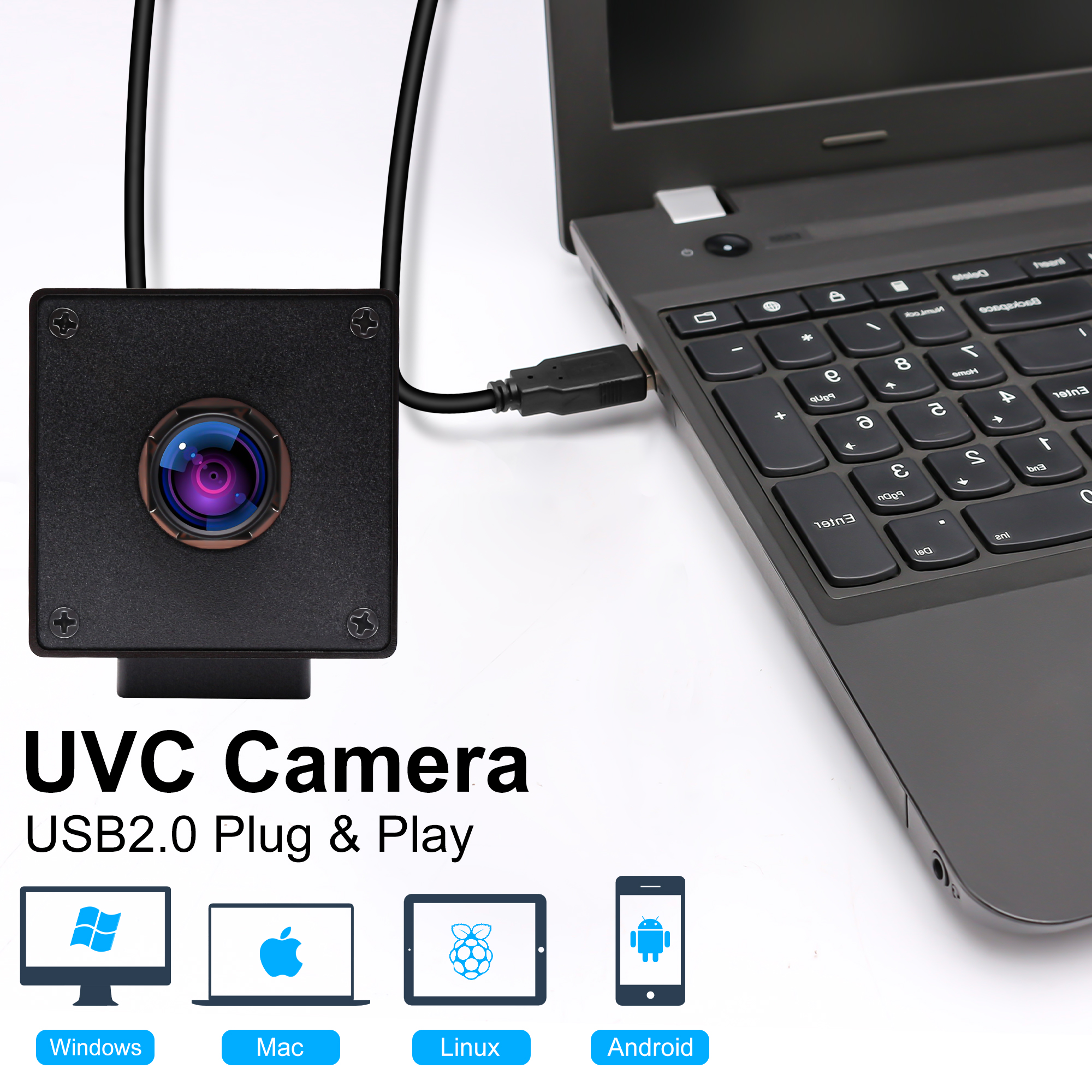

* High speed USB 2.0 plug&play port – suitable for any PC with USB 2.0 interface
* Low power consumption – ideal for portable equipment.
* UVC compliant – support Windows, Linux, Android system with UVC
Specification
| Model NO.: | ELP-USB4K02AF-KV100 (No distortion Lens, HFOV 83degree)
ELP-USB4K02AF-KL28 (2.8mm Lens, HFOV 110degree) ELP-USB4K02AF-L25 (25mm Lens, HFOV 11degree) |
| Image Sensor | SONY IMX415 (1/2.8” ) |

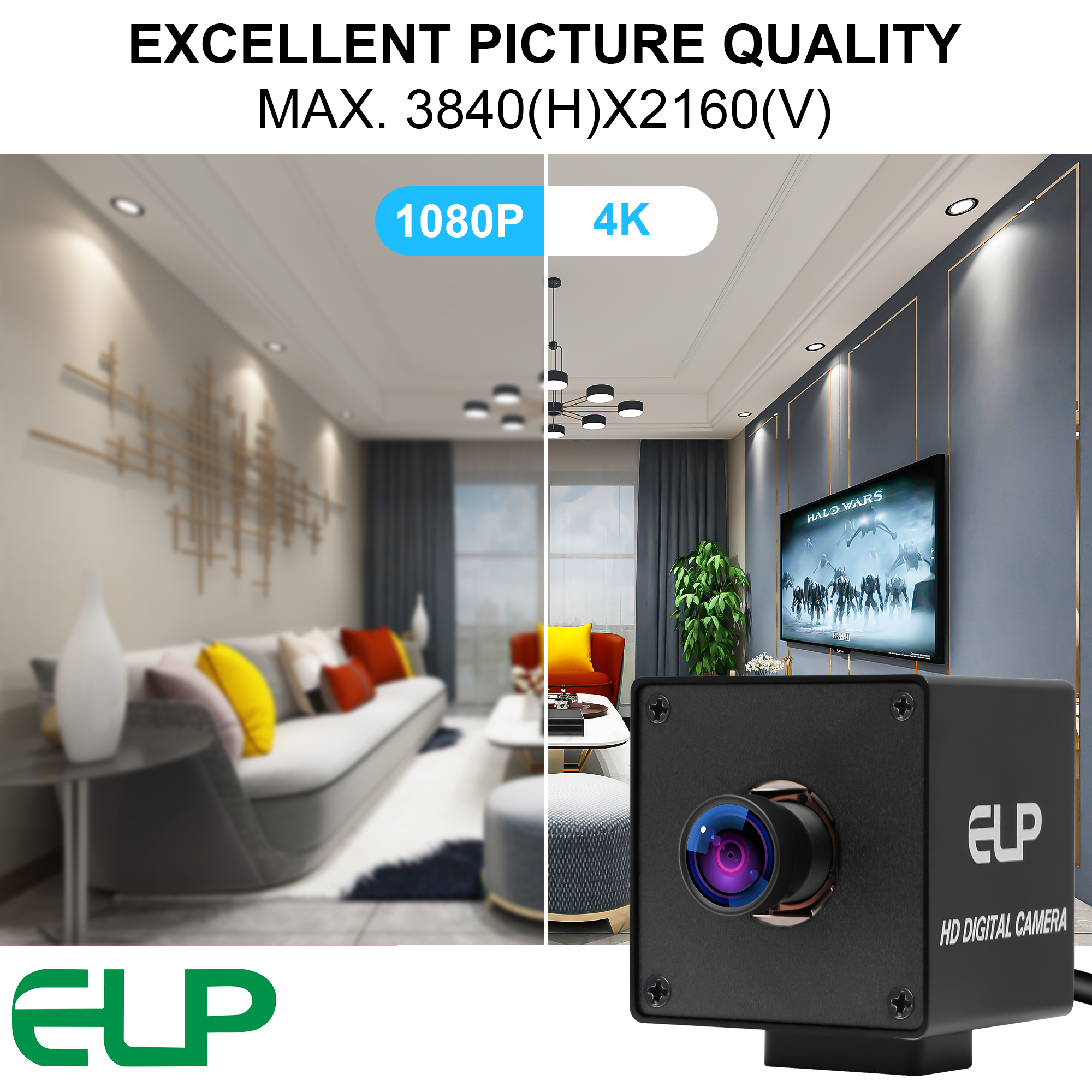

| Max. Resolution | 3840(H) *2160 (V) |
| Sensitivity | 1000mV/Lux-sec |
| Pixel Size | 1.45µmx1.45µm |
| Compression format | MJPEG / YUY2（YUYV） |
| Resolution & frame | 3840×2160@ 30fps MJPEG / 2592×1944@ 30fps MJPEG
2048×1536@ 30fps MJPEG /1600×1200@ 30fps MJPEG 1920×1080@ 30fps MJPEG/ 1280×960@30fps MJPE 1280×720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG 640×480@ 30fps MJPEG / 320×240@ 30fps MJPEG 3840×2160@ 1fps YUY2 / 2592×1944@ 1fps YUY2 2048×1536@ 3fps YUY2 /1600×1200@ 5fps YUY2 1920×1080@ 5fps YUY2/1280×960@5fps YUY2 1280×720@ 5fps YUY2 / 800 x 600@ 20fps YUY2 640×480@ 30fps YUY2 / 320×240@ 30fps YUY2 |
| Center definition | 1000LW/PH (Center) |
| S/N Ratio | 30dB |
| Sensitivity | 0.65V/lux-sec@550nm |
| Minimum illumination | 0.2lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| AEC | Support |
| AEB | Support |
| AGC | Support |

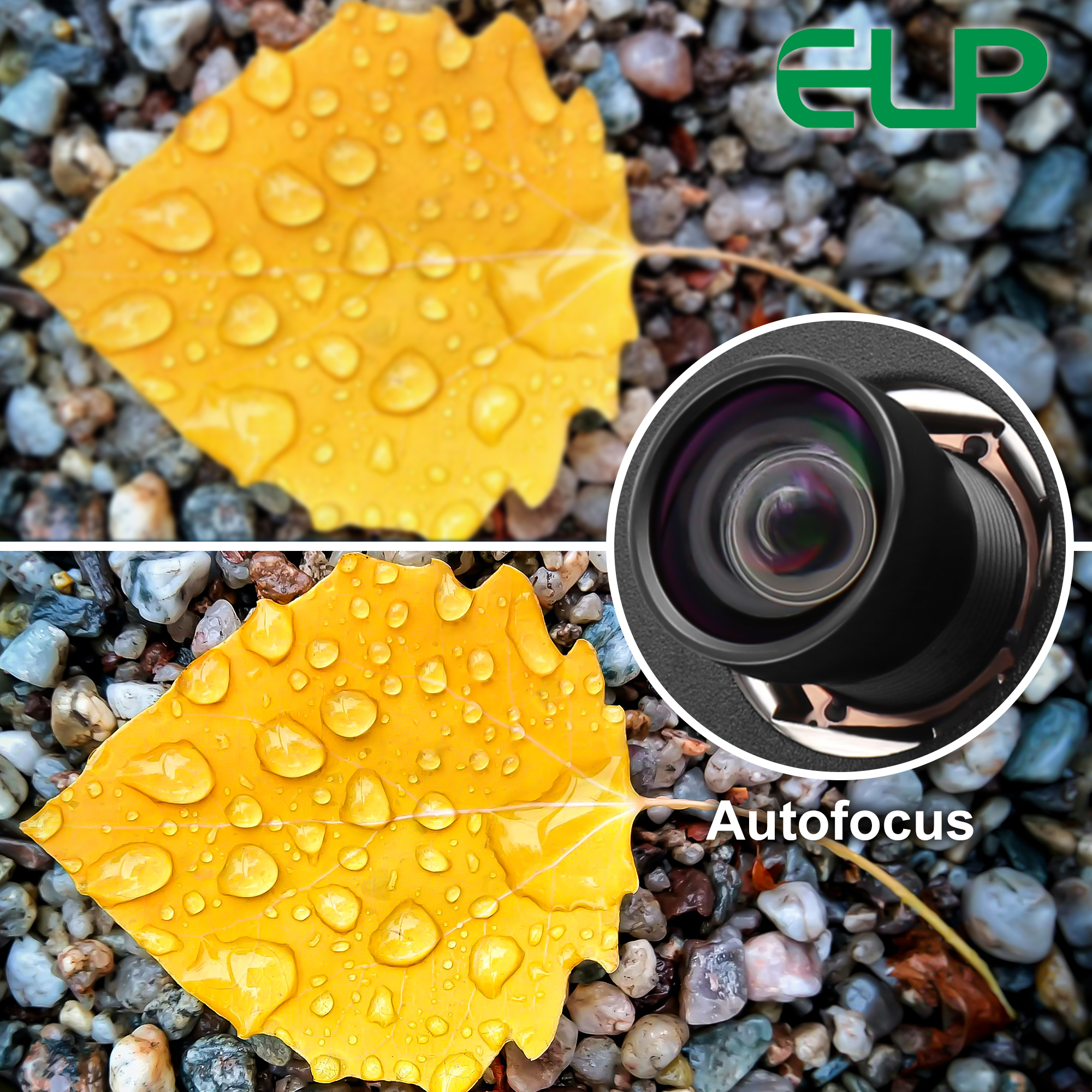

| Auto Focus | Support |
| Adjustable parameters | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White
Balance, Exposure |
| Lens Parameter | No distortion lens, 2.8/3.6/6/8/12/25mm lens
IR filter: 650±10nm |
| Power supply& connector | USB BUS POWER 4P-2.0mm socket |
| Power Voltage | DC5V |
| Power Current | 200mA |
| Board Size | 38mm × 38mm |
| Storage Temperature | -20°C to 70°C |
| Work Temperature | 0°C to 60°C |
| USB Cable | 3M(2M/3M/5M optional) |

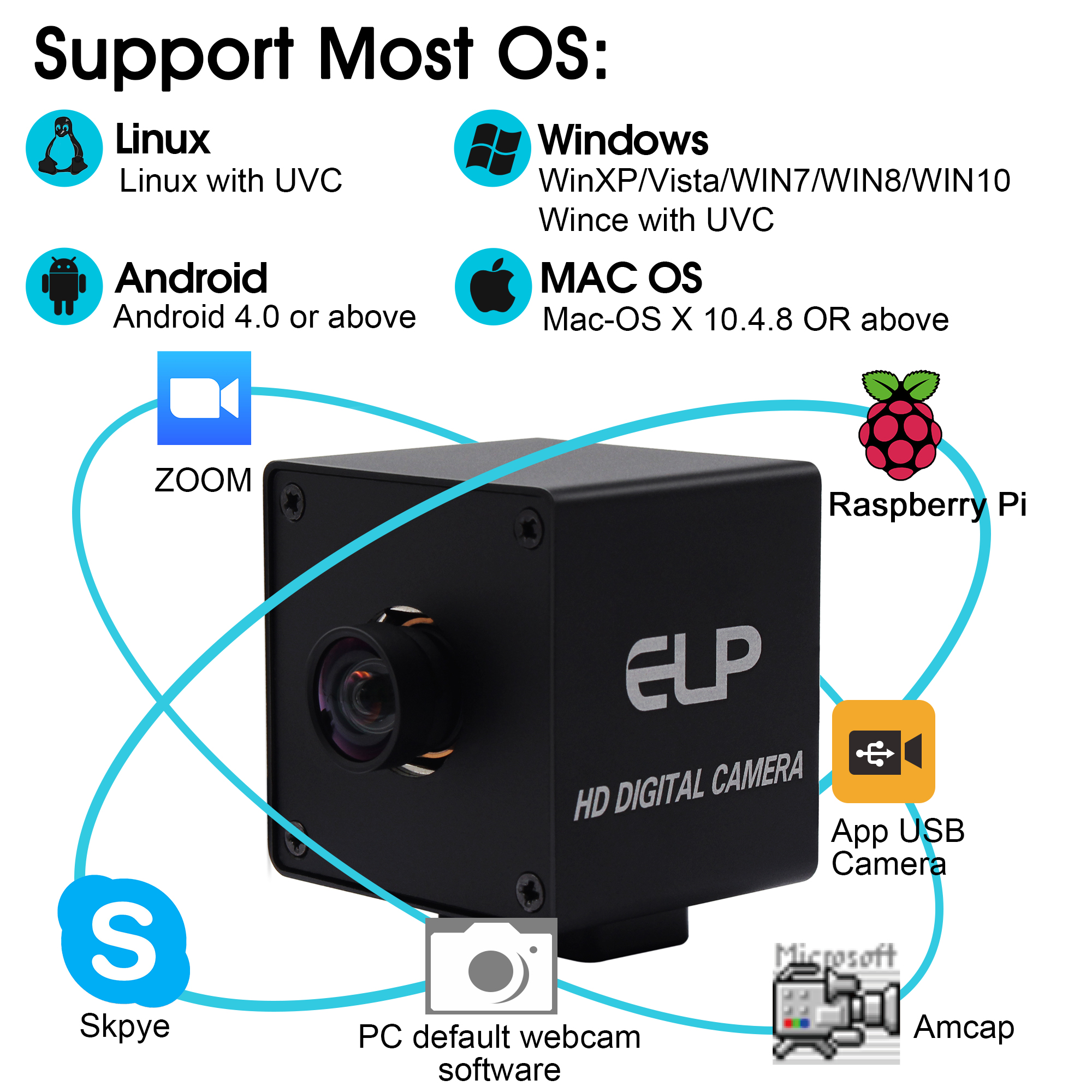

| Operating System support | Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |

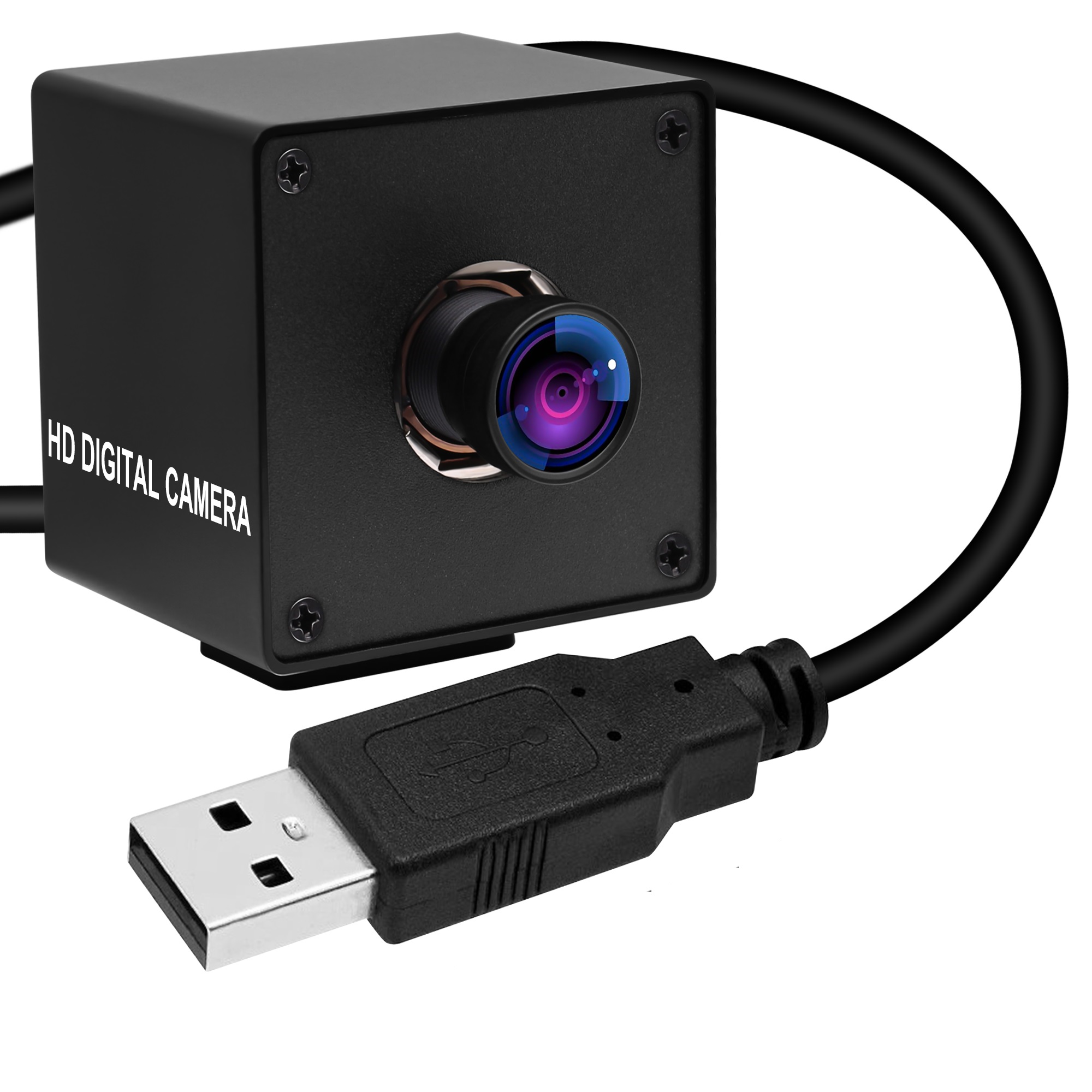

Product Display
Mini 38mmx38mm camera board can be installed in most narrow position for a home surveillance system, wildlife photography, dashcam, baby camera, etc
