Product Description

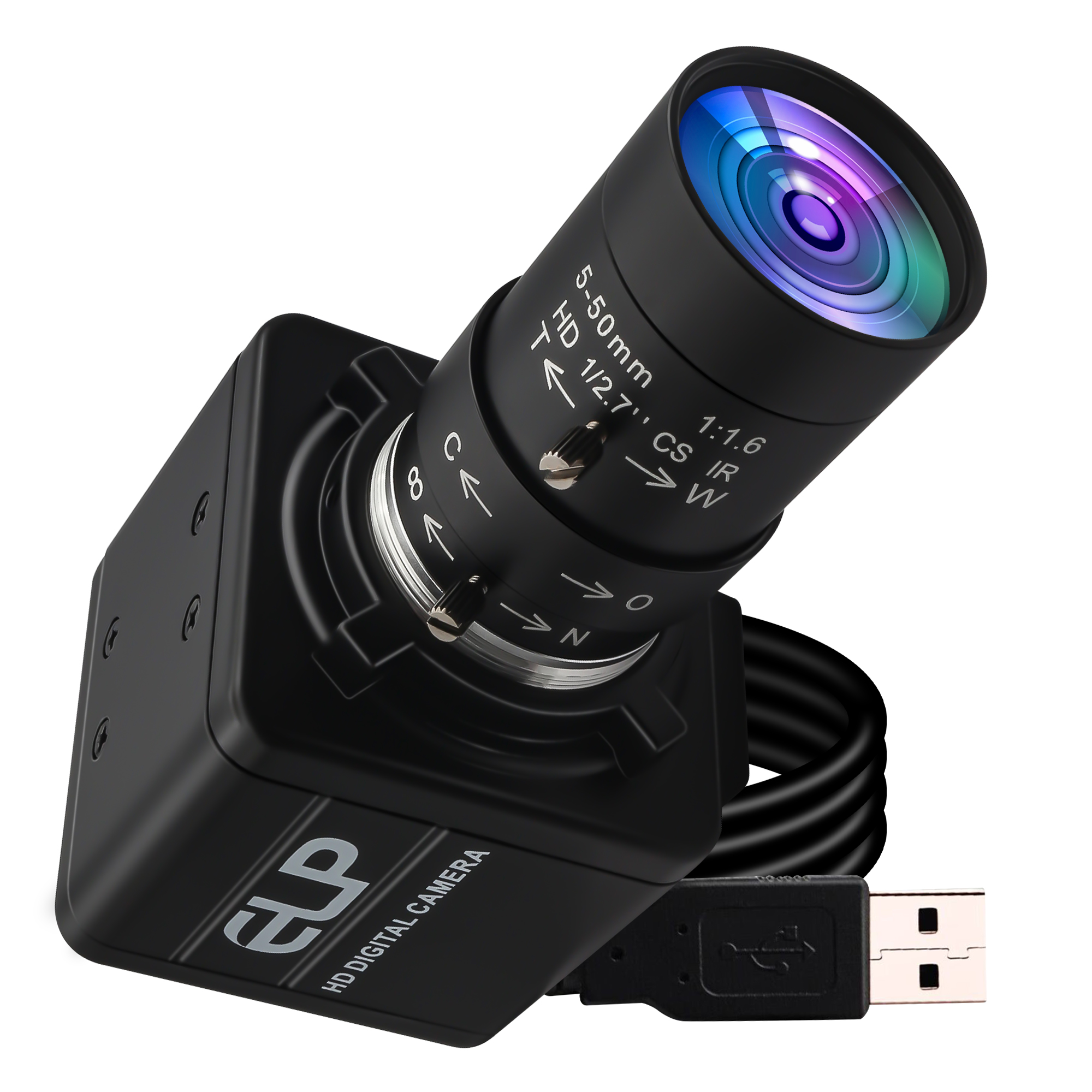

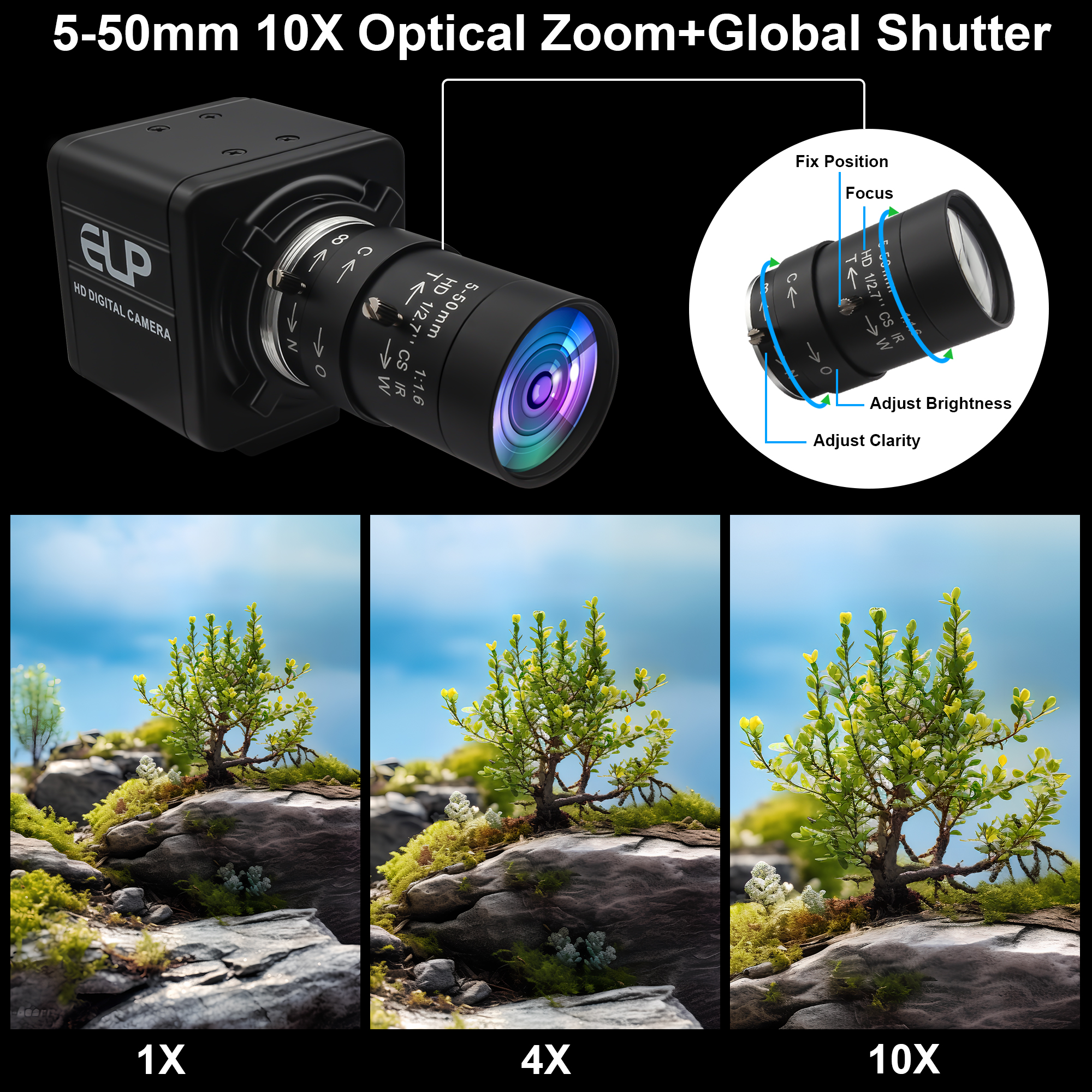

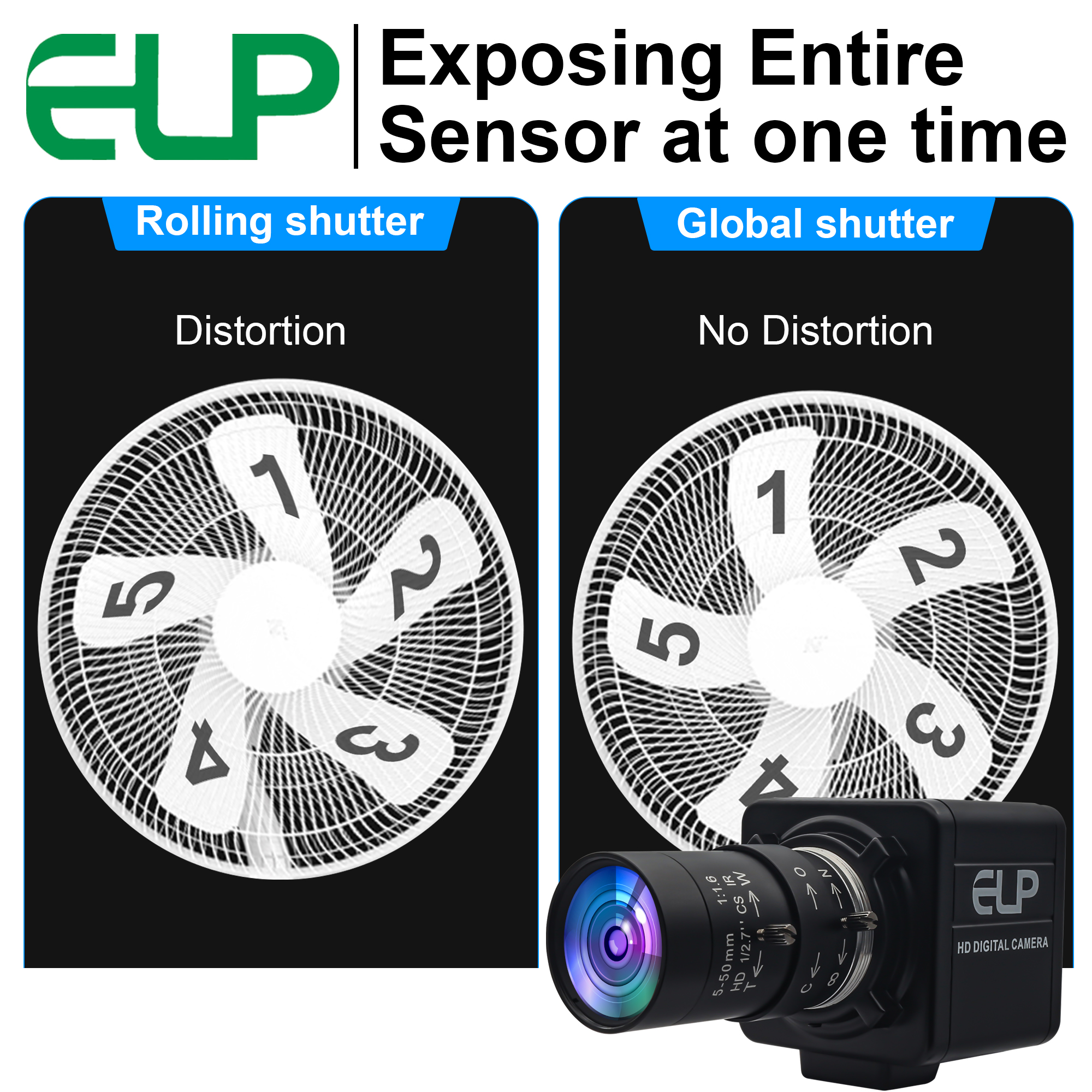

ELP-USBGS1200P01-MFV(5-50) is a 2.3 megapixel USB 2.0 industrial global shutter camera launched by ELP. It uses a 1/2.6 inch Aptina AR0234global shutter sensor with a maximum resolution of 1920×1200. In MJPEG format, it can achieve a high frame rate output of 90fps, clearly capturing fast moving objects without trailing or jelly effects. Equipped with a 5–50mm manual zoom and manual focus CS mount lens, it offers 10x optical zoom with a flexible field of view from wide-angle to telephoto, providing clear imaging and excellent distortion control. It supports UVC driver-free plug and play and is compatible with Windows, Linux, macOS, Android, and Raspberry Pi embedded platforms. The camera body is made of metal, ensuring stable operation and strong anti-interference performance. It supports manual adjustment of exposure, white balance, brightness, contrast, sharpness, and other parameters. Suitable for machine vision inspection, high-speed motion capture, long-distance monitoring, industrial imaging, scientific experiments, and various other applications, it features a compact and convenient design, making it a high-performance, highly stable industrial USB camera.
Features
Specification
|
Model |
ELP-USBGS1200P01-MFV(2.8-12) (2.8-12mm varifocus lens)
ELP-USBGS1200P01-MFV (5-50) (5-50mm varifocus lens) ELP-USBGS1200P01-MFV (6-60) (6-60mm varifocus lens) ELP-USBGS1200P01-MF40 (4mm lens) ELP-USBGS1200P01-MF60 (6mm lens) ELP-USBGS1200P01-MF80 (8mm lens) ELP-USBGS1200P01-MFV (No lens) |
|
|
Sensor |
Aptina AR0234 (1/2.6”) Global Shutter |
|
|
Max Resolution |
1920 (H) *1200 (V) |
|
|
Sensor Size |
1/2.6 inch (4:3) |
|
|
PixelSize |
3.0μm |
|
|
Compression Format |
MJPEG/YUV2 (YUYV) |
|
|
Resolution& Framerate |
1920×1200 @ 90fps MJPEG 1600×1200 @ 90fps MJPEG 1280×720 @ 90fps MJPEG 960×720 @ 90fps MJPEG 640×480 @ 90fps MJPEG |
1920×1080 @ 90fps MJPEG 1280×960 @ 90fps MJPEG 1024×768 @ 90fps MJPEG 800×600@ 90fps MJPEG 320×240 @ 90fps MJPEG |
|
Surface Mount Technology |
SMT |
|
|
Focus |
Fixed |
|
|
Central Definition |
600LW/PH (Center) |
|
|
S/N Ratio |
37dB |
|
|
DynamicRange |
70dB |
|
|
Sensitivity |
1.4V/lux-sec@550nm |
|
|
MiniIllumination |
0.3lux |
|
|
Shutter |
Global Shutter |
|
|
Interface |
USB2.0 High Speed |
|
|
AEC |
Support |
|
|
AWB |
Support |
|
|
AGC |
Support |
|
|
AdjustableParameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Whitebalance, BacklightCompensation, Exposure |
|
|
Lens Parameters |
4/6/8mm manual focus CS lens 2.8-12/5-50mm varifocus lens optional |
|
|
LED board power connector |
Support 2P-2.0mm socket |
|
|
Power Supply |
USB BUS POWER 4P-2.0mm socket |
|
|
Operating Voltage |
DC 5V |
|
|
WorkingCurrent |
160mA- 190mA |
|
|
Dimension |
38mm x 38mm |
|
|
Storage Temperature |
-20°C to 80°C |
|
|
Working Temperature |
0°C to 60°C |
|
|
USBCable |
3M(2M/5M … Optional ) |
|
|
Operating System Request |
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux withUVC(abovelinux-2.6.26) MAC-OS X 10.4.8 orlater Android4.0 or above with UVC |
|
