Description

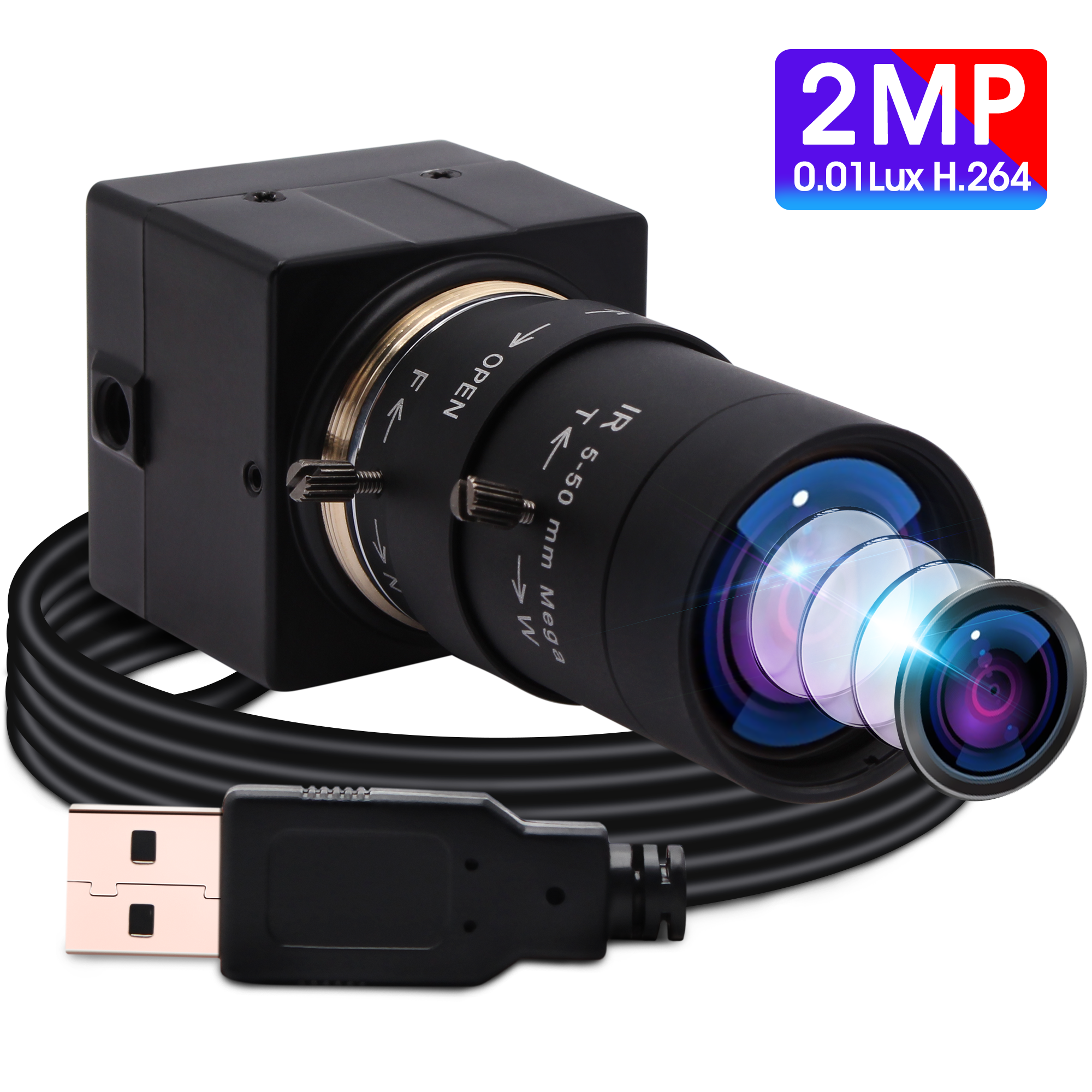

The ELP-USBFHD06H-SFV (5-50) is a 2 megapixel full HD USB camera designed for industrial and embedded applications. Featuring a 1/2.9-inch Sony IMX323 CMOS sensor, it supports 1920×1080 @30fps output and compatibility with H.264, MJPEG, and YUY2 encoding formats. Equipped with a 5-50mm CS interface manual zoom lens, with 4x zoom and flexible viewing angles, it accommodates all scenarios from wide-angle close-ups to detailed long-distance shots.
The camera delivers exceptional low-light performance with 0.01Lux sensitivity, ensuring clear imaging in dim environments. Its onboard digital microphone supports mono audio capture, while an integrated infrared flash port enables extended night vision functionality. Powered by USB 2.0 high speed connectivity and 5V power supply, the device complies with UVC driverless protocol standards for plug-and-play compatibility across Windows, Linux, Mac, and Android systems.
It is ideal for applications including ATMs, vending machines, industrial inspection systems, video conferencing, live streaming, smart home solutions, robotic vision systems, and medical imaging and other scenarios.
Package Includes
1) 1 pcs 2MP 1080P low light USB camera with varifocal lens.
2) 1 pcs 3m usb cable (1m/2m/5m length optional).
3) 1 pcs using manual.
Mini size , Lightweight and convenient. Portable and suitable for various scenarios.

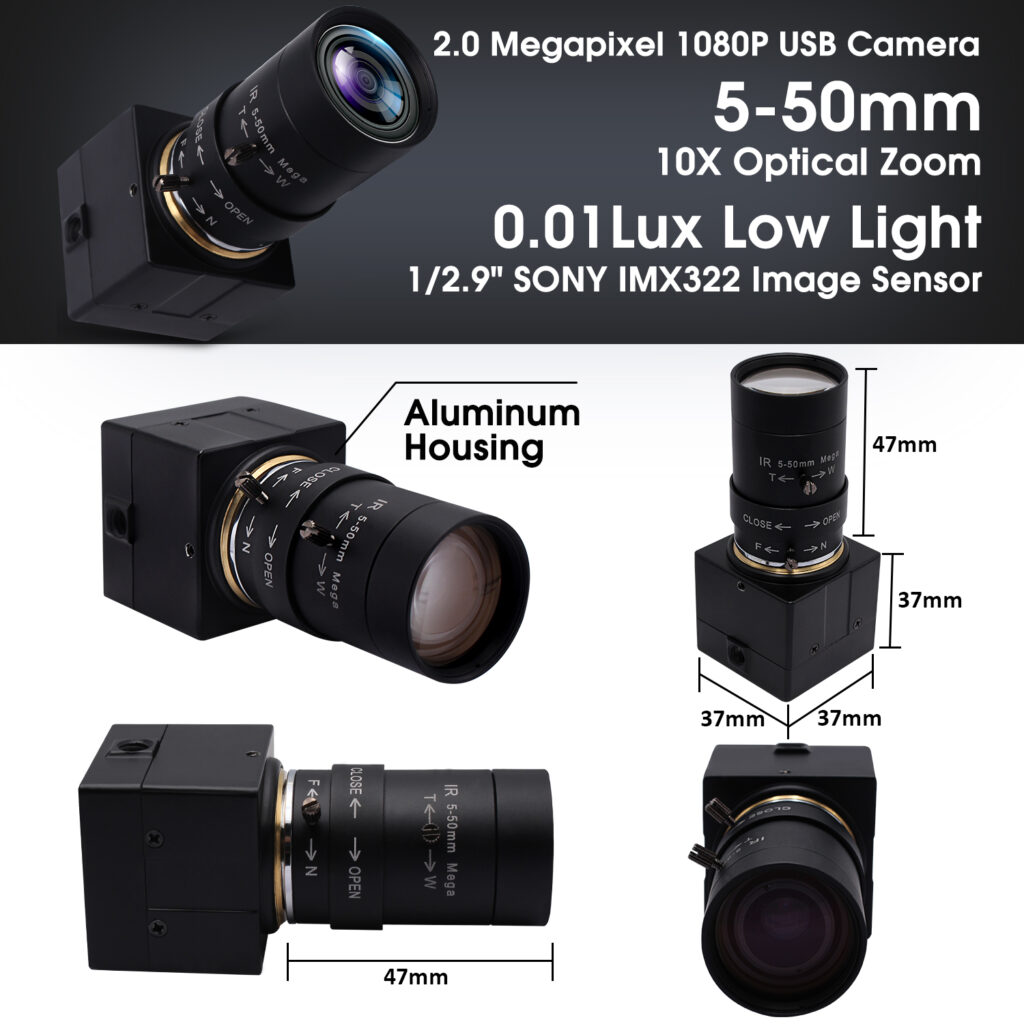

The camera is a very solid, black, steel cube with tilting mounting bracket and a standard 1/4-inch threaded mount for attachment to a tripod.
Features
1) Sensor: Equipped with a 1/2.9 inch Sony IMX322 CMOS sensor featuring 2 million effective pixels.
2) Maximum resolution 1920×1080@30fps, with natural color reproduction and stable dynamic range.
3) Low-light performance: Minimum illumination of 0.01 Lux (starlight level), enabling clear image capture in dim lighting or nighttime without additional lighting, meeting requirements for low-light surveillance and detection.
4) Lens: Equipped with a standard 5-50mm manual zoom CS-mount lens, featuring independent manual focus, aperture, and zoom adjustment via three knobs to meet diverse shooting needs from wide-angle close-ups to detailed long-distance shots. Multiple lens angles are available for selection.
5) H.264 compression, higher coding efficiency, providing high-quality video images at the low bit rate as well as the low bandwidth
6) UVC Free driver, Plug & Play
7) OTG support: with OTG function, can connect smart phone, tablet via OTG cable.
8) Operating System: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…
9) Multi Software compatible: Amcap, USB Camera, iSpy, Webcam Viewer, OpenCV, VLC, V4L2, Photo Booth, Quick Time, CameraFi…
10) Application: Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze,3D measurement, Intelligent transportation system, People Counting & Tracking, Astrophotography etc.
Why Choose H.264 camera?
1. Has higher coding efficiency.
2. Can provide high-quality video images at the low bit rate as well as the low bandwidth.
3. H.264 can work in real-time communication application low-latency mode, such as Video Conferencing systems, Online video storage and streaming, video game consoles, mobile video through 3G/4G…
Specification
| Model | ELP-USBFHD06H-SFV(2.8-12) (2.8-12mm CS Zoom Lens)
ELP-USBFHD06H-SFV(5-50) (5-50mm CS Zoom Lens) ELP-USBFHD06H-SFV(6-60) (6-60mm CS Zoom Lens) ELP-USBFHD06H-SF40 (4mm CS Manual Focus Lens) ELP-USBFHD06H-SF60 (6mm CS Manual Focus Lens) ELP-USBFHD06H-SF80 (8mm CS Manual Focus Lens) ELP-USBFHD06H-SF12 (12mm CS Manual Focus Lens) |
| Sensor | 1/2.9 inche Sony IMX323 |
| Pixel Size | 12.8X11.6 mm |
| image area | 2000(H)X1121(V) approx. 2.24 M pixels |
| Max. Resolution | 1080P |
| Compression format | H.264/MJPEG / YUV2（YUYV） |
| Resolution & Frame
Rate |
H264：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1920X1080@ 30fps
MJPEG：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps /1920X1080@ 30fps YUV：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps / 800X600@ 15fps |
| S/N Ratio | 42dB |
| Dynamic Range | 86dB |
| Sensitivity | 5.0V/lux-sec@550nm |
| Min illumination | 0. 01lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class（UVC） |
| Support OTG Protocol | USB2.0 OTG |
| AEC | Support |
| AWB | Support |
| AGC | Support |
| Adjustable
parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White
balance, Backlight Contrast, Exposure |
| Lens Parameter | 2.8-12mm CS mount Lens, 5-50mm / 6-60mm / 4 / 6 / 8 / 12mm manual focus Lens optional |
| Digital audio | High quality digital MIC, support single, dual channel |
| LED board power
connector |
Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Operating Voltage | DC5V |
| Working current | 140mA~190mA |
| Working temperature | -10～70℃ |
| Storage temperature | -20～85℃ |
| Board size /Weight | 38X38mm（Compatible 32X32mm）/ about 30g |
| Cable | Standard 3M / 1M,2M,5M optional |
| Operating System
request |
Win7 Win8 Win10 Win11 Linux 2.6 or above Android 4.0 or above |
Product Display

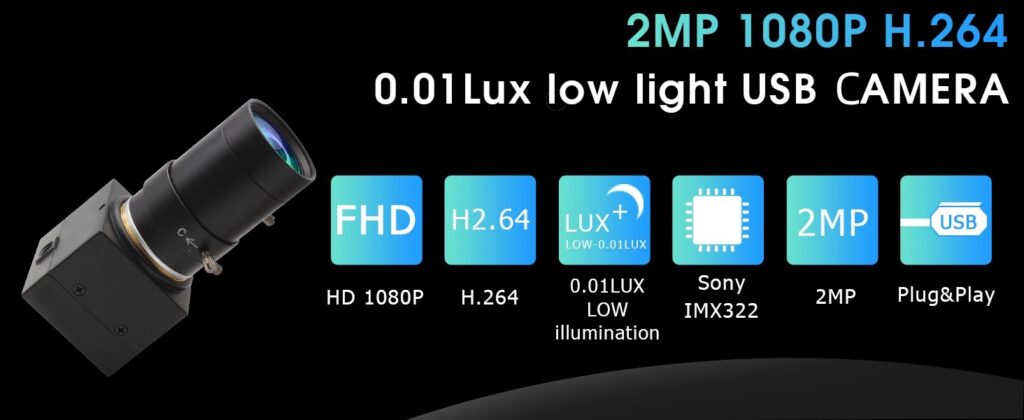

Equipped with Sony IMX323 CMOS sensor (1/2.9 inch), 2 million pixels (1920×1080), delivering sharp image quality with accurate color reproduction.

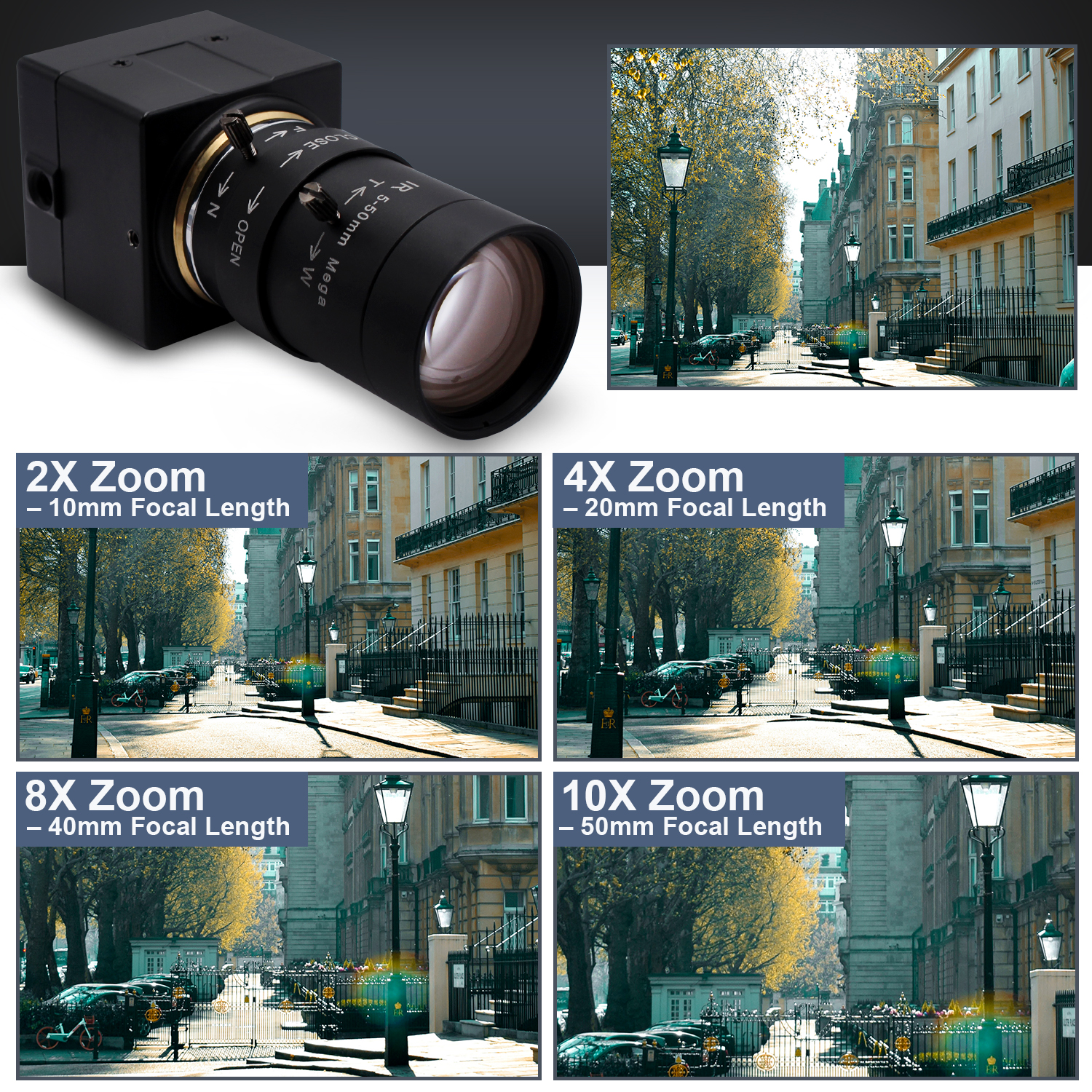

Lens:10x Optical Zoom (5-50mm) – The varifocal design allows you to smoothly adjust from a wide 5mm field of view to a telephoto 50mm view . This versatility means one lens can handle both overview shots and close-up detail inspection

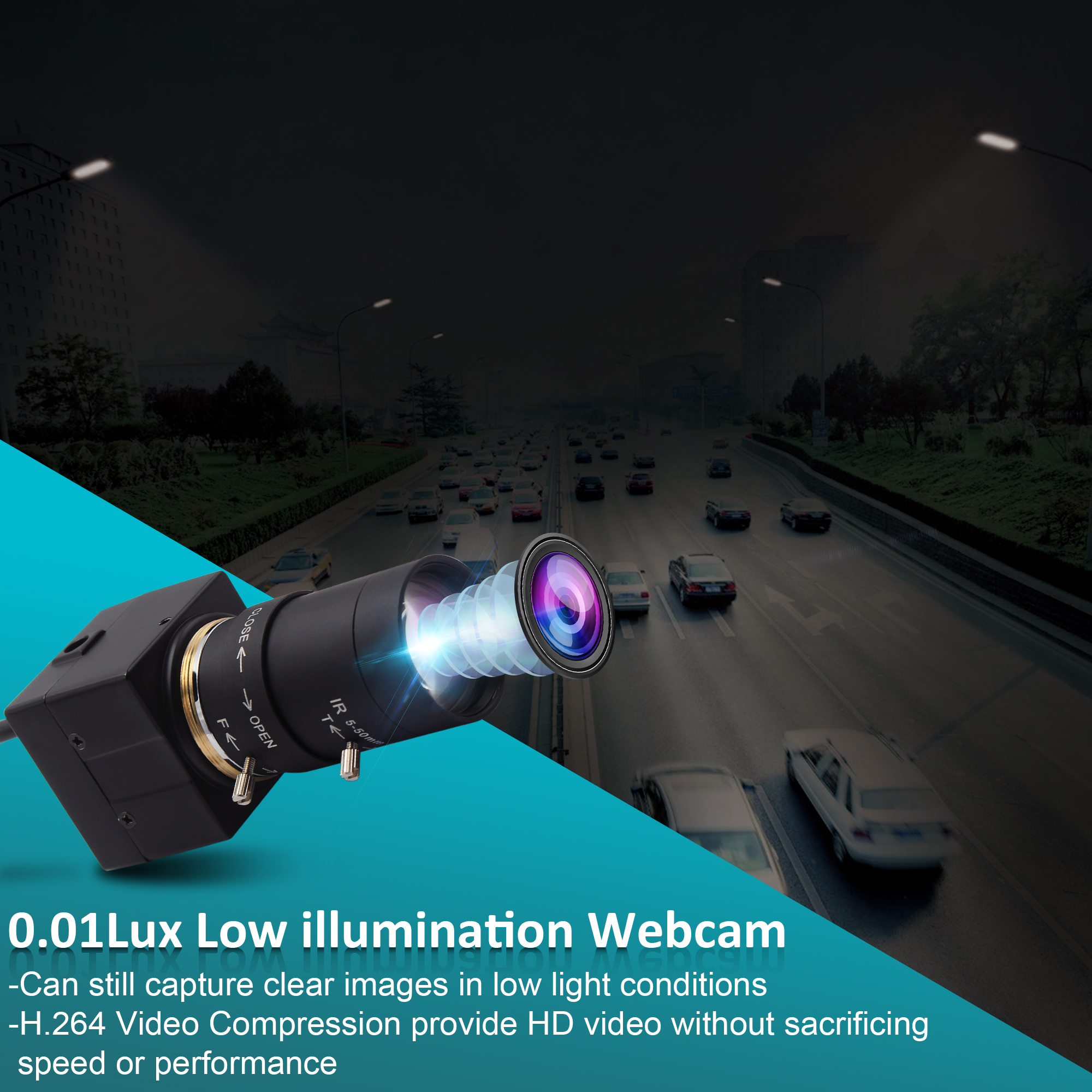

Minimum illumination of 0.01 lux ensures clear imaging in low-light environments, making it ideal for low-light surveillance and night vision applications.
Supports three encoding formats: H.264/MJPEG/YUY2, delivering both high-definition quality and low-bandwidth transmission.
Driver-Free & Plug & Play ,No driver or software required, easy to use.
Automatically recognized by Windows / Android / Linux systems.
Super mini usb camera for pc,computer,laptop,raspberry pi,android development board,Jetson Nano, etc
Wide compatibility
Compatible with Windows, Linux, MacOS, Android. Compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms, like Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Live streaming services etc. Stable connection, ready to work in seconds.
Applications
This 1080P H.264 Low Light Manual Zoom USB Camera can be used for all kinds of machine as below:
Ideal for AI object recognition, laser engraving monitoring (Lightburn compatible), document scanners, traffic monitoring, and gesture/eye tracking. Reliable performance from 0°C to 70°C
