Features
* 2MP Full HD resolution: 2 megapixel 1920×1080
* High Quality Sensor: 1/2.7″ OV2710 Sensor
* Auto Focus: Autofocus usb camera,will focus and get clear images automatically, no need manual adjust the lens.
* No distortion Lens: 100 degree no distortion lens, FOV about 85 degree.
* High Frame Rate: 1920×1080 Mjpeg 30fps, 1280×720 Mjpeg 60fps, 640×480 Mjpeg 100fps.
* With standard 1m cable (2m/3m/5m/0.3m/0.5m…optional)

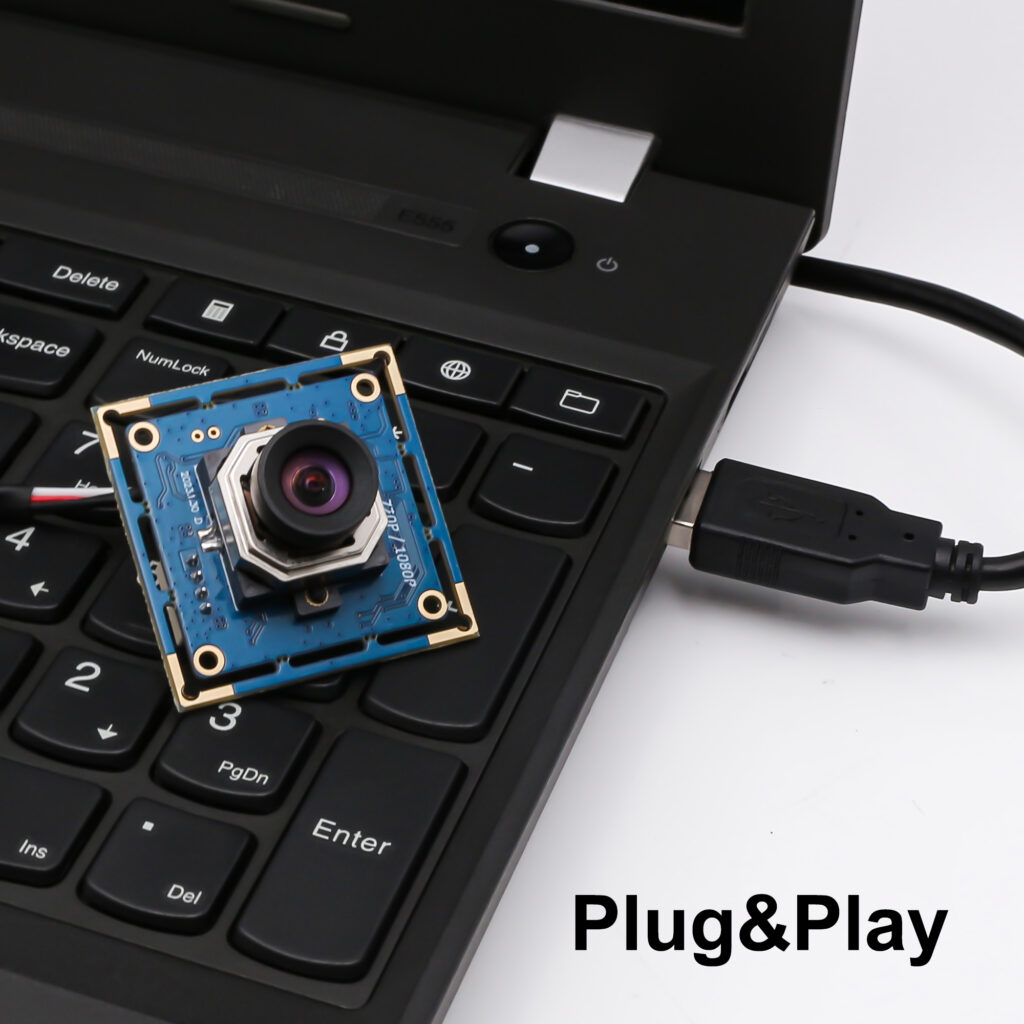

* UVC: free driver, Plug & Play
* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.

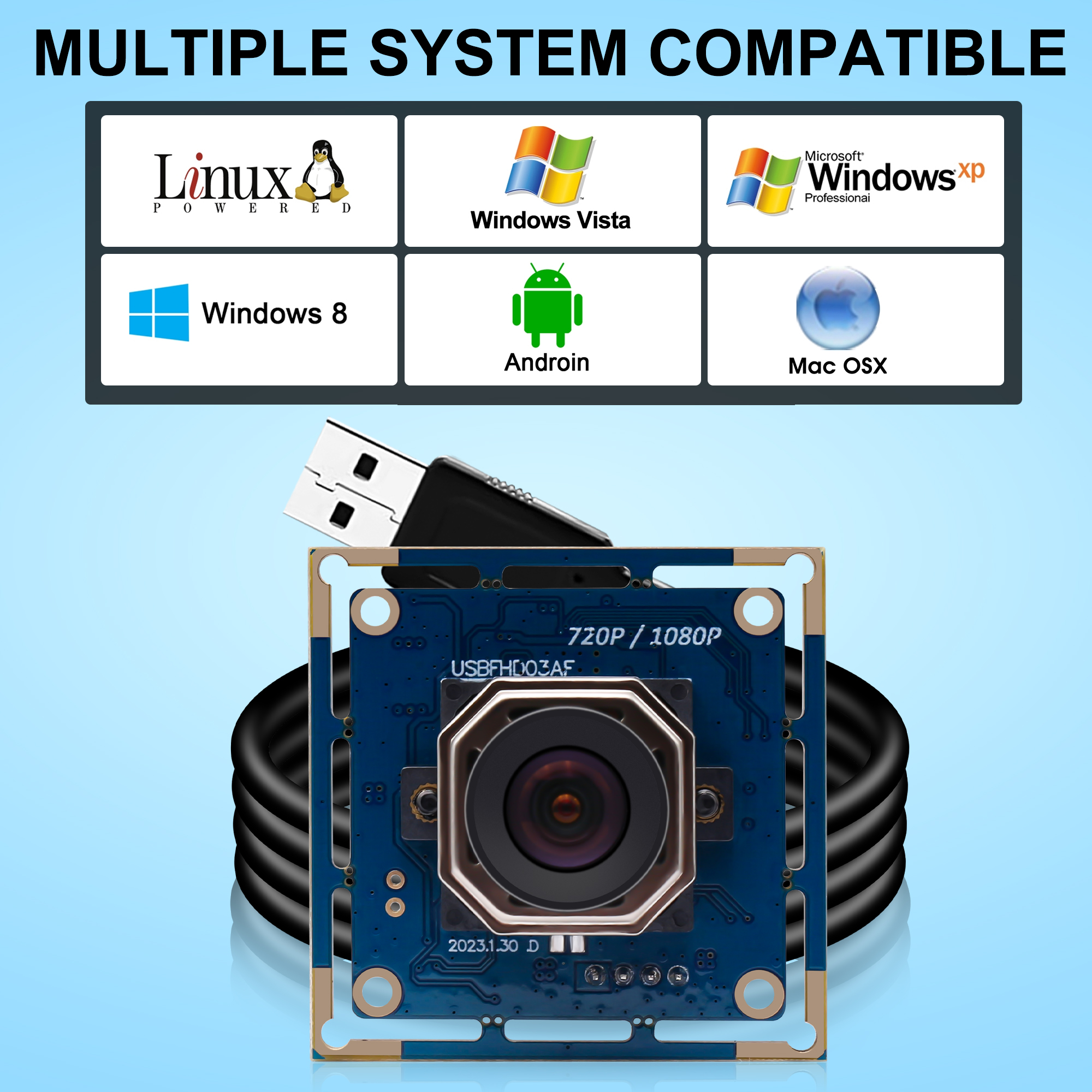

* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..
* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera…
Specification
| Optional models | ELP-USBFHD03AF-A100 (100 degree lens)
ELP-USBFHD03AF-A60 (60 degree lens) |
| Sensor | OV2710 |
| Lens size | 1/2.7 inch |
| Max. Resolution | 1920×1080 1080P |
| Picture format | YUY2 MJPEG |
| USB Protocal | USB2.0 HS/FS USB1.1 FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| OTG Function | Support |
| Frame rate | 1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps 640 (H) x 480 (V) pixels MJPEG 100fps YUY2 30fps 352(H) x 288 (V) pixels MJPEG 100fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 100fps YUY2 30fps |
| Adjustable Parameters | Brightness/Contrast/Color saturation/Definition/Gamma/WB |
| Lens | 100 degree No distortion lens ( FOV about 85 degree) |
| USB cable | 1m USB cable (2m/3m/5m optional) (can also make the other special length cable according to your requirement) |
| voltage | DC 5V |
| Current | 100mA |
| Working Temperature | -10~65 degree |
| Storage Temperature | -20-75 degree |
| Size | 38x38mm / 32x32mm Compatible |
| Support OS | WinXP/Vista/WIN7/WIN8/WIN9/WIN10/WIN11 etc. Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above |

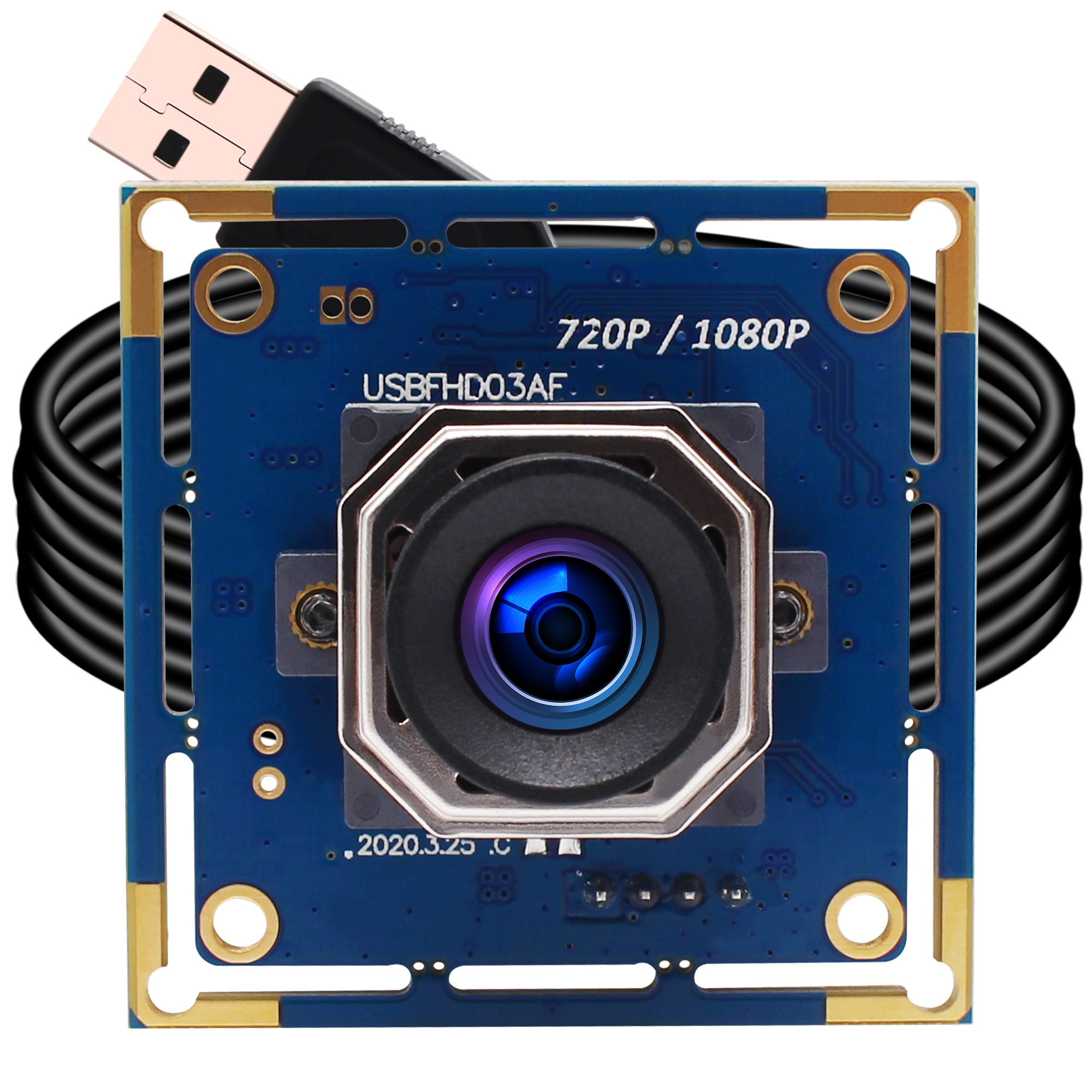

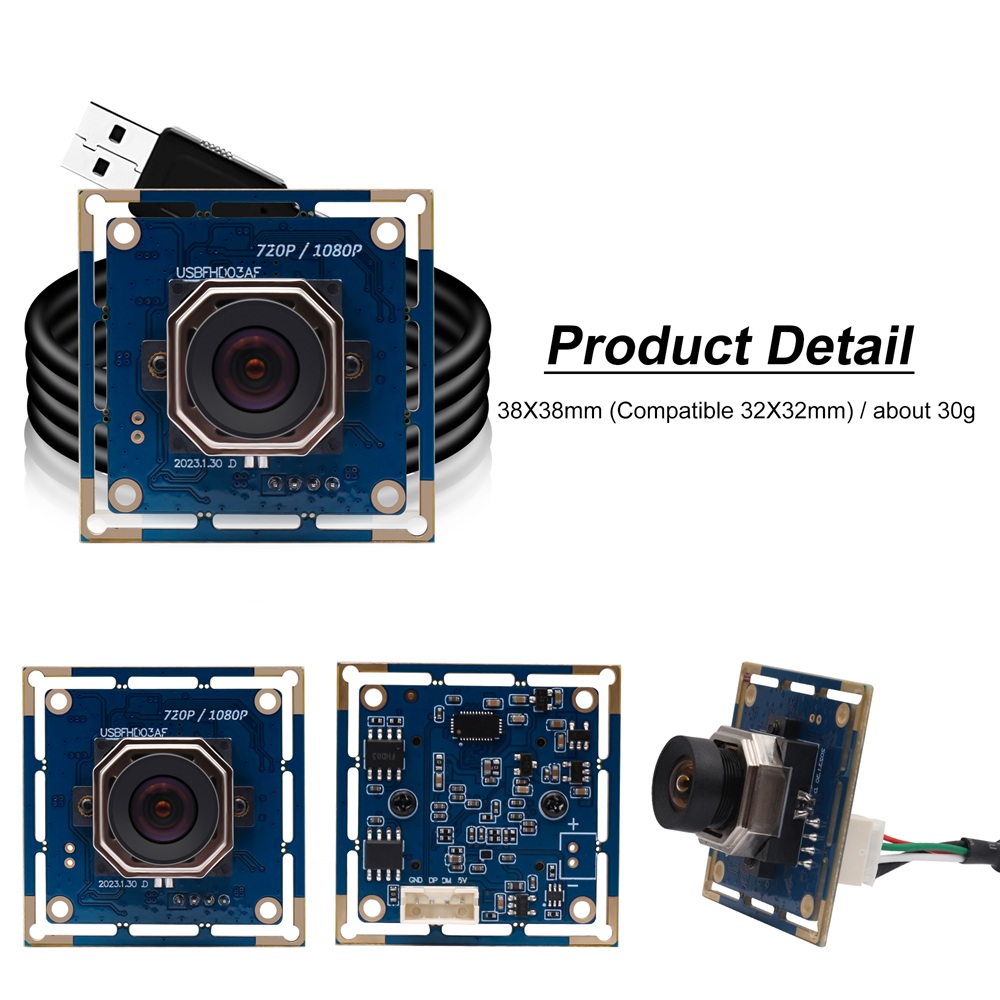

Product Display

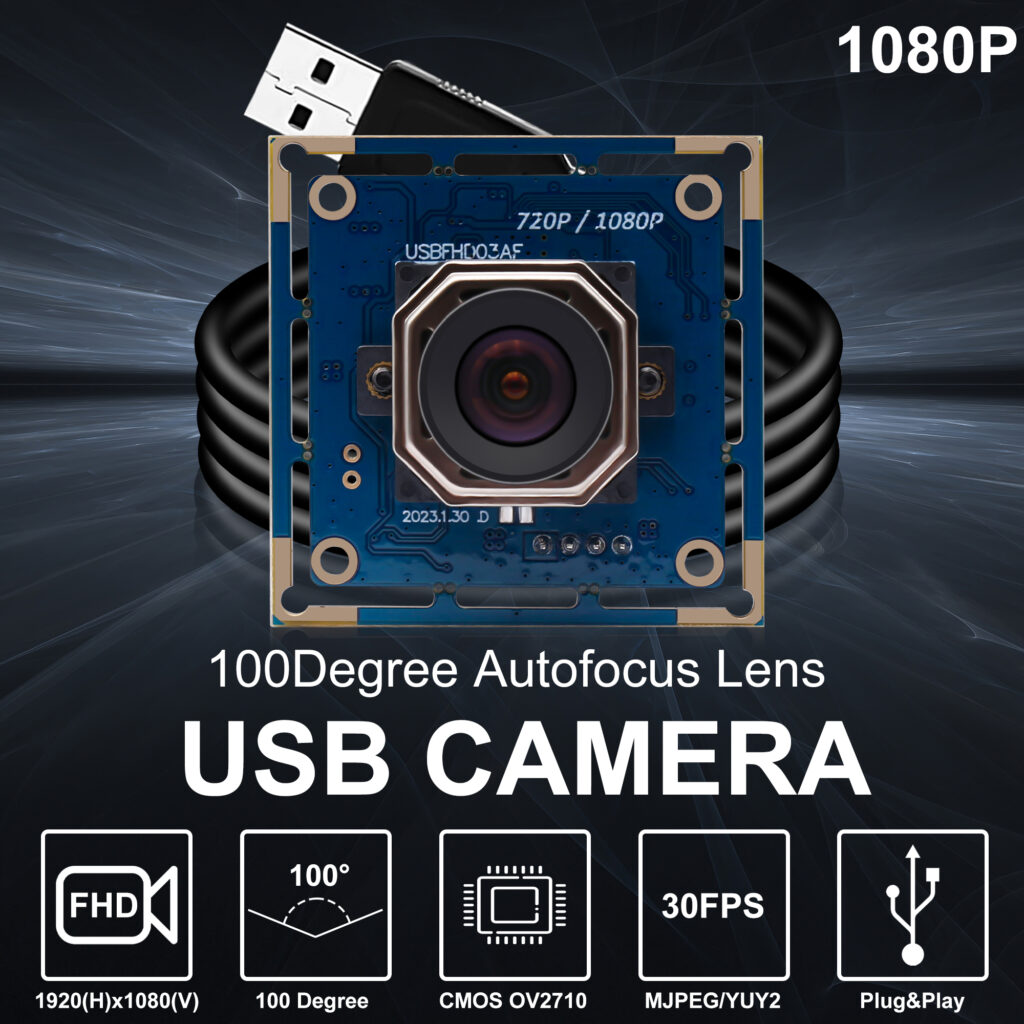

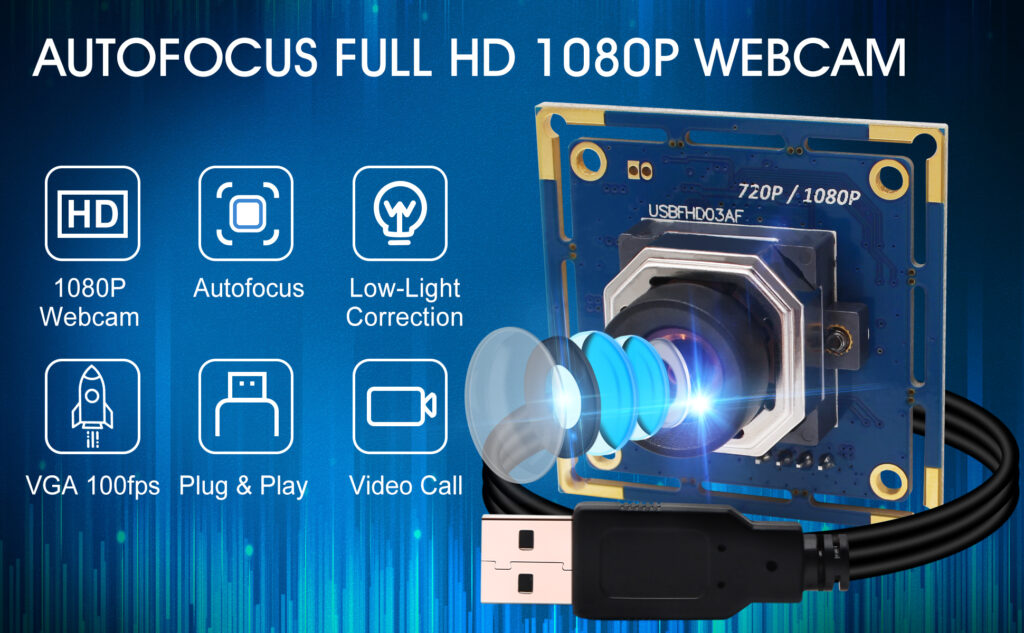

Full HD 1080P Webcam
1920×1080 Mjpeg 30FPS, 1280X720 Mjpeg 60FPS; 640X480 Mjpeg 100FPS
-Auto Focus, focus automatically to get clear images, No need focus manually, Easy operation.
-Suitable for the beginners.

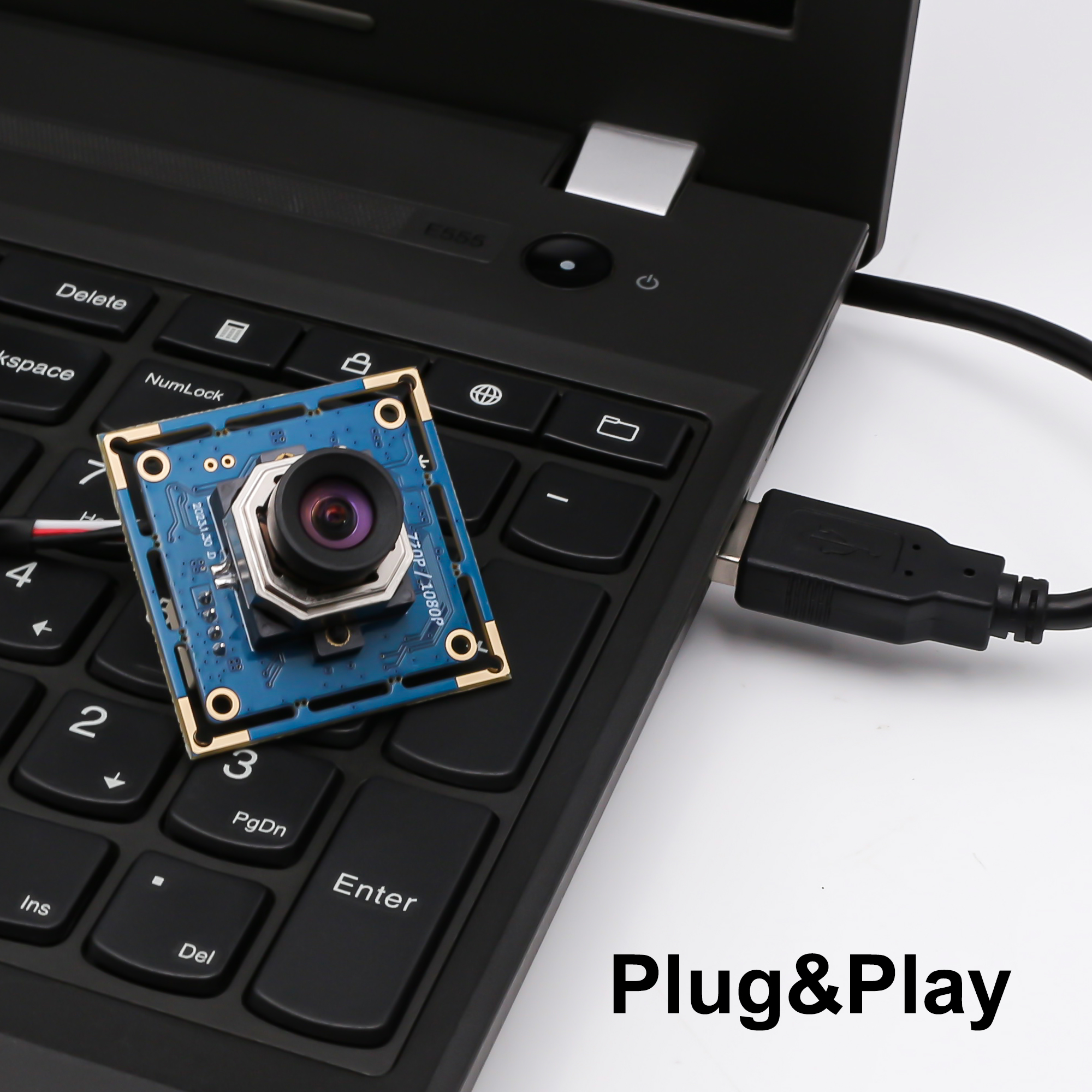

–Plug-and-play UVC compatibility The camera supports UVC protocol, enabling seamless plug-and-play functionality across Windows, macOS, Android, and Linux without requiring additional drivers
-Support living streaming software, Skype, Zoom, Facetime, Youtube…
-Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2….

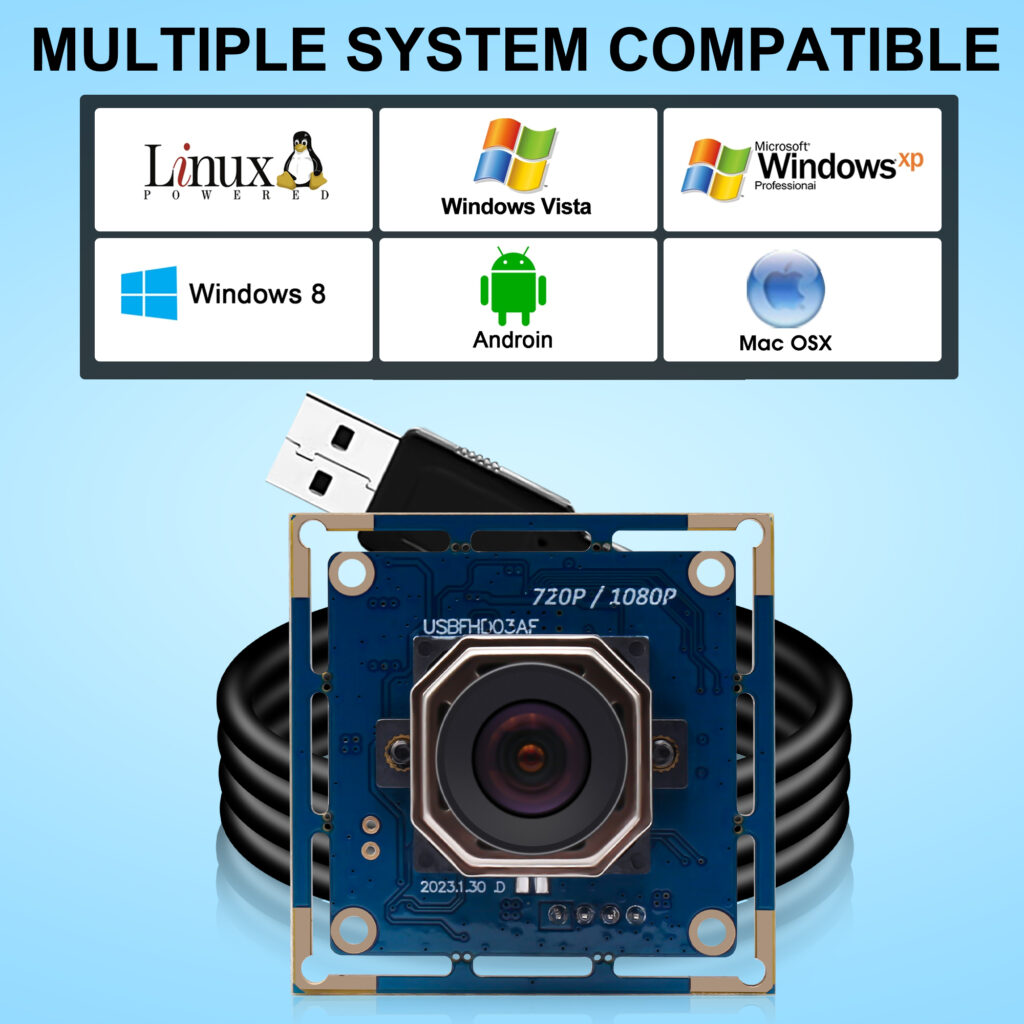

-Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS…
Industrial Standard Design: Compact 38x38mm board size allows for easy integration into OEM equipment, robotic arms, and microscopic imaging systems. Robust build quality ensures stability under continuous operation.
