Features
* 3MP High resolution: 3 megapixel 2048×1536
* High Quality Sensor: CMOS 1/3 AR0331
* WDR Camera: wide dynamic camera up to 100dB

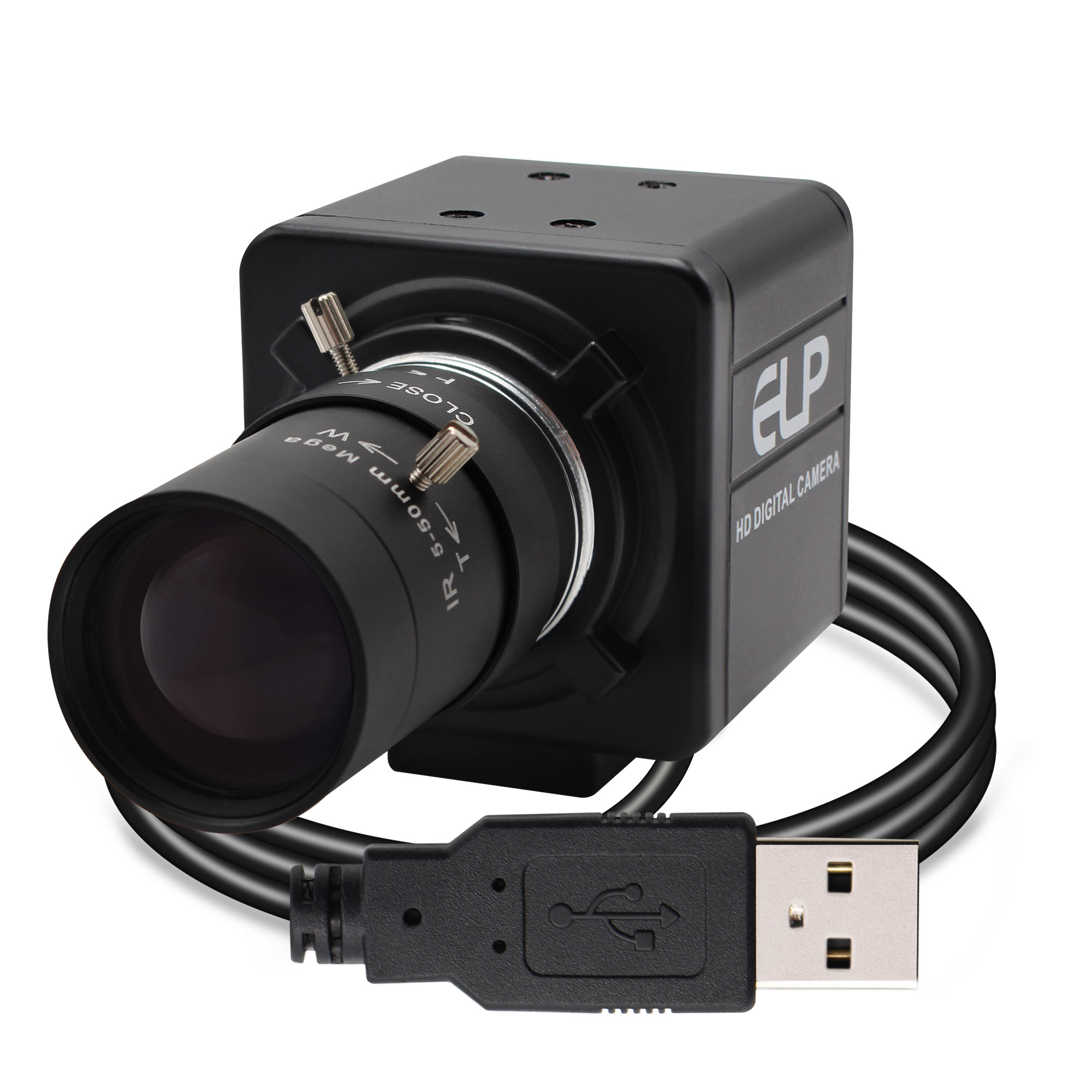

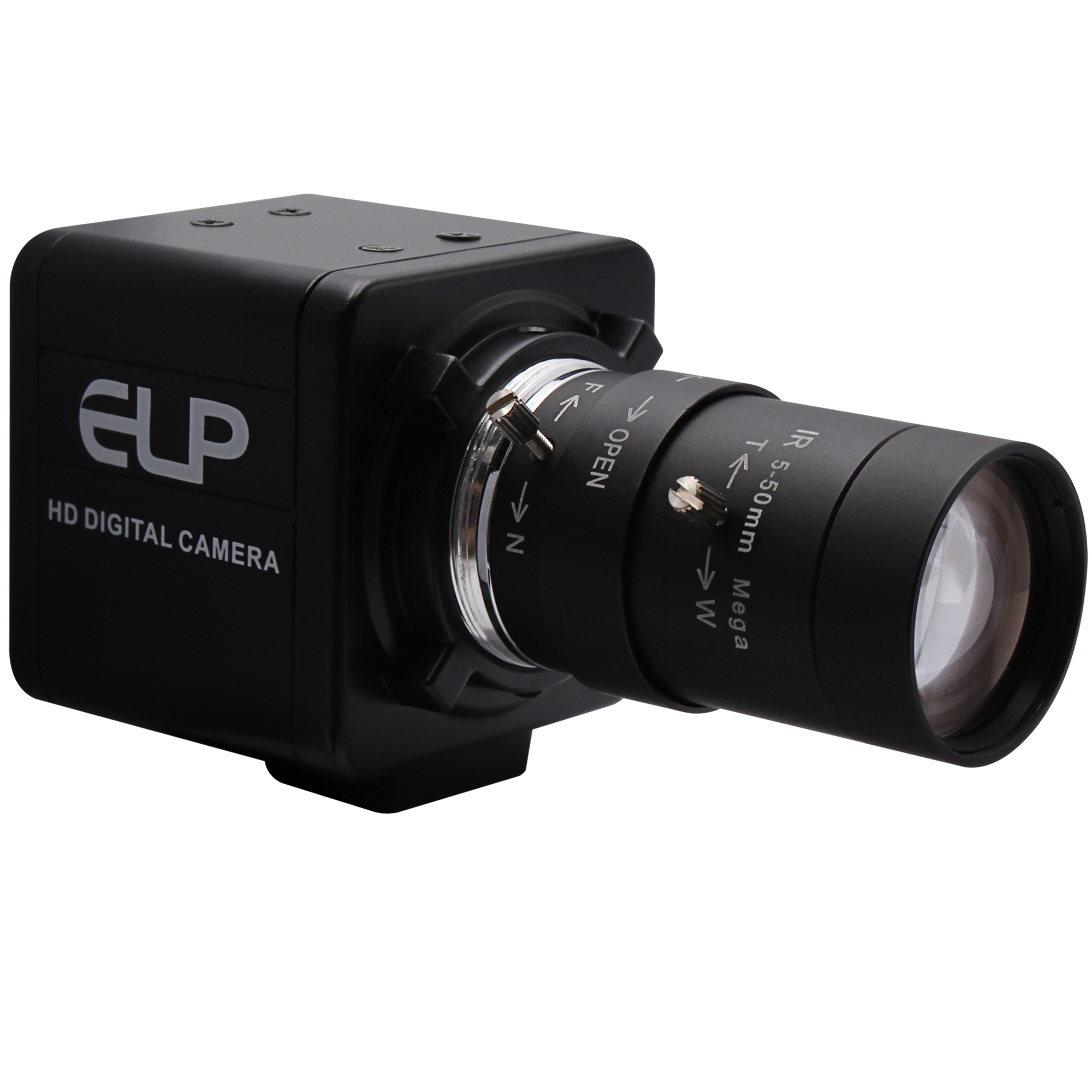

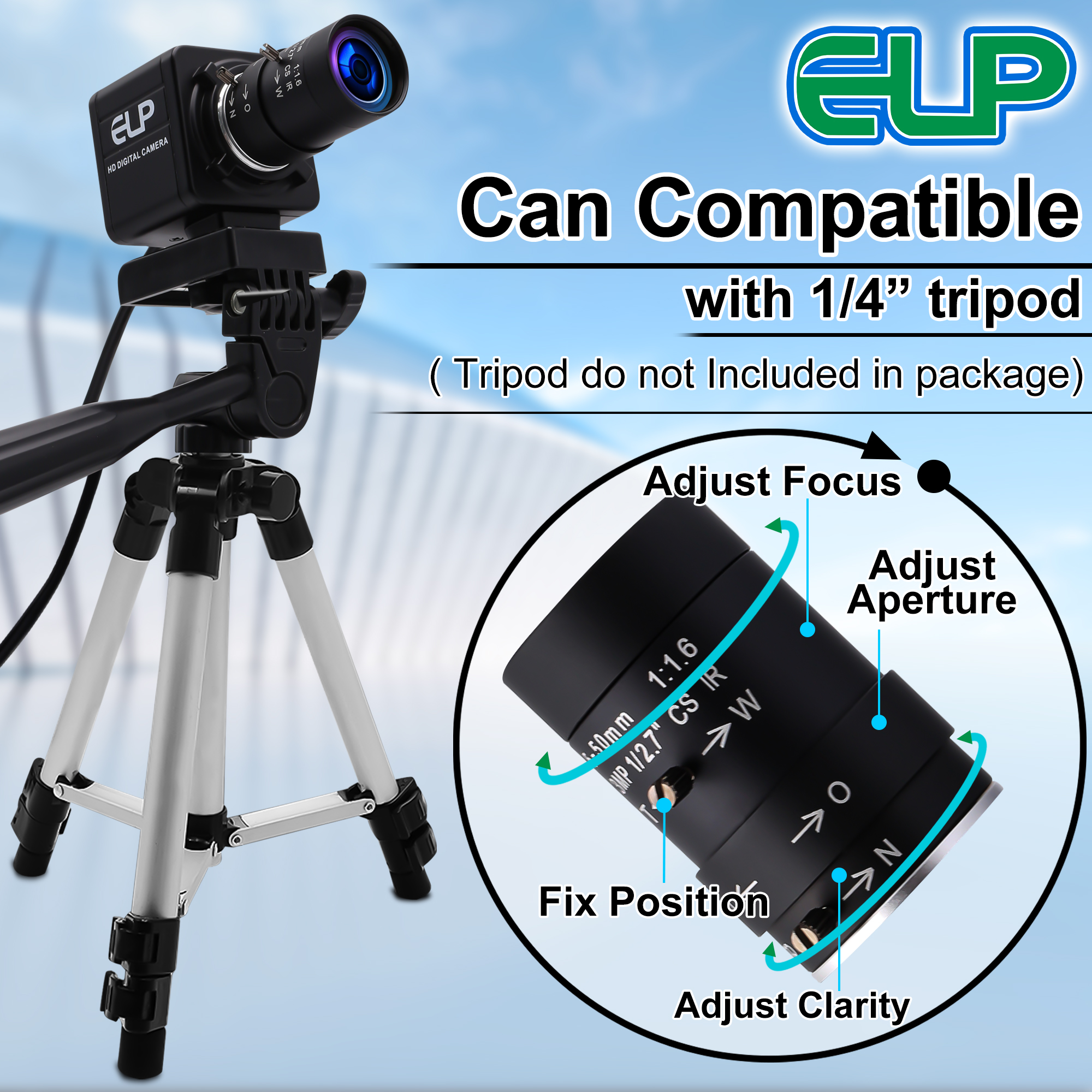

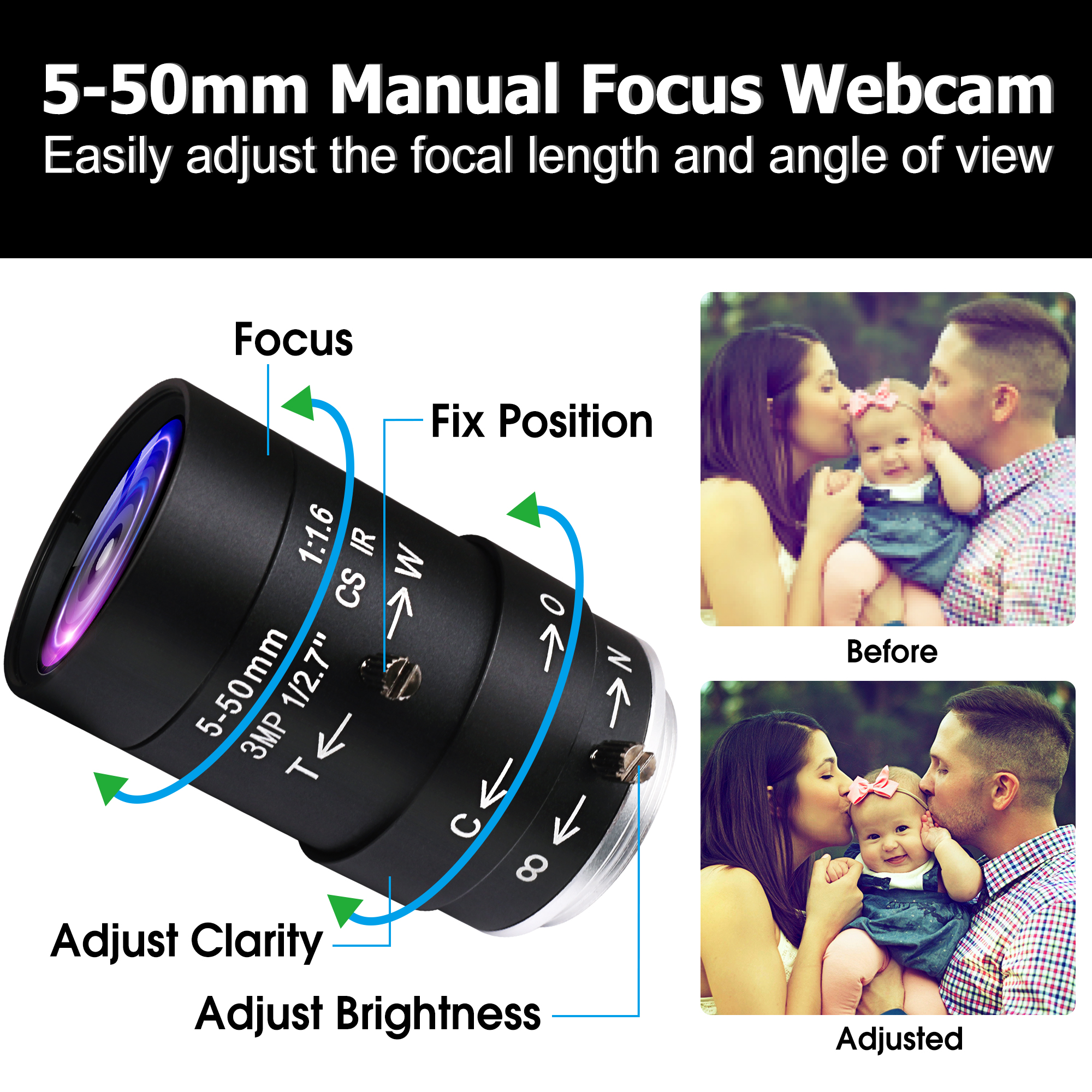

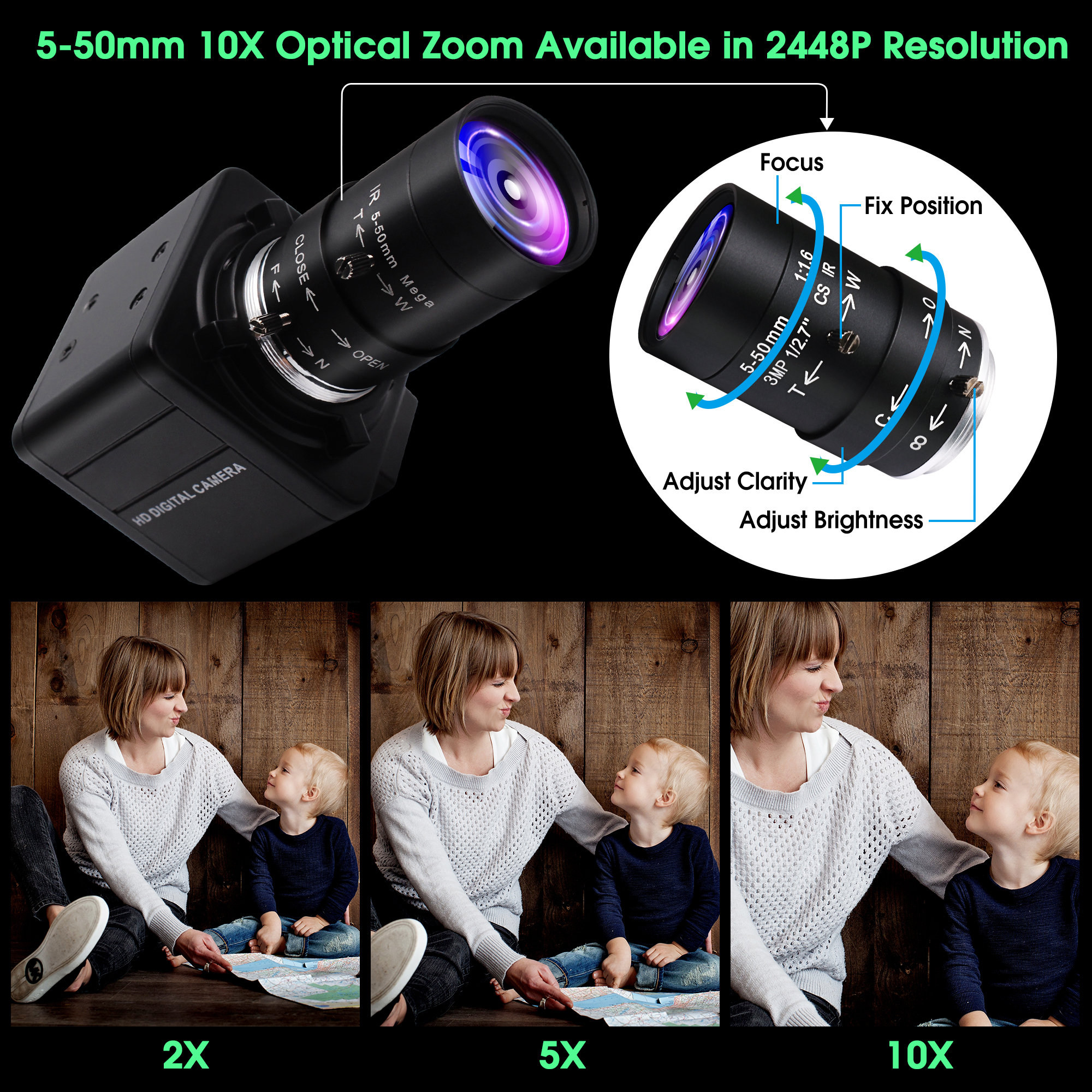

* 5-50mm varifocus CS lens,Lens changeable: 2.8-12mm lens optional
* With aluminum small box case
* Compression:H.264/Mjpeg/YUY2 (1080P and lower resolution support H.264, 3MP only Mjpeg/YUY2)
* With standard 3m cable (2m/5moptional)

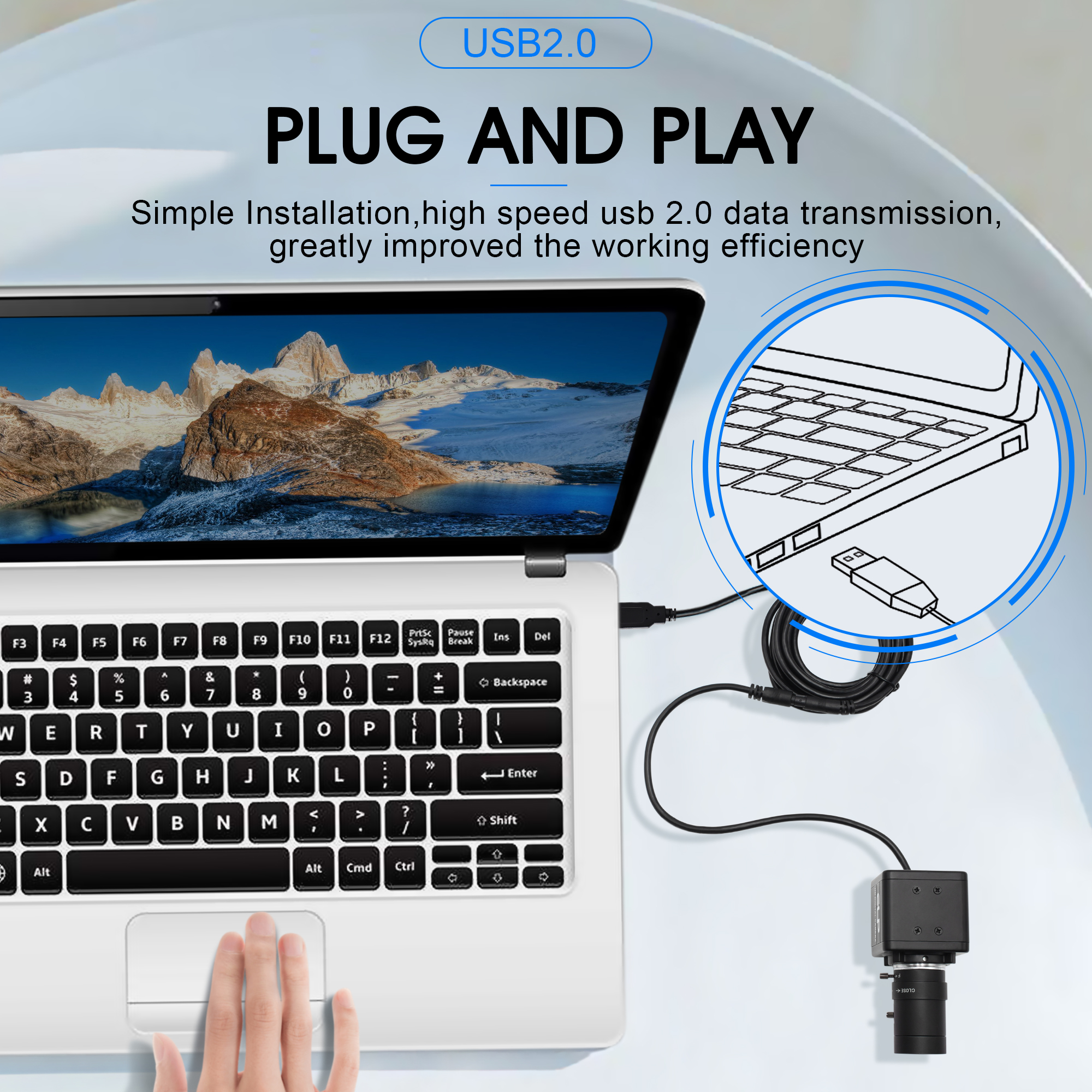

* UVC: free driver, Plug & Play
* OTG support: can connect android tablet, smartphone via OTG cable
* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.
* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..
* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera…
* Many applications, well used for printers, Vision analysis, High resolution devices, Medical machine…
Specification
|

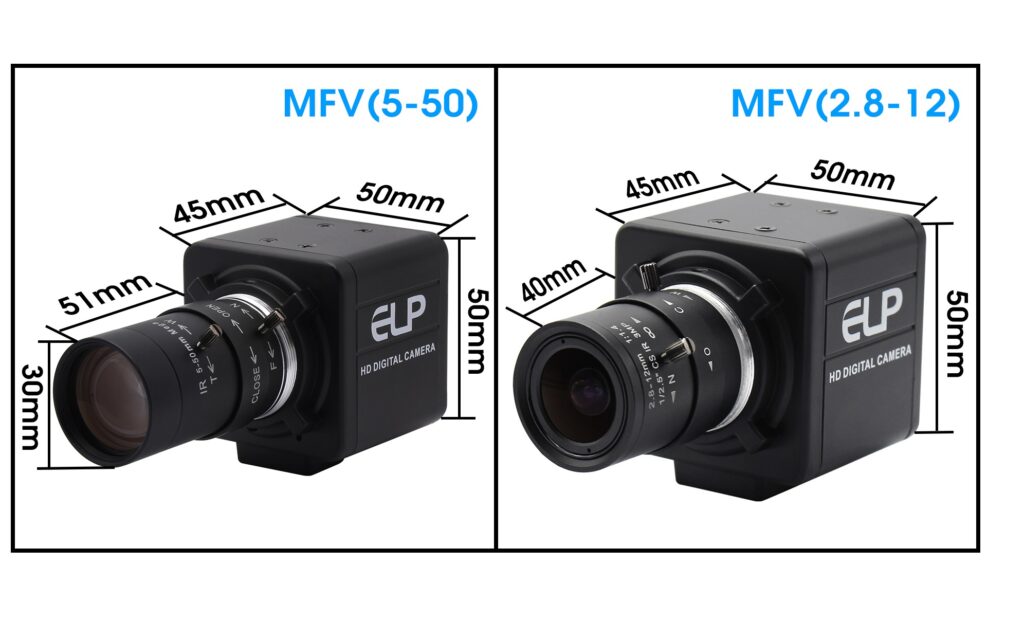

Optional Model
|
ELP-USB3MP01H-MFV (2.8-12) (2.8-12mm varifocus lens)
ELP-USB3MP01H-MFV (5-50) (5-50mm varifocus lens)
All above models, specifications are same, just lens different |
||
|
Resolution & FPS
|
H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps
MJPEG:640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@ 30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps YUV:640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@ 5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps |
||
|
Sensor
|
AR0331 Sensor
|
Connecting Port Type
|
USB2.0 High speed
|
|
Sensor Size
|
1/3 inch
|
Support free driver
|
USB Video Class(UVC)
|
|
Pixel Size
|
2.2μm x 2.2μm
|
Shutter Type
|
Electronic rolling shutter/ Frame exposure
|
|
Mini illumination
|
0.05Lux
|
AEC
|
Support
|
|
Max. Resolution
|
2048(H)x1536(V)pixels
|
AEB
|
Support
|
|
Picture format
|
H264 /MJPEG / YUV2（YUYV）
|
AGC
|
Support
|
|
Lens Parameter
|
With 5-50mm varifocus lens/2.8-12mm lens
|
Adjustable parameters
|
Brightness/Contrast/Saturation,
Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast |
|
Cable
|
Standard 3M/ Optional 2m,5m…optional
|
work temperature
|
DEGREES(-20~70)
|
|
Board Size/
Weight |
41x41mm
|
Certifications
|
FCC and CE
|
|
Dynamic Range
|
Up to 100 dB
|
Power Supply
|
DC 5V
|
|
USB Protocol
|
USB2.0 HS/FS
|
Operating Voltage
|
150mA~185mA
|
|
Night vision
|
without night vision
(Can connect IR LED board to get night vision function) |
LED board power connector
|
Support, 2P-2.0mm socket
|
|
Support OS
|
WinXP/Vista/WIN7/WIN8 /WIN9/WIN10/WIN11 etc.
Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above |
||
