Description
This is our ELP new HDMI + USB dual output zoom camera with 4K high resolution, 2.4G wireless infrared remote control, auto focus/manual focus dual switching, four scenes switching, also supports customized image switching, mirror imaging, flipping, white balance auto calibration in CB mode. Kindly check the descriptions in details as below:
Features
Specification
Remarks:
- The descriptions in this link is mainly for 12X Zoom Webcam ELP-USB4KCAM06ZF-12
- In the table below, also can find the specifications for ELP-USB4KCAM06ZF-21, It means, also can make the camera with 21X zoom.
| Model No.: | ELP-USB4KCAM06ZF-12 | ELP-USB4KCAM06ZF-21 | ||
| Zoom Range | 12X Zoom (10X Optical Zoom,1.2X Digital Zoom) |
21X Zoom (18X Optical Zoom,1.2X Digital Zoom) |
||
| Sensor | Image Sensor | SONY 4K 1/2.8 inch CMOS Sensor | ||
| Pixel Size | 2.0μm X 2.0μm | |||
| Scanning System | 4:3/16:9 Progressive Scan | |||
| Synchronization System | Internal Synchronization | |||
| Effective Resolution | 3840（H）X2160(V) | |||
| Min. illumination | 0.2 Lux | |||
| Horizontal Resolution | 1000TVL | |||
| Video Signal Output | HDMI, USB (MJPEG/YUY2/H.264/H.265) | |||
| HDMI Output | HDMI | 1920×1080@60fps | ||
| USB Output | MJPEG: | 3840×2160@ 30fps
2560×1440@ 30fps 1920×1080@ 60fps 1280×720@60fps 640×480@ 60fps |
||
| H.264/H.265: | 1920×1080@ 30fps
1280×720@ 30fps 640×480@ 30fps |
|||
| YUY2: | 1920×1080@ 5fps
1280×720@ 10fps |
|||
| Optical | Lens | 10X Optical Zoom F=4.8mm-48.2mm | 18X Optical Zoom F=5.4mm-97.2mm | |
| Zoom Speed | Wide~Tele: About 3.0s
Tele~Wide: About 2.6s |
Wide~Tele: About 4.2s
Tele~Wide: About 3.8s |
||
| Focus Mode | Auto/Manual | Auto/Manual | ||
| Focus Range | About 10cm~∞(Wide)
About 50cm~∞(Tele) |
About 10cm~∞(Wide)
About 120cm~∞(Tele) |
||
| Field of View Angle | About 72°(Wide)
About 7.2°(Tele) |
About 65°(Wide)
About 3.6°(Tele) |
||
| Function | Automatic Aperture | Auto/Manual | ||
| Exposure | Auto/Manual | |||
| White Balance | Auto/Manual | |||
| Electronic Rolling Shutter | 1/2~1/10000(s) | |||
| Remote Control | 2.4G wireless remote control | |||

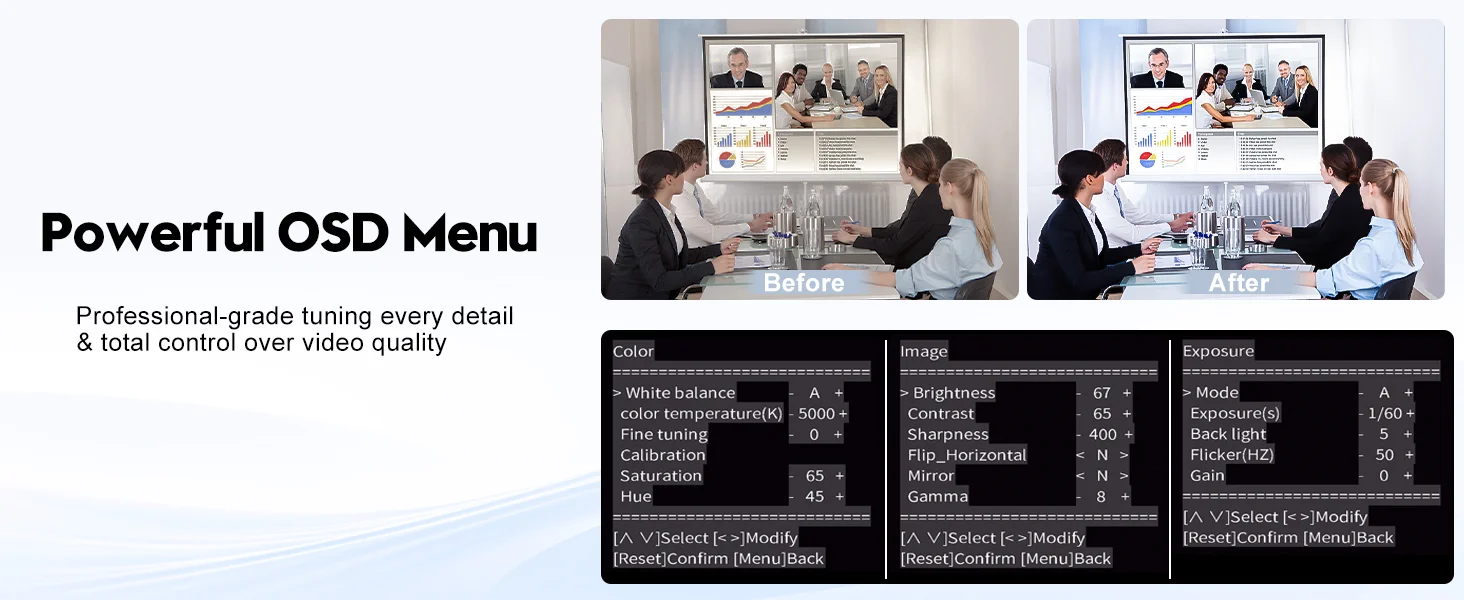

| Menu | Function menu in Chinese and English | |||
| Noise Reduction | 2D&3D noise reduction | |||
| Other Functions | Gamma, Mirror Image, Flips, Anti-flicker | |||
| Communication Mode | Standard UVC protocol | |||
| Display Modes | I. USB Output II. HDMI Output III. USB Output +HDMI Output Simultaneous |
|||
| Working Temperature | -20°C~60°C | |||
| Power Supply | DC 5V, 2A | |||

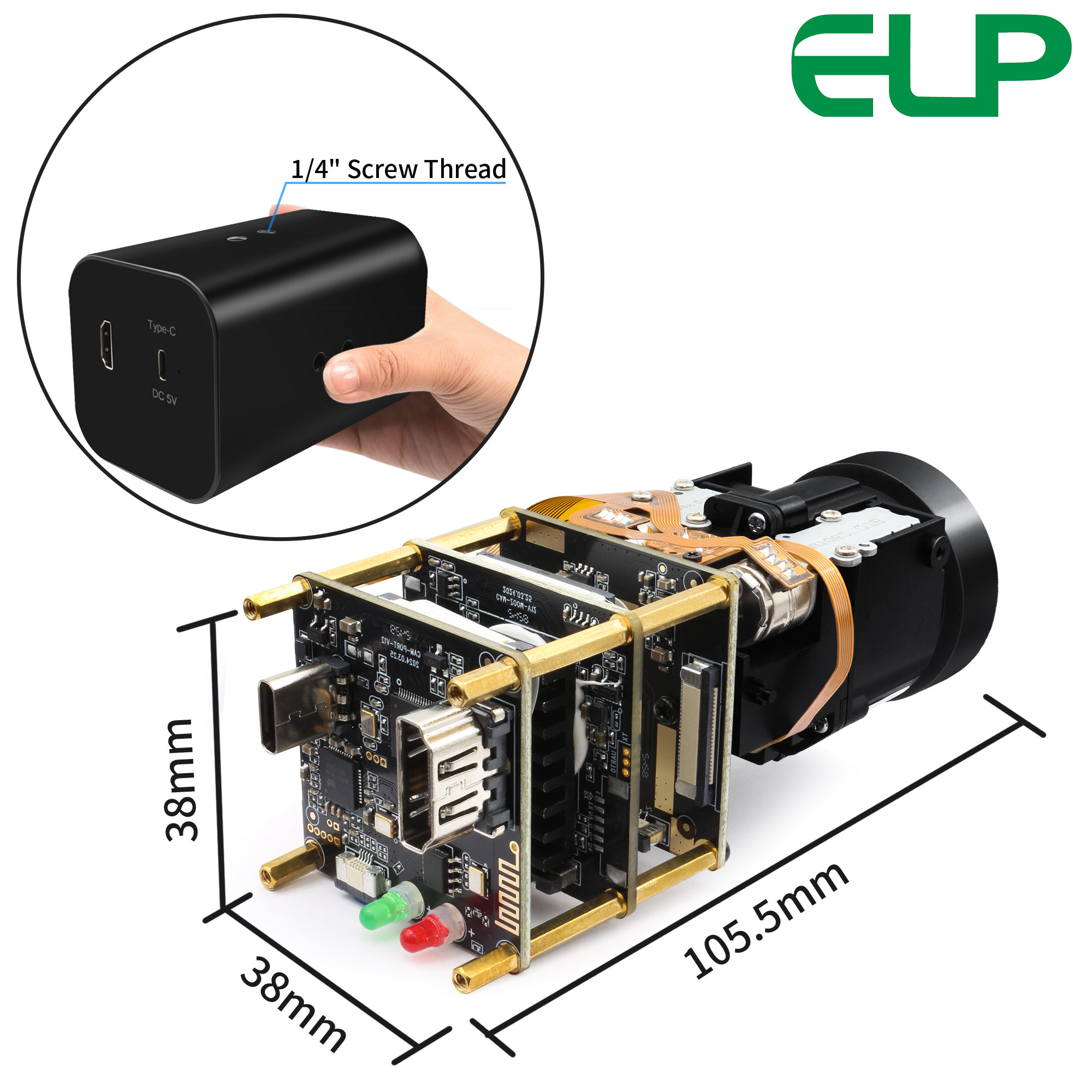

| Size | Metal Case, 66.5×66.5×104.3mm/ about 330g | |||
| USB Cable | 3m cable with Type-C & USB 3.0 port
(If need camera module without case, then supply 1.5m usb cable) |
|||
| HDMI Cable | 1.5m cable with HDMI ports(for camera module without case)
3m cable with HDMI ports (for camera with case) |
|||
| Operating System Request | Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC MAC-OSX10.4.8 or later Android5.x or above |
|||

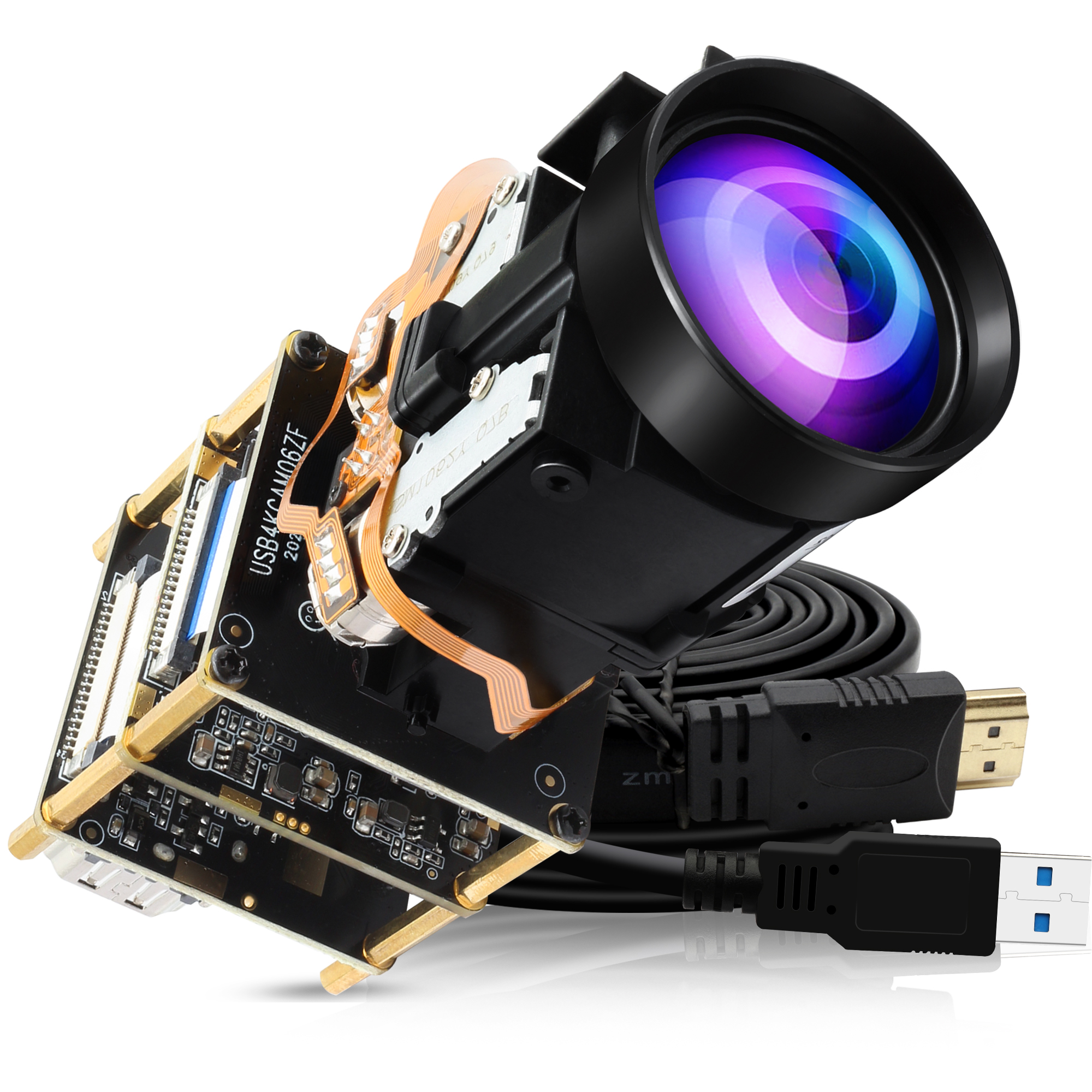

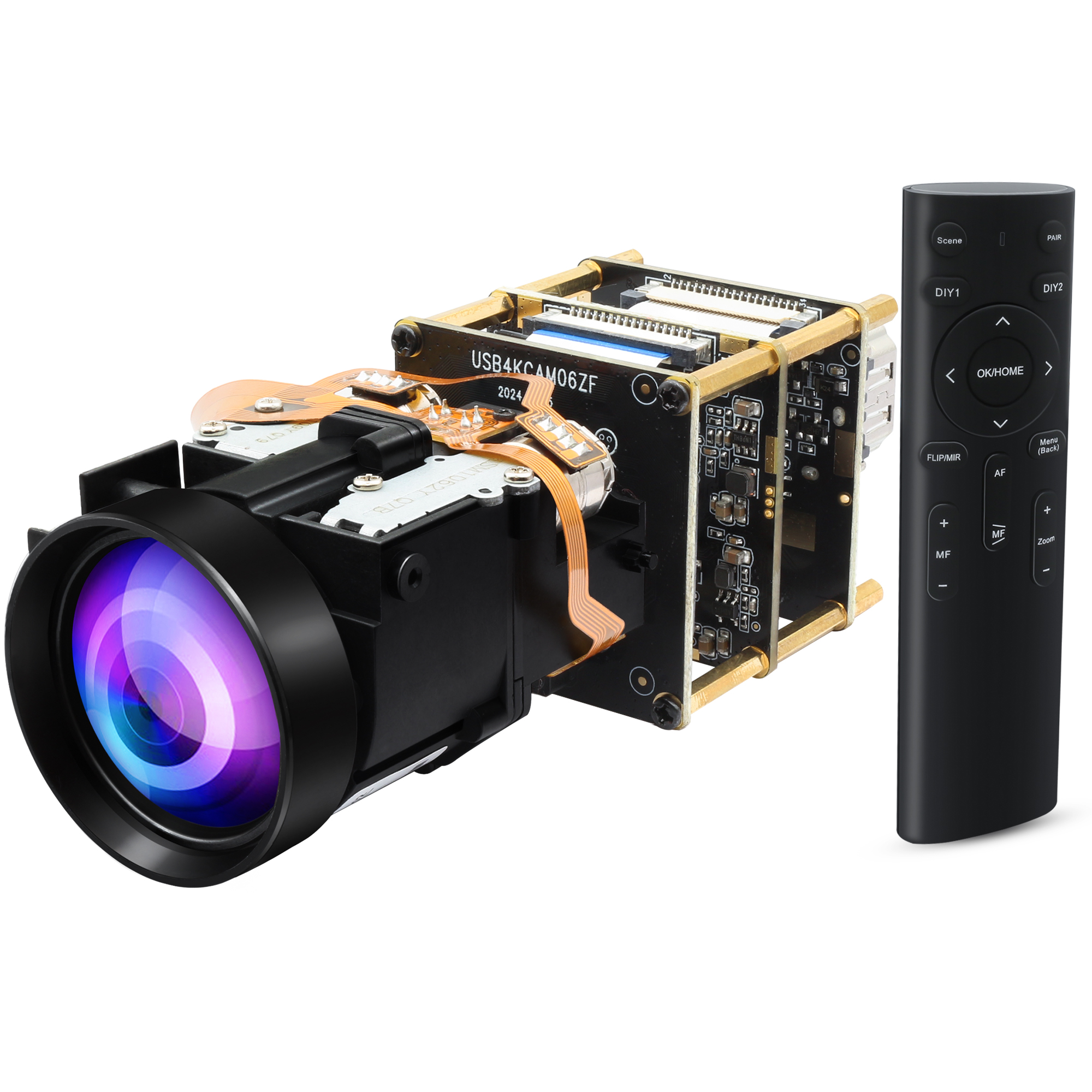

Product Display

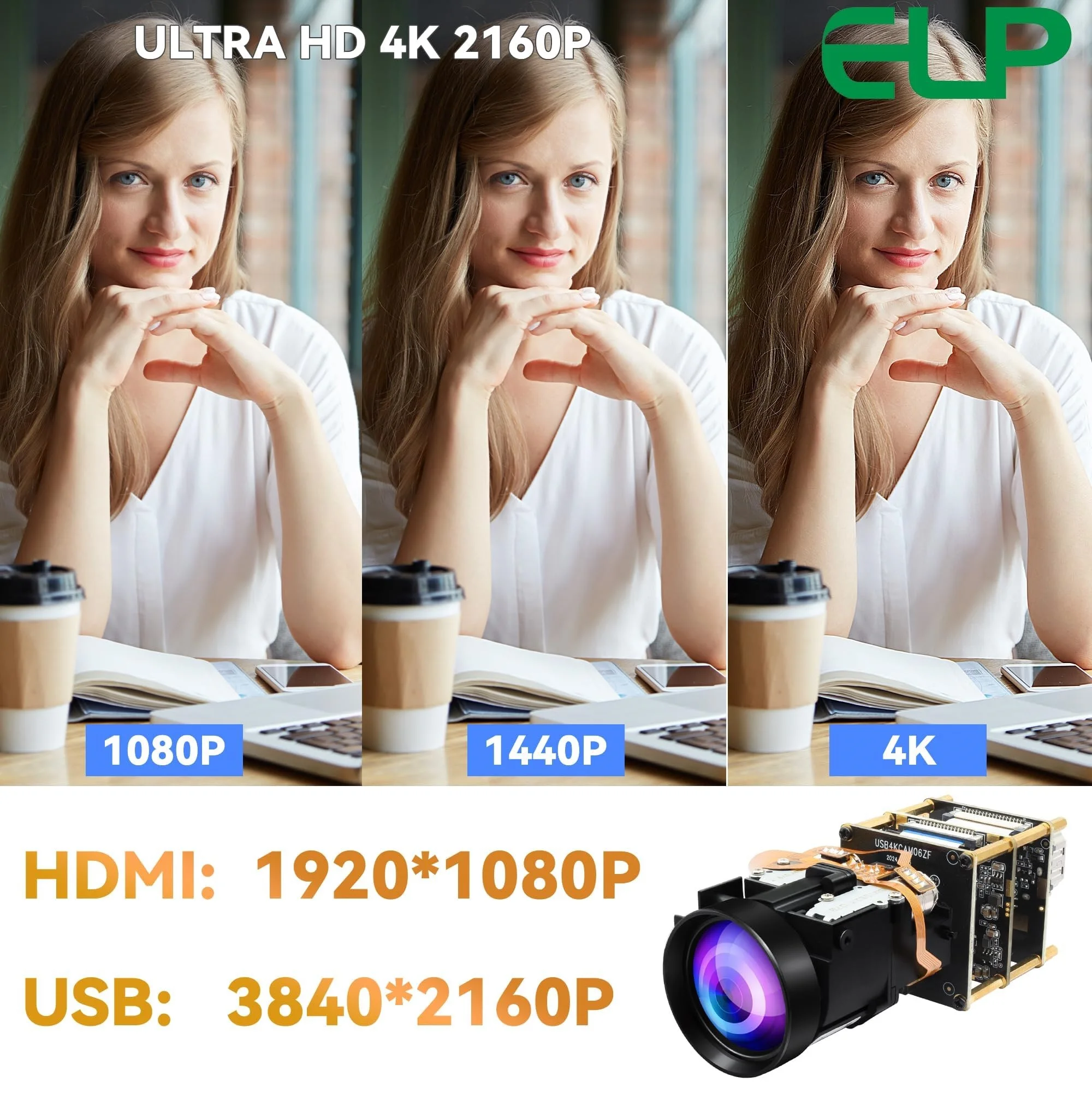

1. Superior Image Quality & Resolution
* 4K Ultra HD Resolution via USB: Delivers exceptionally sharp and detailed video with a maximum resolution of 3840×2160 when connected via USB, perfect for professional applications where clarity is paramount.
* Full HD Output via HDMI: Provides a high-quality 1080p video feed with a maximum resolution of 1920×1080 through the HDMI port, ensuring excellent compatibility and performance on monitors, TVs, and projectors.
2. Powerful 12x Hybrid Zoom System
* 10x Optical Zoom + 1.2x Digital Zoom: Combines a high-precision 10x optical zoom for lossless magnification with a 2x digital zoom for getting even closer to the subject, offering a total of 12x zoom capability.
* Motorized Zoom Lens: Features a built-in motor for smooth, quiet, and precise zoom control, eliminating the need for manual adjustment.
* Flexible Control Options: Allows users to operate the zoom function either manually or automatically, seamlessly via the included remote control or companion software.
* New ISP Processor: Powered by a new Image Signal Processor (ISP) that enables not only fast focus but also a rapid zoom response, with a full zoom travel time of approximately 2.6 to 3 seconds.
3. High-Speed Performance & Advanced Video Compression
* High Frame Rate Capture: Supports fluid video output up to 4K 30fps or 1080P 60fps over USB, effectively minimizing motion blur and ensuring smooth playback for fast-moving subjects.
* Multiple Video Formats: Offers versatile streaming and recording with MJPEG, H.264, and H.265 compression formats.

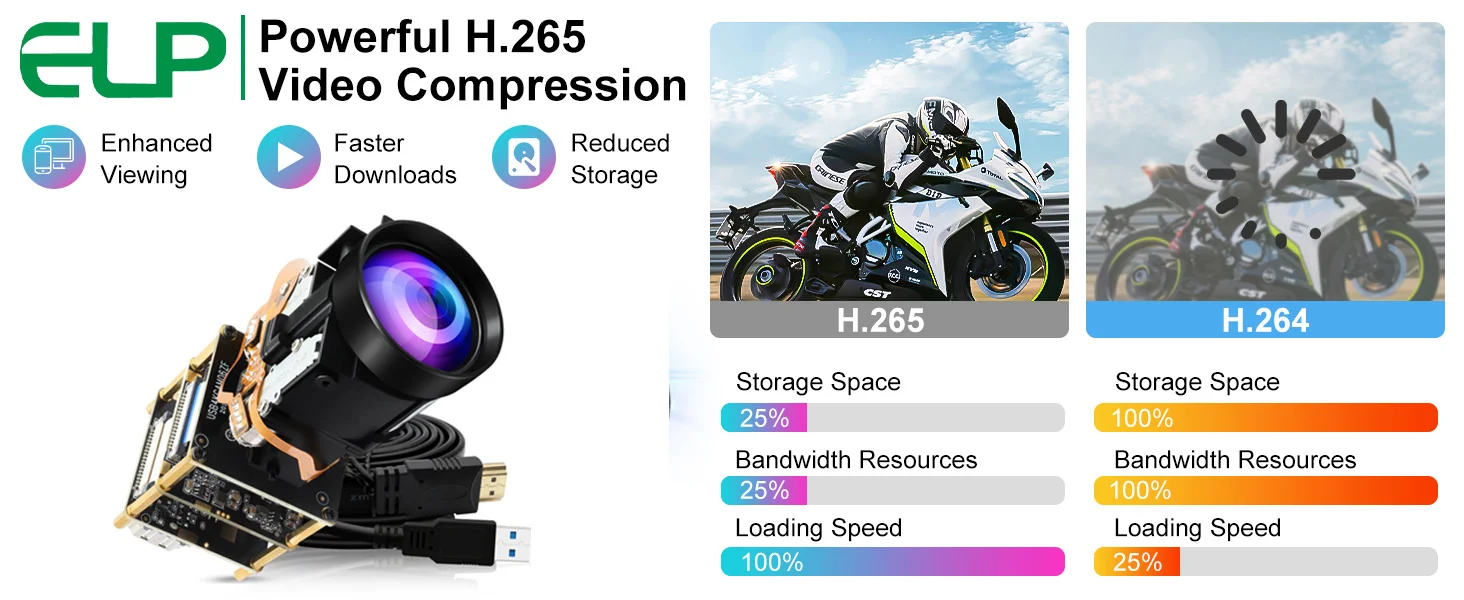

* Enhanced Bandwidth Efficiency: The advanced H.265/H.264 encoding ensures vivid and fluent motion video transmission even under challenging network conditions with low bandwidth or bitrate, optimizing storage and stream quality.
4. Lightning-Fast Auto Focus with TOF Technology
* TOF Laser Auto Focus: Integrates a Time-of-Flight (TOF) laser sensor to achieve an ultra-fast focus speed of approximately 200ms, guaranteeing that the image remains sharp and clear even when the subject distance changes.
* Dual Focus Mode Support: Provides full creative and practical control by supporting both Auto Focus and Manual Focus modes, allowing users to lock focus or make fine adjustments as needed.

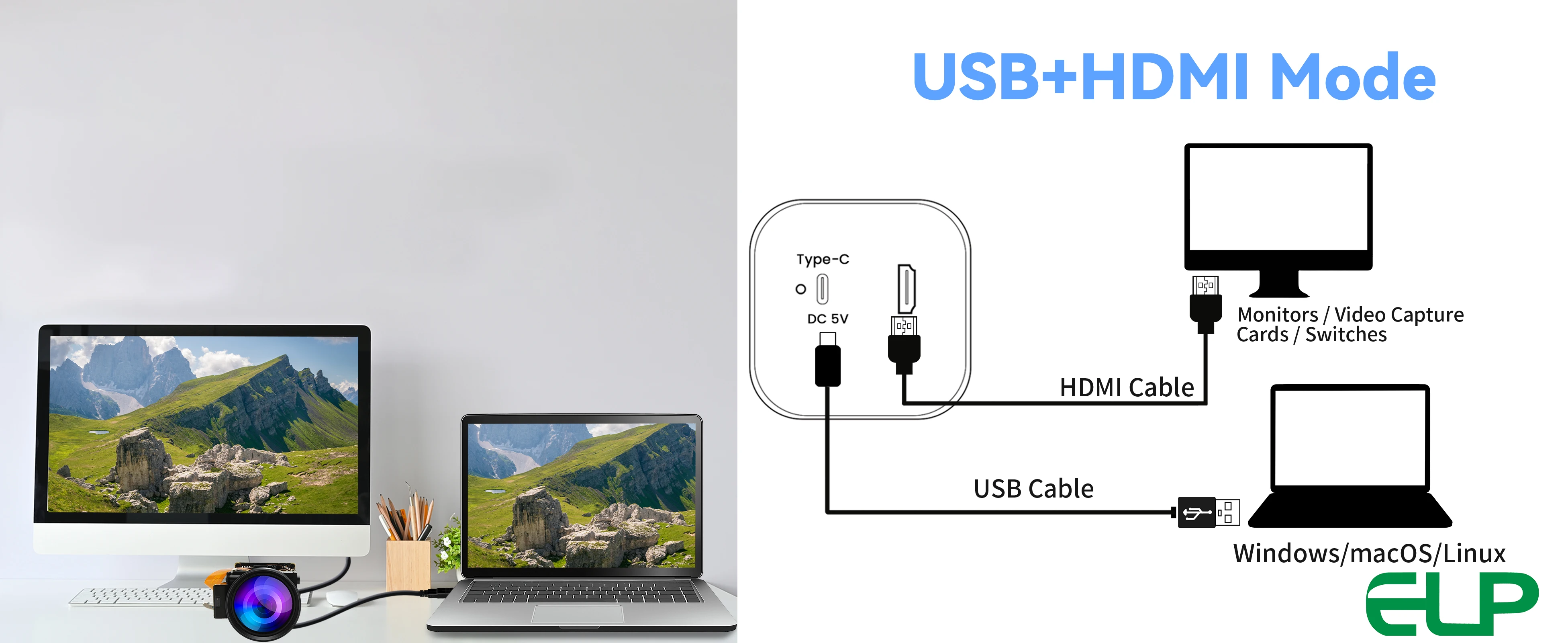

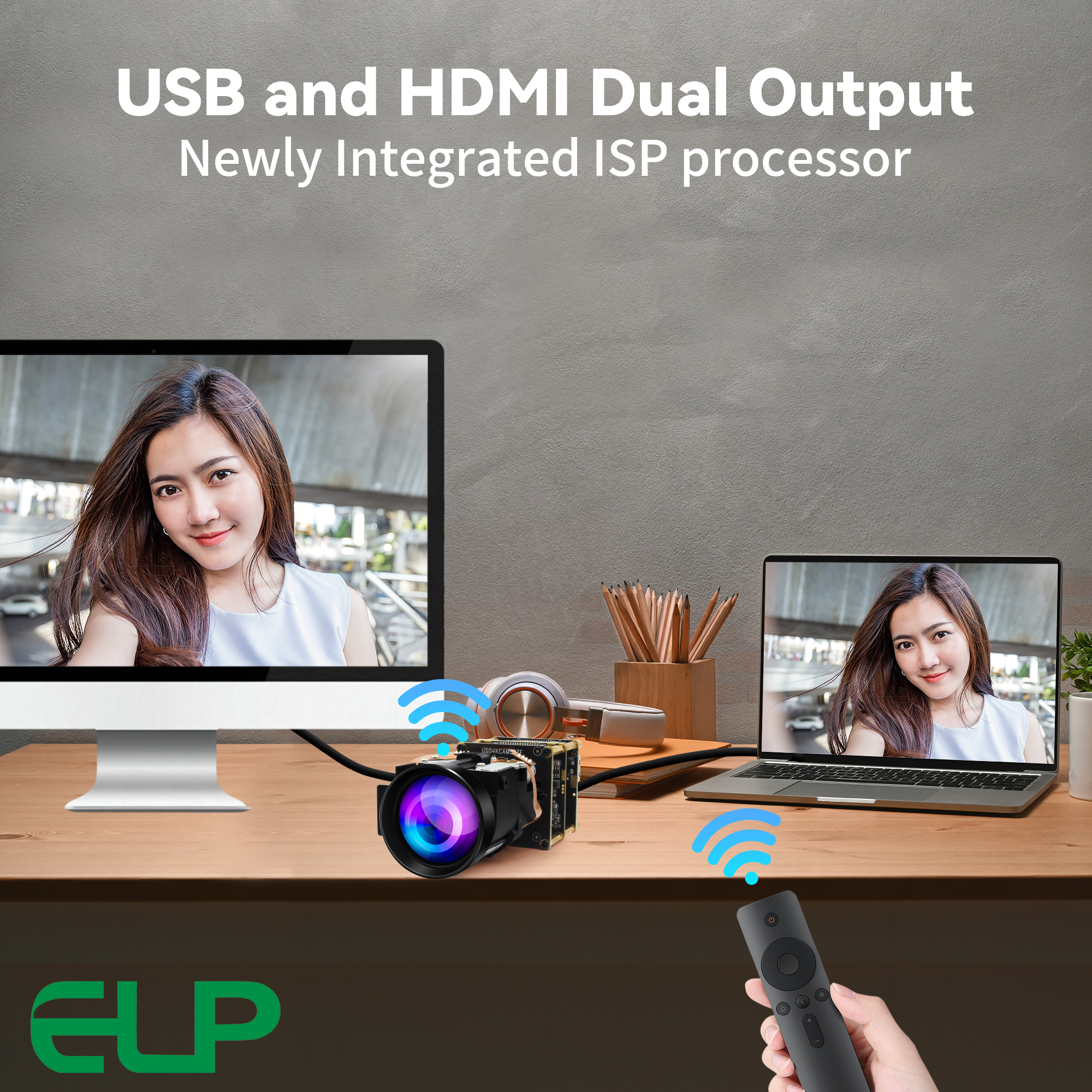

5. Dual HDMI & USB Output Flexibility
* Simultaneous Dual Output: Enables concurrent video streaming through both the USB Type-C and HDMI ports, providing maximum flexibility for multi-display setups or simultaneous recording and live viewing.

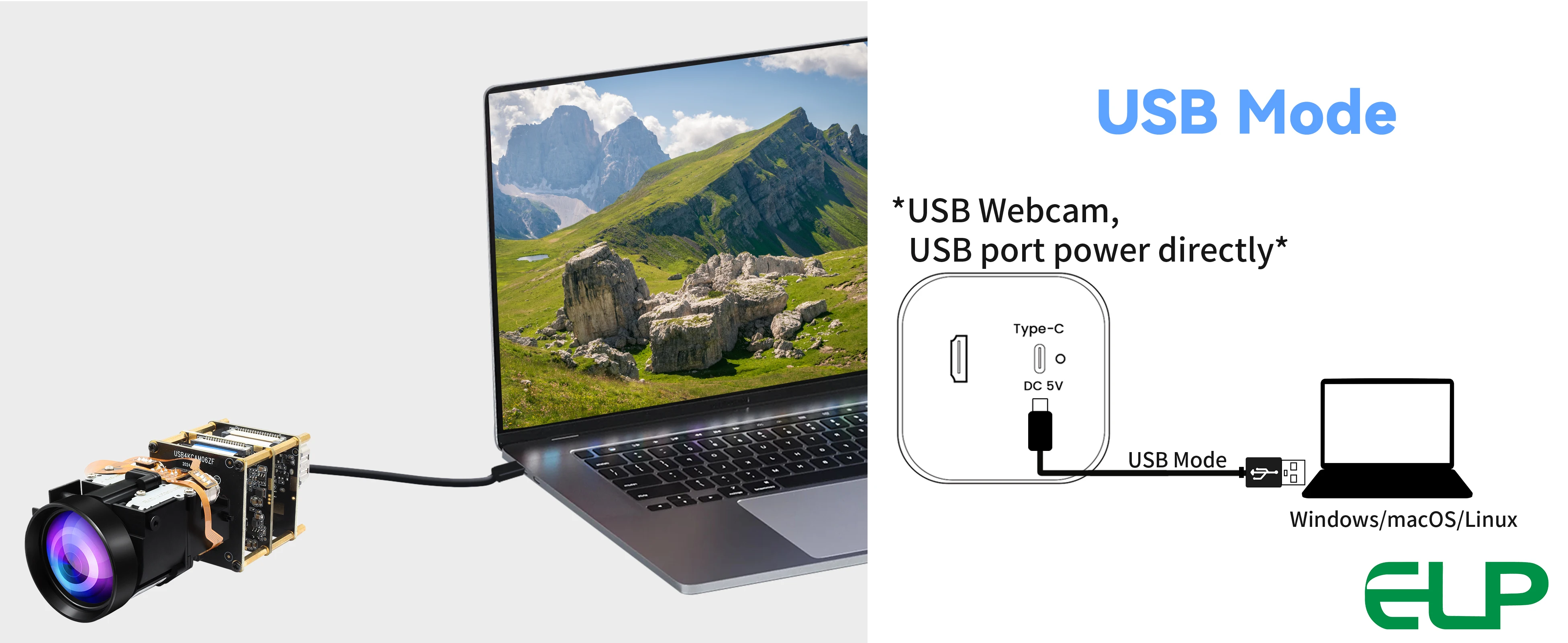

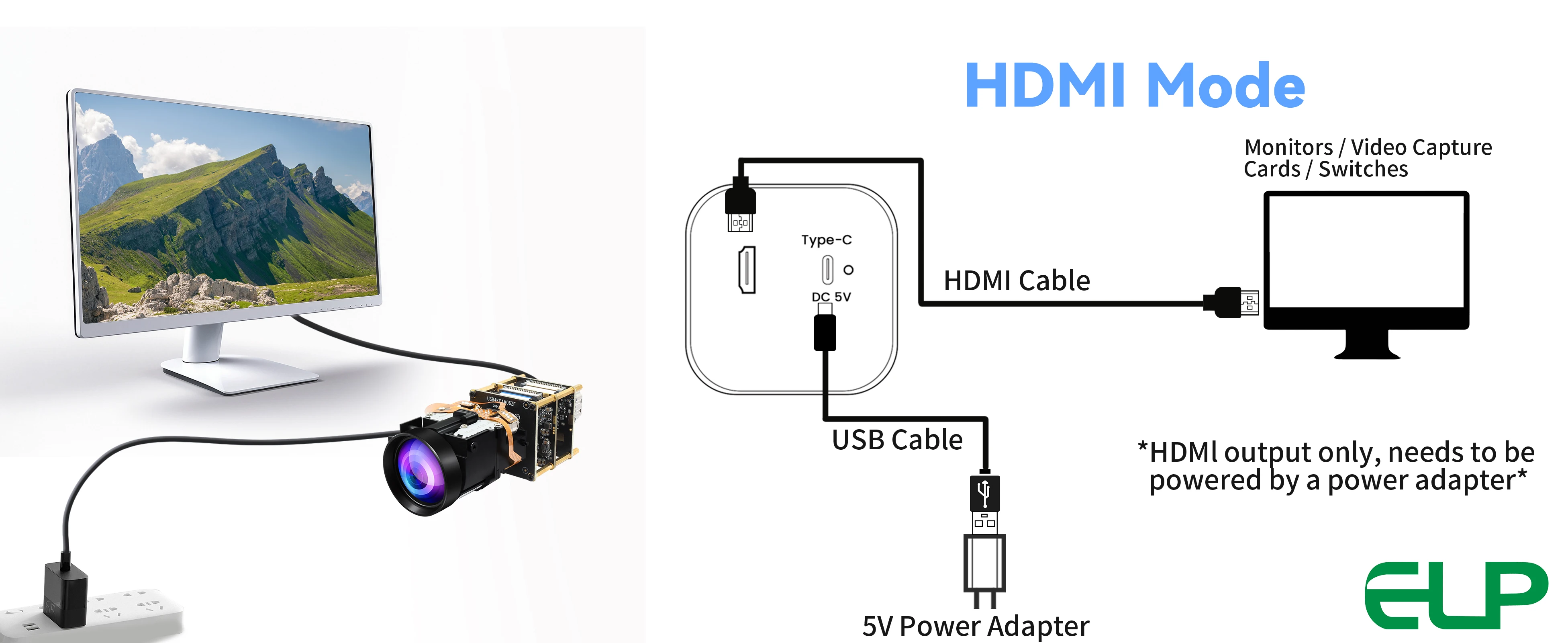

* Independent Mode Operation: Also supports using either USB Mode or HDMI Mode exclusively, allowing users to choose the best connection method for their specific setup.

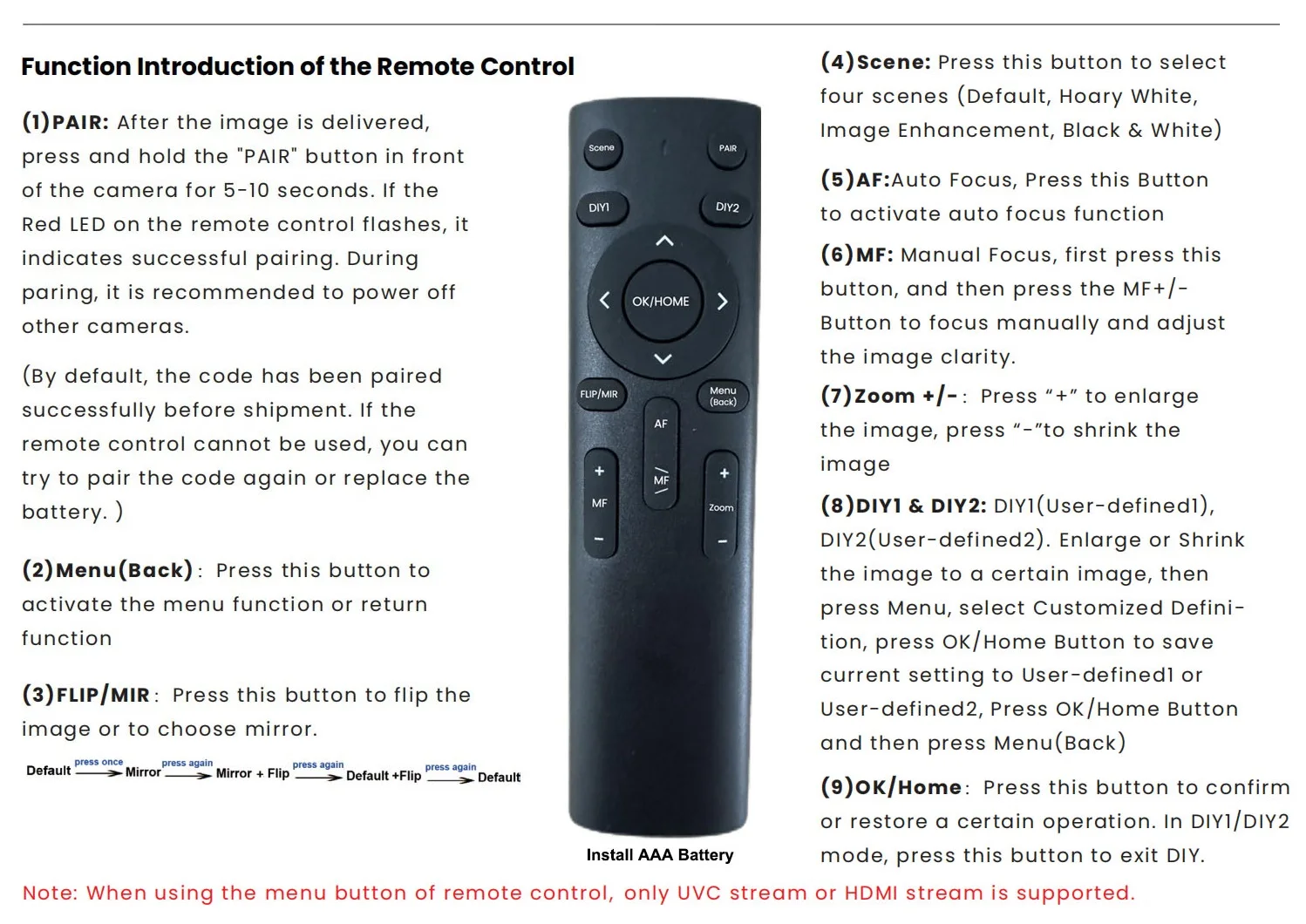

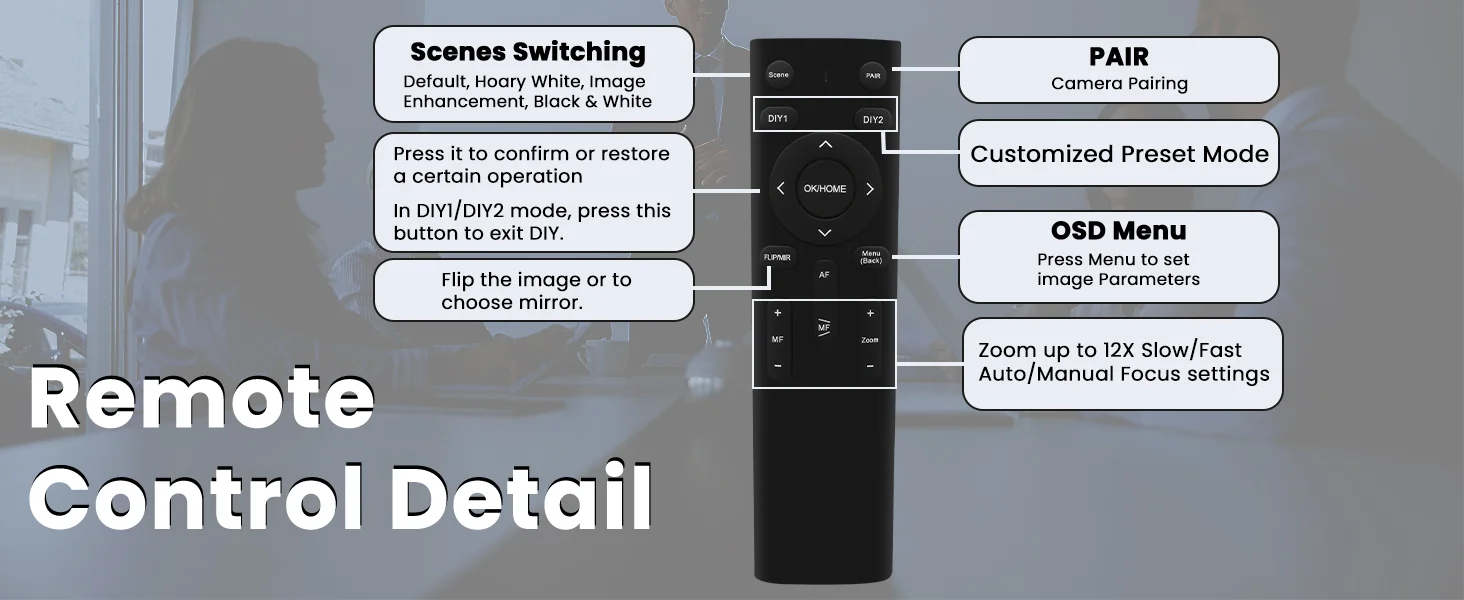

6. Comprehensive Remote Control & Camera Settings
* 2.4G Infrared Remote Control: Comes with a dedicated remote that allows for convenient wireless control of key camera functions from a distance.

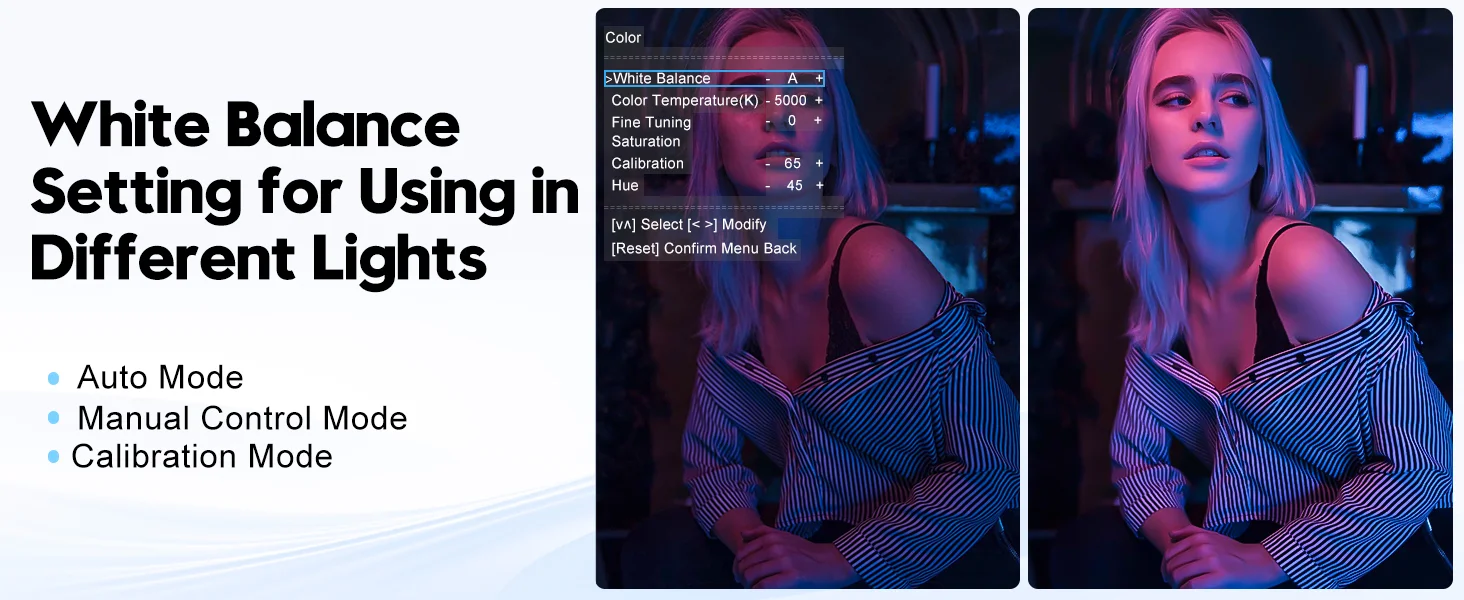

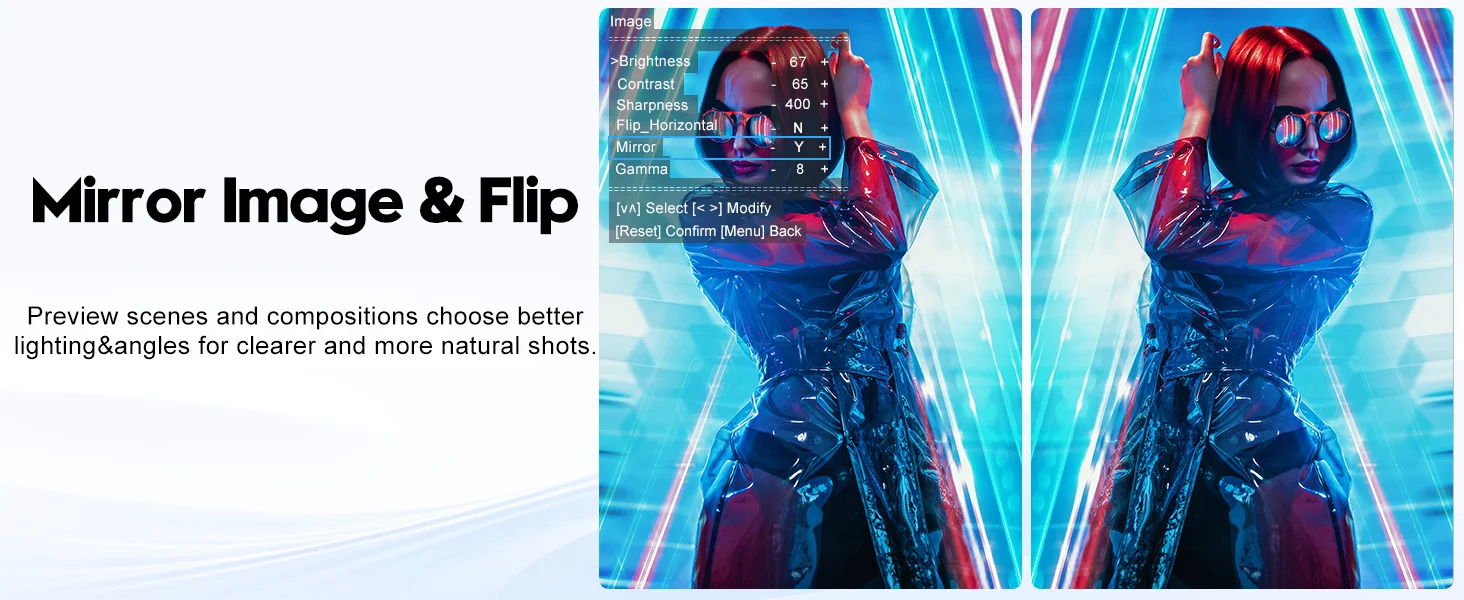

* Extensive In-Camera Adjustments: Facilitates easy switching between Auto/Manual Focus, multiple scene modes, and custom image profiles. Also supports one-touch image restore, Mirror Imaging, Flipping, and white balance auto-calibration for perfect image setup.
7. True Plug-and-Play Convenience
* UVC Compliance: Adheres to the USB Video Class (UVC) standard, which means it is universally compatible and requires no additional drivers to function with most operating systems, including Windows, macOS, and Chrome OS.
* Instant Setup: Simply connect the camera to a PC, laptop, monitor, display, projector, or smart TV via USB or HDMI to start video capture or streaming immediately.
8. Versatile Mounting Options & Wide Application
* If you choose the option with case, Multiple Mounting Solutions: Designed with universal adaptability, supporting installation on desktops, monitors, walls, tripods, and inverted ceilings, making it suitable for virtually any location.
* Broad Range of Uses: Ideally suited for a wide spectrum of professional and personal applications, including video calling, live streaming, video conferencing, online courses, telemedicine, remote training, security surveillance, visual inspection, quality control, 3D scanning, and crop monitoring.
