Description

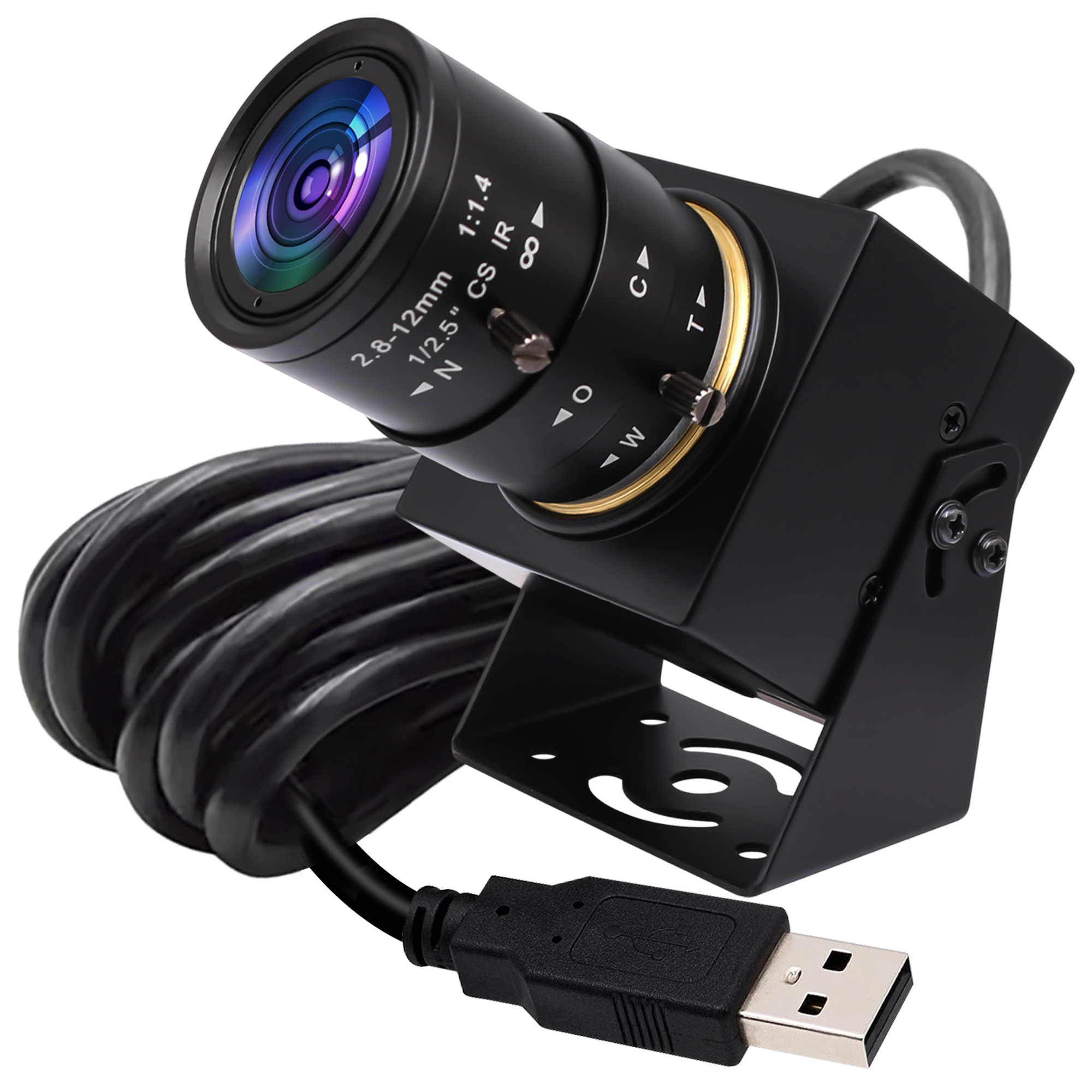

ELP-USBGS5MP01-UFV (2.8-12) is a 5 megapixel global shutter USB camera designed for industrial machine vision. It features a 1/2.5 inch OmniVision OG05B10 sensor with a maximum resolution of 2592×1944, supporting MJPEG and YUY2 outputs. The camera achieves 50fps at 5 MP resolution and 60fps at 1080P resolution, equipped with a 2.8–12 mm manual zoom lens with adjustable field of view. Compliant with the USB 2.0 driverless UVC protocol, it is compatible with Windows, Linux, Mac, and Android systems, making it ideal for high-speed motion capture, object detection, industrial inspection, license plate recognition, and machine vision applications.
Package Includeds
1) 1PC 5MP global shutter color usb camera
2) 1PC 3m usb cable (2M/3M/5MOptional )
Mini size, Lightweight and convenient. Portable and suitable for various scenarios.
Features
1) Global Shutter Sensor – OmniVision O05B10 Color Global Shutter Sensor without Distortion or Lag
2) 60FPS High Frame Rates – 2592×1944 5MP 50FPS, 2592×1440 60FPS, 1920×1080 60FPS
3) 5MP Full HD Resolution – 5MP Max Resolution 2592X1944 for High quality Still Picture & Video
4) 2.8-12mm(4X)/3.6-10mm(3X)/5-50mm(10X) varifocus CS lens Optional
5) Mini Compact PCB Board Size – Suitable for Many Embedded Application
6) Adjustable Features – many parameters adjustable, allows you customize the camera’s performance according to your needs.
7) Ease of Use – Free driver,simply connect to a USB port then Plug & Play, No need additional hardware, driver or complex setup processes
8) Easy Integration & High Compatibility – Support Android, Windows, Linux. Mac OS etc. compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms
9) Wide Applications – Automatic Number Plate Recognition (ANPR), Autonomous Mobile Robots (AMR), Gesture Recognition, Robotic Vision, Drones, Bar code Scanner, Factory Automation, Conveyor Monitoring Cameras, and Traffic Monitoring Systems etc.

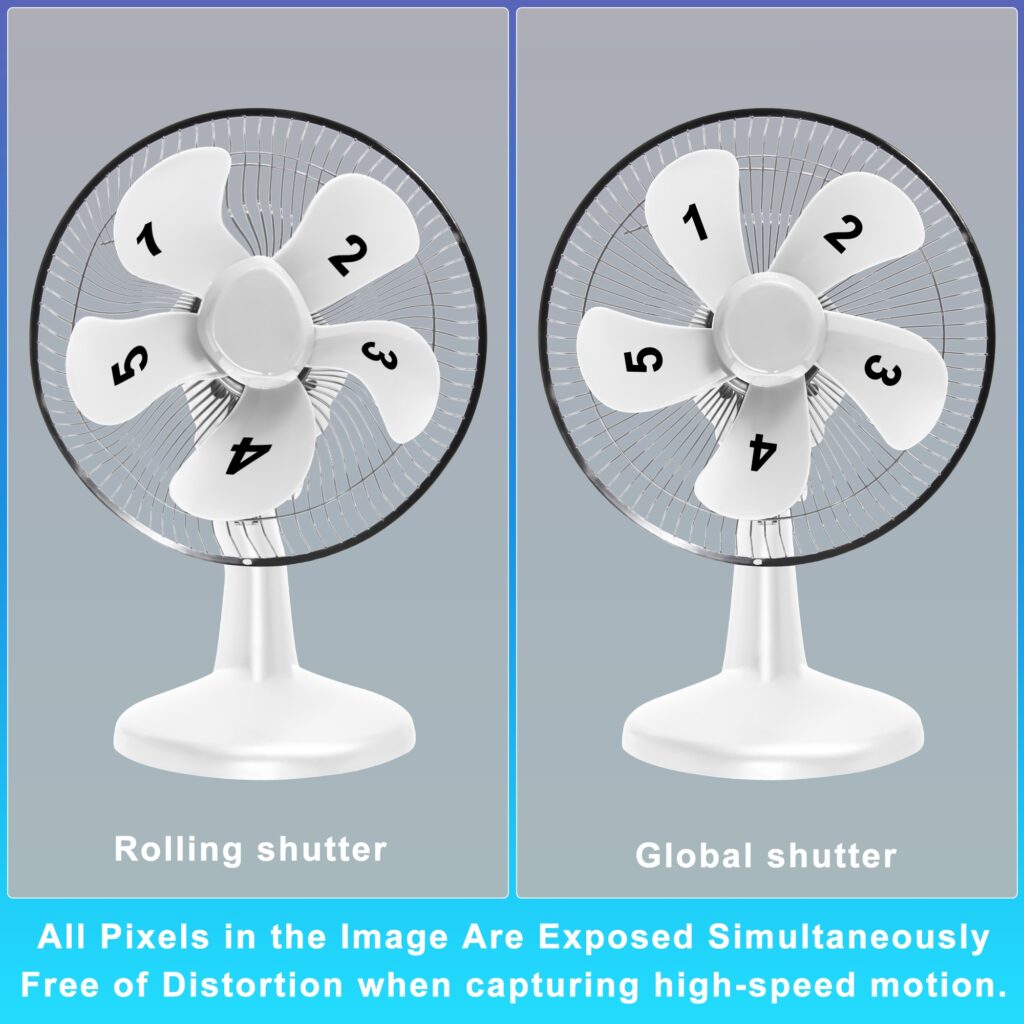

Why choose global shutter?
A global shutter (total shutter) camera can captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.It can avoid smearing when when capturing high-speed motion.
Specifications
| Model | ELP-USBGS5MP01-UFV(2.8-12) (2.8-12mm 4X varifocus lens) |
| Optional Models | ELP-USBGS5MP01-MFV(5-50) (5-50mm 10X varifocus lens)
ELP-USBGS5MP01-MFV(3.6-10) (3.6-10mm 3X varifocus lens) |
| Sensor | 1/2.5”OmniVision OG05B10 (Global Shutter) |
| Max Resolution | 2592 (H) *1944 (V) |
| Sensor Size | 1/2.5 inch (4:3) |
| Pixel Size | 2.2μm x 2.2μm |
| Image Array Area | 5737μmx4312μm |
| Image Format | MJPEG / YUV2 (YUYV) |
| Resolution & Frame Rate | 2592×1944 @ 50fps MJPEG / 2592×1440 @ 60fps MJPEG
2560×1440 @ 60fps MJPEG / 2304×1296 @ 60fps MJPEG 2048×1536 @ 50fps MJPEG / 1920×1080 @ 60fps MJPEG 1600×1200 @ 50fps MJPEG / 1600×900 @ 60fps MJPEG 1280×960 @ 50fps MJPEG / 1280×720 @ 60fps MJPEG 1024×768 @ 50fps MJPEG / 1024×576 @ 60fps MJPEG 960×720 @ 50fps MJPEG / 960×540 @ 60fps MJPEG 800×600 @ 50fps MJPEG / 800×450 @ 60fps MJPEG 848×480 @ 60fps MJPEG / 640×480 @ 50fps MJPEG 640×360 @ 60fps MJPEG |
| Surface Mount Technology | SMT |
| Central Definition | 1000LW/ PH (Center) |
| S/ N Ratio | 38dB |
| Dynamic Range | 72dB |
| Focus | Fixed Focus |
| Sensitivity | 1.4V/lux-sec@550nm |
| Min illumination | 0.1 lux |
| Shutter Type | Global Shutter |
| Connecting Port Type | USB2.0 High Speed |
| AEC/ AWB/ AGC | Support |
| Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Exposure |
| Lens Parameter | 2.8-12mm/3.6-10mm/5-50mm varifocus CS lens Optional |
| Power Supply | USB BUS POWER 4P-2.0mm Socket |
| Operating Voltage | DC 5V |
| Working Current | 180mA- 230mA |

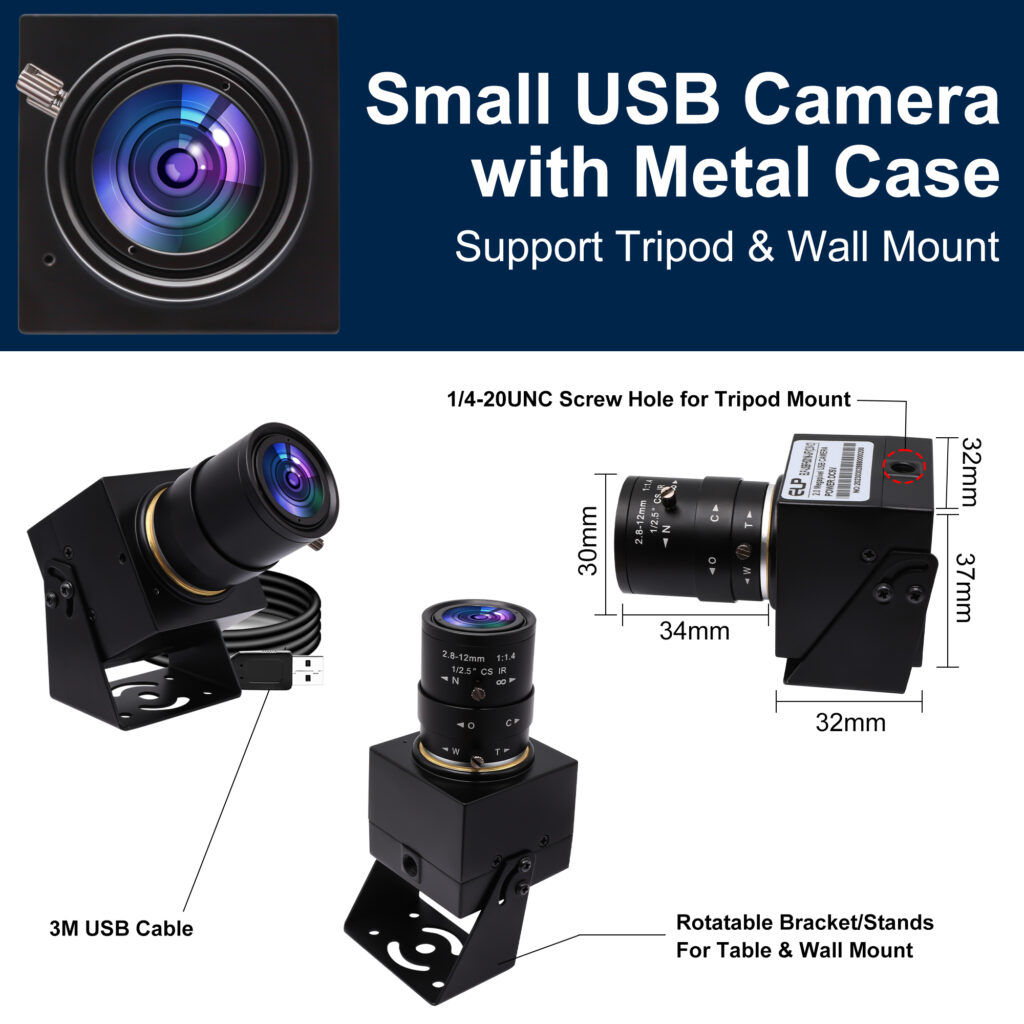

| Dimension | 38mm x 38mm |
| Storage Temperature | -20°C to 80°C |
| Working Temperature | 0°C to 60°C |
| USB Cable | Standard 3m, optional 2m/3m/ 5m |
| Operating System Request | Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.
Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
Product Display
The 5MP USB Camera equipped with 1/2.5″ OmniVision OG05B10 Color CMOS Sensor and max resolution 2592(H)x1944(V), this camera module captures sharp, vibrant images, making it perfect for a wide range of application.
High Frame Rates – 2592×1944 5MP 50FPS, 2592×1440 60FPS, 1920×1080 60FPS
enabling dynamic capture without blur, and is compatible with moving object monitoring.

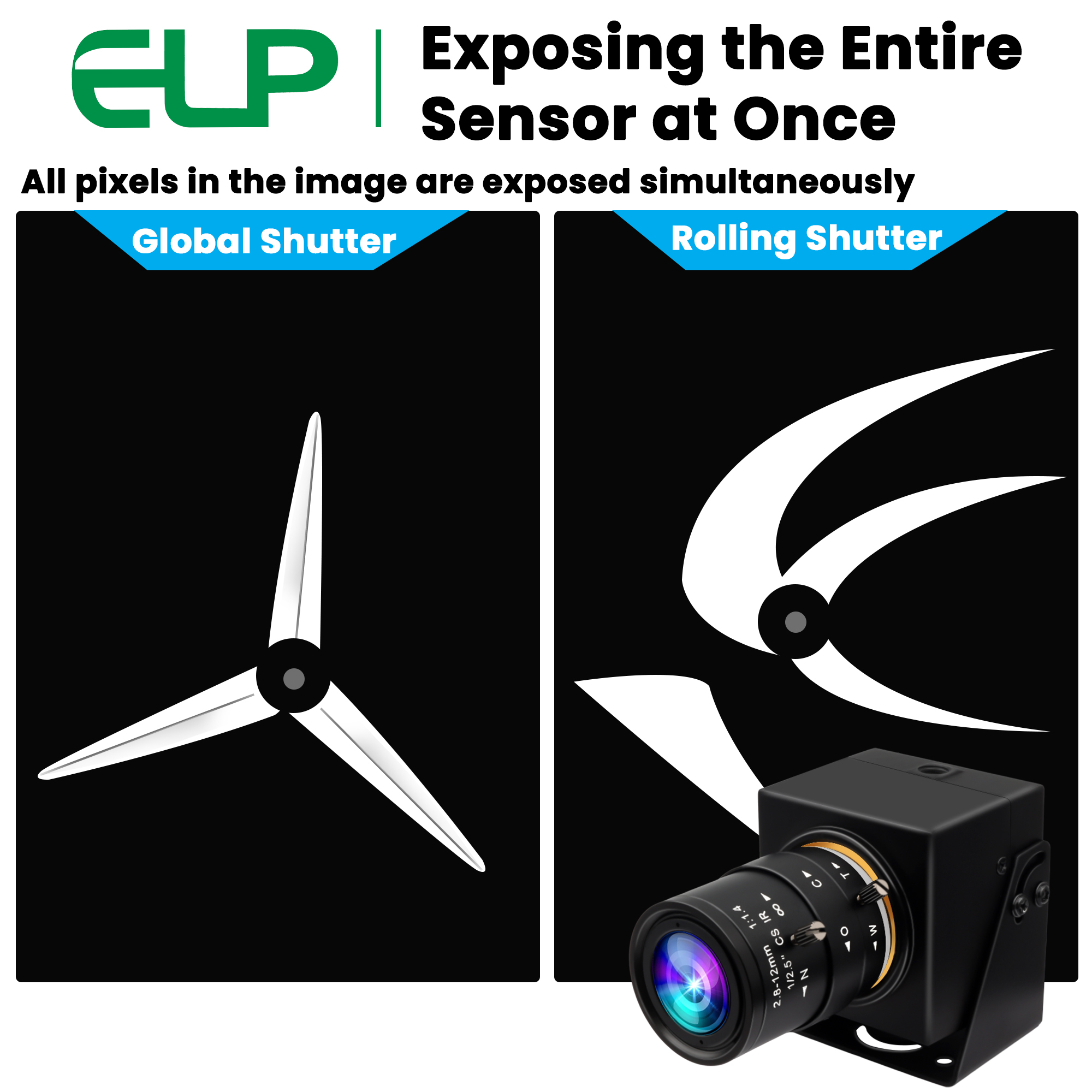

Global Shutter:
Our advanced high speed global shutter usb camera,designed to deliver exceptional performance with its high-speed capabilities. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras

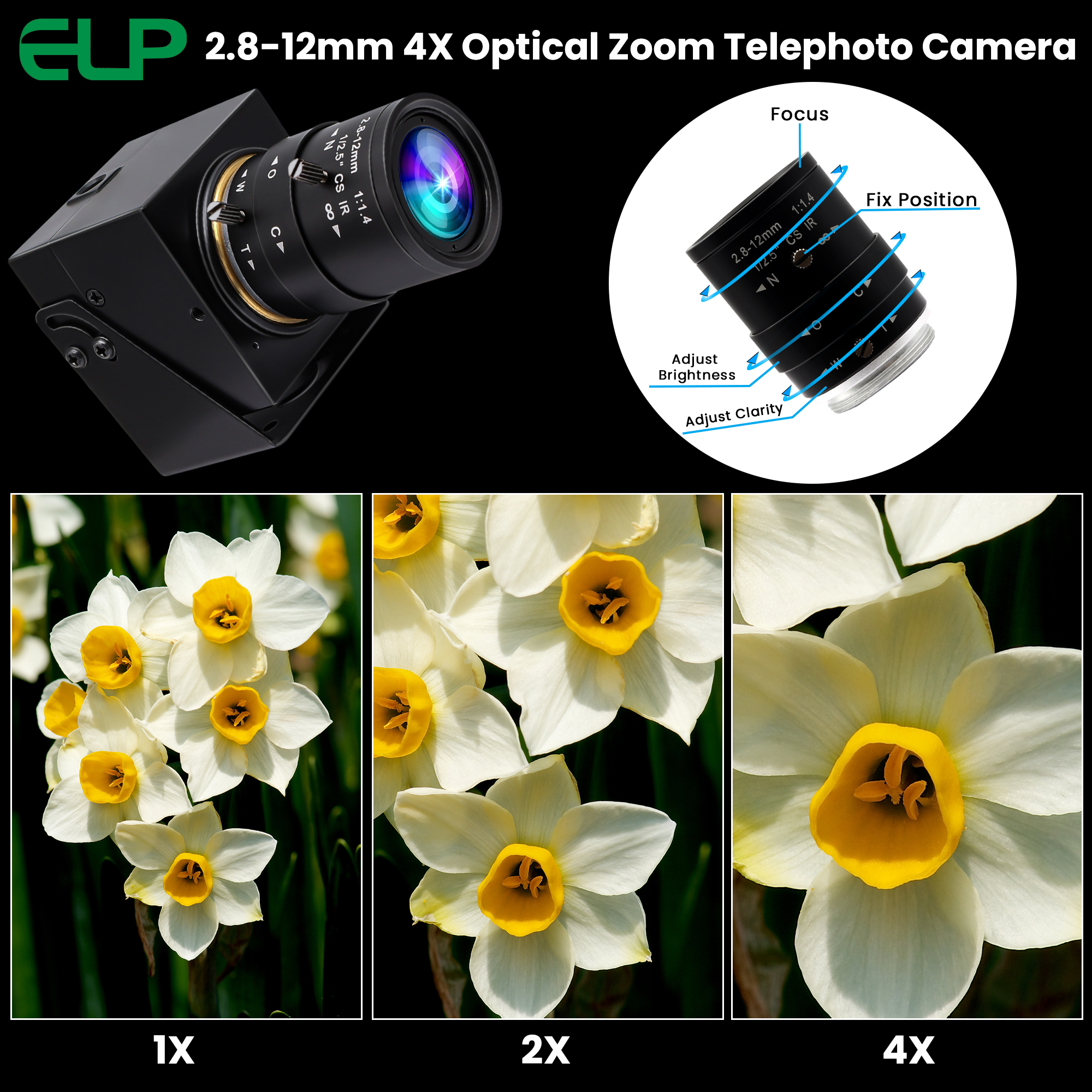

2.8-12mm(4X) / 3.6-10mm(3X) / 5-50mm(10X) varifocus CS lens Optional.
The varifocal design allows you to smoothly adjust from a wide 2.8mm field of view to a telephoto 12mm view . This versatility means one lens can handle both overview shots and close-up detail inspection

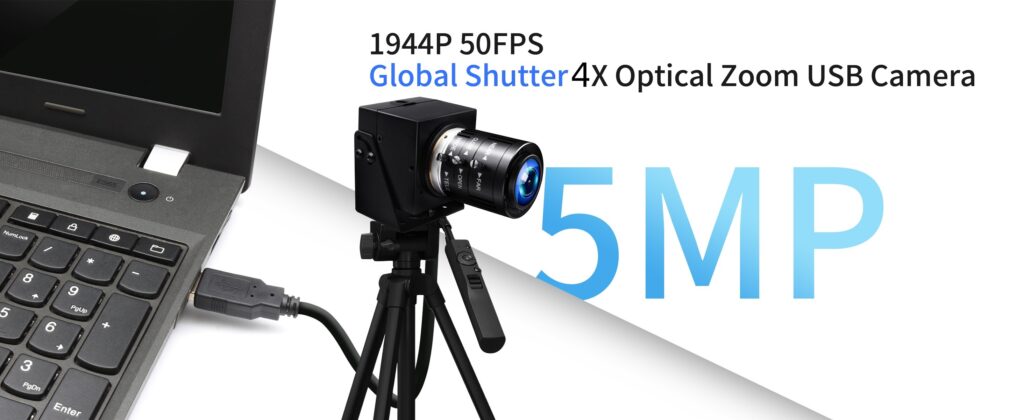

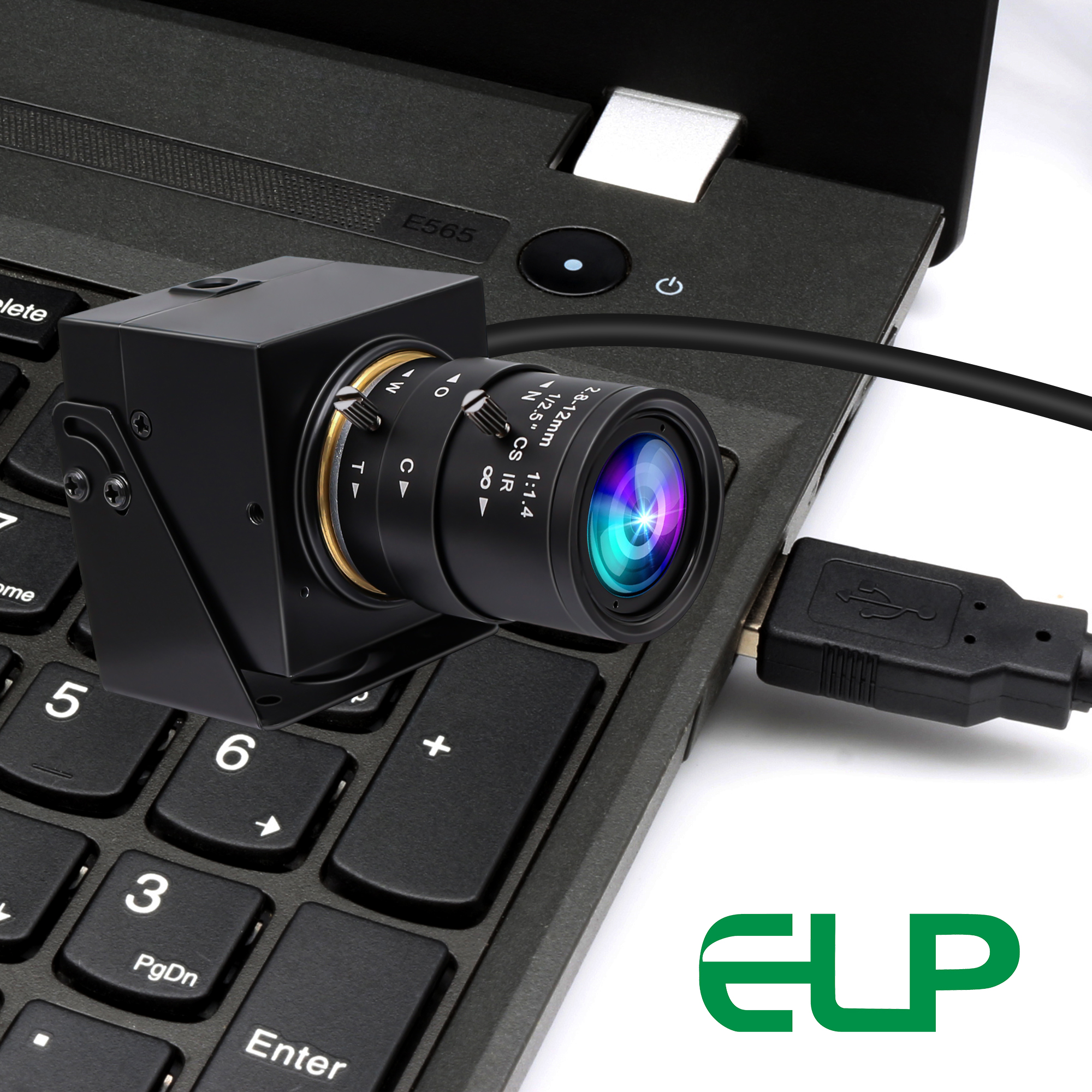

UVC free driver, Plug & Play

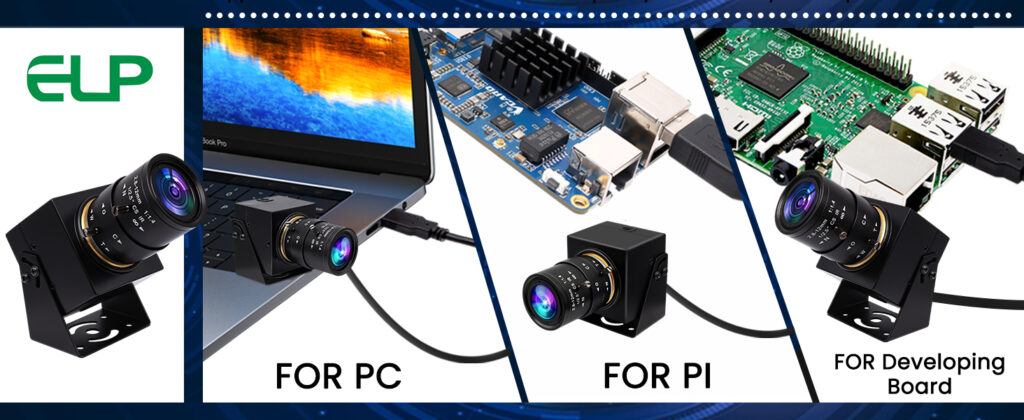

This UVC-compliant device requires no additional drivers. Simply connect it to your PC, laptop, Android device or Raspberry Pi via USB and start capturing immediately.FOR RASPBERRY PI:
It can work with already preinstalled camera software instead of builtin camera.
Support Android development board,Raspberry Pi development board,Jetson Nano,etc.
FOR PC:
Support windows, linux, mac, Android, raspberry Pi
Very easy to use, UVC compliant, free driver, just plug in and go.
Broad OS Compatibility
Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS…
Support living streaming software, Skype, Zoom, Facetime, Youtube…
Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2….

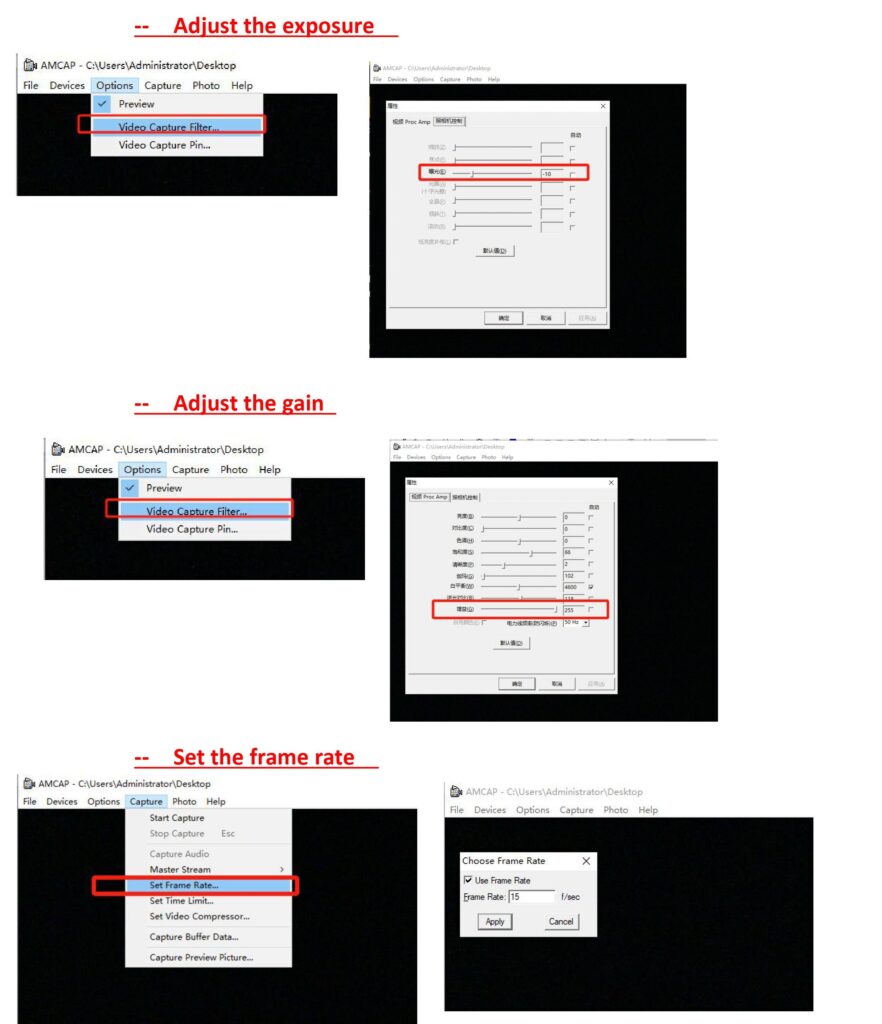

Adjustable Features
many parameters adjustable, allows you customize the camera’s performance according to your needs.
you can adjust them with different value for test.
Please also using the camera under the strong enough light.
Applications
Global shutter cameras are commonly used in applications where distortion is a concern, such as in sports photography or industrial inspection, general photography or video applications, industrial automation, robotics, or scientific imaging, gesture and eye tracking, iris and physiognomy recognition, depth and motion detection, etc.
