Description

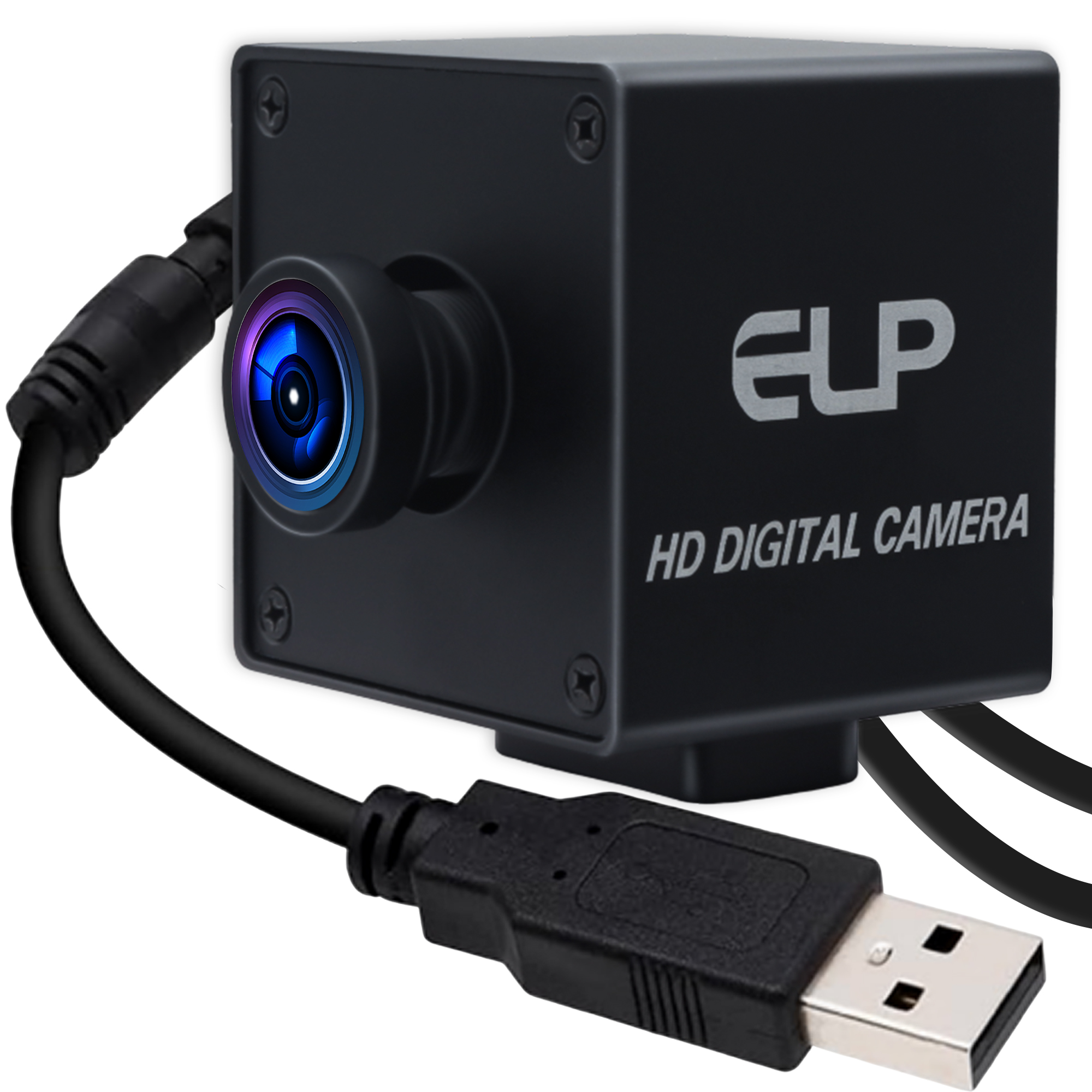

ELP 5MP Global Shutter USB Camera Module 125° Wide Angle No Distortion Lens 1080P 60fps Embedded Webcam for High Speed Moving.
ELP-USBGS5MP01 Series Camera is ELP New 5MP Global Shutter Sensor & High Frame Rate 50FPS USB 2.0 camera.
Highly recommended for Accurate and Fast Capture of Moving Scenes at 50 fps in 5MP Resolution.
Its OG05B10 Color CMOS Global Shutter Sensor Helps to Minimize Frame-to-Frame Distortion and Reduce Motion Blur While Capturing Fast-Moving Objects to Produce Smoother Images with Greater Scene details.
Package includes
1) 1pc of 5MP Global Shutter USB Camera with no distortion lens.
2) 1pc of 3m USB Cable.
Features
* Global Shutter Sensor——OmniVision OG05B10 Color Global Shutter Sensor without Distortion or Lag.
* 60FPS High Frame Rates——2592×1944 5MP 50FPS, 2592×1440 60FPS, 1920×1080 60FPS.
* 5MP Full HD Resolution——5MP Max Resolution 2592X1944 for High quality Still Picture & Video.
* Wide angle 125 degree no distortion lens.
* Mini Compact PCB Board Size 38*38mm——Suitable for Many Embedded Application.
* Adjustable Features——Brightness, Exposure, White Balance, Saturation, Contrast, Hue, etc, allows you customize the camera’s performance according to your needs.
* Ease of Use——Free driver, simply connect to a USB port then Plug & Play,No need additional hardware, driver or complex setup processes.
* Easy Integration & High Compatibility——Support Android, Windows, Linux. Mac OS etc. compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms.
Why Global Shutter Cameras ?
A global shutter camera is a type of digital camera that captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.
Rolling Shutter VS Global Shutter
Specifications
| Model | ELP-USBGS5MP01-KH120 (HFOV 125 degree) |
| Optional Models | ELP-USBGS5MP01-KLC1100 (HFOV 68 degree)
ELP-USBGS5MP01-KV100 (HFOV 84 degree) ELP-USBGS5MP01-KV83 (HFOV 85 degree) ELP-USBGS5MP01-KH100 (HFOV 100 degree) ELP-USBGS5MP01-KH110 (HFOV 113 degree) |
| Sensor | 1/2.5”OmniVision OG05B10 (Global Shutter) |
| Max Resolution | 2592 (H) *1944 (V) |
| Sensor Size | 1/2.5 inch (4:3) |
| Pixel Size | 2.2μm x 2.2μm |
| Image Array Area | 5737μmx4312μm |
| Image Format | MJPEG / YUV2 (YUYV) |
| Resolution & Frame Rate | 2592×1944 @ 50fps MJPEG / 2592×1440 @ 60fps MJPEG
2560×1440 @ 60fps MJPEG / 2304×1296 @ 60fps MJPEG 2048×1536 @ 50fps MJPEG / 1920×1080 @ 60fps MJPEG 1600×1200 @ 50fps MJPEG / 1600×900 @ 60fps MJPEG 1280×960 @ 50fps MJPEG / 1280×720 @ 60fps MJPEG 1024×768 @ 50fps MJPEG / 1024×576 @ 60fps MJPEG 960×720 @ 50fps MJPEG / 960×540 @ 60fps MJPEG 800×600 @ 50fps MJPEG / 800×450 @ 60fps MJPEG 848×480 @ 60fps MJPEG / 640×480 @ 50fps MJPEG 640×360 @ 60fps MJPEG |
| Surface Mount Technology | SMT |
| Central Definition | 1000LW/ PH (Center) |
| S/ N Ratio | 38dB |
| Dynamic Range | 72dB |
| Focus | Fixed Focus |
| Sensitivity | 1.4V/lux-sec@550nm |
| Min illumination | 0.1 lux |
| Shutter Type | Global Shutter |
| Connecting Port Type | USB2.0 High Speed |
| AEC/ AWB/ AGC | Support |
| Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White
balance, Exposure |
| Lens Parameter | M12 No Distortion Lens, HFOV about 125 degree |
| Power Supply | USB BUS POWER 4P-2.0mm Socket |
| Operating Voltage | DC 5V |
| Working Current | 180mA- 230mA |
| Dimension | 38mm x 38mm |
| Storage Temperature | -20°C to 80°C |
| Working Temperature | 0°C to 60°C |
| USB Cable | Standard 3m, optional 1m/2m/ 5m |
| Operating System Request | Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.
Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
