Description
ELP-USB8MP02G-SFV (5-50) is a high-performance USB industrial camera equipped with 1/3.2″ Sony IMX179 8 megapixel CMOS image sensor, offering a maximum resolution of 3264 (H) × 2448 (V). It supports two mainstream compression formats—MJPEG and YUY2 (YUV2),nd delivers smooth frame rates up to 30fps across various resolutions. Paired with a CS mount 5-50mm manual zoom lens (available in 2.8–12mm, 4mm, 6mm, and 8mm options), it meets flexible focusing requirements for both close and distant scenes. Utilizing USB 2.0 for high-speed data transfer and the UVC driverless protocol, the camera requires no drivers for plug-and-play operation on Windows, Linux, MacOS, and Android systems. Its USB OTG functionality enables compatibility with mobile embedded devices. With a minimum illumination sensitivity of 0.5 lux, it features automatic exposure (AEC), auto exposure bracketing (AEB), and automatic gain control (AGC), along with manual adjustment of brightness, contrast, saturation, sharpness, and exposure. Standardly supplied with a 3 meters USB cable (available in 2m, or 5m lengths), the camera demonstrates exceptional environmental adaptability and compatibility, making it ideal for industrial vision inspection, machine vision recognition, high-magnification detail photography, security surveillance, educational microscopy imaging, and embedded system development, etc.
Features
Specification
|
Model
|
ELP-USB8MP02G-SFV (No lens)
ELP-USB8MP02G-SFV(2.8-12mm) (2.8-12mm varifocus lens)
ELP-USB8MP02G-SFV(5-50mm) (5-50mm varifocus lens)
ELP-USB8MP02G-SFV(6-60mm) (6-60mm varifocus lens)
ELP-USB8MP02G-SFV(3.6-10mm) (3.6-10mm varifocus lens)
ELP-USB8MP02G-SF40 (4mm lens)
ELP-USB8MP02G-SF60 (6mm lens)
ELP-USB8MP02G-SF80 (8mm lens)
|
|
Sensor
|
IMX179
|
|
Lens Size
|
1/3.2 inches
|
|
Pixel Size
|
1.4um
|
|
image area
|
6.18mm x 5.85mm
|
|
Max. Resolution
|
3264(H) X 2448(V) 8Megapixel
|
|
Compression format
|
MJPEG / YUV2（YUYV）
|
|
Resolution & frame
|
3264X2448 MJPEG 15fps YUY2 2fps
2592X1944 MJPEG 15fps YUY2 3fps
2048X1536 MJPEG 20fps YUY2 3fps
1600X1200 MJPEG 20fps YUY2 10fps
1280X960 MJPEG 20fps YUY2 10fps
1024X768 MJPEG 30fps YUY2 10fps
800X600 MJPEG 30fps YUY2 30fps
640X480 MJPEG 30fps YUY2 30fps
|
|
USB Protocol
|
USB2.0 HS/FS USB1.1/USB1.0
|
|
S/N Ratio
|
34dB
|
|
Dynamic Range
|
72.5dB
|
|
Sensitivity
|
3.7V/lux-sec@550nm
|
|
Mini illumination
|
0. 5lux
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
OTG protocol
|
USB2.0 OTG
|
|
AEC
|
Support
|
|
AEB
|
Support
|
|
AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure
|
|
Lens Parameter
|
2.8-12/5-50mm varifocus CS lens, 4/6/8mm manual focus lens
|
|
LED board control interface
|
Support 2P-1.25mm socket
|
|
LED board power connector
|
Support 2P-2.0mm socket
|
|
Power supply
|
USB BUS POWER 4P-2.0mm socket
|
|
Operating Voltage
|
DC5V
|
|
Working current
|
150mA~240mA
|
|
Working temperature
|
-10～70℃
|
|
Storage temperature
|
-20～85℃
|
|

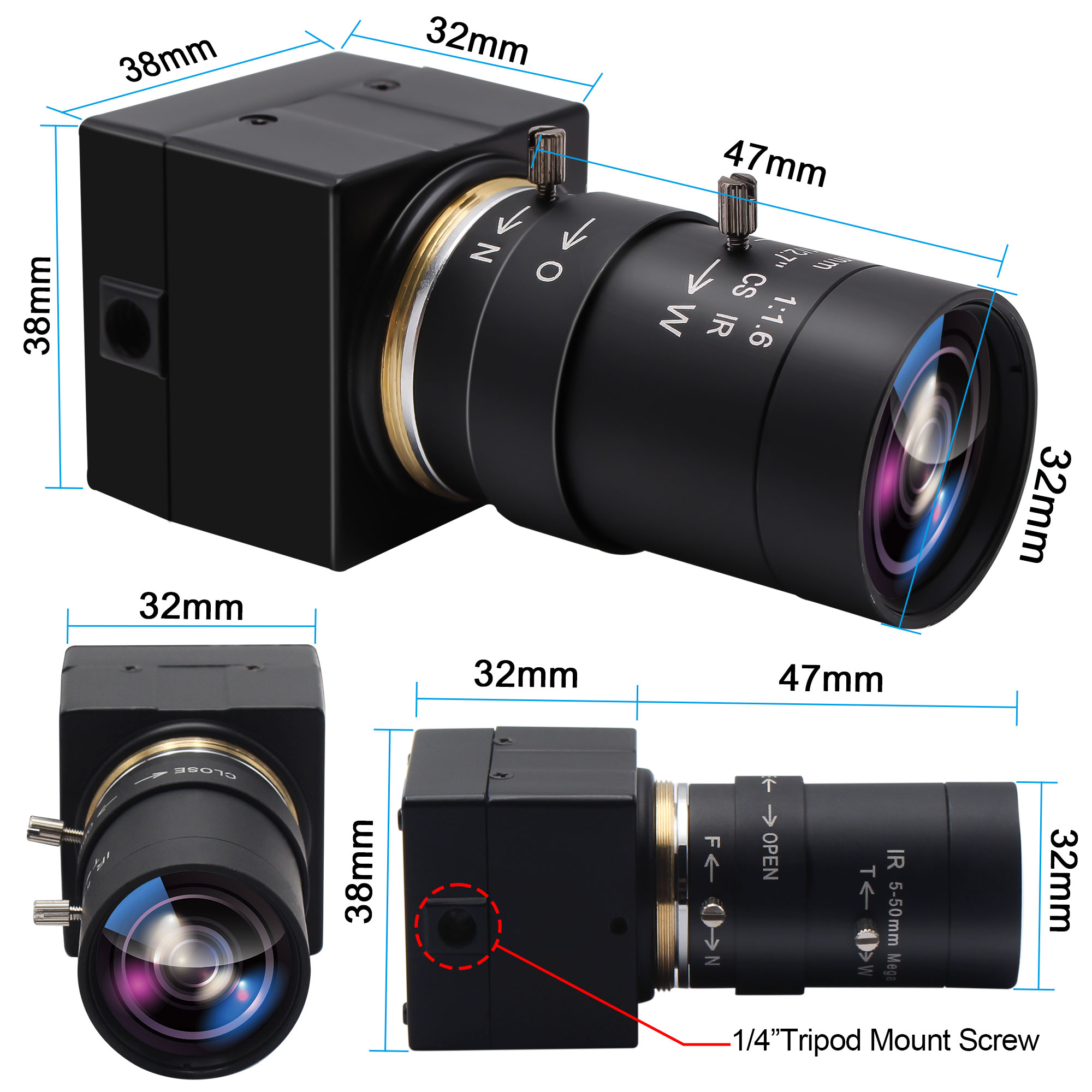

Board size /Weight
|
38X38mm (compatible 32X32mm)
|
|
Cable
|
Standard 3m (optional 2M,5M)
|
|
Operating system request
|
WinXP/Vista/Win7/Win8/Win10/Win11
Linux with UVC（above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Product Display
High-quality CMOS sensor
Featuring 1/3.2 inch Sony IMX179 CMOS image sensor with up to 8 million effective pixels (3264×2448), each pixel measures 1.4μm in size. The larger pixel area ensures greater light capture, effectively reducing image noise. This delivers clearer, more detailed images whether in bright or low-light conditions.
Max.Resolution:3264(H)X2448(V).
HighDefinition 1024×768@30fps/3200×2400@ 20fps/3264X2448@15fps. Perfect for high leval video system for personal or industrial.
ELP High Quality 5 -50mm Variable Focus Webcam:
Can zoom in & out to see the object in different distances. Zoom out to see wide view angle, adjust the lens near to 5mm lens. Adjust the lens near to 50mm lens, zoom in to enlarge the images, to see the details.

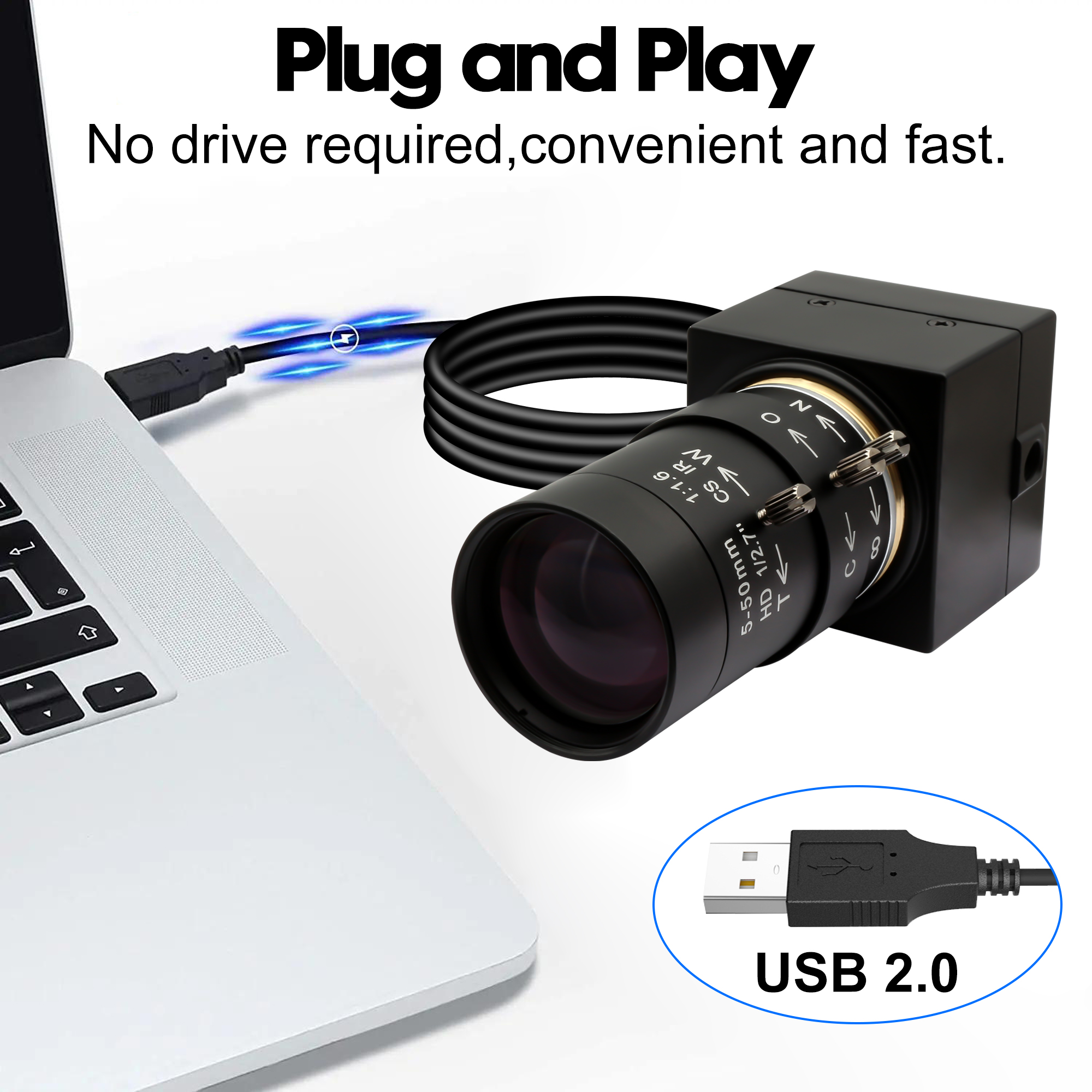

Support UVC, support OTG, free driver, usually plug and play, especially for Windows system.
-The camera support linux, windows, android system, can connect to android mobile phone or tablet by OTG cable
-Support living streaming software, Skype, Zoom, Facetime, Youtube…
-Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2….
-Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS…

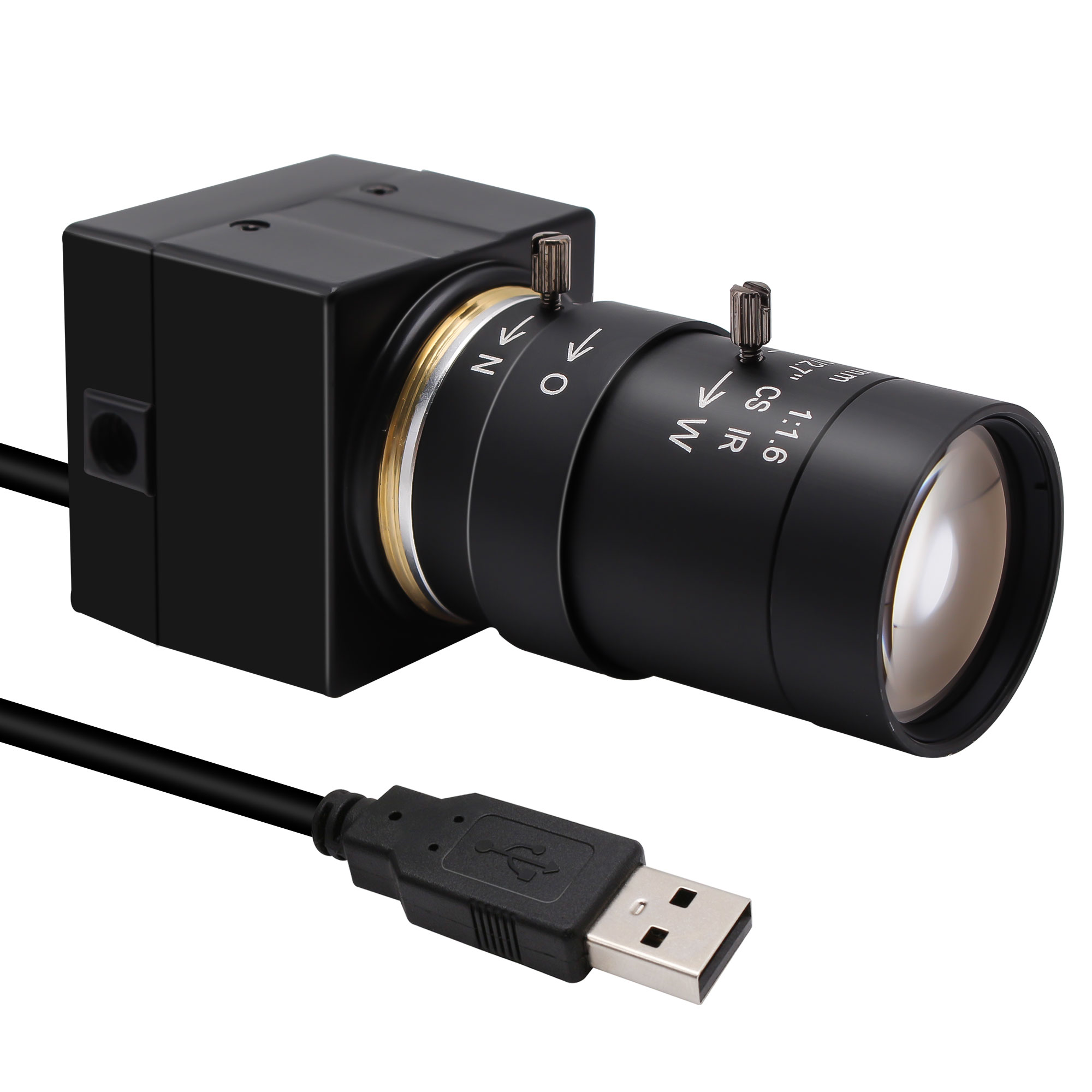

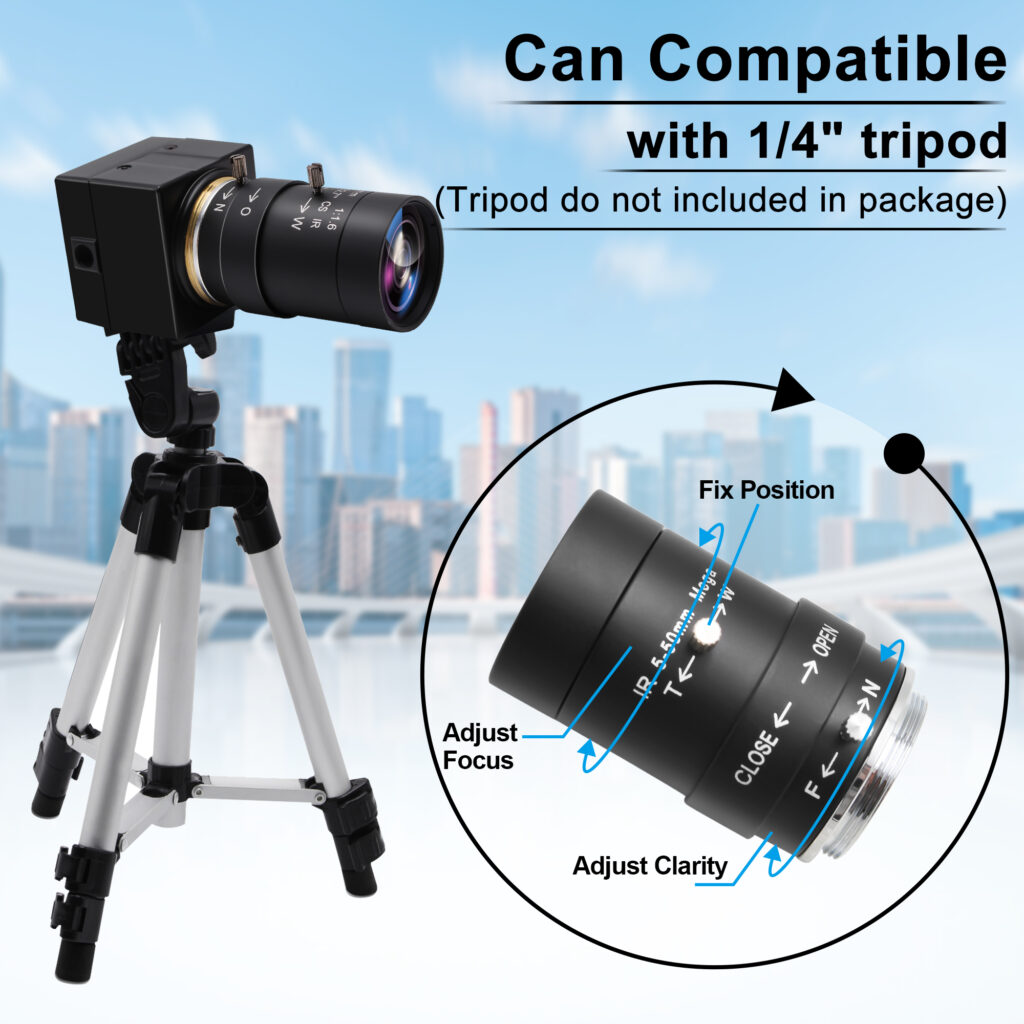

This product is durable and made with metallic materials that help physically protect the unit and allow it to be moved around physically without incurring too much damage from normal wear and tear or accidental mishandling. The camera is a very solid, black, steel cube with tilting mounting bracket and a standard 1/4 inch threaded mount for attachment to a tripod.
Mini Metal Case: This UVC camera comes with a metal case, which makes it looks more textured and safe. making use more reassuring
Wide Application for:
Home video surveillance system,Live streaming, Video conference, VR camera,Electronic microscope, Medical machine,Monitoring 3D printer, Smart box TV BOX,Advisement player, Automatic vending machine,Automated image acquisition system
