Features

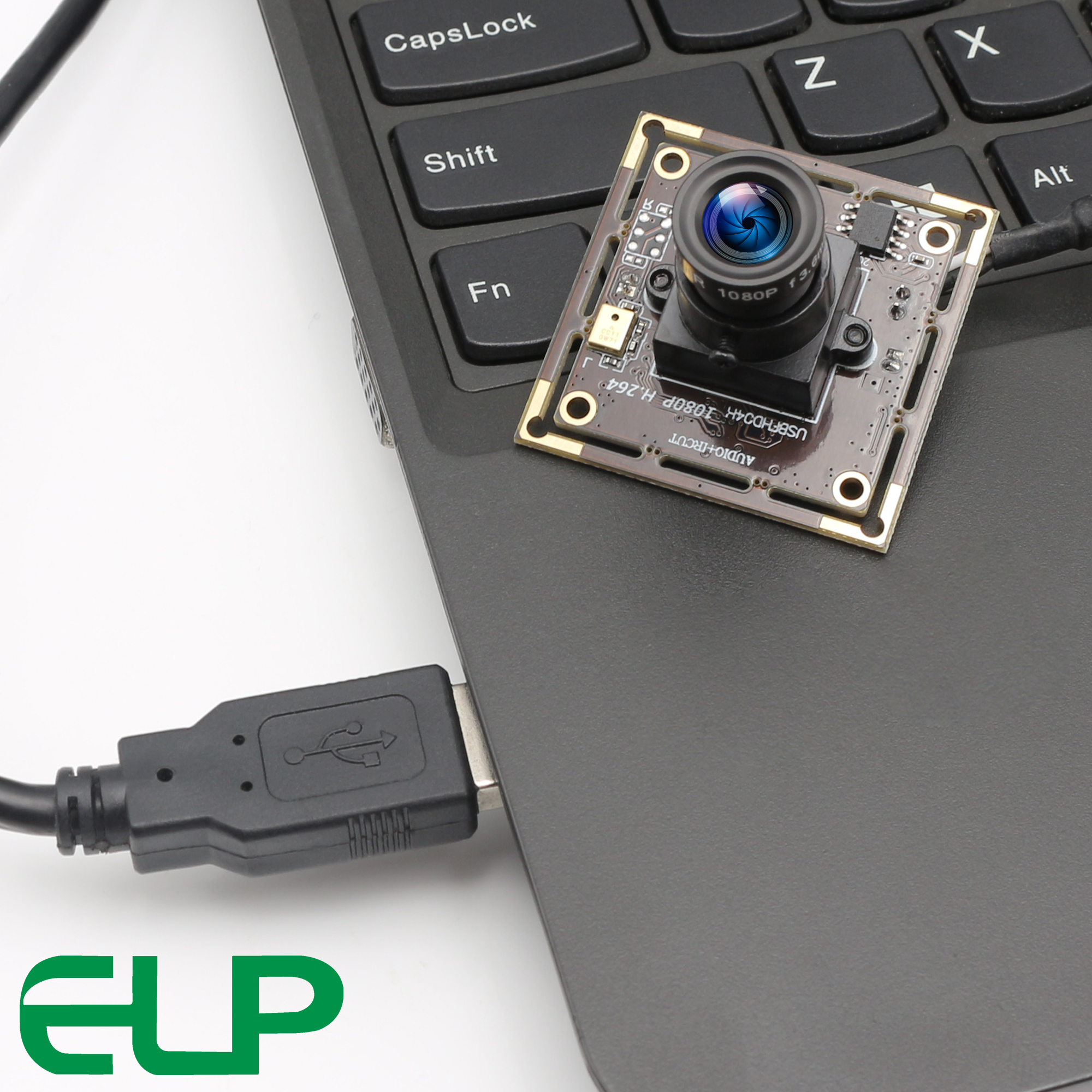

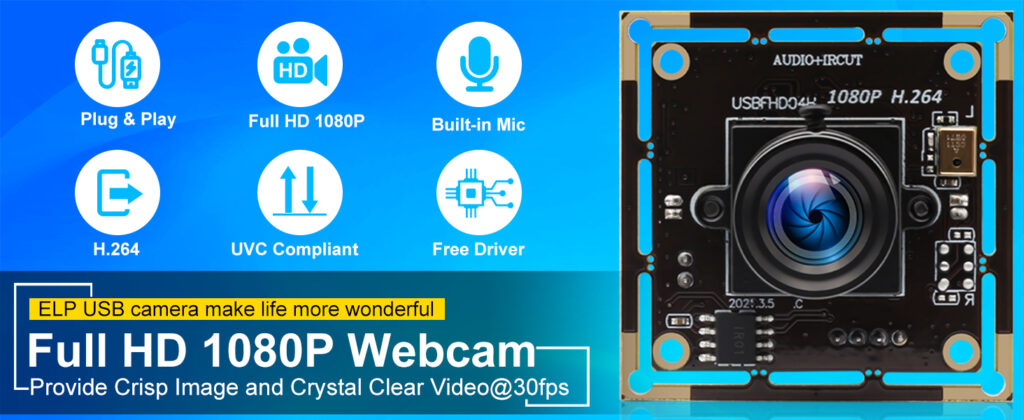

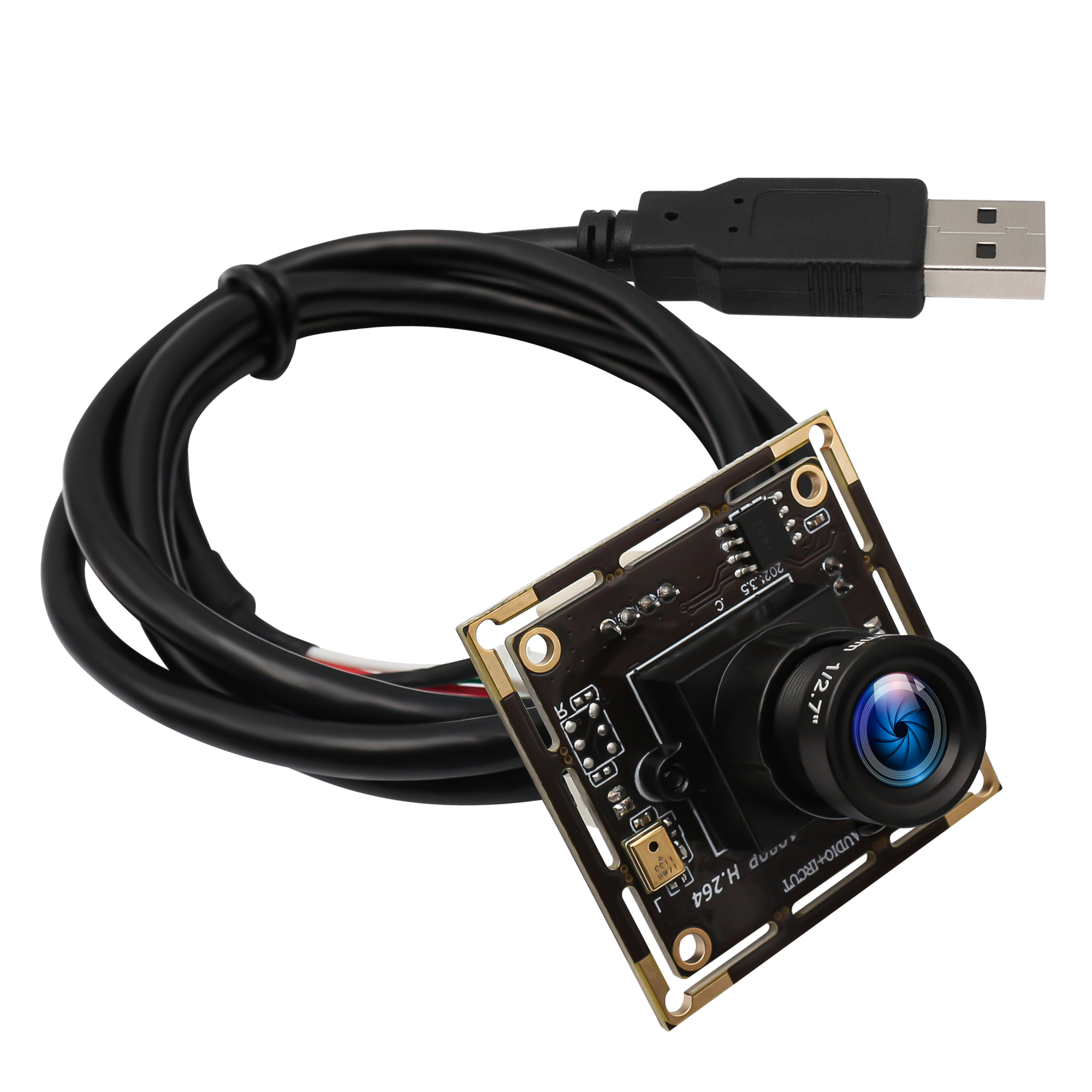

* 1080P H.264 USB Camera Module
* 2 Megapixel 1080P: Resolution 1920×1080
* High Quality Sensor: 1/3″ CMOS AR0330
* Fisheye lens,f=3.6mm, FOV about 66 degree.
* H.264 Compression:can save much volume when record the video.
* With microphone: support audio recording.
* Lens changeable: Many other lens optional,2.1mm/2.8mm/6mm/8mm/12mm/no distortion/Fisheye lens…

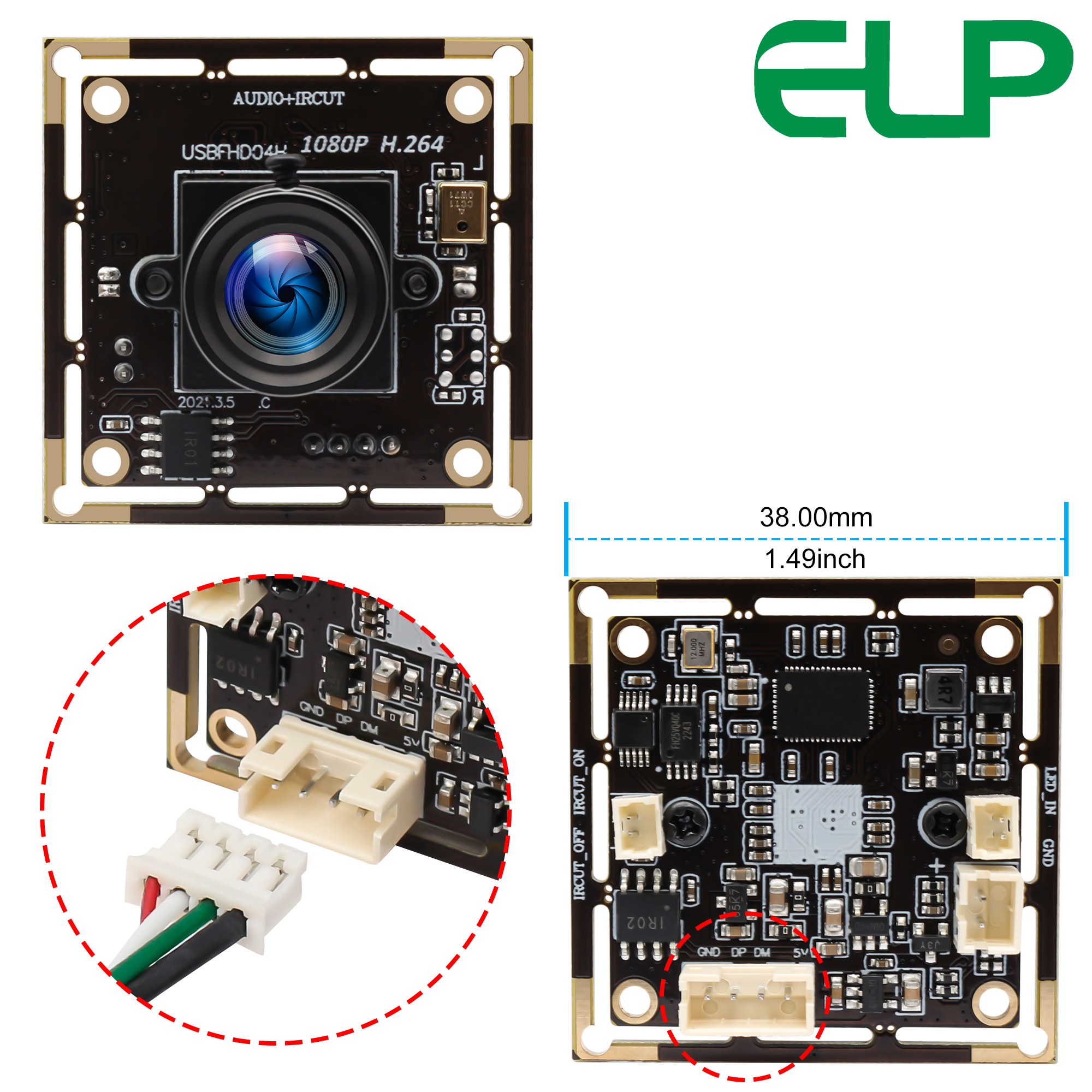

* Small size: 38x38mm (Remove the surrouding edge get 32x32mm)
* With standard 1m cable (2m/3m/5m/0.3m/0.5m…optional)
* UVC: free driver, Plug & Play
* OTG support: can connect android tablet, smartphone via OTG cable

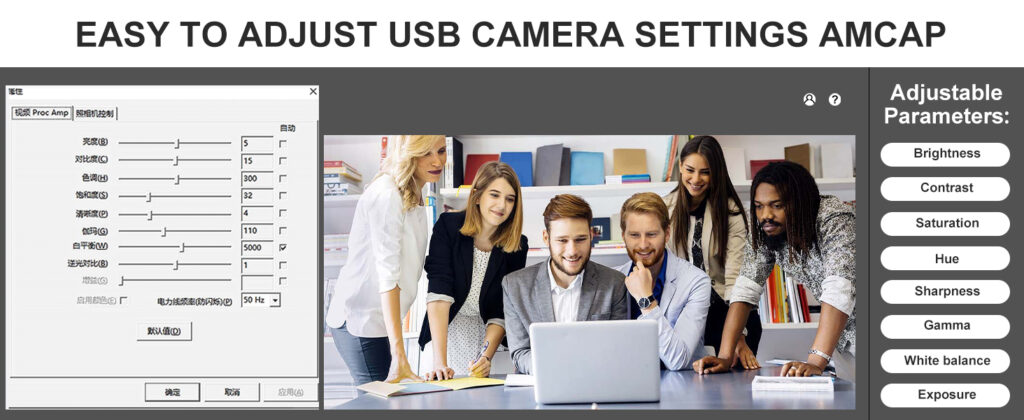

* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.
* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..
* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera…
Specification
| Optional Models | ELP-USBFHD04H-L21 (2.1mm, FOV 81 degree)
ELP-USBFHD04H-L28 (2.8mm, FOV 83 degree) ELP-USBFHD04H-L36 (3.6mm, FOV 66 degree) ELP-USBFHD04H-L60 (6mm, FOV 40-45 degree) ELP-USBFHD04H-L80 (8mm, FOV 32 degree） ELP-USBFHD04H-L12（12mm, FOV 18 degree） ELP-USBFHD04H-L170 (L170 fisheye lens, FOV 102 degree) ELP-USBFHD04H-L180 (L180 fisheye lens, FOV 170 degree) |
| Sensor | 1/3″ CMOS AR0330 |
| Max. Resolution | 1920X1080 |
| Picture format | MJPEG |
| USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Support free driver | USB Video Class(UVC) |
| Auto exposure AEC | Support |
| Auto white blance AWB | Support |
| Frame rate | 1920 (H) x 1080 (V) pixels H.264 30fps MJPEG 30fps YUY2 5fps
1280 (H) x 720 (V) pixels H.264 30fps MJPEG 30fps YUY2 10fps 640 (H) x360 (V) pixels H.264 30fps MJPEG 30fps YUY2 10fps |
| Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
| Night vision | optional, can choose IR board |
| Lens | 3.6mm, FOV about 66 egree (Many other lens optional) |
| voltage | DC 5V |
| current | 150mA |
| work temperature | DEGREES(-20~70) |
| Size | 32x32mm/38*38mm |
| Support OS | WinXP/Vista/WIN7/WIN8/WIN9/WIN10/WIN11 etc. Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above |
Product Display
-Support OTG, can connect android tablet, smartphone via OTG cable
-Support living streaming software, Skype, Zoom, Facetime, Youtube…
-Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2….
-Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS…
