Features
1. 2MP Dual lens USB Camera Module with IR LED board
2. Full HD 1080P Dual lens WDR USB Camera, adopt wide dynamic range AR0230 sensor, WDR range up to 105dB
3. Non distortion Dual lens camera module
4. USB Webcam dual lens–two camera with separate image output, One is color image, another is Black/white mode.
5. Night vision camera USB with 12PCS IR LED board for night vision.
6. High speed USB 2.0 camera Plug & Play port–Suitable for any PC with UVC with USB 2.0 interface.
7. UVC Camera-support Windows, linux, Android system with UVC.
8. Dual lens usb camera for face recognition, biopsy detection etc…
Specification
| Model | ELP-USB0230X2-BV90 |
| Sensor | AR0230 |
| Lens Size | 1/2.7 inch |
| Pixel Size | 3.0µm x 3.0 µm |
| Image Area | 3888µm x 2430 µm |
| Max. Resolution | 1920(H)X1080(V) |
| Compression format | MJPEG |

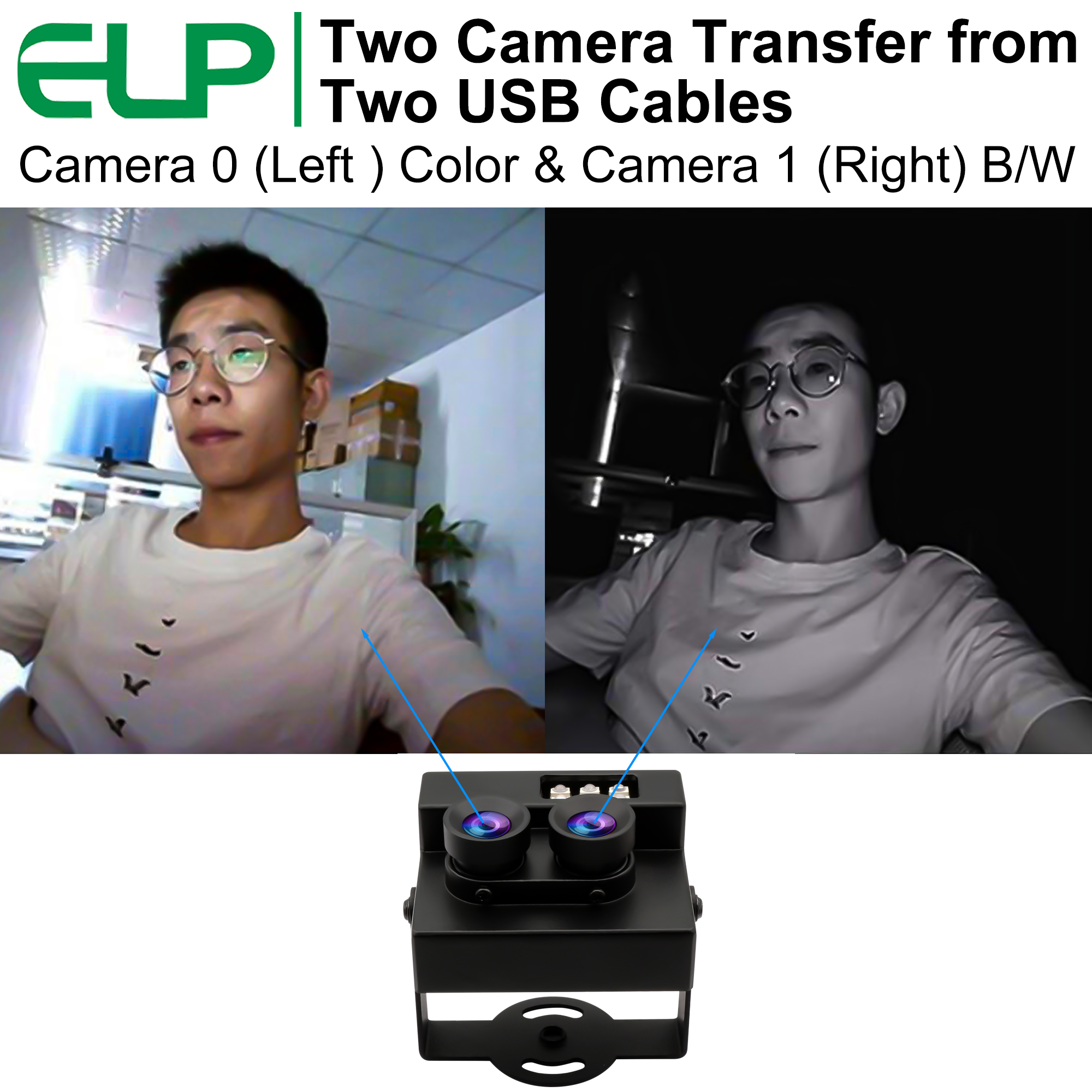

| Resolution & frame | Camera0(Left ) Color & Camera1(Right) B/W
MJPEG：1920X1080@30fps/1280X960@30fps/1280X720@30fps 1024X768@30fps/800X600@30fps/640X480@30fps 352X288@30fps/320X240@30fps YUY2: 1920X1080@5fps/1280X960@5fps/1280X720@5fps 1024X768@5fps/800X600@15fps/ 640X480@30fps 352X288@30fps/320X240@30fps |
| S/N Ratio | 41dB |
| Dynamic Range | 105dB |
| Sensitivity | 4.0V/lux-sec@550nm |
| Mini illumination | 0 lux (IR) |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class（UVC） |
| Support OTG Protocol | USB2.0 OTG |
| AEC | Support |
| AEB | Support |
| AGC | Support |

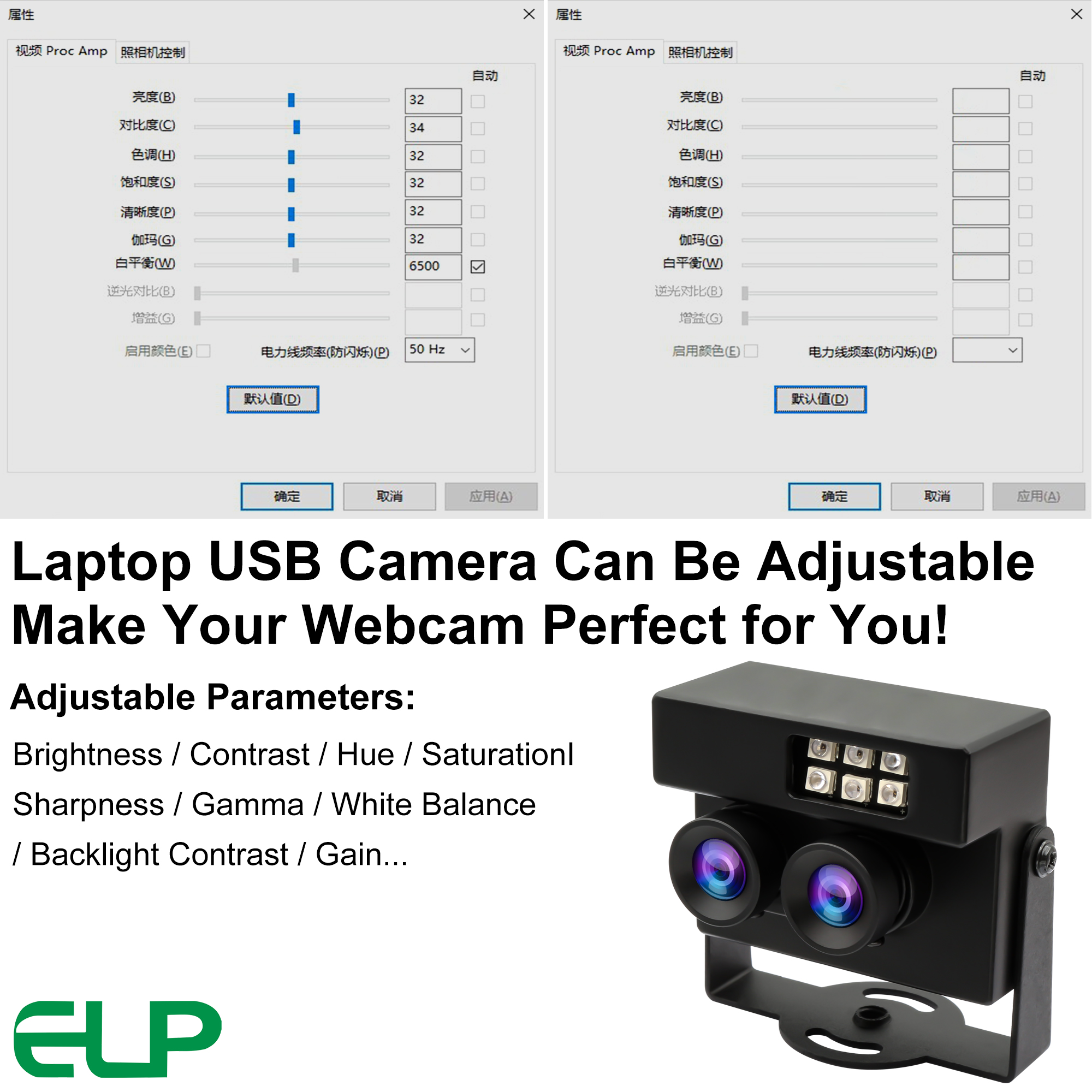

| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure |
| Lens Parameter | M12 Lens FOV(D) 138 (H) 90-100 degree |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Power supply | DC5V |
| Working current | -10～70℃ |
| Working temperature | -20～85℃ |
| Operating system request | Win XP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Product Display
1920X1080 @30fps dual lens USB Camera
1/2.7 AR0230 CMOS Sensor

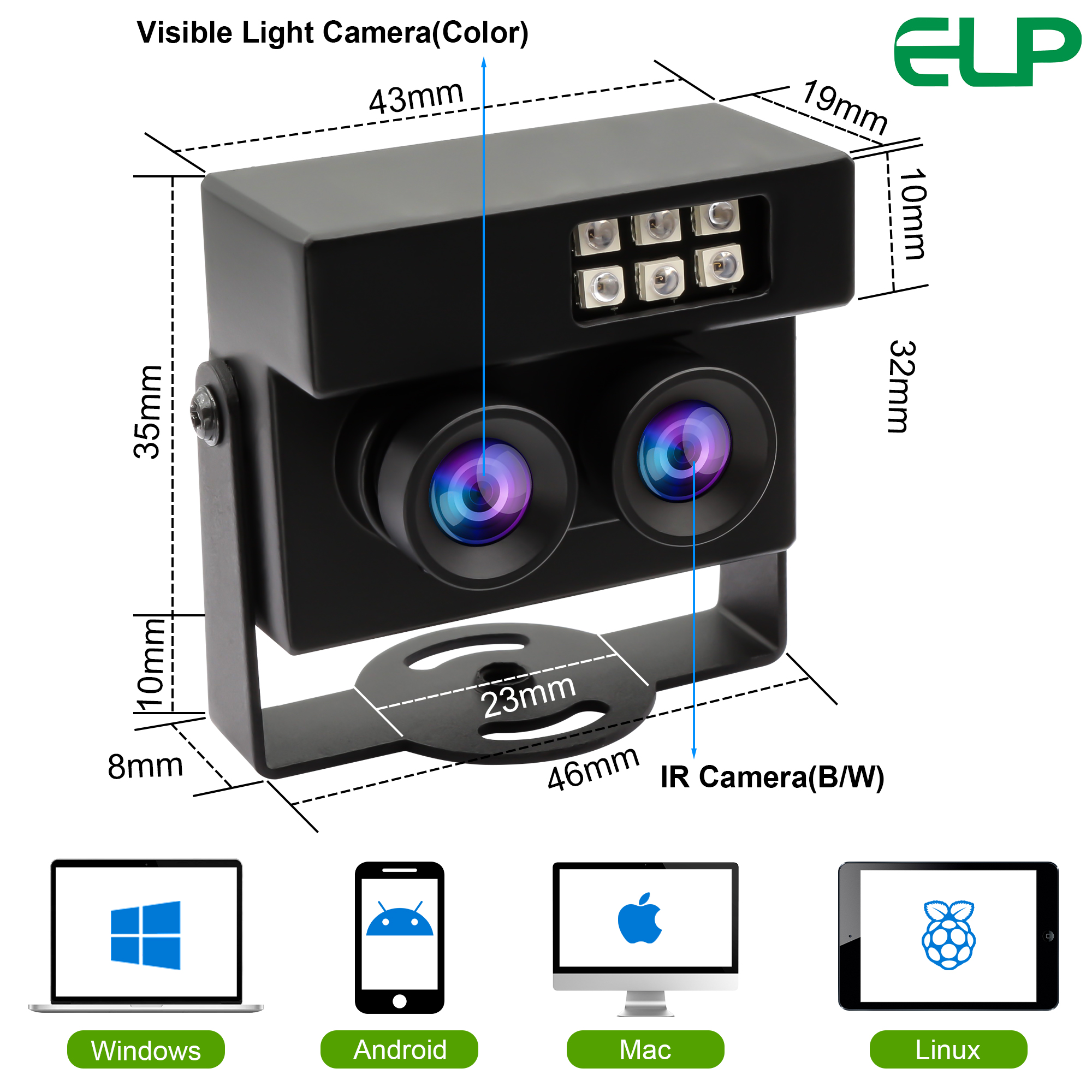

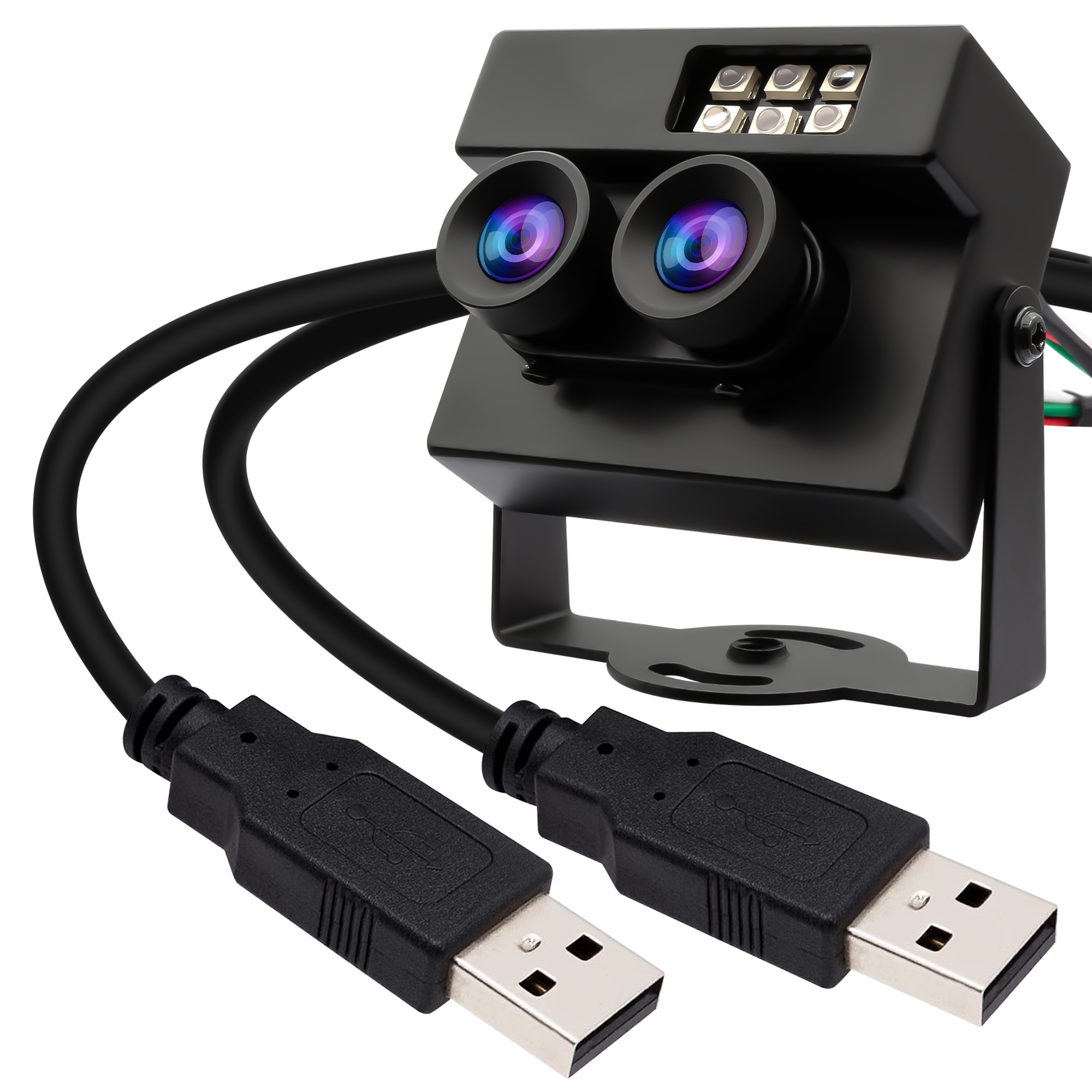

Mini metal case

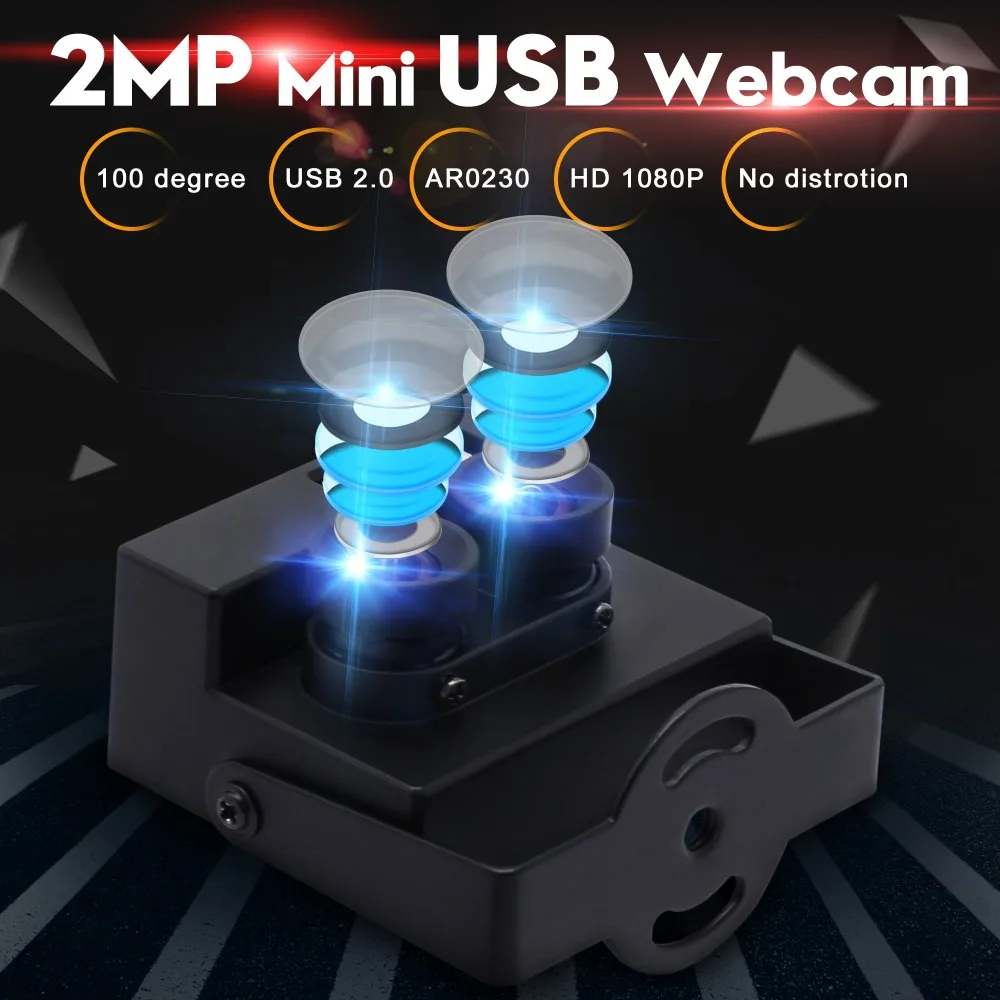

M12 no distortion lens

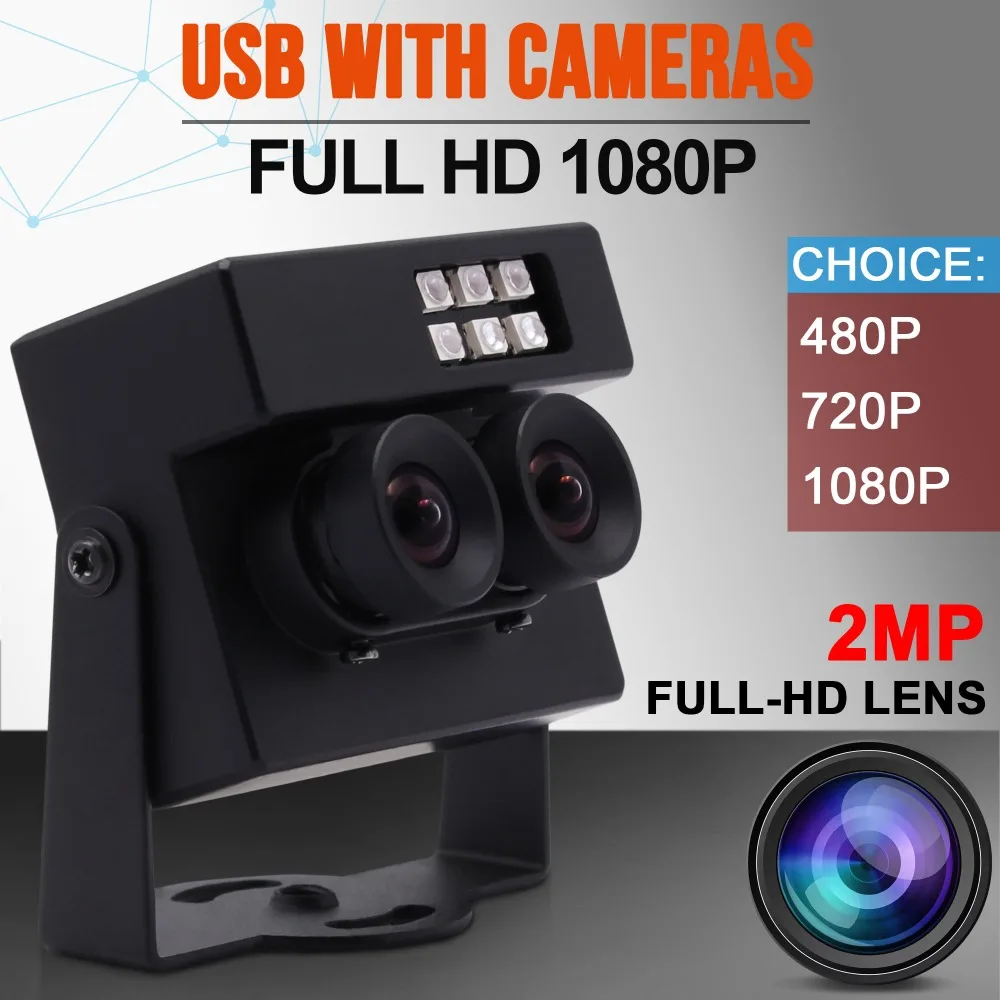

Full HD 1080P high pixel technology for sharp image and accurate color reproduction

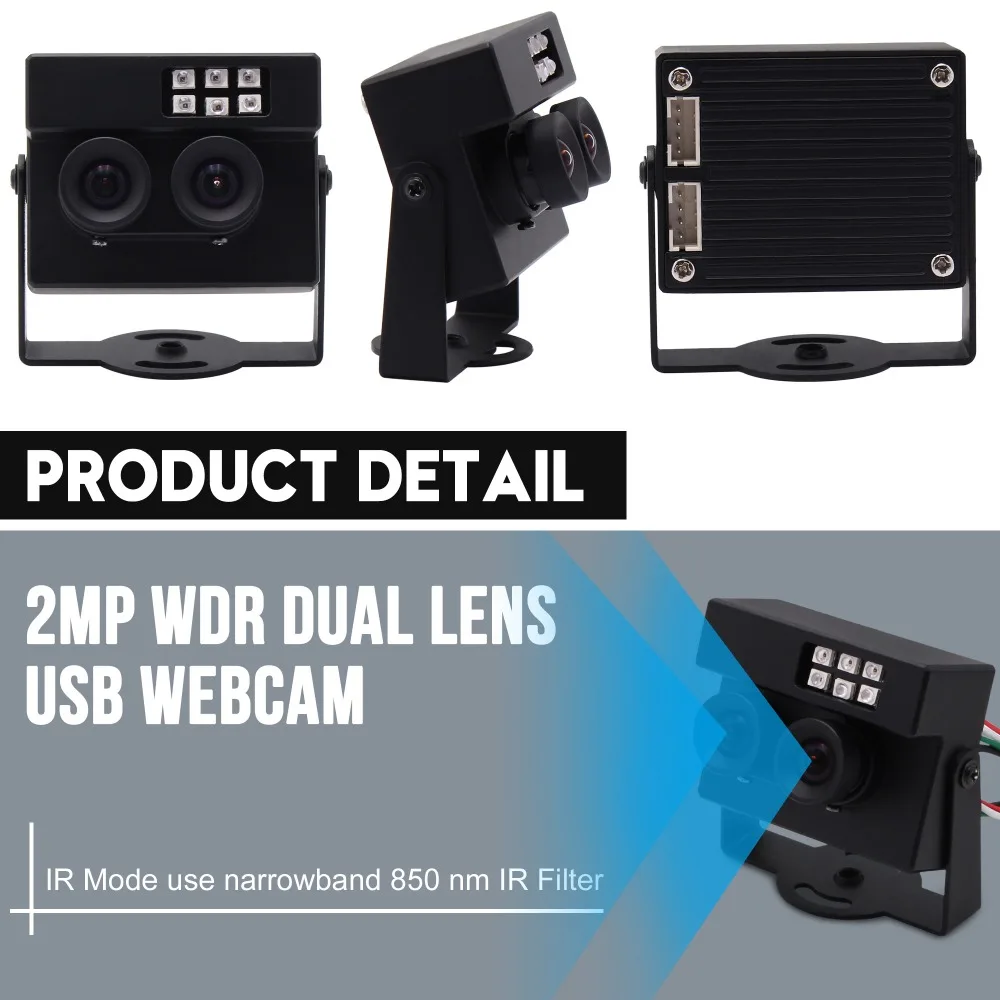

Two different output. One is RGB mode,another is IR Mode. (IR Mode use narrowband 850 nm IR Filter). The frame is not synchronization,need to switch manually the mode on application.
Resolution and frame:
RGB MJPEG：1920*1080@30fps/1280X720@30fps/640X480@30fps
W/B MJPEG：1920*1080@30fps/1280X720@30fps/640X480@30fps

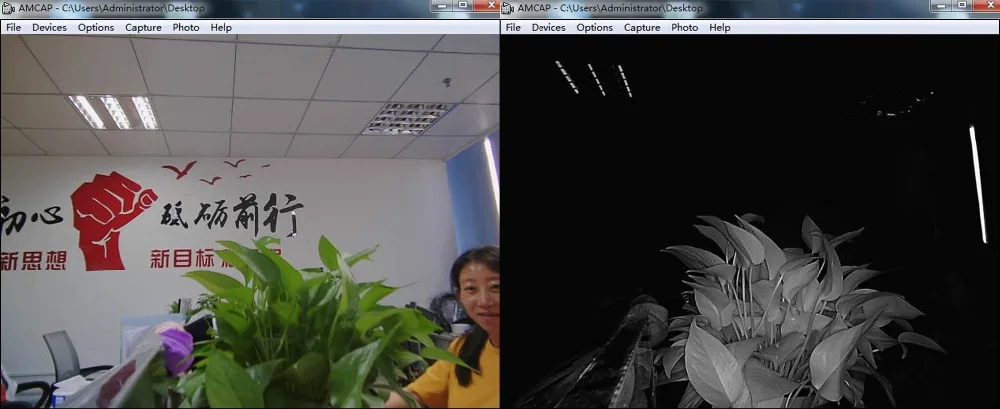

Two different output effect
Plug&Play, UVC compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed

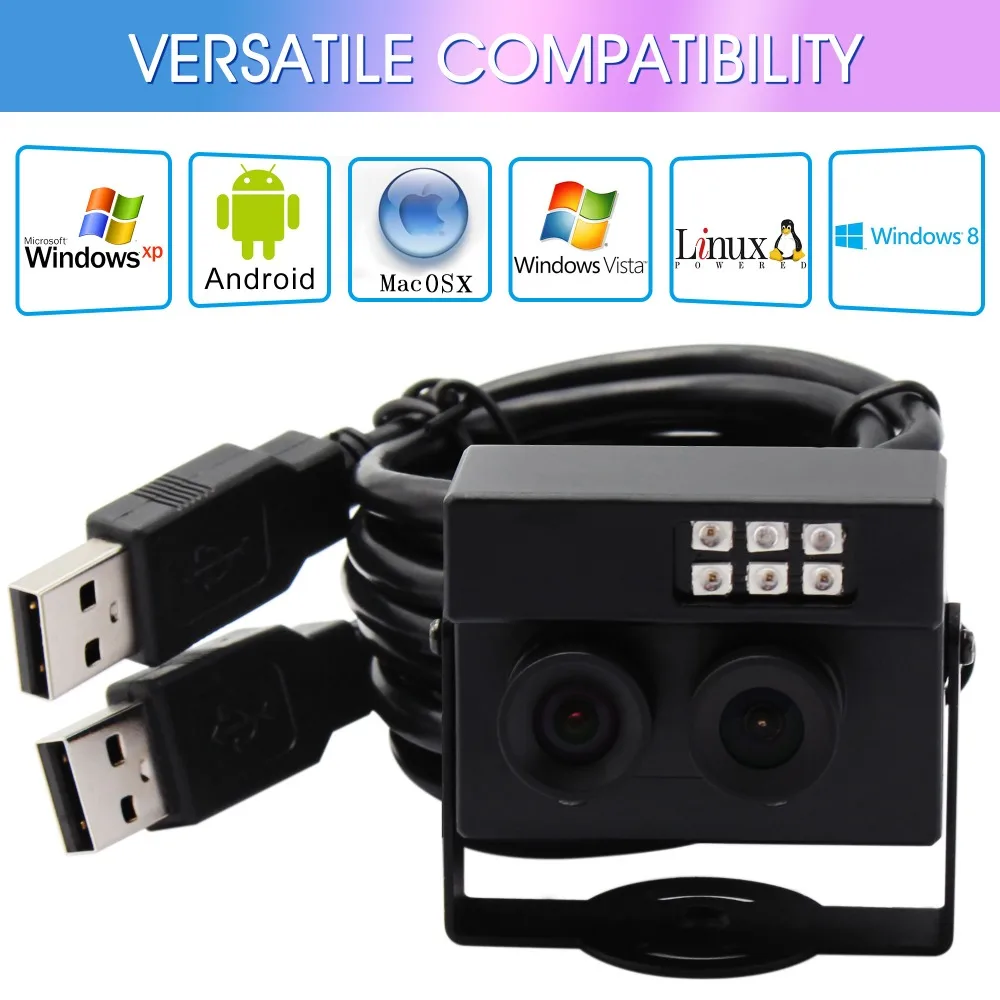

Compatible with muti software & operating system: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi, Jetson Nano…
