Description

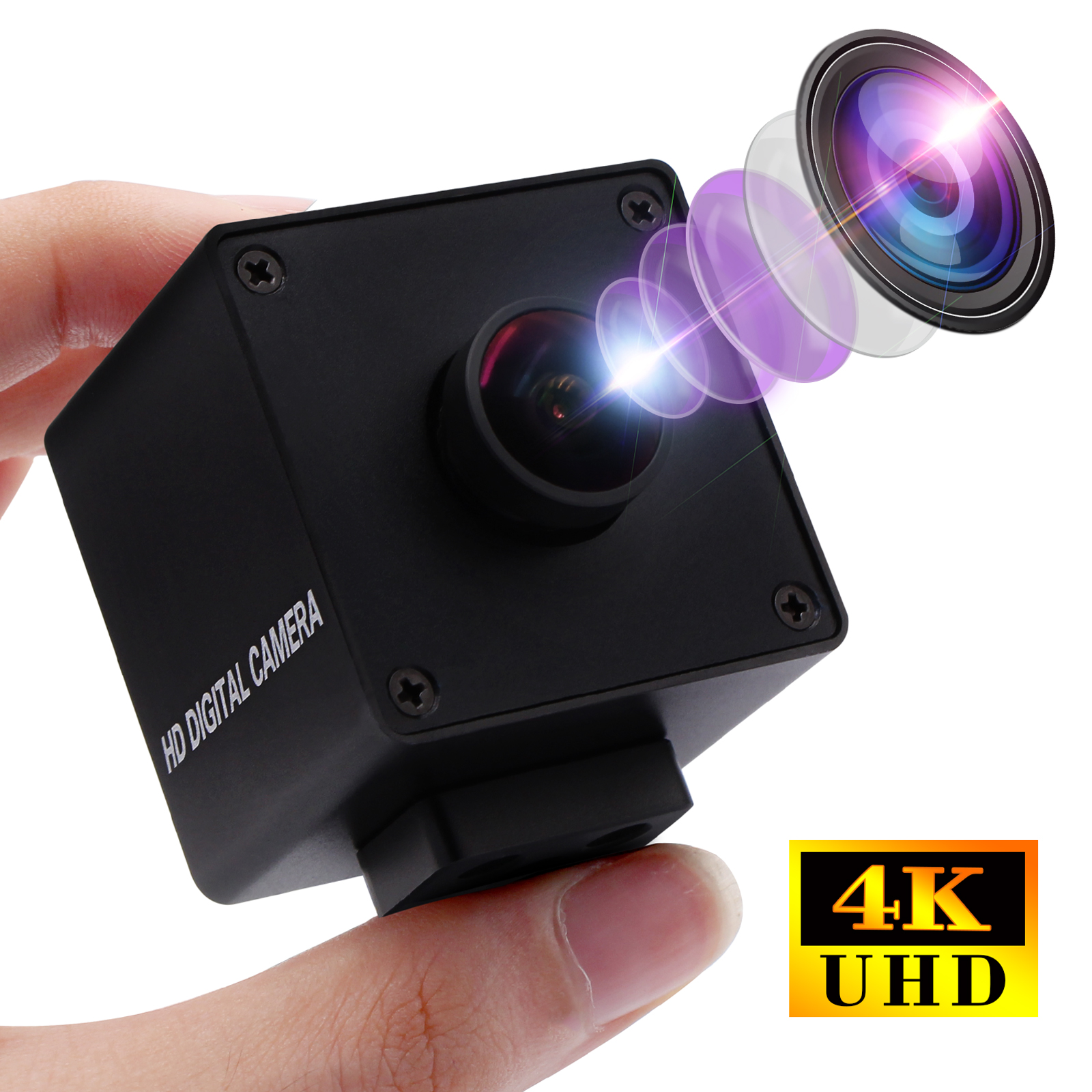

ELP-USB4KHDR01-BV100 is a 4K HDR manual zoom USB industrial camera by Ailipu. Featuring Sony IMX317 (1/2.5 inch) sensor, it delivers up to 3840×2160 resolution at 30fps with dual-format output (MJPEG/YUY2). Compatible with Windows, Linux, Mac, and Android, it offers plug and play functionality without drivers.  This camera module has a 90°(H) Low-Distortion (<3%) M12 Lens, which minimizes the imaging distortion and provides a wilder Field of View (FoV) than the most stock lens.. Its compact design makes it ideal for industrial vision, document scanning, remote monitoring, and HD live streaming. With a 1 year warranty, it supports OEM/ODM customization.

Features

* 4K High resolution:3840×2160

* Micro USB camera module, size 38x38mm

* High Speed 4K 30fps: 3840X2160 Mjpeg 30FPS

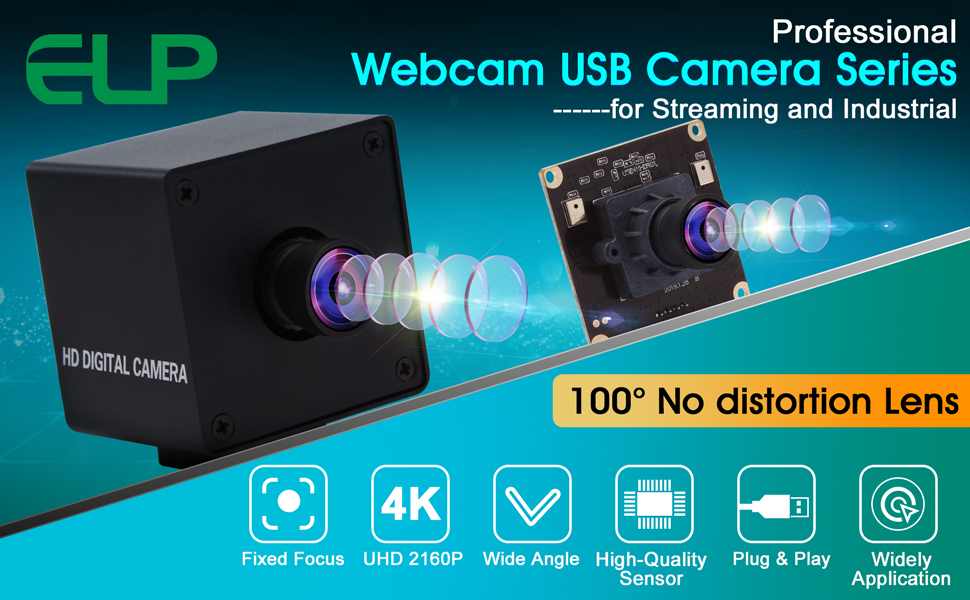

* HD no distortion lens, FOV about 90 degree

* Lens changeable: Many other lens optional, 2.1mm, 2.8mm, 3.6mm, 6mm, 8mm, 12mm, fisheye, no distortion lens…

* High Quality Sensor: CMOS IMX317 Sensor for super sharp image.

* 3m USB Cable (2m/5m/…optional)

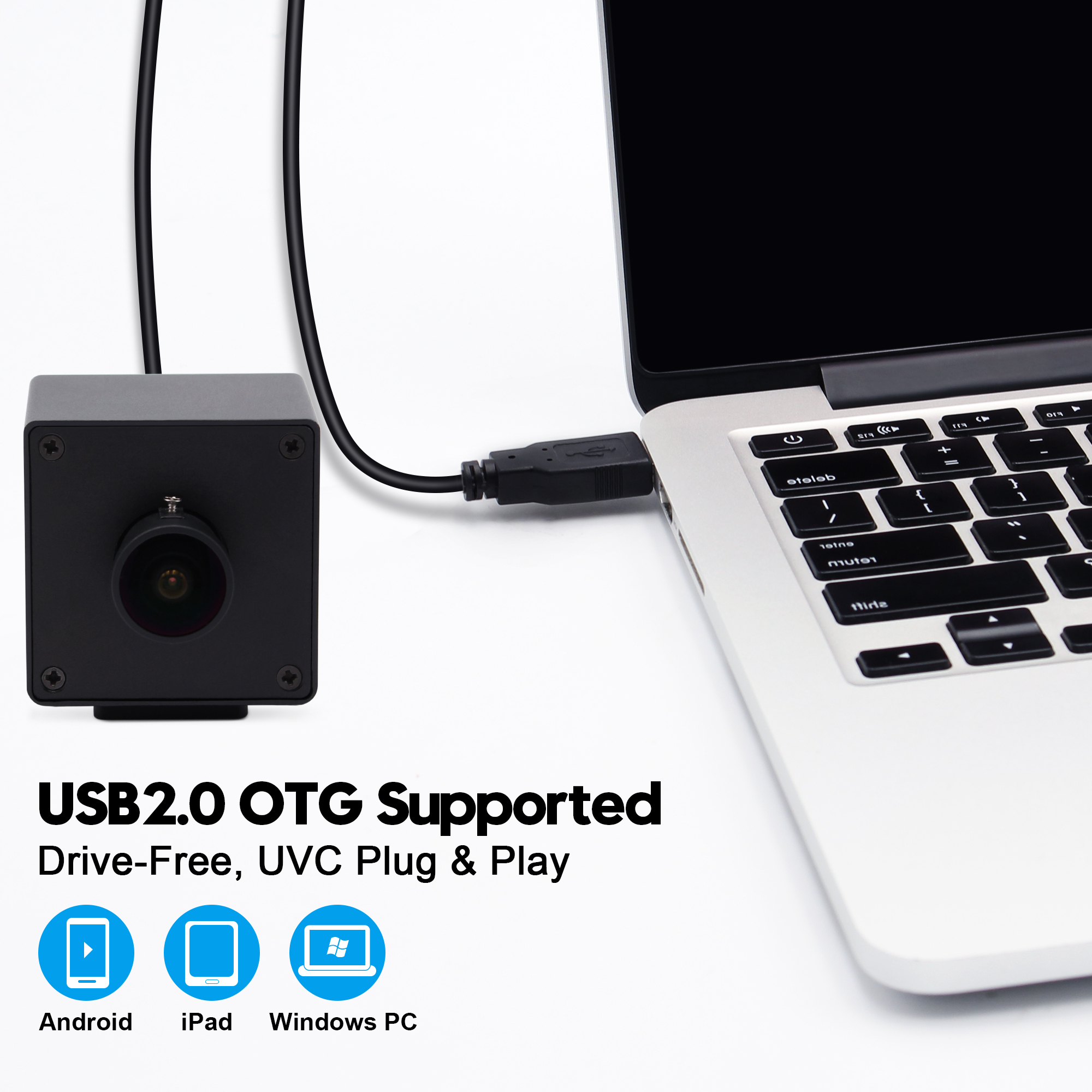

* UVC: free driver, Plug & Play

* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.

* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..

* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera…

Specification

Model	ELP-USB4KHDR01-KV100(No distortion, FOV about 90 degree)
Optional Models	ELP-USB4KHDR01-KL21 (2.1mm lens) ELP-USB4KHDR01-KL28 (2.8mm lens) ELP-USB4KHDR01-KL36 (3.6mm lens) ELP-USB4KHDR01-KL60 (6mm lens) ELP-USB4KHDR01-KL80 (8mm lens) ELP-USB4KHDR01-KL12 (12mm lens) ELP-USB4KHDR01-KL170 (Fisheye lens)
Sensor	SONY IMX317(1/2.5” )
Max Resolution	3840(H) *2160(V)
Sensitivity	1000mV/Lux-sec
Image area	6100µmx4524µm
Picture format	MJPEG / YUY2（YUYV）
Resolution & FPS	3840×2160@ 30fps MJPEG / 2592×1944@ 30fps MJPEG 2048×1536@ 30fps MJPEG /1600×1200@ 30fps MJPEG 1920×1080@ 30fps MJPEG/ 1280×1024@30fps MJPEG 1280×960@30fps MJPEG/1280×720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640×480@ 30fps MJPEG /320×240@ 30fps MJPEG 3840×2160@ 1fps YUY2/ 2592×1944@1fps YUY2 2048×1536@ 3fps YUY2/1600×1200@ 3fps YUY2 1920×1080@ 3fps YUY2/ 1280×1024@3fps YUY2 1280×960@5fps YUY2/1280×720@ 5fps YUY2 1024 x 768@ 5fps YUY2/ 800 x 600@ 20fps YUY2 640×480@ 30fps YUY2/320×240@ 30fps YUY2
Center Definition	1000LW/PH (Center)
S/N (Signal Noise Ratio)	26dB
Sensitivity	0.65V/lux-sec@550nm
Low illumination	0.2lux
Shutter	Electronic rolling shutter / Frame exposure
Interface	USB2.0 High Speed
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure
Lens	No distortion, FOV about 90 degree, (Many other lens optional)
Power Supply & Connector	USB BUS POWER 4P-2.0mmsocket
Power	DC5V
Current	200mA
Size	38mm ×38mm
Storage Temperature	-20°C to 85°C
Working Temperature	-10°C to 65°C
USB Cable	3m (1m/2m/5m…Optional)
Operating System	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

Product Display



Max Resolution:3840(H) X 2160(V) 4K

Mini 38mmx38mm camera board can be installed in most narrow position for a home surveillance system, wildlife photography, dashcam, baby camera, etc.

Wide application for Machine vision,Traffic and transport (ITS),Medical technology (and laboratory automation),Safety technology,Mechanical engineering,Surface inspection,Biotechnology and life sciences,Electronics inspection,Pharma and healthcare,Endless web inspection
