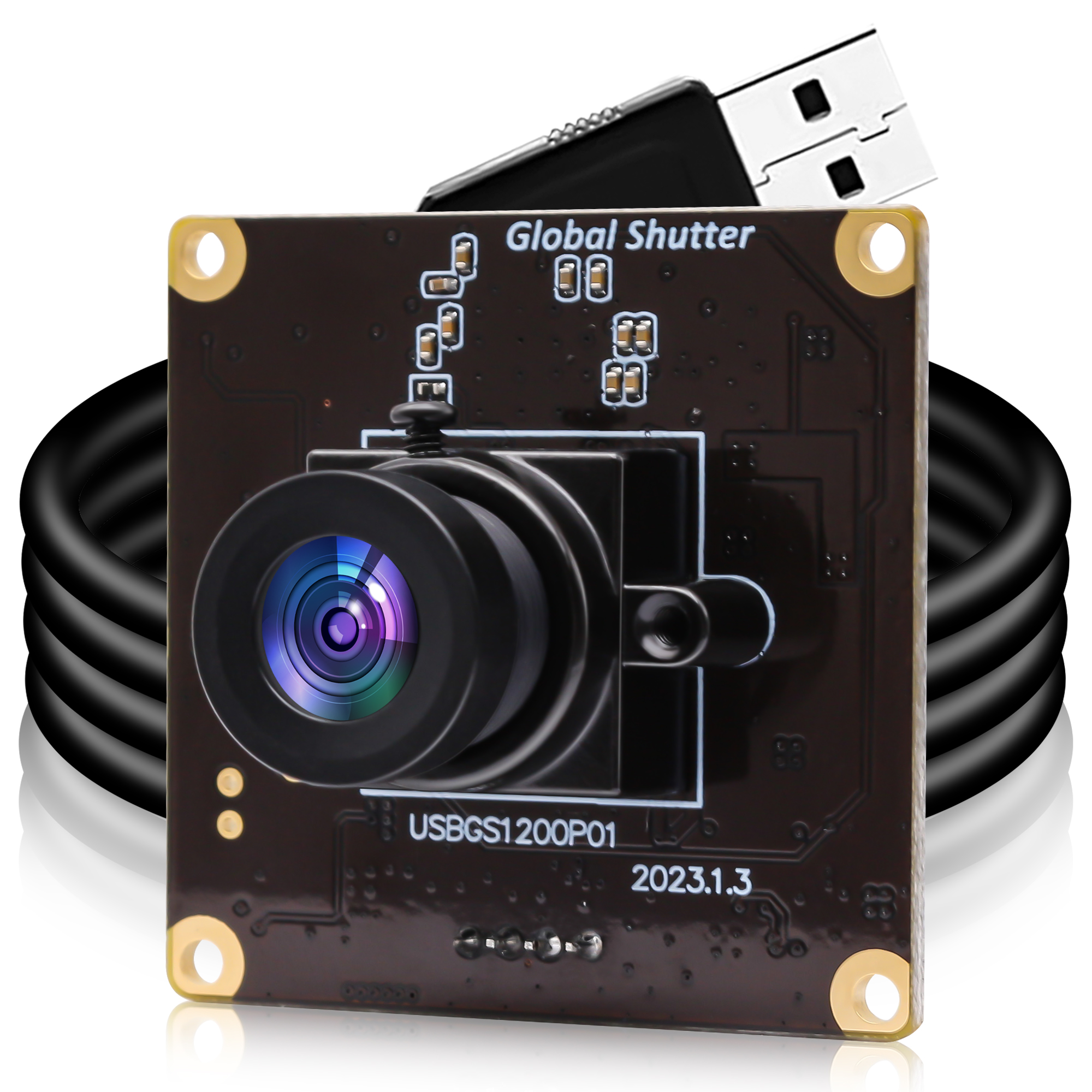

Feature
1. AR0234 Sensor: 2.3MP resolution, 3μm large pixels, excellent low-light performance (minimum illumination 0.3lux), SNR 37dB, dynamic range 70dB.
2. Global Shutter High Speed 90fps: Perfectly eliminates rolling shutter jelly effect, captures high-speed moving objects without trailing, suitable for machine vision, industrial inspection, high-speed scanning, etc.
3. 120° 2.1mm Lens: Wide angleM12 interface fisheye lens , fixed focus, non-adjustable. Provides ultra-wide field of view, allowing a single camera to cover the entire room/device surroundings, suitable for security monitoring, VR panorama, 3D scanning, etc.
4. Frame Rate
MJPEG: 1920×1200@90fps / 1920×1080@90fps / 1280×720@90fps
YUY2: 1920×1200@30fps / 1920×1080@30fps

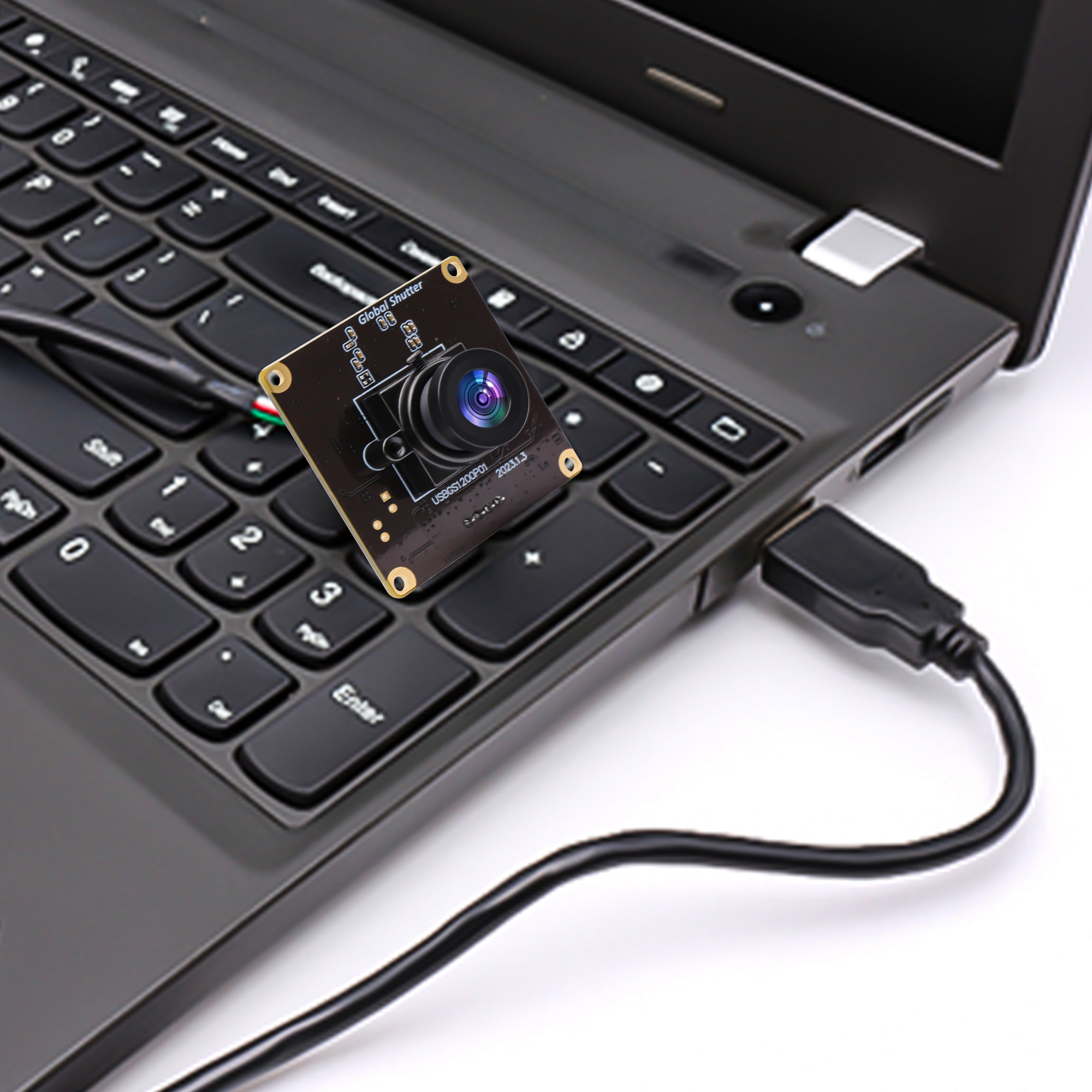

5. UVC Driver-Free Plug and Play: Compatible with mainstream systems, no additional driver installation needed, convenient for development and deployment.
6. System Support: Windows, Linux, macOS, Android 4.0 (UVC compatible)
7. industrial stability: Wide temperature design, low power consumption, can be directly integrated into embedded devices or industrial machinery.
8. Adjustable Parameters: Brightness, contrast, saturation, exposure, white balance, etc.
Specification
|
Model |
ELP-USBGS1200P01-L21 (2.1mm lens, HFOV 120 degree)
ELP-USBGS1200P01-L28 (2.8mm lens, HFOV 114 degree) ELP-USBGS1200P01-L29 (2.9mm lens, HFOV 111 degree) ELP-USBGS1200P01-L36 (3.6mm lens, HFOV 87 degree) ELP-USBGS1200P01-L60 (6mm lens, HFOV 57 degree) ELP-USBGS1200P01-L80 (8mm lens, HFOV 44 degree) ELP-USBGS1200P01-L12(12mm lens, HFOV 26 degree) ELP-USBGS1200P01-FV (2.8-12mm varifocus lens) ELP-USBGS1200P01-L170 (fisheye lens, HFOV 153 degree)ELP-USBGS1200P01-L180 (fisheye lens, HFOV 200 degree) ELP-USBGS1200P01 (No lens) |
|
|
Sensor |
Aptina AR0234 (1/2.6”) Global Shutter |
|
|
Max Resolution |
1920 (H) *1200 (V) |
|
|
Sensor Size |
1/2.6 inch (4:3) |
|
|
PixelSize |
3.0μm |
|
|
Compression Format |
MJPEG/YUV2 (YUYV) |
|
|
Resolution& Framerate |
1920×1200 @ 90fps MJPEG 1600×1200 @ 90fps MJPEG 1280×720 @ 90fps MJPEG 960×720 @ 90fps MJPEG 640×480 @ 90fps MJPEG |
1920×1080 @ 90fps MJPEG 1280×960 @ 90fps MJPEG 1024×768 @ 90fps MJPEG 800×600@ 90fps MJPEG 320×240 @ 90fps MJPEG |
|
Surface Mount Technology |
SMT |
|
|
Focus |
Fixed |
|
|
Central Definition |
600LW/PH (Center) |
|
|
S/N Ratio |
37dB |
|
|
DynamicRange |
70dB |
|
|
Sensitivity |
1.4V/lux-sec@550nm |
|
|
MiniIllumination |
0.3lux |
|
|
Shutter |
Global Shutter |
|
|
Interface |
USB2.0 High Speed |
|
|
AEC |
Support |
|
|
AWB |
Support |
|
|
AGC |
Support |
|
|
AdjustableParameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Whitebalance, BacklightCompensation, Exposure |
|
|
Lens Parameters |
HD 3.6mmlens Optional 2.1mm/2.8mm/2.9mm/6mm/8mm/12mm… No DistortionLens(FOV65~130 degreeoptional) Fisheyelens 150 degree /180 degree etc. |
|
|
LED board power connector |
Support 2P-2.0mm socket |
|
|
Power Supply |
USBBUSPOWER4P-2.0mm socket |
|
|
Operating Voltage |
DC5V |
|
|
WorkingCurrent |
160mA- 190mA |
|
|
Dimension |

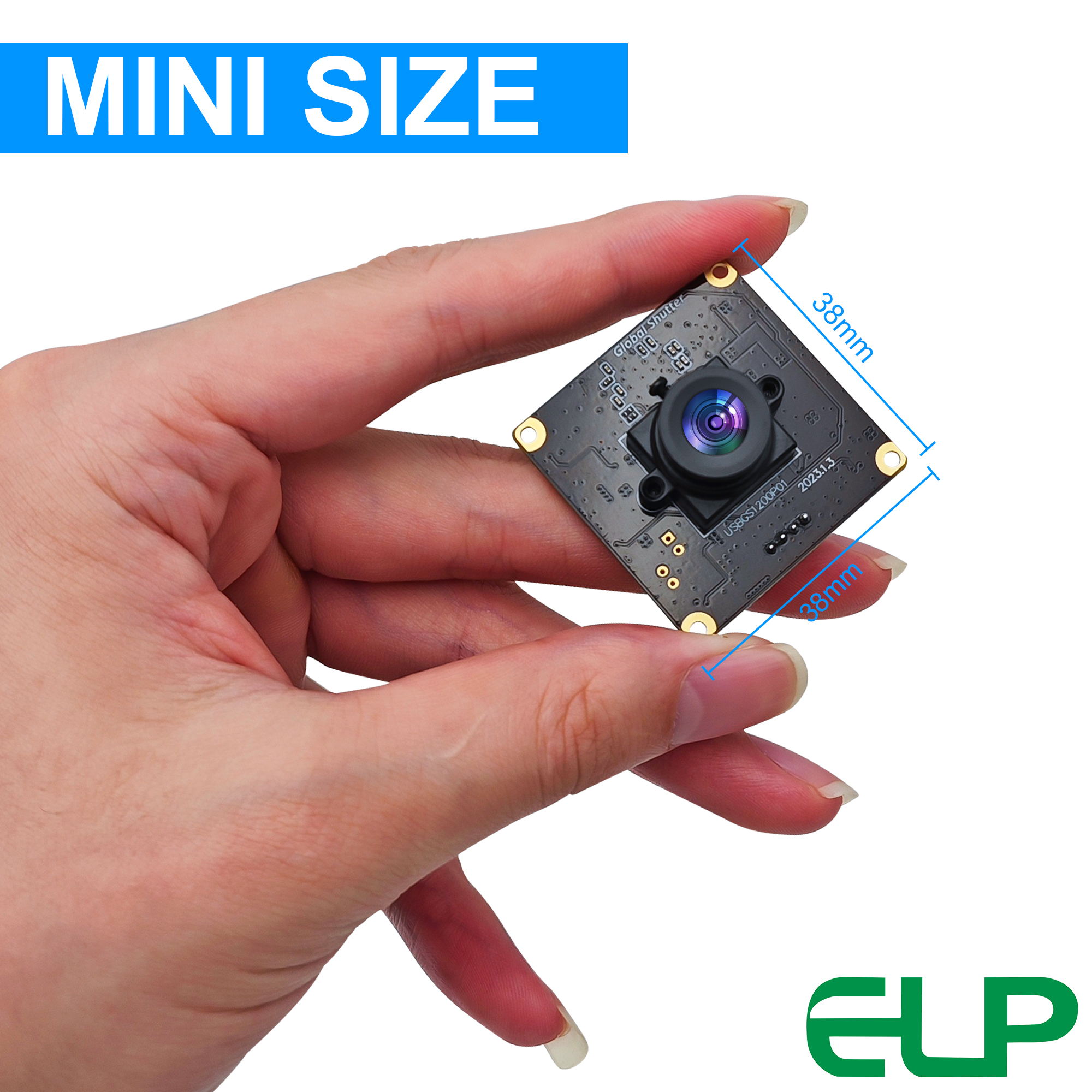

38mm x 38mm |
|
|
Storage Temperature |
-20°Cto80°C |
|
|
Working Temperature |
0°C to 60°C |
|
|
USBCable |
1M(2M/3M/5M … Optional ) |
|
|
Operating System Request |
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux withUVC(abovelinux-2.6.26) MAC-OS X 10.4.8 orlater Android4.0 or above with UVC |
|
