Description

Upgrade your imaging setup with this 13MP autofocus USB camera featuring the renowned Sony IMX214 sensor. Whether you’re building an industrial inspection system, a Raspberry Pi project, or a high-quality streaming rig, this camera delivers professional-grade image quality in a compact, plug-and-play package.

Features

* 13MP High resolution: 13 megapixel 3840×2880

* Focus: Autofocus usb camera module

* No distortion Lens: 75 degree lens, HFOV about 60 degree

* Micro usb camera: size 38x38mm

* With standard 1m cable (2m/3m/5m/0.3m/0.5m…optional)

* Built-in Microphone: without microphone, support audio recording.

* High Quality Sensor: CMOS IMX214 Sensor for super sharp image.

* UVC: free driver, Plug & Play

* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.

* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..

* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera…

Specification

Module No.	ELP-USB13MAF-KV75
Sensor	IMX214 (1/3 ) AF
Max. Resolution	3840(H) *2880 (V)
Sensitivity	1000mV/Lux-sec
Image area	6100µmx4524µm
Maximum Image Transfer Rate	3840×2880@10fps MJPEG/ 3264×2448@ 15fps MJPEG 3840×2160@ 15fps MJPEG / 2592×1944@ 20fps MJPEG 2048×1536@ 30fps MJPEG /1600×1200@ 30fps MJPEG 1920×1080@ 30fps MJPEG/ 1280×1024@30fps MJPEG 1280×960@30fps MJPEG/1280×720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640×480@ 30fps MJPEG /  320×240@ 30fps MJPEG
Focus	Auto
Object distance	8CM-100M
Resolution	1000LW/PH (Center)
interface	USB 2.0 High Speed
protocol	USB Video Class（UVC）
S/N Ratio	33dB
Shutter	Rolling shutter/ frame exposure
AGC/AEC/AWB/ABF	Auto
Output Formats	YUYV/MJPEG
Adjustable parameter	Brightness Contrast Hue Saturation Sharpness Gamma White Balance  Exposure Focus
Lens Parameter	Size:  1/3,  FOV: 75Degree Relative Illumination (Sensor): 70% IR Filter: 650±10nm
LED board power connector	Support  2P-2.0mm socket
Power supply	USB BUS POWER  4P-2.0mm socket
Operating Voltage	DC5V
Power consumption	220mW
Module Size	38mm × 38mm
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 60°C
USB Cable	3M(1M/2M/5M Optional)
Operating system request	Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC

Product Display

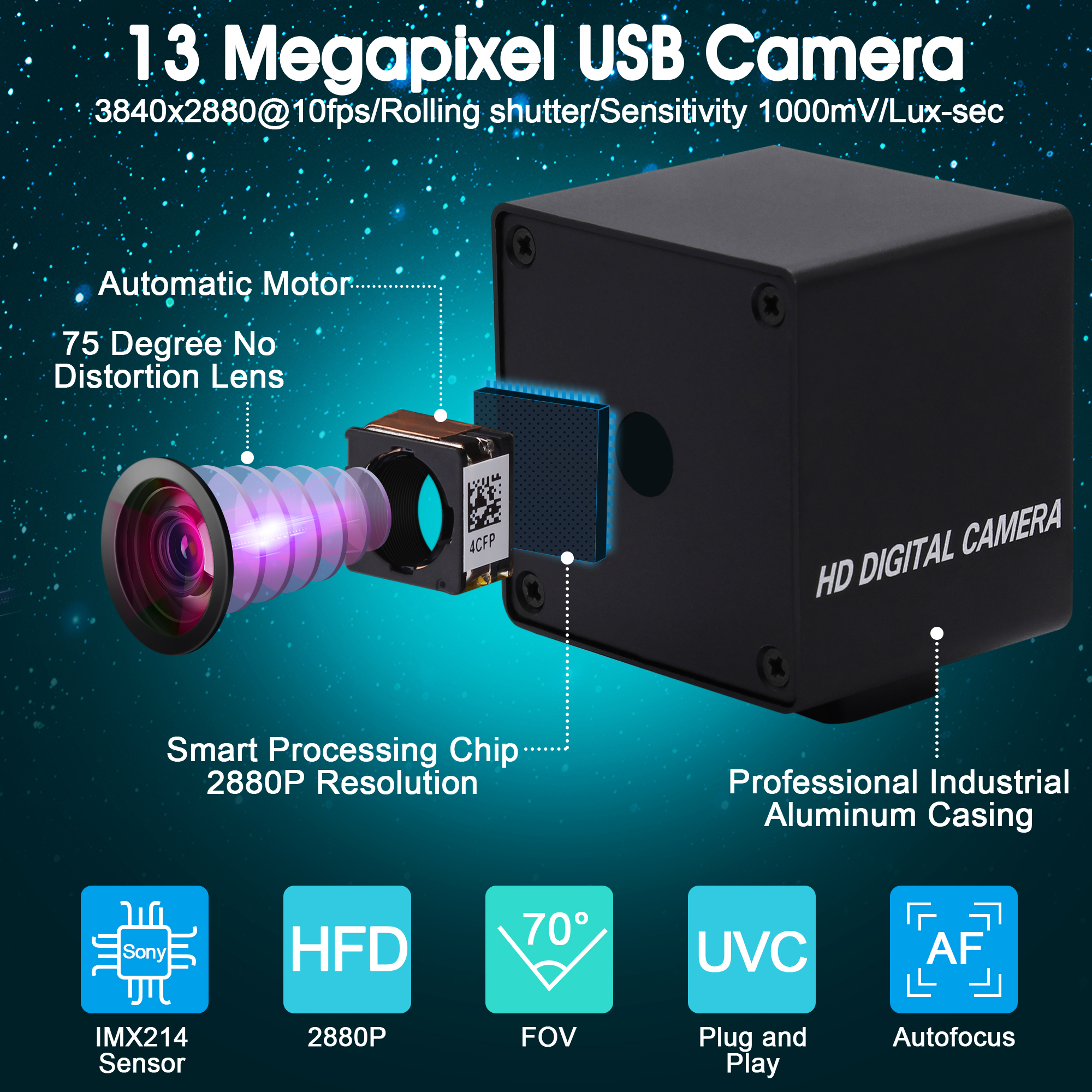

Sharp 13MP Images with Sony IMX214 Sensor – Equipped with the high-performance Sony IMX214 CMOS sensor, this USB camera delivers crisp, true-to-life 13-megapixel photos and up to 4K UHD video, capturing fine detail with excellent low-light performance



Fast & Accurate Autofocus – The built-in autofocus lens locks onto subjects quickly and precisely, keeping everything from close-up documents to distant objects perfectly sharp without manual adjustment.

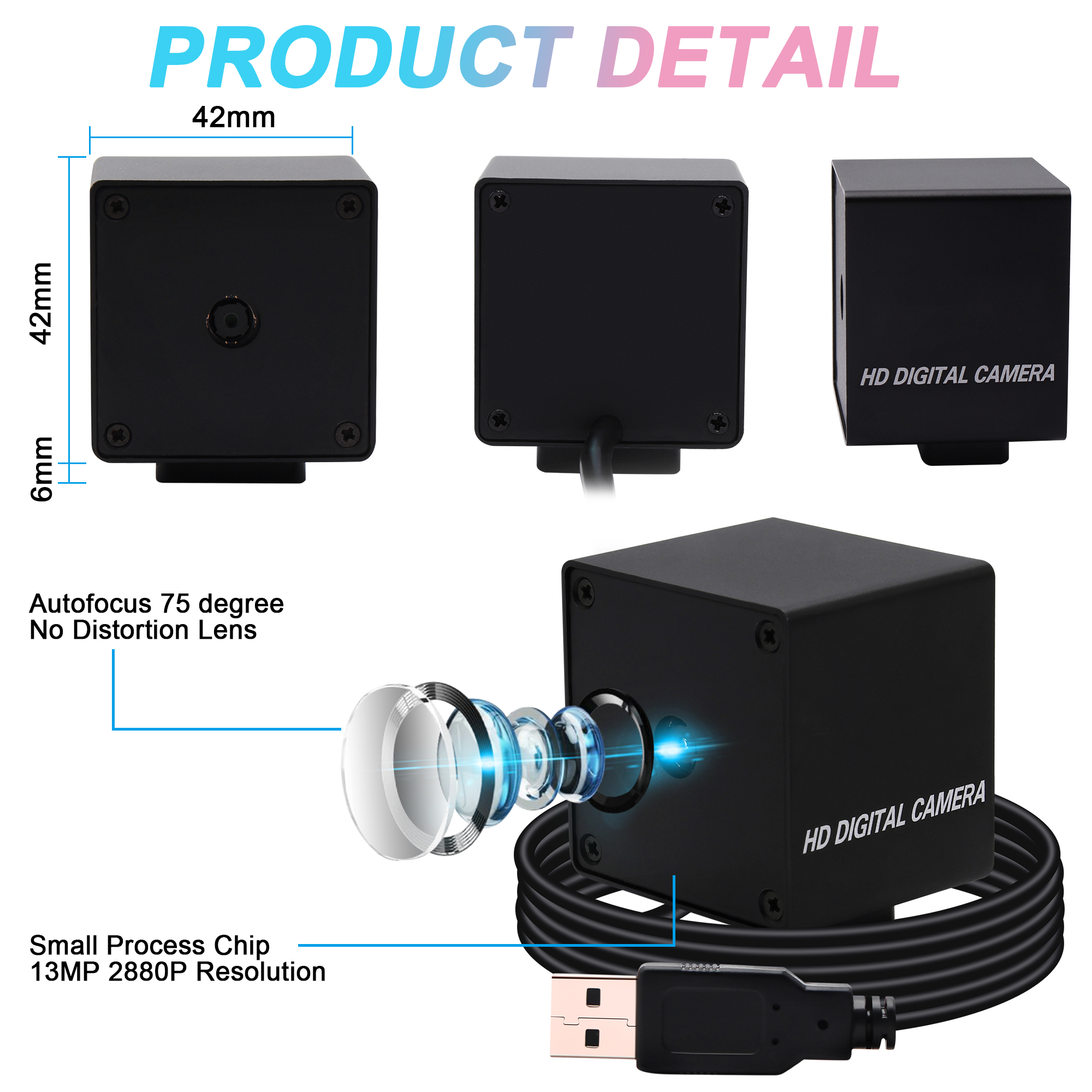

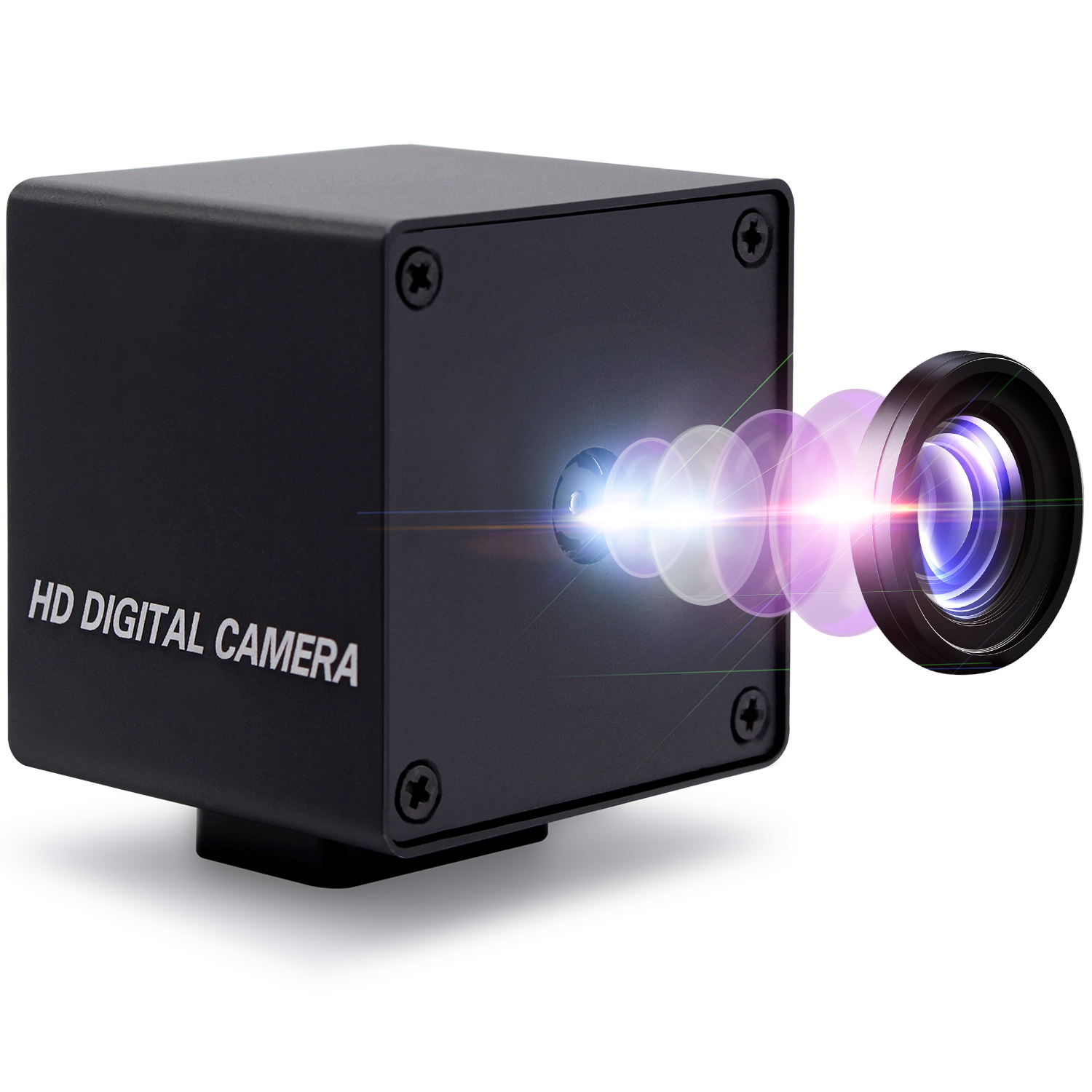

AF Autofocus No Distortion Lens
-With 75 degree lens, FOV about 60 degree
-Autofocus, no need manual adjusting, focus automatically.

Plug & Play USB Connection (UVC Compliant) – No drivers required. Simply plug the USB cable into your computer, laptop, or Raspberry Pi and start shooting immediately. Works with Windows, Linux, macOS, Android, and most UVC-supported systems.

Compatible with muti software & operating system: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi, Jetson Nano…
Comptible with Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time , Webcam Viewer,TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam…

Wide Compatibility for Endless Applications – Ideal for industrial vision, machine vision, 3D scanning, live streaming, video conferencing, document scanning, security monitoring, and DIY electronics projects.

Compact & Durable Design – The small 38*38mm board, lightweight module is easy to integrate into custom enclosures, robots, and embedded systems, with a sturdy build for reliable long-term use.
