Features

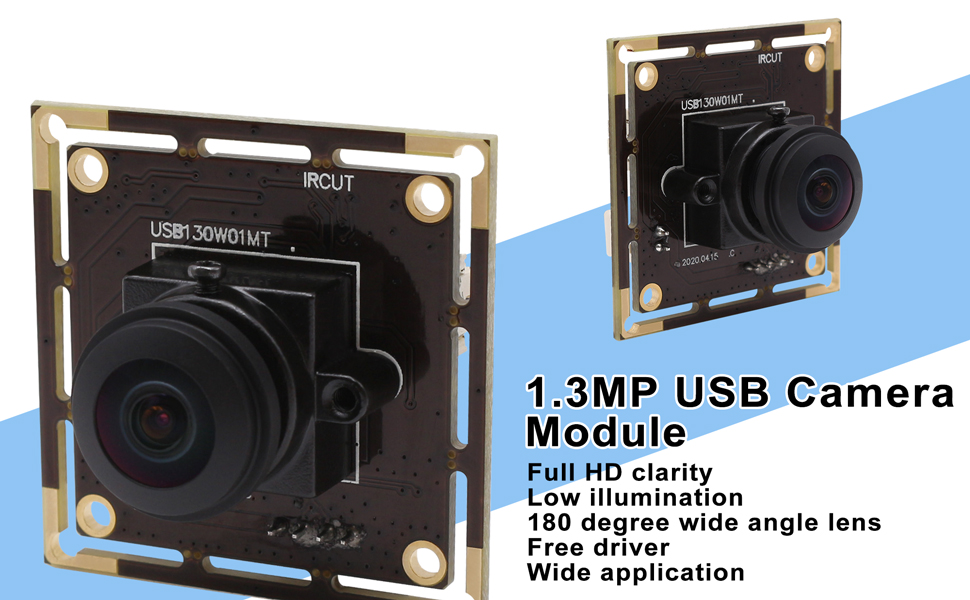

*960P resolution 1280x960P USB Camera Module
*Wide angle fisheye USB Camera module
*Android&Linux system support Camera USB
* CMOS Camera Module USB with Micron AR0130 960P sensor
*High speed USB 2.0 UVC USB board Camera
*0.01Lux Low illumination USB webcam
*low light performance – ideal for any lighting condition
*UVC for use in Android, Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC
Specification
| Optional Models | ELP-USB130W01MT-L180 (180 degree fisheye lens,FOV 180) |
| Sensor | Aptina AR0130 |
| Lens Size | 1/3 inches |
| Pixel Size | 3.75um |
| Image Area | 3888 µm x 2430 µm |
| Max. Resolution | 1280(H)X960(V) |
| CompressionFormat | MJPEG / YUV2(YUYV) |
| Resolution & Frame rate | 1280X960 MJPEG@ 15fps YUY2@9fps/ 1280X720MJPEG@ 30fps YUY2@15fps 800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@20fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps |
| USB Protocol | USB2.0 HS/FS USB1.1/USB1.0 |
| S/N Ratio | 44dB |
| Dynamic Range | 83.5dB |
| Sensitivity | 5.5V/lux-sec@550nm |
| Mini illumination | 0. 01lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class (UVC) |
| Support OTG Protocol | USB2.0 OTG |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure |
| Lens Parameter | 180 degree fisheye lens, optional 2.1/2.5/2.8/6mm/ FOV(D)170 Degree |
| IR CUT Connector | Support 2P-1.25mm socket |
| LED board test connector | Support 2P-1.25mm socket |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Operating Voltage | DC5V |
| Working current | 100mA~160mA |
| Working Temperature | -10～70℃ |
| Storage Temperature | -20～85℃ |
| Board size /Weight | 38X38mm (Compatible 32X32mm)/ about 30g |
| Cable | Standard 1M (optional 2M,3M,5M) |
| Operating system request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
Product Display

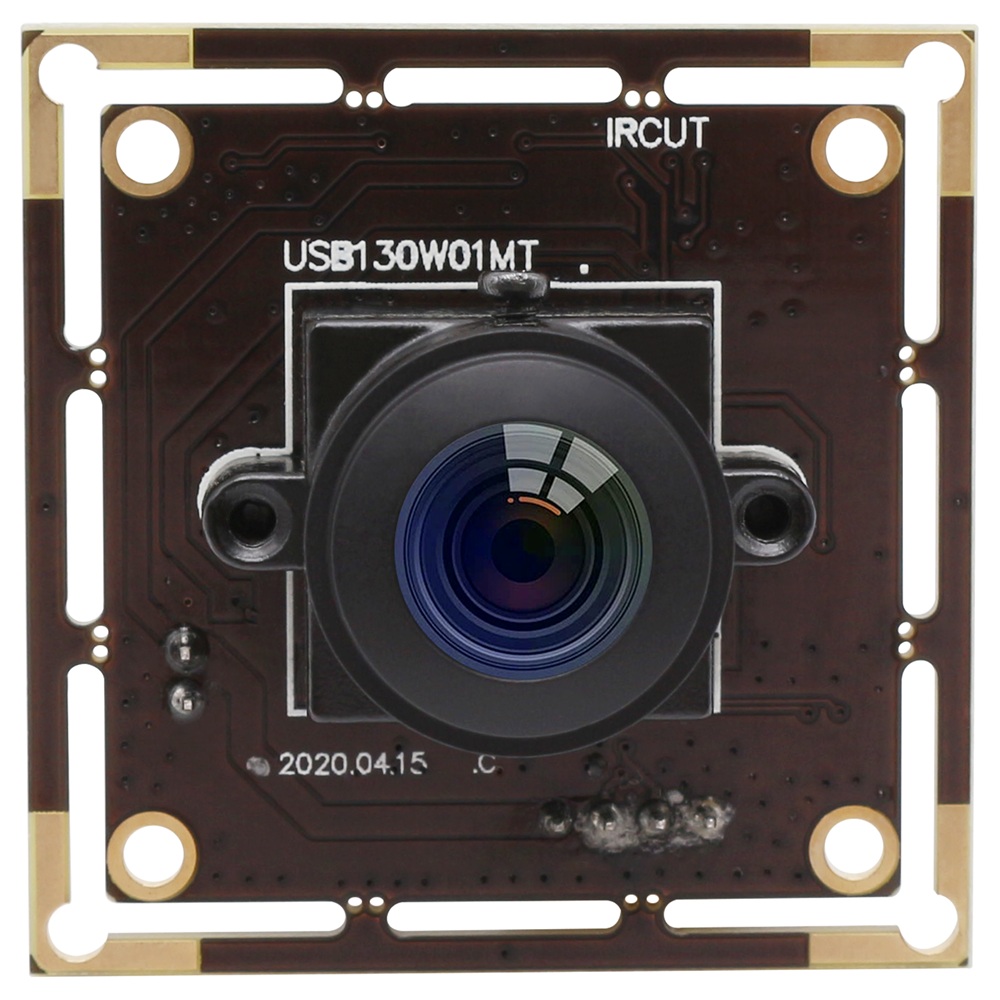

960P resolution 1280x960P
PERFECT COMPACT SIZE: With dimensions of 38×38,32x32mm, this lightweight board camera fits perfectly into tight spaces for embedded projects, robotics, or portable monitors
Versatile Lens Mount
Features standard M12 mount for compatibility with 180 degree fisheye lens, wide range of microscopes, industrial lenses, and optical systems.
Low-light performance: Minimum illumination of 0.01 Lux (starlight level), enabling clear image capture in dim lighting or nighttime without additional lighting, meeting requirements for low-light surveillance and detection
Plug-and-play UVC compatibility The camera supports UVC protocol, enabling seamless plug-and-play functionality across Windows, macOS, Android, and Linux without requiring additional drivers
Support living streaming software, Skype, Zoom, Facetime, Youtube…
Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2….
Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS…
Wide Application Compatibility
Perfect for machine vision, security surveillance, 3D scanning, iris recognition, video conferencing, and laboratory automation
