Features
* Full HD 1080P: Max Resolution 1920×1080.
* High Speed, high FPS:1920×1080 Mjpeg 60FPS, 1280×720 Mjpeg 120FPS, 640×360 Mjpeg 260FPS.
* Wide angle lenses optional : No distortion lens. Many other lens optional 2.1mm/2.8mm/3.6mm/6mm/8mm/12mm/fisheye lens…
* Micro usb camera with small size: 38x38mm.
* USB Cable: With 3m usb cable (2m/3m/5m/0.3m/0.5m…optional).
* UVC: free driver, Plug & Play.
* OTG support: can connect android tablet, smartphone… via OTG cable.
* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.
* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..
* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera…
Specification
| Model | With No Distortion Lens: ELP-USBFHD08S-BLC1100 (FOV 48 degree) With Normal Lens: With Fish-eye Lens: |
| Sensor | OV4689 |
| Lens Size | 1/3 inch |
| Pixel Size | 2.0µm x 2.0µm |
| Image Area | 5440 µm x 3072 µm |
| Max. Resolution | 1920(H)*1080(V) |
| Compression Format | MJPEG / YUV2 (YUYV) |
| Resolution & Frame rate | 1920X1080 MJPEG@ 60fps 1280X720 MJPEG@ 120fps 640X360MJPEG@ 260fps |
| S/N Ratio | 38.3dB |
| Dynamic Range | 64.6dB |
| Sensitivity | 1900mV/lux-sec@550nm |
| Mini illumination | 0. 1Lux |
| Shutter Type | Electronic Rolling Shutter / Frame Exposure |
| Connecting Port Type | USB2.0 High Speed |
| Free DriveProtocol | USB Video Class (UVC) |
| AEC | Support |
| AWB | Support |
| AGC | Support |
| Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |
| Lens Parameter | No distortion lens, HFOV about 48 degree under 1920×1080 (Many other lens optional) |
| Power Supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Working Current | 150mA~185mA |
| Working Temperature | -10～70℃ |
| Storage Temperature | -20～85℃ |
| Board Size | 38*38mm |
| Cable | Default with 3m (2m, 3m, 5m, 0.3m…Optional) |
| Operating System | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
Product Display
-2MP High Speed USB Camera
-Max Resolution: 1920×1080 , Full HD 1080P webcam
-Compression: Mjpeg /YUY2
-Mjpeg 60FPS at 1920X1080, Mjpeg 120FPS at 1280×720, Mjpeg 260FPS at 640×360
-Cable: With 1m cable (Other length optional)
-Support different systems.
-Full HD 1080P, 1920×1080
-High resolution 1080P usb camera module
-Much clear than 960P 720P
-High speed USB Camera Module well used for fast moving object shooting.

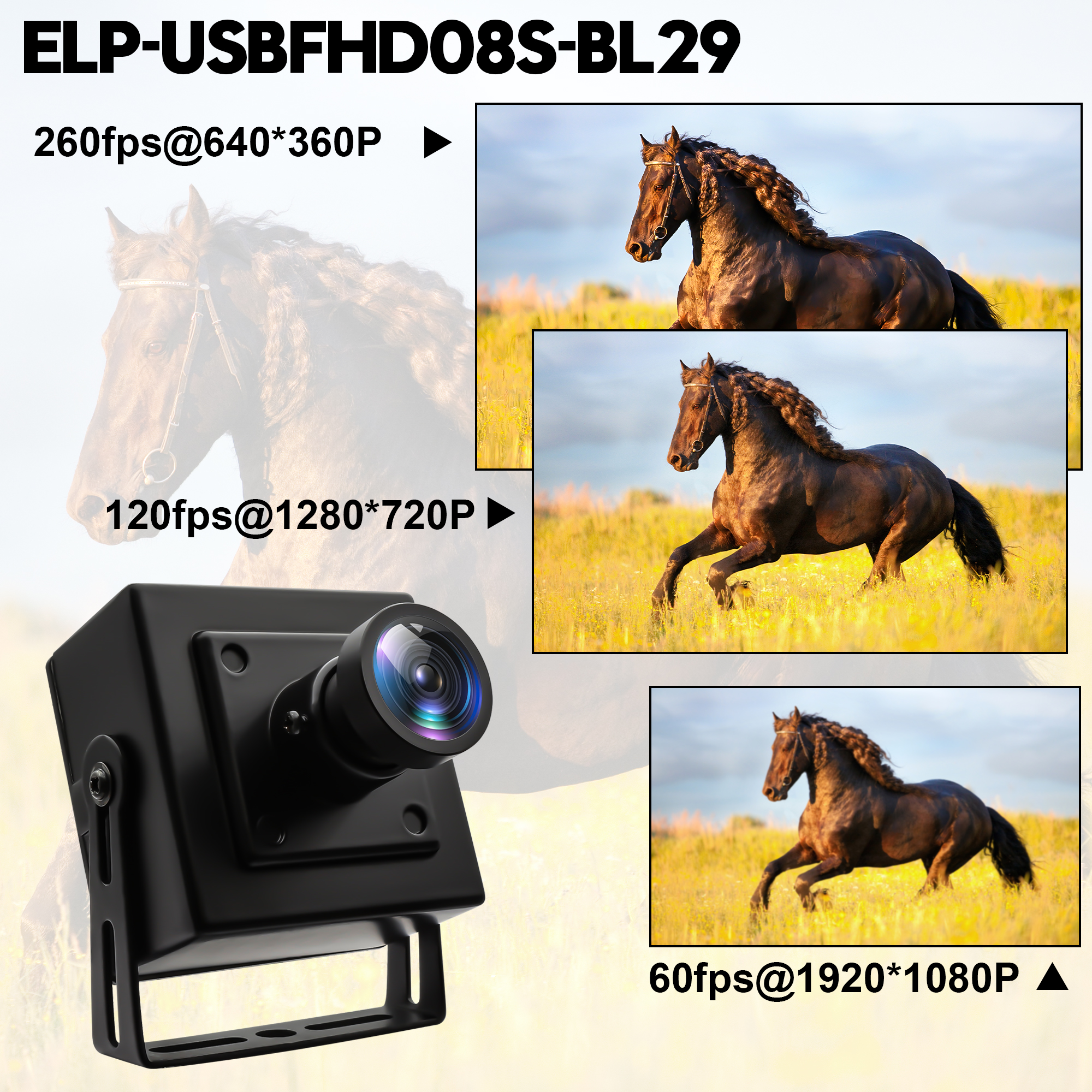

-1920×1080 Mjpeg 60FPS
1280×720 Mjpeg 120FPS
640X360 Mjpeg 260FPS

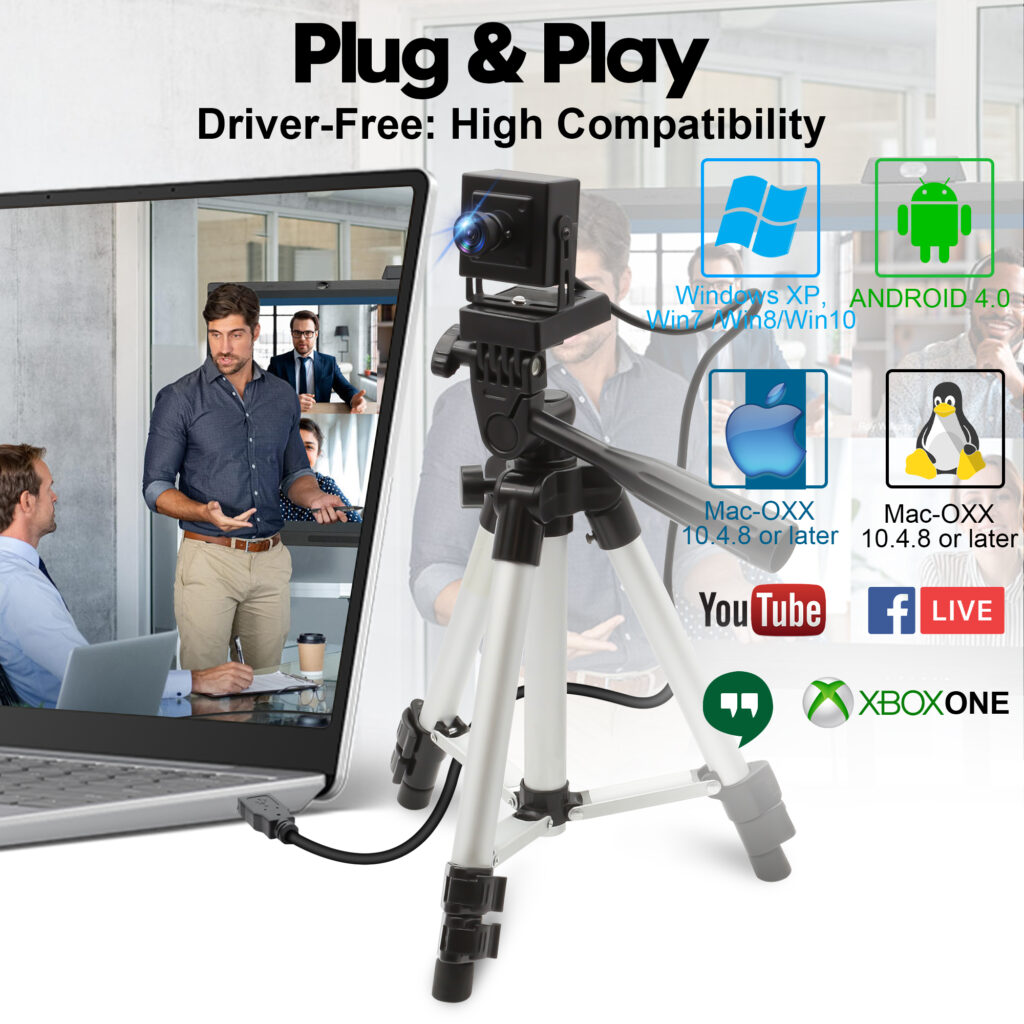

-UVC, free driver, USB Plug & Play
-Support OTG cable, USB 2.0 to mirco USB
-Parameters adjustable: Brightness, Contrast, Saturation, Hue, Sharpness, White Balance, Gamma, Exposure, Gamma… changeable.
-Support OTG, can connect android tablet, smartphone via OTG Cable.
-Support living streaming software, Skype, Zoom, Facetime, Youtube…
-Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2….

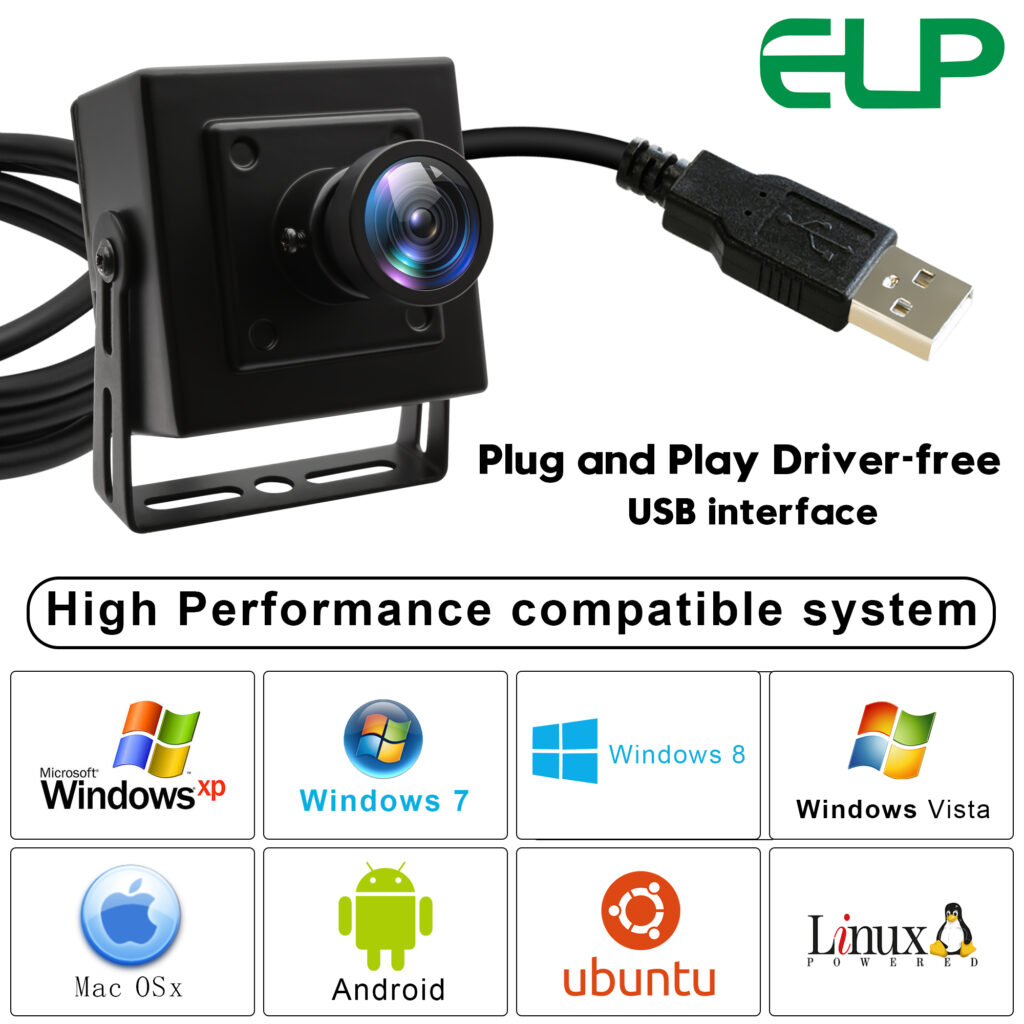

-Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS…
-Support OTG, well connect to Android smartphone, tablet…via OTG cable

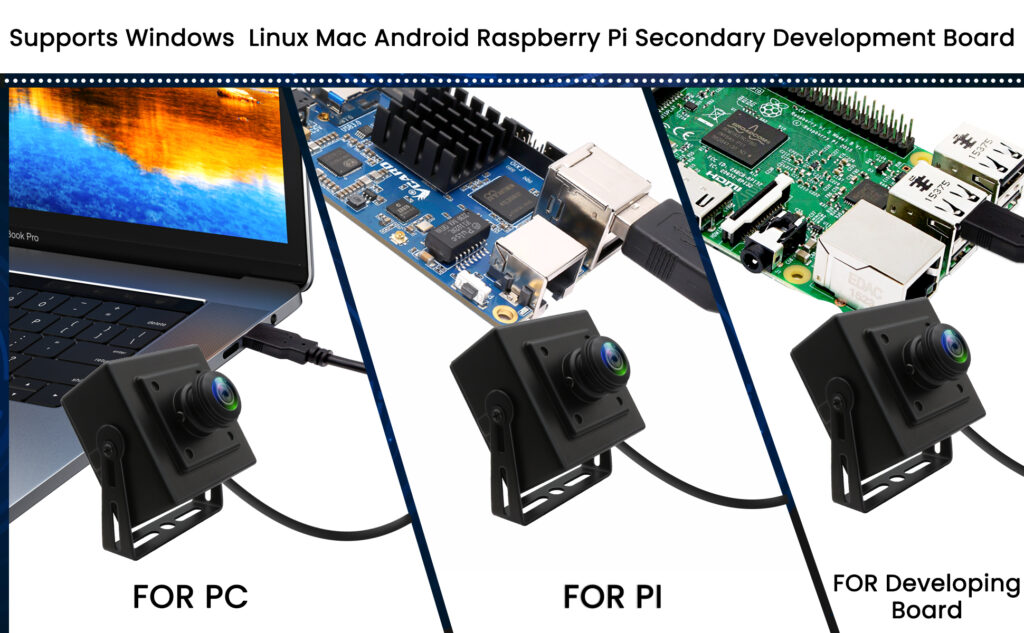

-For PC: support different operating system, Windows, Linux, Android, Mac OS, Ubuntu…
-For Pi: support Linux Raspberry Pi
-For Android Development Board
Full HD 1080P USB Camera with high frame rate, well used for capturing high speed moving objects. Can be used in Traffic Monitoring, Sports, Golf, Laser Engrave System, Vision Inspection, Industrial Machine Vision, Quality Control, 3D printer….
