Description
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
Package include:
1) 1PC High frame rate 2mp usb webcam 2.8-12mm/5-50mm/6-60mm varifocal lens,4/6/8mm manual focus lens
2) 1PC 3m usb cable ( 2m/5m cable optional)
Features
* Full HD 1080P: High resolution max 1920×1080
* Sensor: 1/3″ OV4968 CMOS Sensor
* High speed/High FPS: 1920×1080 Mjpeg 60fps, 1280×720 Mjpeg 120fps, 640×360 Mjpeg 260fps
* HD varifocal lens:CS 5-50mm lens (Many other CS lens optional,CS 2.8-12mm…)
* USB Cable: Default with 3m USB cable (1m, 2m, 5m … other length optional).
* Small case: with small aluminum case
* UVC: Free driver, Plug and play.
* Parameters Adjustable: Set up Exposure, White Balance, Hue, Brightness, Contrast, Saturation, Compensation… as requests.
* Operating System: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…
* Multi Software compatible: Amcap, USB Camera, iSpy, Webcam Viewer, OpenCV, VLC, V4L2, Photo Booth, Quick Time, CameraFi…
Specification
|
Optional Model
|
ELP-USBFHD08S-MFV (2.8-12) (2.8-12mm varifocus CS lens)
ELP-USBFHD08S-MFV (5-50) (5-50mm varifocus CS lens) ELP-USBFHD08S-MFV(6-60) (6-60mm varifocus CS lens) ELP-USBFHD08S-MF40 (4mm manual focus CS lens) ELP-USBFHD08S-MF60 (6mm manual focus CS lens) ELP-USBFHD08S-MF80 (8mm manual focus CS lens) All above models, specifications are same, just lens different
|
||
|
Resolution & FPS
|
1920X1080 MJPEG@ 60fps
1280X720 MJPEG@ 120fps 640X360MJPEG@ 260fps |
||
|
Sensor
|
OV4689 Sensor
|
Connecting Port Type
|
USB2.0 High speed
|
|
Sensor Size
|
1/3 inch
|
Support free driver
|
USB Video Class(UVC)
|
|
Pixel Size
|
2.0μm x 2.0μm
|
Shutter Type
|
Electronic rolling shutter/ Frame exposure
|
|
Mini illumination
|
0.1Lux
|
AEC
|
Support
|
|
Max. Resolution
|
FULL HD 1920(H)x1080(V)pixels
|
AEB
|
Support
|
|
Picture format
|
MJPEG or YUY2(YUYV)
|
AGC
|
Support
|
|
Lens Parameter
|
2.8-12/5-50mm varifocus lens
4/6/8mm lens optional
|
Adjustable parameters
|
Brightness/Contrast/Saturation,
Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast |
|
Cable
|
Standard 3M/ Optional 2m,5m
|
work temperature
|
DEGREES(-20~70)
|
|
Board Size/
Weight |
38*38mm
|
Certifications
|
FCC and CE
|
|
Power supply
|
USB BUS POWER
|
Power Supply
|
DC 5V
|
|
USB Protocol
|
USB2.0 HS/FS
|
Operating Voltage
|
150mA~185mA
|
|
OTG protocol
|
USB2.0 OTG
|
Special function
|
High FPS
|
|
Night vision
|
Without (Do not advice Connect IR LED Board)
|
LED board power connector
|
Support, 2P-2.0mm socket
|
|
Support OS
|
WinXP/Vista/WIN7/WIN8 /WIN9/WIN10/WIN11 etc.
Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above |
||
Product Display
About High Speed USB Camera:
High speed real-time uncompressed image recording, real-time display
It ensures frame loss and solves the problems of frame loss and power failure protection loss in traditional memory recording mode;
The system works independently,hardly occupies computer resources, and has high reliability
The software interface is simple, convenient for secondary development and real-time processing

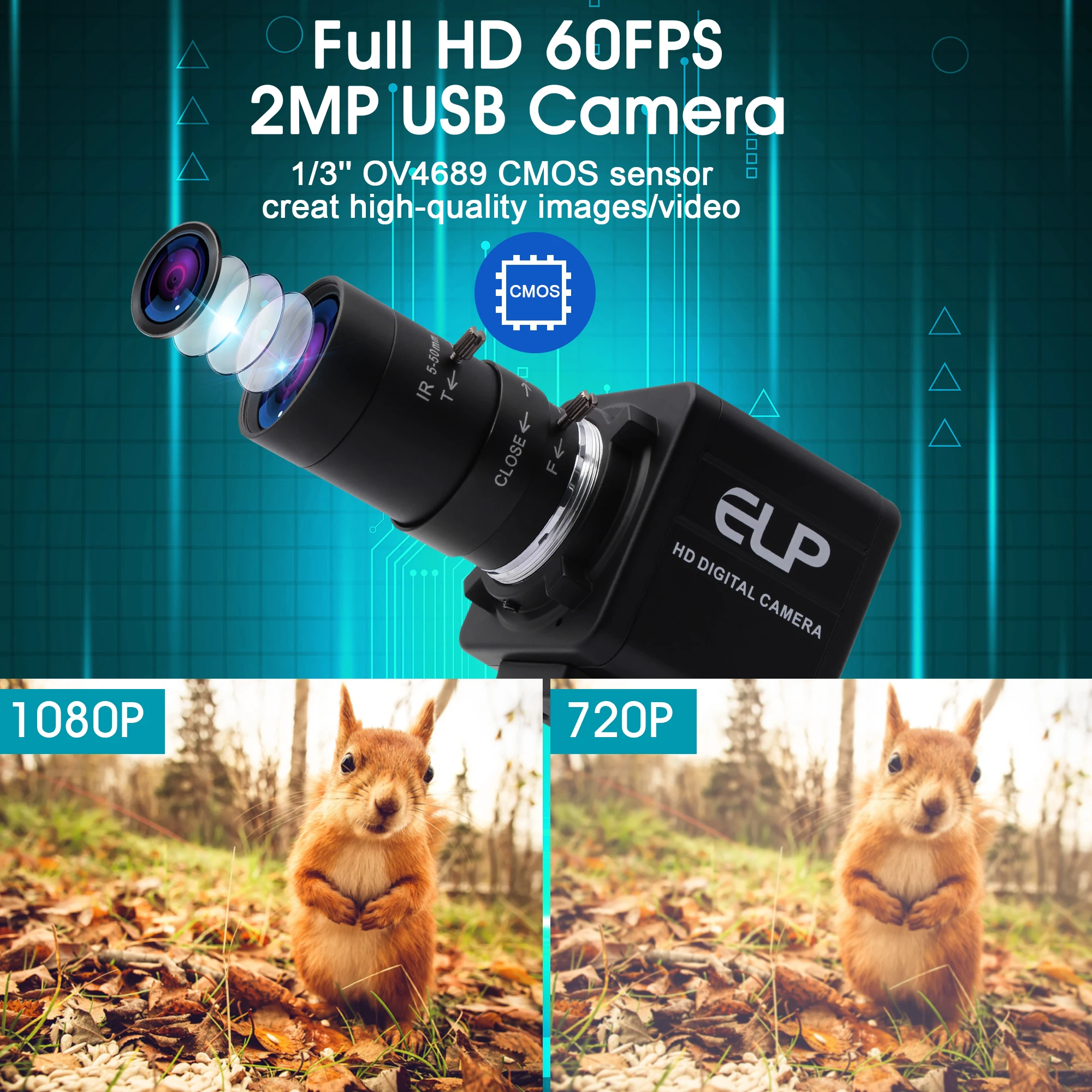

High Technology Image Sensor:
Adopt High Technology 1/3″CMOS OV4689 Image Sensor,Work Efficiently.

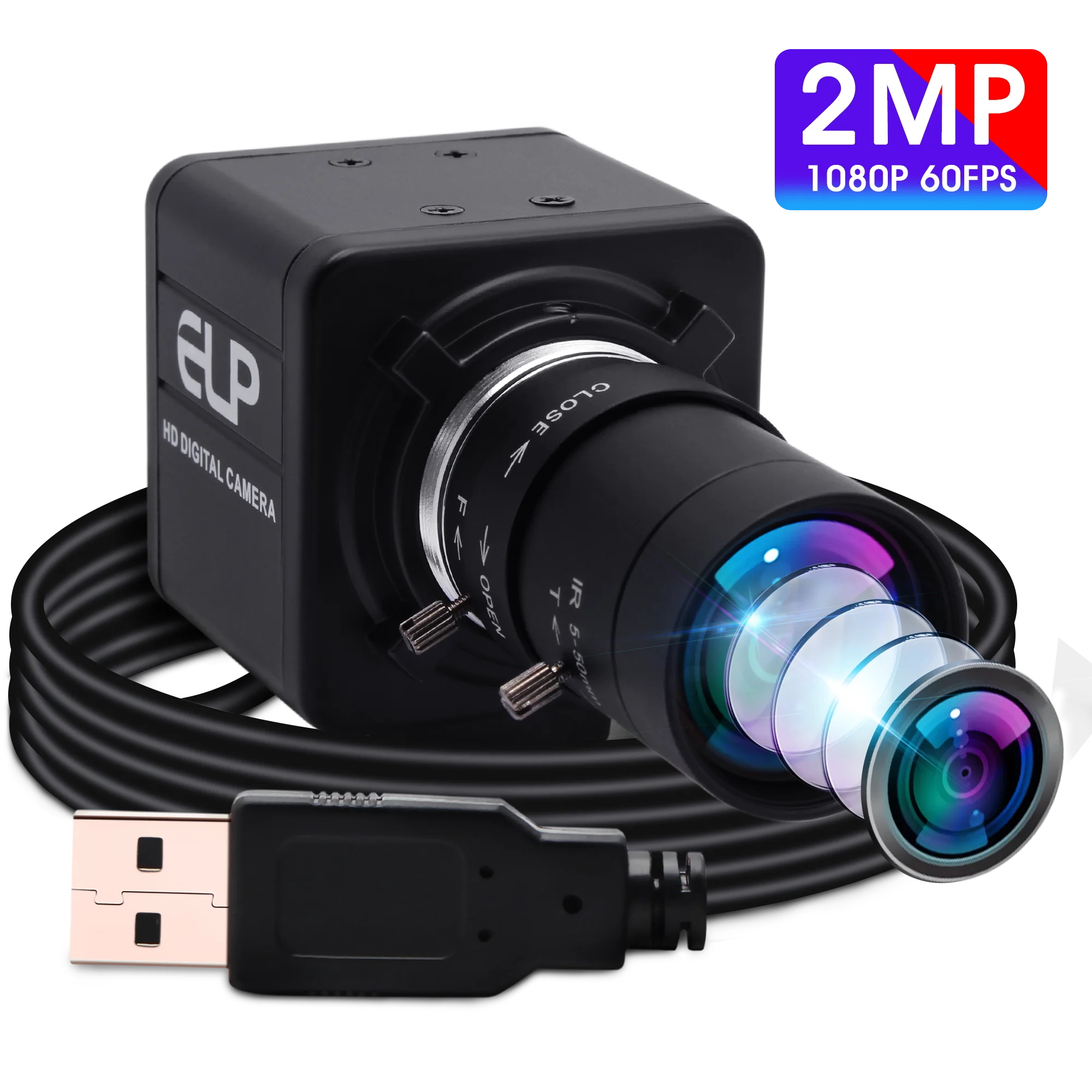

High Resolution 1080P:Max Resolution:
1920H) X 1080(V) 2Megapixel
2mp Full HD high pixel technology for sharp image and accurate color reproduction.
High Speed:
can drive 1080P@60fps,720P@120fps,360P@260fps,usb camera with fast frame for quick moving objects capturing.
Features a high-performance OV4689 sensor that delivers genuine Full HD 1920×1080 resolution video at a super smooth 60 frames per second. Captures crisp, detailed, and blur-free footage of fast-moving objects, perfect for action monitoring and detailed analysis

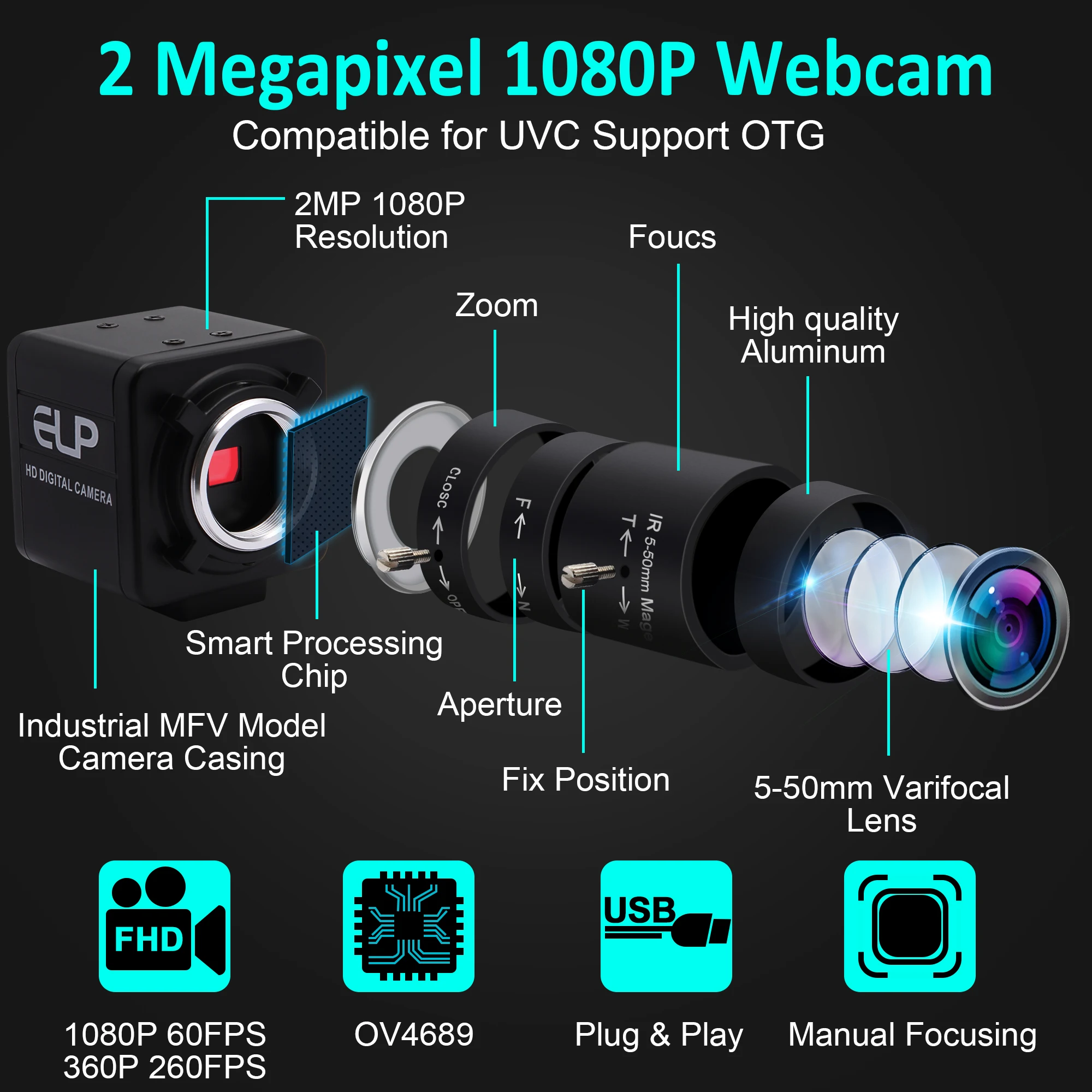

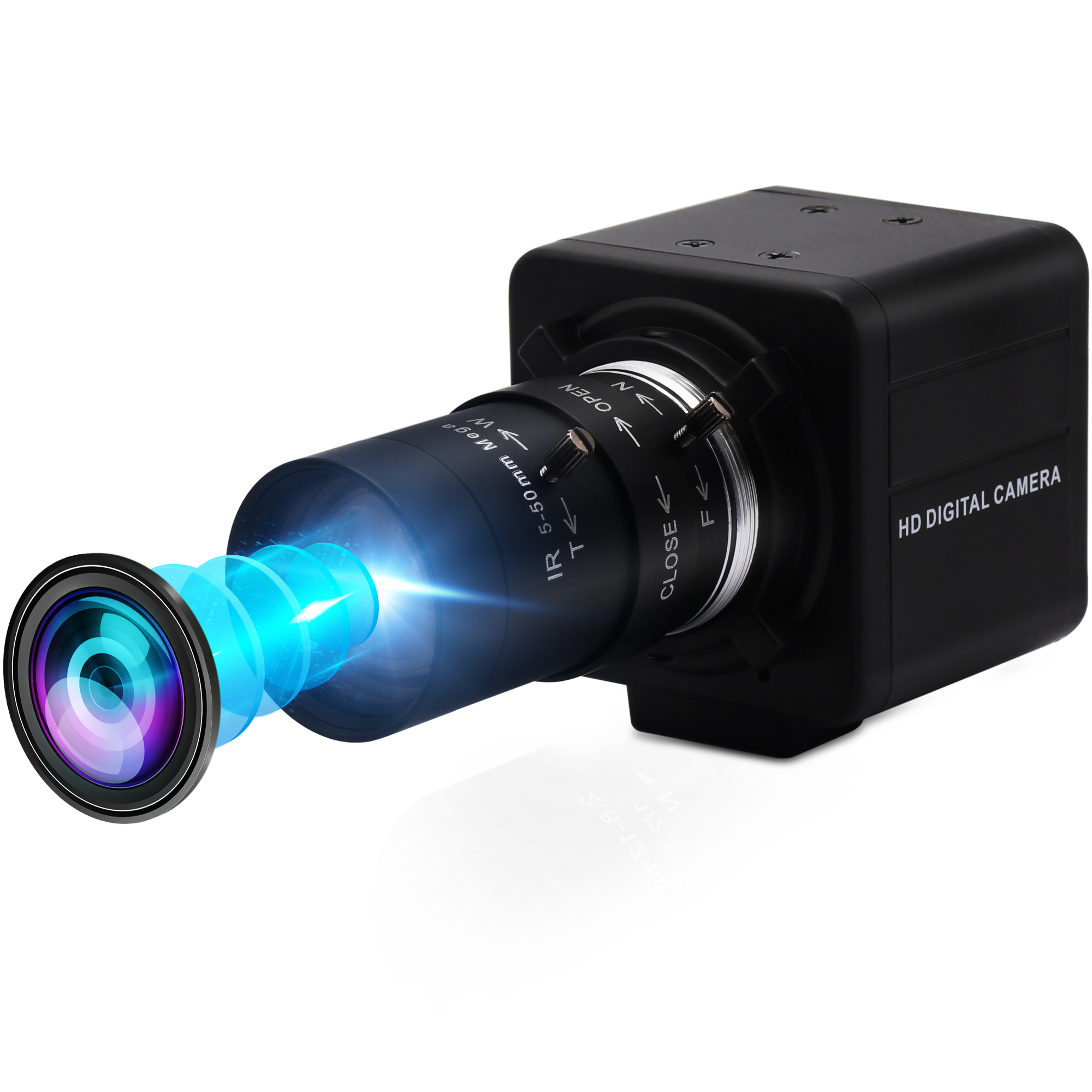

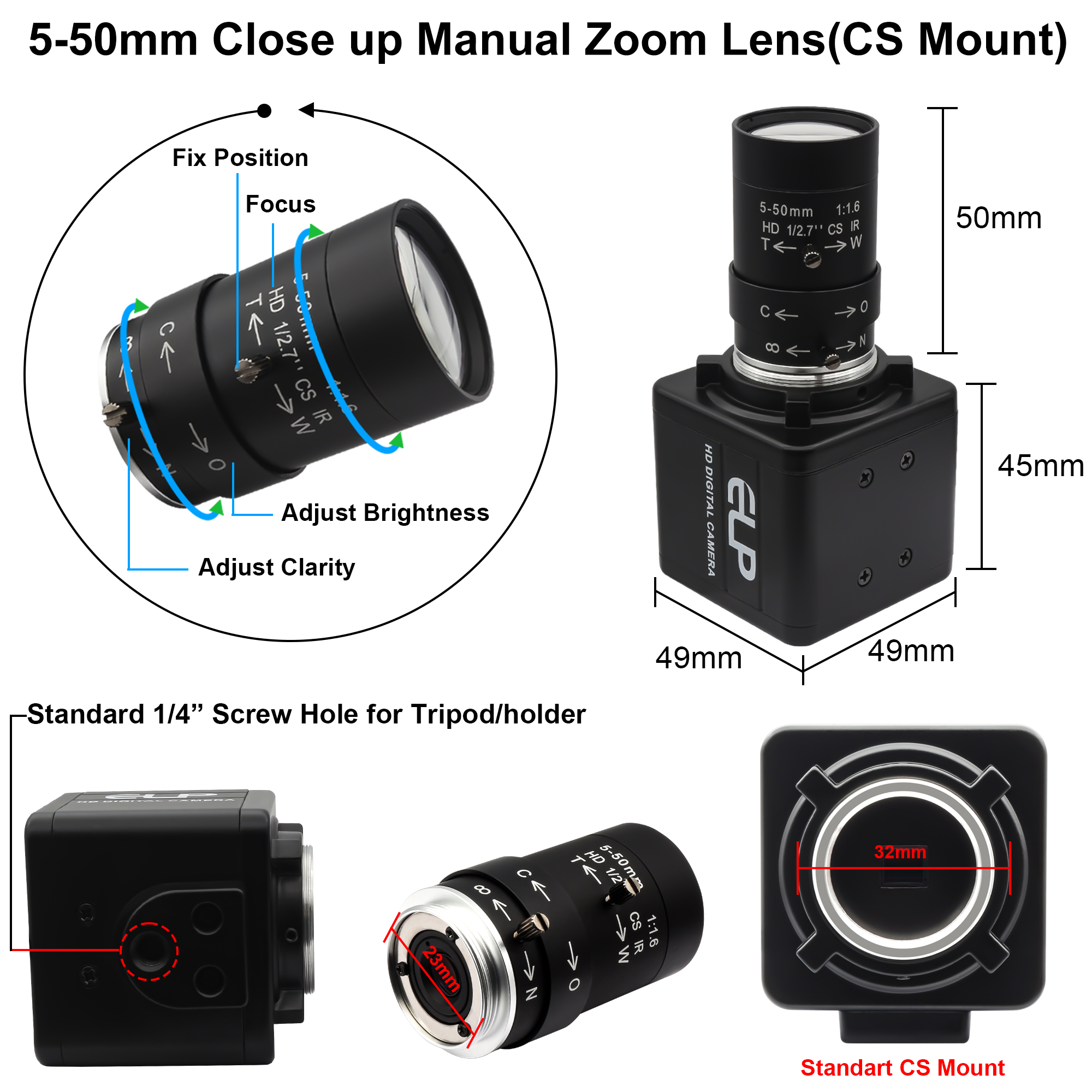

ELP 2.8-12/5-50/6-60mm manual focus camera with good zoom in and out:

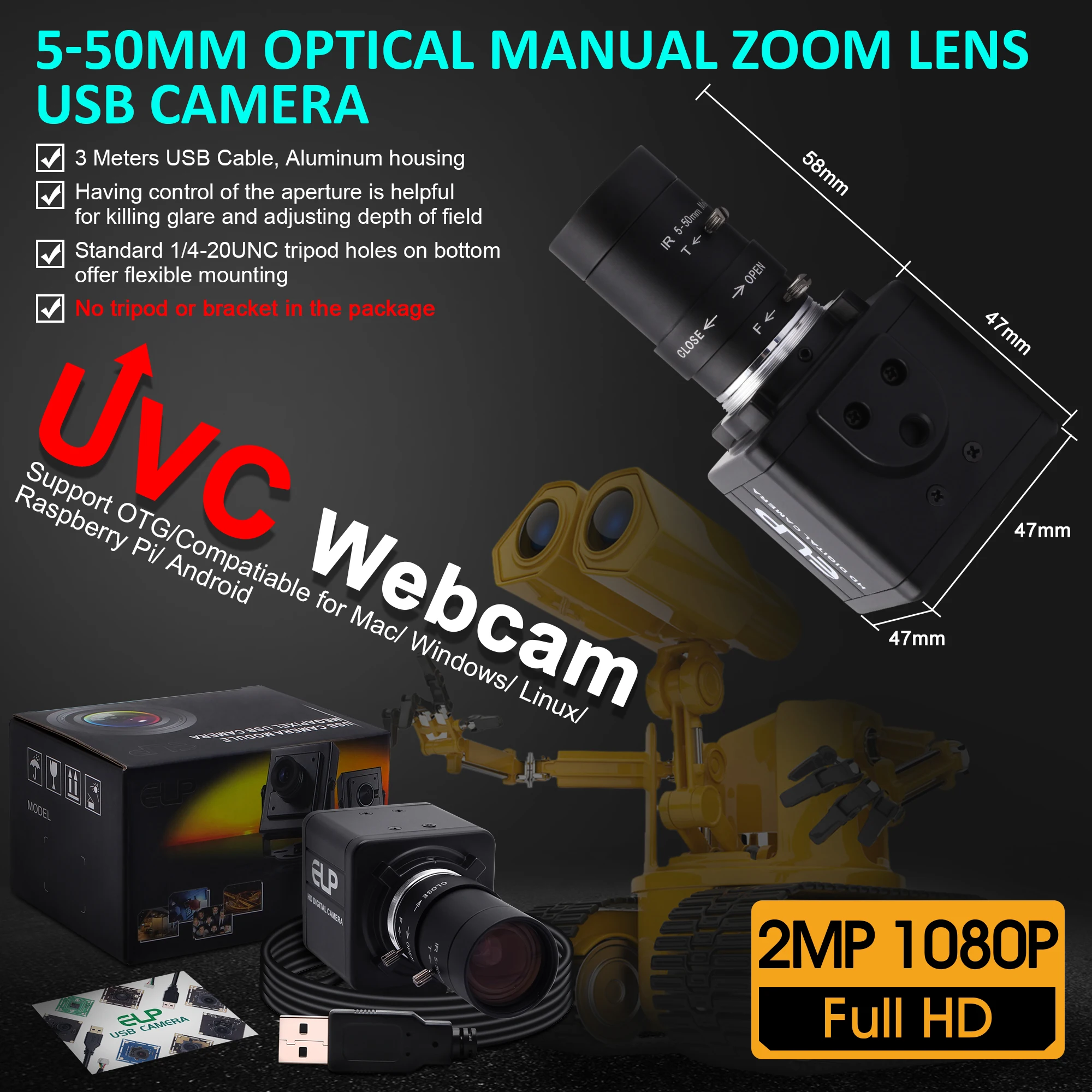

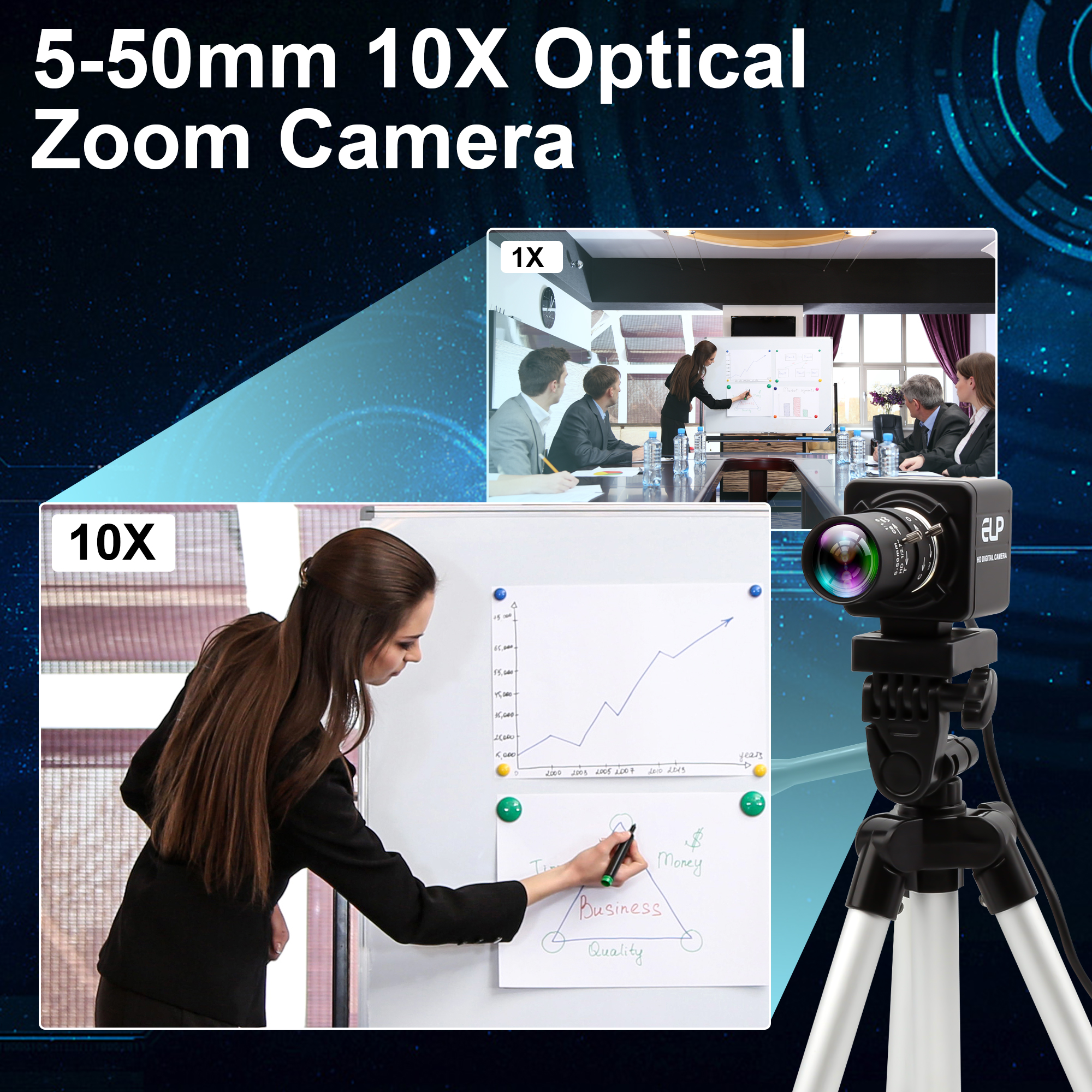

Powerful 10x Optical Zoom: The integrated 5-50mm varifocal lens is the cornerstone of this camera’s versatility. Go from a wide 5mm field-of-view to monitor large areas like workshops or parking lots, then smoothly zoom in to a detailed 50mm close-up to inspect serial numbers, components, or distant objects—all with optical precision and no loss in image quality.

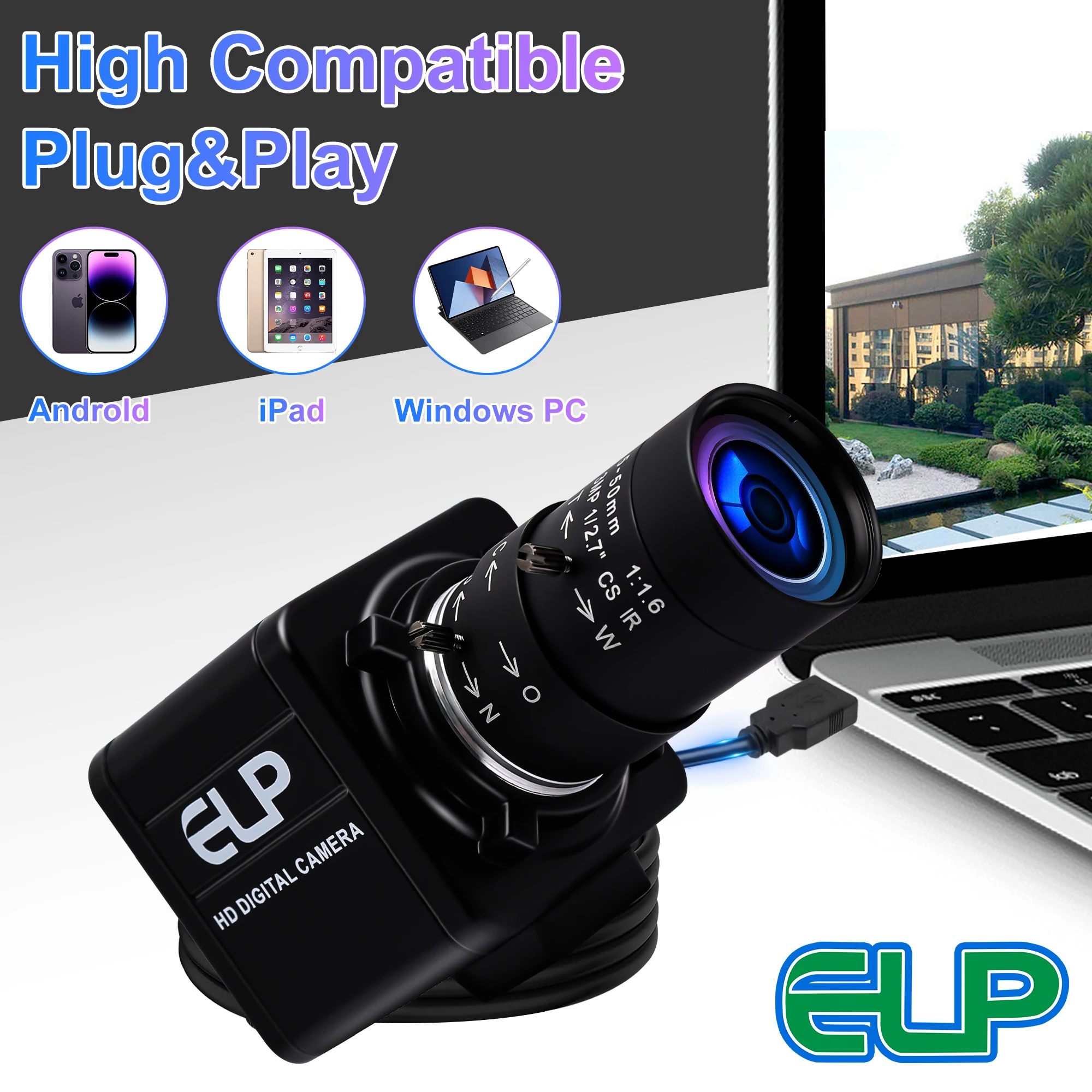

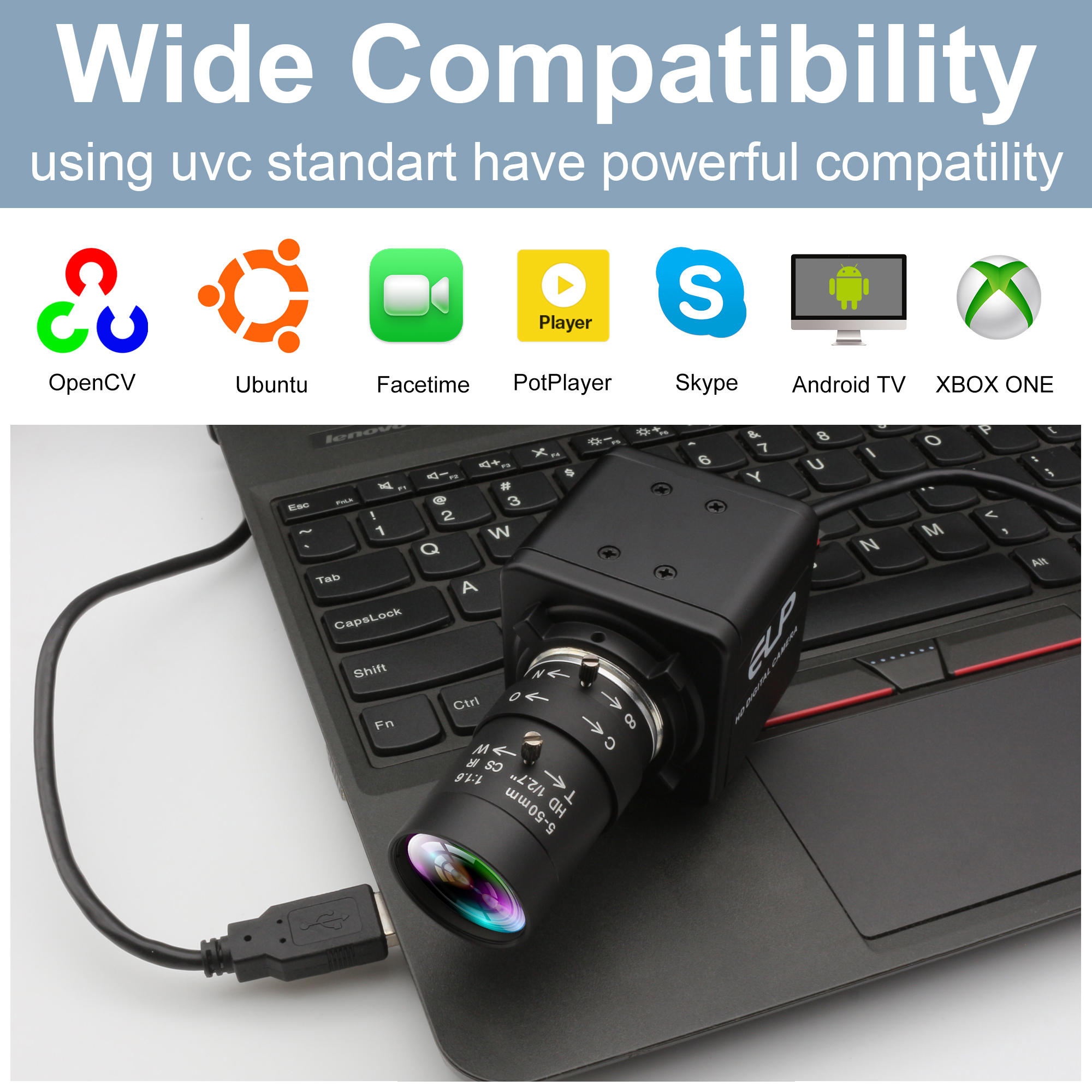

Compatible with muti software & operating system: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi, Jetson Nano…
Comptible with Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time , Webcam Viewer,TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam…

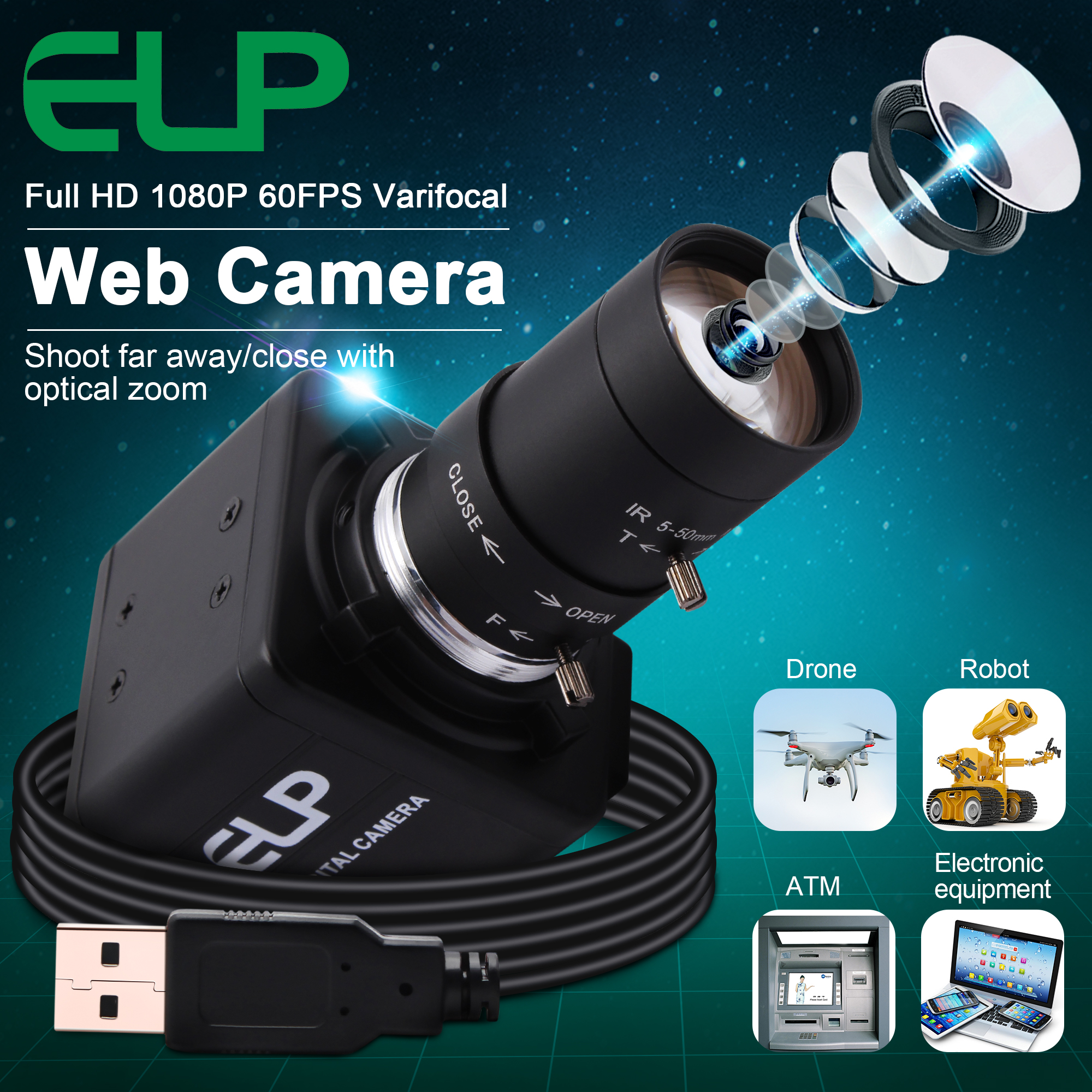

Wide aplication for Machine vision,Traffic and transport (ITS),Medical technology (and laboratory automation),Safety technology,Mechanical engineering,Surface inspection,Biotechnology and life sciences,Electronics inspection,Pharma and healthcare,Endless web inspection
