Description
* ELP-USBFHD06H-BLC1100 is a 2 megapixel full HD USB camera module designed for industrial and embedded applications. Featuring a 1/2.9 inch Sony IMX323 CMOS sensor, it supports 1920×1080 @30fps output resolution and compatibility with H.264, MJPEG and YUY2 encoding formats. Compliant with the UVC driverless protocol, it enables plug-and-play functionality across Windows, Linux, Mac, and Android systems.
* Paired with an M12 mount 65° distortion-free lens (lenses with different angles are available), offering a wide field of view. This camera delivers exceptional imaging performance even in low-light conditions (0.01Lux). The onboard digital microphone supports mono audio capture, while an integrated infrared (IR) flash port allows night vision capability expansion. Powered by USB 2.0 high-speed connectivity and 5V power supply.
* It is ideal for close-range portrait photography, video conferencing, document and bar code scanning, precision industrial inspection, and fixed-point surveillance scenarios that require localized focus, high-quality image accuracy, and avoid wide-area environmental coverage. It ensures both visual authenticity and detailed reproduction.
Package Includes
1pcs 2MP 1080P low light USB camera module with no distortion lens.(lenses with different angles are optional)
1pcs 3m usb cable (1/2/5m length optional).
Features
1) Sensor: 0.01lux low illumination Sony IMX323 sensor.
2) Full HD 1080P: Max resolution 1920×1080
3) Frame rate: 1080P 30FPS
4) H.264 Compression: With H.264 High profile compression. Save much storage space, during video recording.
5) Built-in Microphone: Come with microphone on the board, can record audio.
6) Low illumination: 0.01 Lux low illumination, works welll in low light situation.
7) Lens & Lens Changeable: With wide angle no distortion lens, optional view angle 65° / 80° / 84°/ 86°/ 95°/ 110°/ 120°.
8) Adjustable Parameters: Set up Exposure, White Balance, Hue, Brightness, Contrast, Saturation, Compensation… as requests.
9) USB Protocol: High speed USB 2.0
10)Mini Size: 38x38mm (32x32mm compatible), small size, well embedded in kinds of smart machines.
11) UVC Free driver, Plug & Play
12) OTG support: with OTG function, can connect smart phone, tablet via OTG cable.
13) Operating System: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…
14) Multi Software compatible: Amcap, USB Camera, iSpy, Webcam Viewer, OpenCV, VLC, V4L2, Photo Booth, Quick Time, CameraFi…
Specification
| odel | ELP-USBFHD06H-BLC1100 (4.35mm undistorted lens, FOV 65°)
ELP-USBFHD06H-BV100 (3.24mm undistorted lens, FOV 80°) ELP-USBFHD06H-BL100 (3mm undistorted lens, FOV 84°) ELP-USBFHD06H-BL297 (2.97mm undistorted lens, FOV 86°) ELP-USBFHD06H-BH100 (2.8mm undistorted lens, FOV 95°) ELP-USBFHD06H-BH110 (2.2mm undistorted lens, FOV 110°) ELP-USBFHD06H-BH120 (1.8mm undistorted lens, FOV 120°) |
| Sensor | Sony IMX323 |
| Lens Size | 1/2.9 inches |
| Pixel Size | 12.8X11.6 mm |
| image area | 2000(H)X1121(V) approx. 2.24 M pixels |
| Max. Resolution | 1080P |
| Compression format | H.264 /MJPEG / YUV2(YUYV) |
| Resolution & frame | H264:
320X240 @30fps/ 352X288 @30fps/ 640X360 @30fps/ 640X480 @30fps/ 800X600 @30fps/ 1280X720 @30fps/ 1920X1080 @30fps MJPEG: 320X240 @30fps/ 352X288 @30fps/ 640X360 @30fps/ 640X480 @30fps/ 800X600 @30fps/ 1280X720 @30fps/ 1920X1080 @30fps YUV: 320X240 @30fps/ 352X288 @30fps/ 640X360 @30fps/ 640X480 @30fps /800X600 @15 fps |
| S/N Ratio | 42dB |
| Dynamic Range | 86dB |
| Sensitivity | 5.0V/lux-sec@550nm |
| Min illumination | 0. 01lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class(UVC) |
| Support OTG Protocol | USB2.0 OTG |
| AEC/AEB/AGC | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |
| Lens Parameter | With wide angle no distortion lens, optional view angle 65°/80°/84°/86°/95°/110°/120° |
| Digital audio | High quality digital MIC, support single, dual channel |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Operating Voltage | DC5V |
| Working current | 140mA~190mA |
| Working temperature | -10~70℃ |
| Storage temperature | -20~85℃ |
| Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
| Cable | Standard 3M / 1M,2M,5M optional |
| Operating system request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |

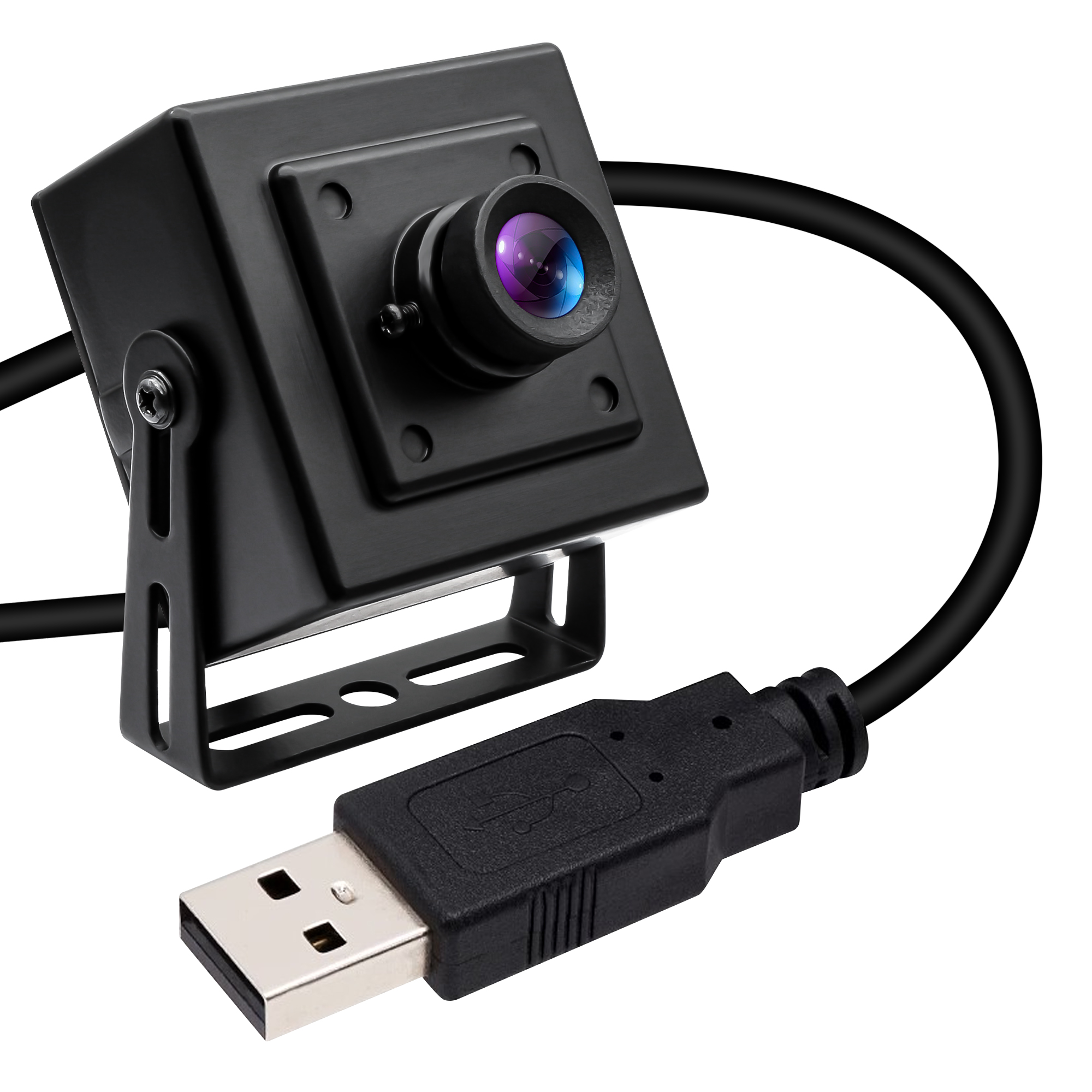

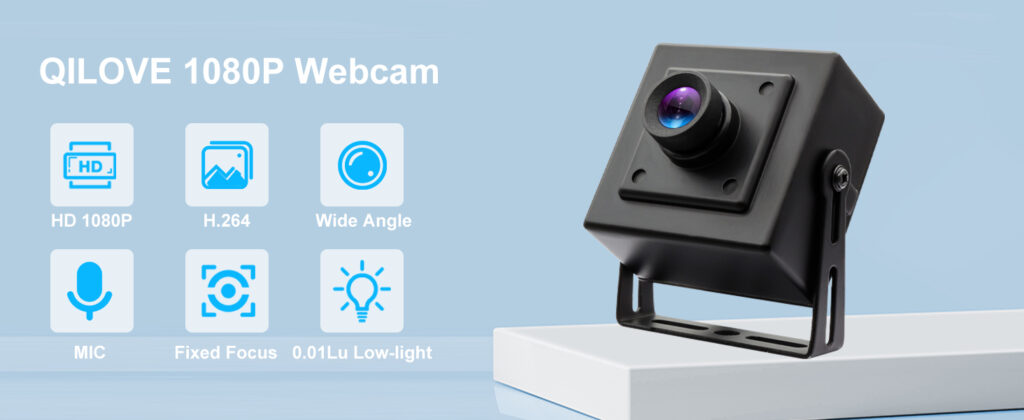

Product Display
Image Sensor and Image Quality
Equipped with Sony IMX323 CMOS sensor (1/2.9 inch), 2 million pixels (1920×1080), delivering sharp image quality with accurate color reproduction. Dynamic range of 86dB and signal-to-noise ratio of 42dB.
Minimum illumination of 0.01 luxensures clear imaging in low-light environments, making it ideal for low-light surveillance and night vision applications.
Supports three encoding formats: H.264/MJPEG/YUY2, delivering both high-definition quality and low-bandwidth transmission.
Driver-Free & Plug & Play
No driver or software required, easy to use.
Automatically recognized by Windows / Android / Linux systems.
Wide compatibility, stable connection, ready to work in seconds.
High Compatibility
Compatible with Windows, Linux, MacOS, Android. Compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms, like Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Live streaming services etc.
Applications
This 1080P H.264 Low Light USB Camera module can be used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
