Description
Why Choose WDR Cameras?
This 3MP WDR Camera is applied for viewing the image smoothly under the condition of severe light contrast. Broadly speaking, it stands for the possible range of certain changing object or an area the minimum value and the maximum value spans that can be seen. WDR allows an imaging system to correct for the intense back light surrounding a subject and thus enhances the ability to distinguish features and shapes on the subject
Features
* 3MP High resolution: 3 megapixel 2048×1536
* High Quality Sensor: CMOS 1/3 AR0331
* WDR Camera: wide dynamic camera up to 100dB
*Low Distortion lens,Lens changeable: : This camera module has a 55-109°(H) Low-Distortion (<3%) M12 Lens, which minimizes the imaging distortion and provides a wilder Field of View (FoV) than the most stock lens.
* Compression:H.264/Mjpeg/YUY2 (1080P and lower resolution support H.264, 3MP only Mjpeg/YUY2)
* With standard 3m cable (1m/2m/5m/0.3m/0.5m…optional)
* UVC: free driver, Plug & Play
* OTG support: can connect android tablet, smartphone via OTG cable
* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.
* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..
* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera…
* Many applications, well used for printers, Vision analysis, High resolution devices, Medical machine…
Specification
|
Model |
ELP-USB3MP01H-BLC1100 (LC1100 No distortion lens, HFOV 55 degree)
ELP-USB3MP01H-BV100 (V100 No distortion lens, HFOV 71 degree)
ELP-USB3MP01H-BL100 (L100 No distortion lens, HFOV 73degree )
ELP-USB3MP01H-BH100 (H100 No distortion lens, HFOV 85 degree)
ELP-USB3MP01H-BH110 (H110 distortion lens, HFOV 96 degree) ELP-USB3MP01H-BH120 (H120 No distortion lens, HFOV 108 degree) |
|
Sensor |
AR0331 |
|
Lens Size |
1/3 inches |
|
Pixel Size |
2.2um X2.2um |
|
Max. Resolution |
2048X1536 |
|
Compression format |
H.264 /MJPEG / YUV2(YUYV) |
|
Resolution & frame |
H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps |
|
S/N Ratio |
39dB |
|
Dynamic Range |
Up to 100 dB |
|
Sensitivity |
2.0V/lux-sec@550nm |
|
Mini illumination |
0. 05lux |
|
Shutter Type |
Electronic rolling shutter / Frame exposure |
|
Connecting Port type |
USB2.0 High Speed |
|
Free Drive Protocol |
USB Video Class(UVC) |
|
Support OTG Protocol |
USB2.0 OTG |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |
|
Lens Parameter |
No distortion lens |
|
Digital audio |
High quality digital MIC, support single, dual channel |
|
IR CUT Connector |
Support 2P-1.25mm socket |
|
LED board power connector |
Support 2P-2.0mm socket |
|
Power supply |
USB BUS POWER 4P-2.0mm socket |
|
Operating Voltage |
DC5V |
|
Working current |
140mA~200mA |
|
Working temperature |
-10~70℃ |
|
Storage temperature |
-20~85℃ |
|

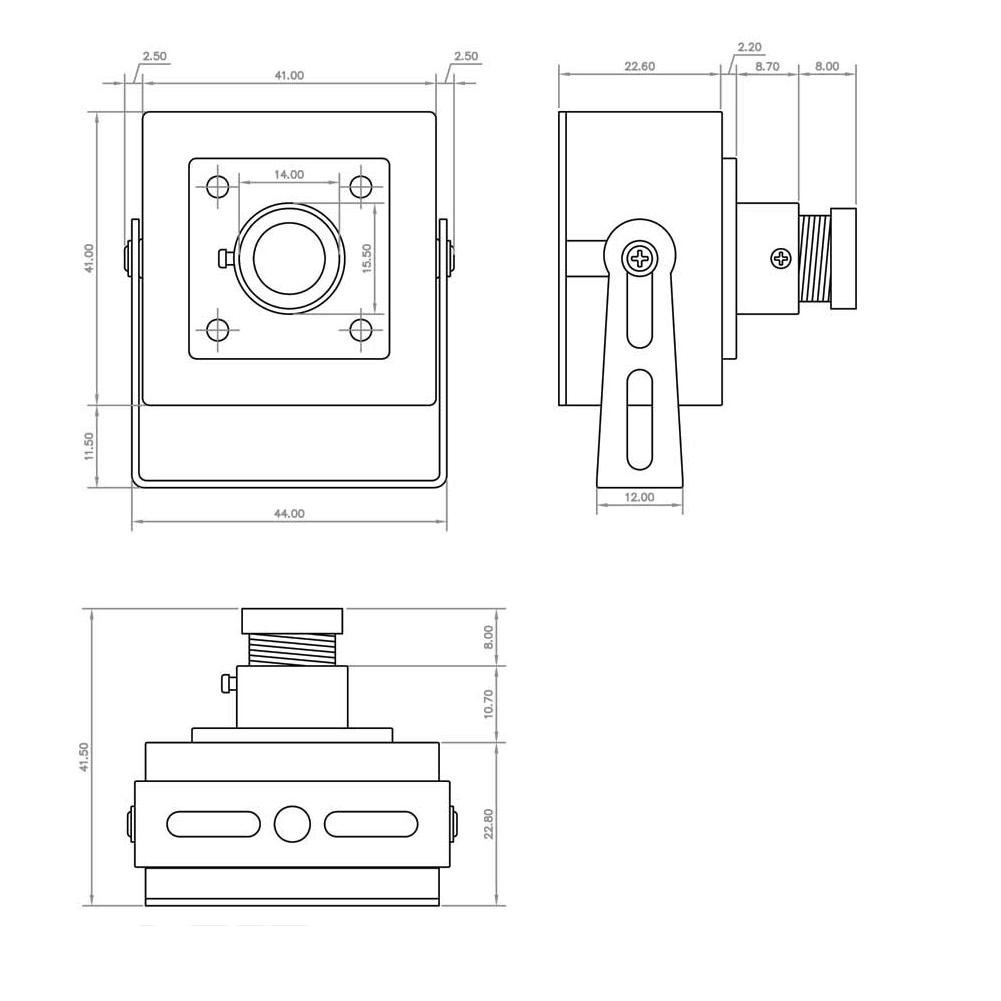

Board size /Weight |
38X38mm / about 30g |
|
Cable |
Standard 3M / 1M,2 M,5M optional |
|
Operating system request |
Win7 Win8 Win10 Win11 |
