Description
This 48MP High resolution Autofocus USB Camera is baded on Big 1/2″ 48MP GM1 SENSOR, Autofocus, USB 2.0 UVC compliant. No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera. Fast auto control the focusing process to capture the moving objects, works like the human eye. and shots the imaging you want. Ultra 8000×6000 resolution meets application where high resolution images and video with autofocus capabilities are required.
Features
1) More than HD: This camera adopts an 48MP 1/2 GM1 sensor for sharp image and accurate color reproduction, Max. still resolution 8000*6000 .
2) 1/2 CMOS GM1 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial
3) Lens: M8.15 Mount lens, 70degree/100degree no distortion lens optional

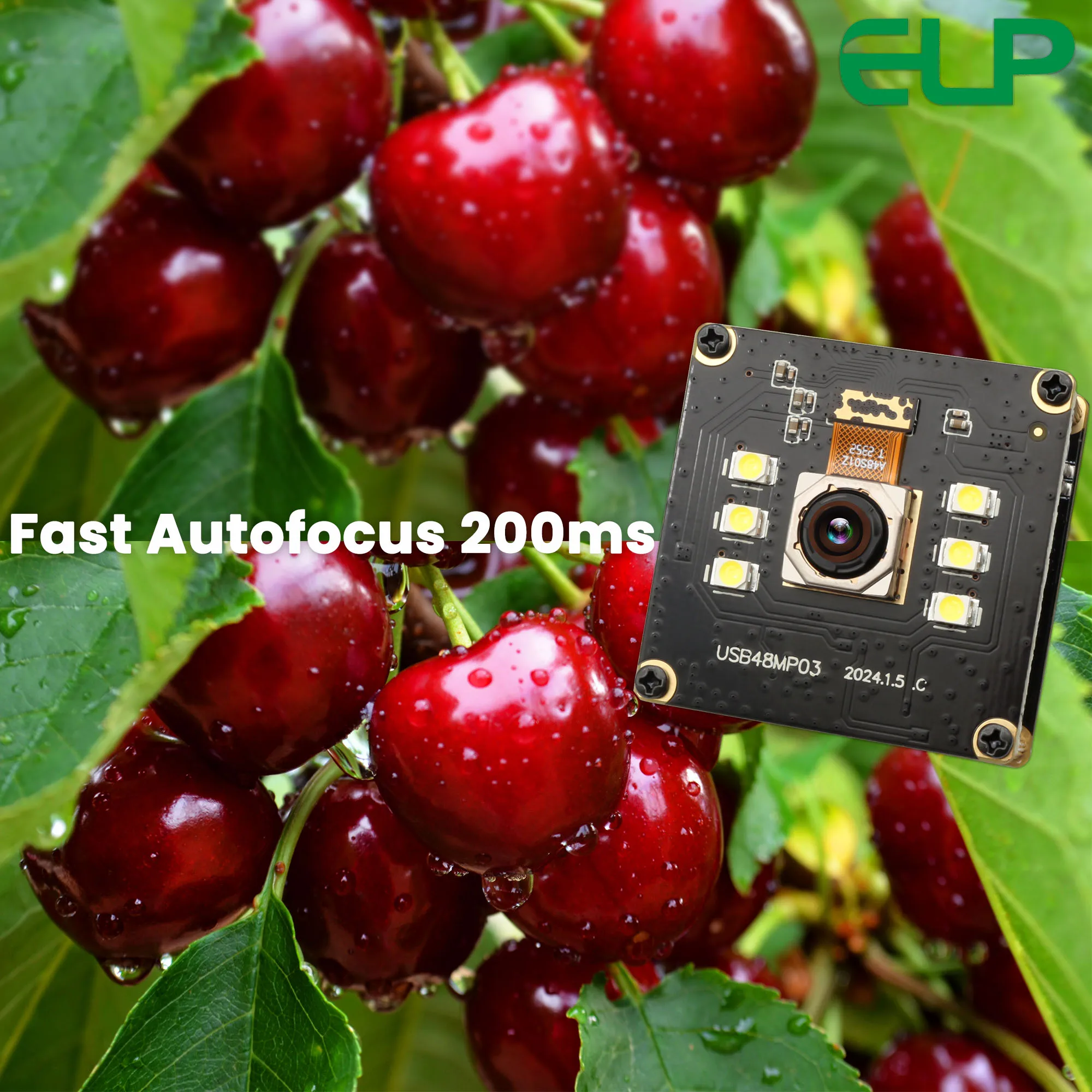

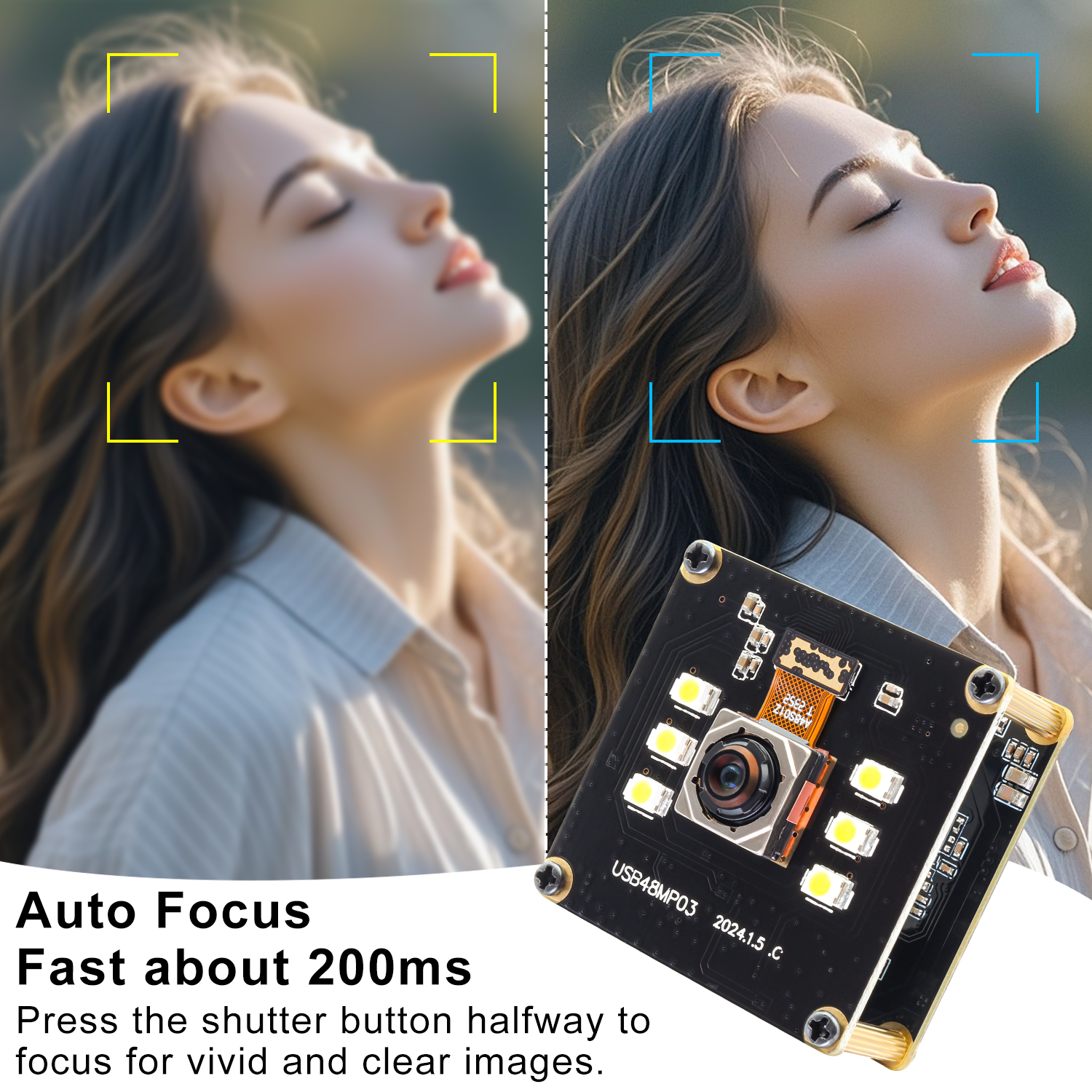

4) Autofocus: Focus Speed is Fast About 200ms,Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.

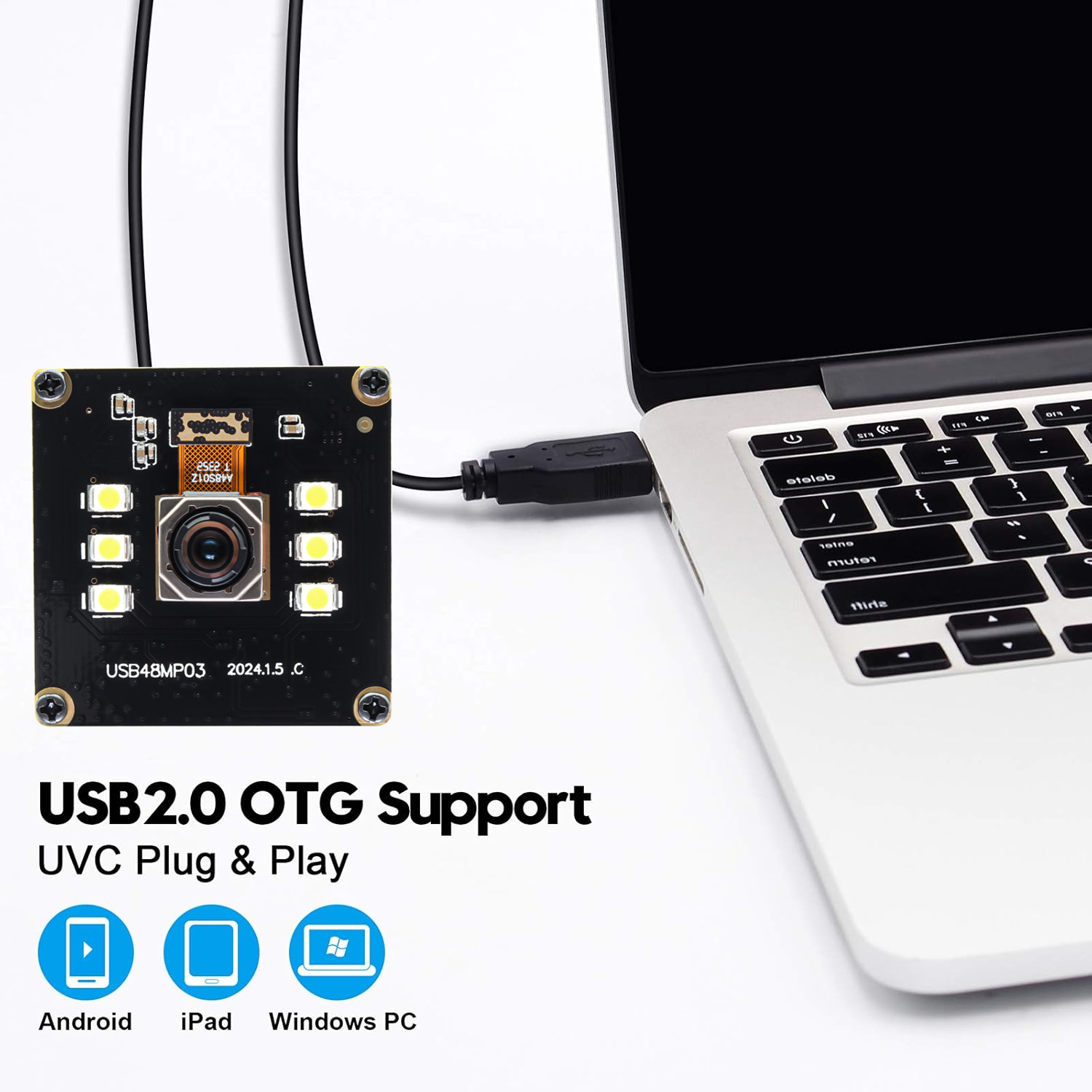

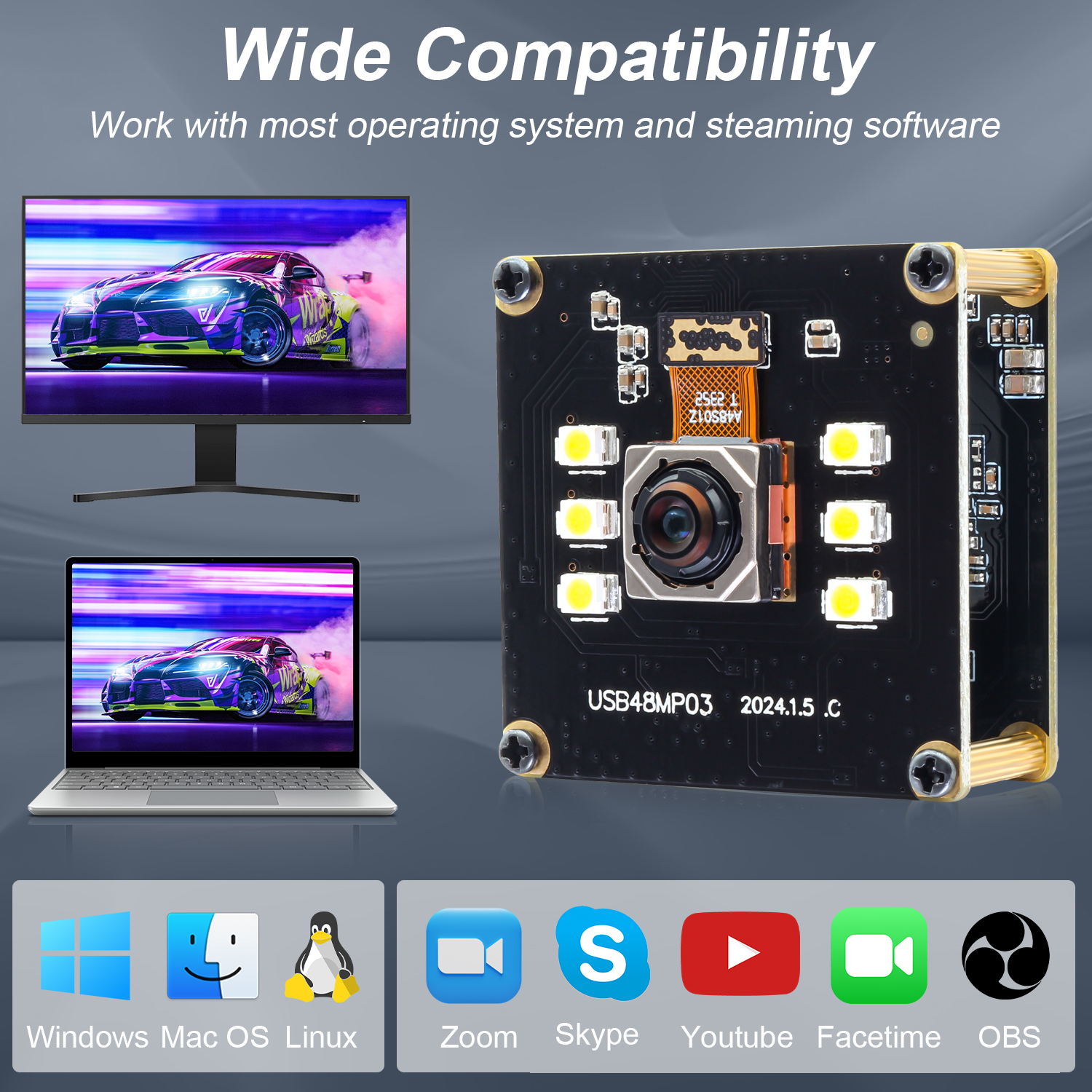

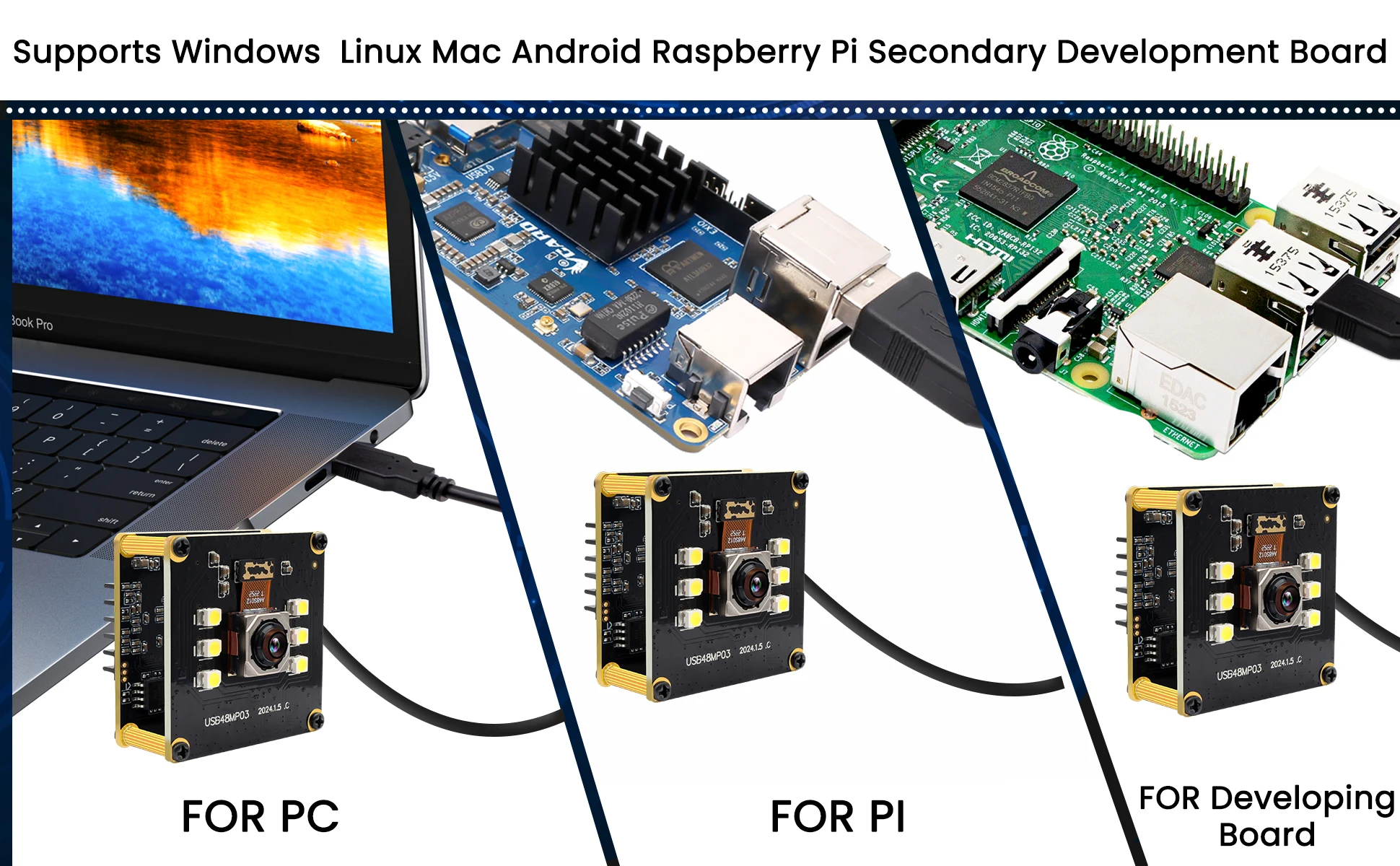

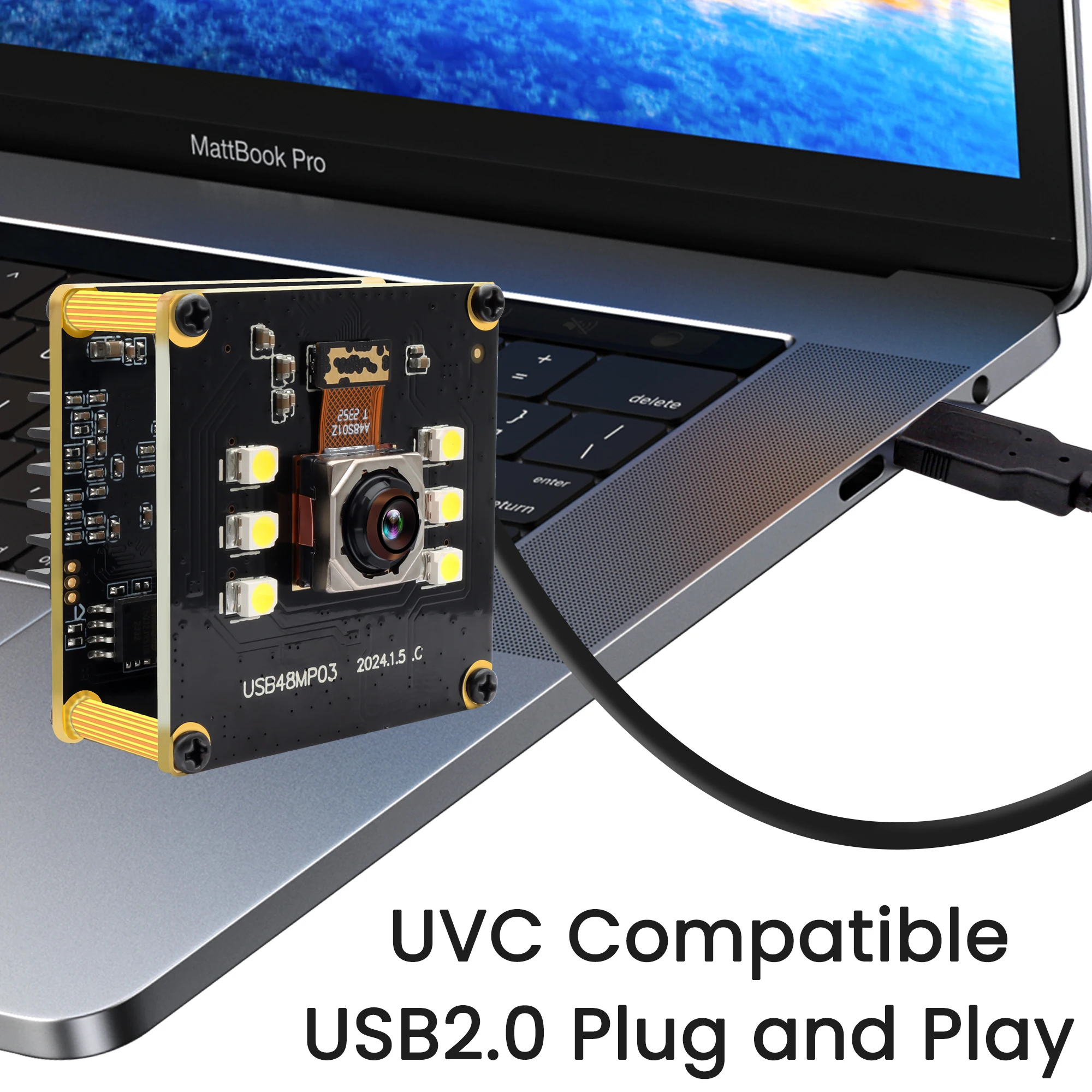

5) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
6) Applications: This tiny camera is highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision
7) With 6pcs White LEDS, work for day and night
Specification
| Model | ELP-USB48MP03-AF70 (70 degree lens)
ELP-USB48MP03-AF100 (100 degree lens) |
| Sensor | GM1 Sensor |
| Max. Resolution | 8000 (H)*6000(V) |
| Lens Size | 1/2 inch(4:3) |
| Compression Format | MJPEG / YUV2(YUYV) |
| Resolution & FrameRate | 8000×6000 @ 3fps MJPEG 4000×3000 @ 12fps MJPEG
3840×2160 @ 30fps MJPEG 1920×1080 @ 30fps MJPEG 1280×720 @ 30fps MJPEG |
| Surface Mount Technology | SMT |
| Focus Speed | Fast About 200ms |
| Central Definition | 1000LW/PH (Center) |
| S/N Ratio | 36dB |
| Dynamic Range | 82dB |
| Sensitivity | 1.4V/lux-sec@550nm |
| Min illumination | 0.3lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port Type | USB2.0 High Speed |
| AEC | Support |
| AWB | Support |
| AdjustableParameters | Brightness,Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure |
| Lens Parameter | Size1/2
DFOV About 82degree HFOV About 70degree Mount M8.15*P0.35 |
| LED | With 6PCS White LEDs |
| Power Supply | USB BUS POWER 4P-2.0mmSocket |
| Operating Voltage | DC 5V |
| Working Current | 550Ma- 610mA |
| Board Size | Double-deck,38mm × 38mm |
| Storage Temperature | -20°C to 85°C |
| Working Temperature | 0°C to 60°C |
| USB Cable | Standard 1m/ optional 2m,3m… |
| Operating System Request | Win XP/Vista/Win7/Win8/Win10/Win11 etc.
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Product Display

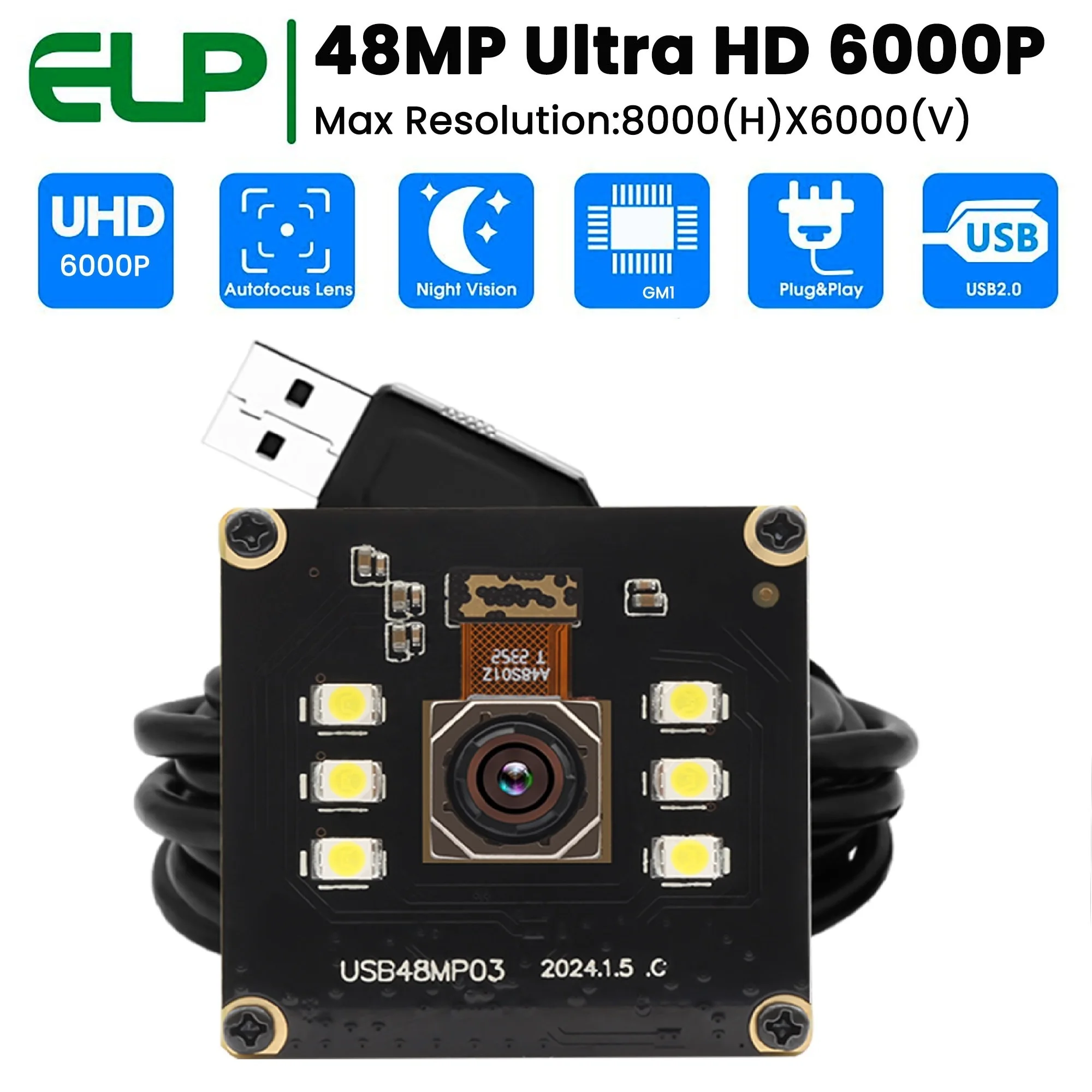

48MP Ultra HD USB Webcam

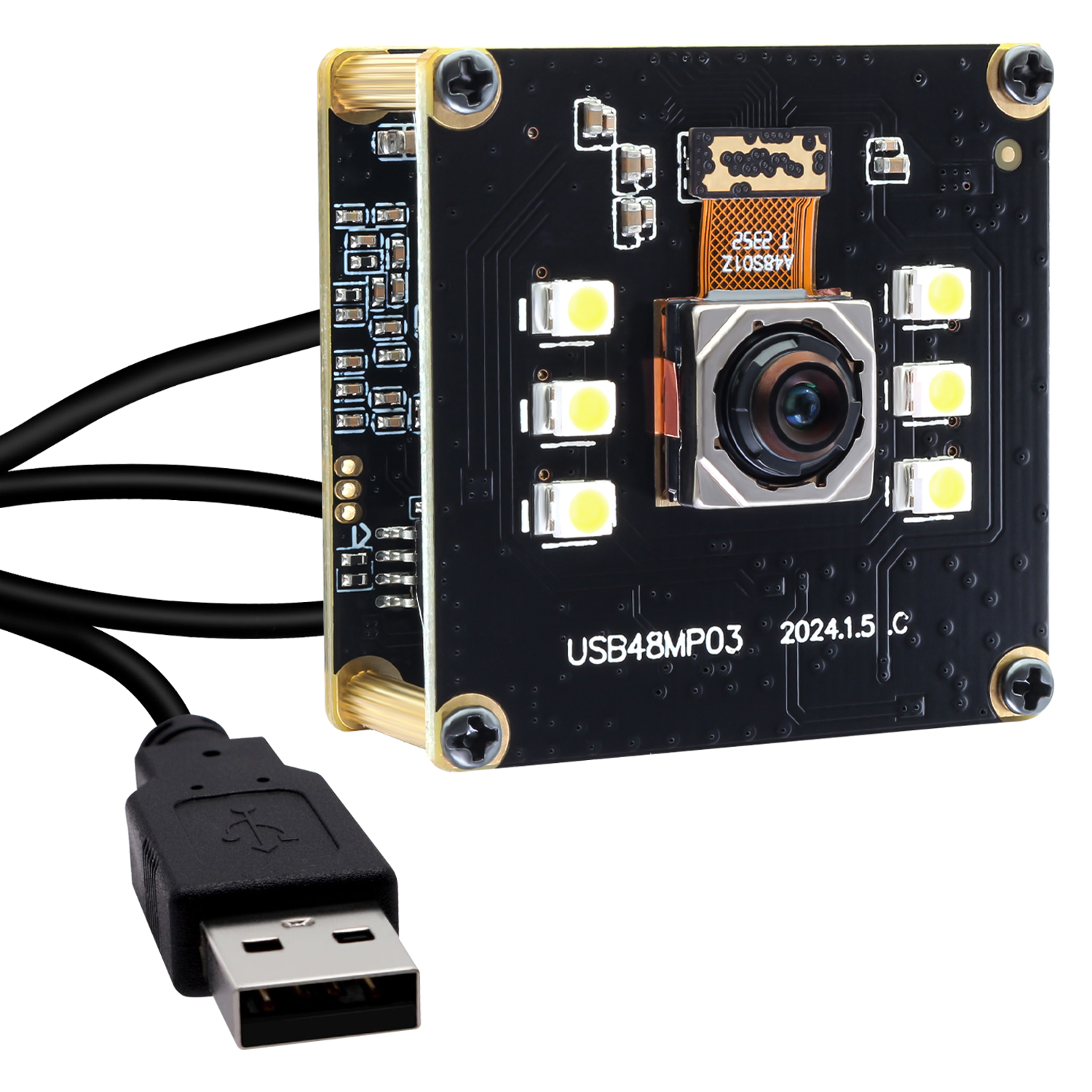

High resolution, high definition 48MP 8000*6000 HD USB Camera

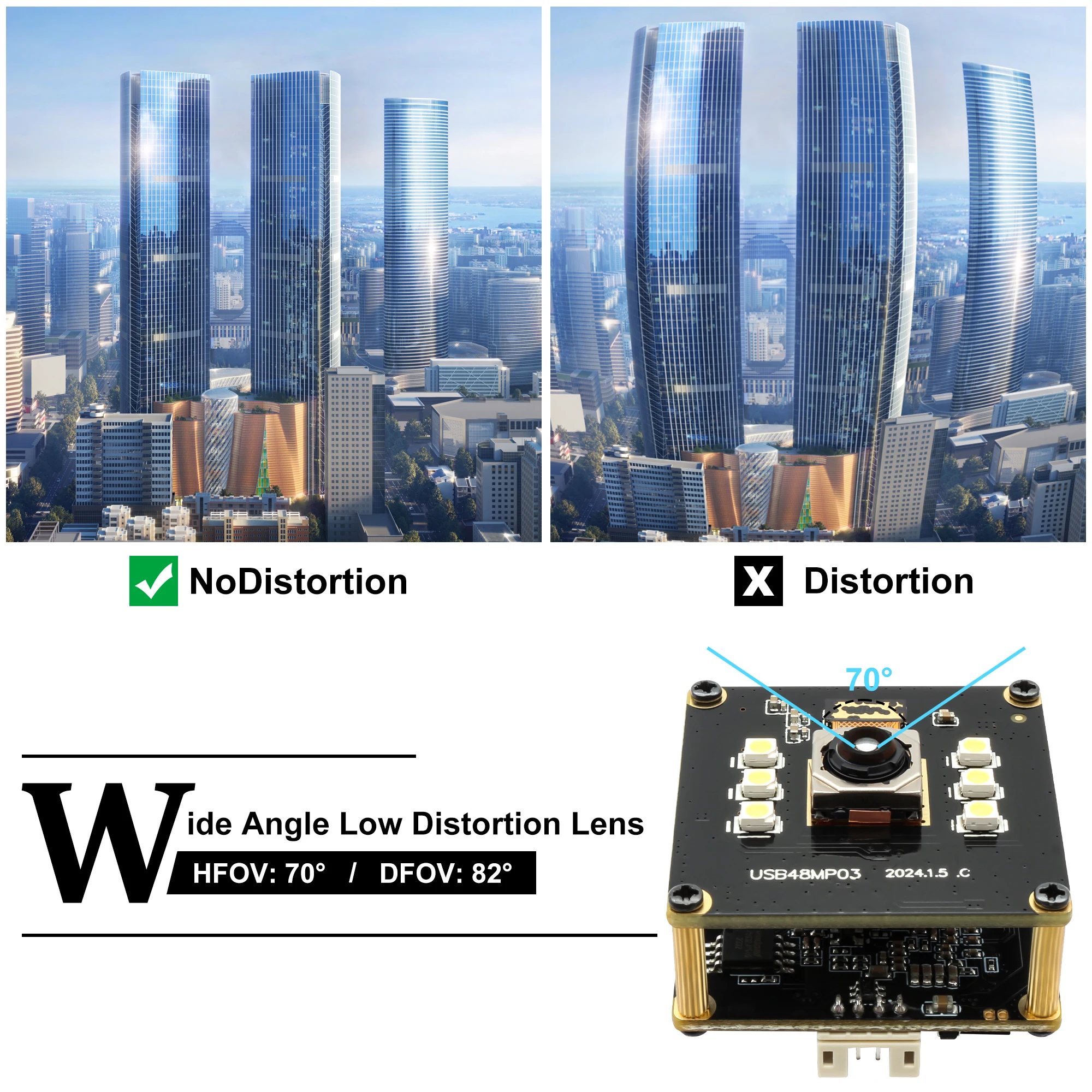

70degree/100degree no distortion lens optional
