General Description:
This 48MP High resolution Autofocus USB Camera is baded on Big 1/2″ 48MP GM1 SENSOR, Autofocus, USB 2.0 UVC compliant. No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera. Fast auto control the focusing process to capture the moving objects, works like the human eye. and shots the imaging you want. Ultra 8000×6000 resolution meets application where high resolution images and video with autofocus capabilities are required.
Features
-High Quality Imaging: 8000×6000 resolution, adpots big 1/2″ 48mp sensor for sharp image.
-Fast Autofocus: 200ms fast autofocus. Shoot objects in close and far distance.
-High Color fidelity: the camera works like human eye, get sharp image and accurate color reproduction. WIth super image reality.
-Driver free, Plug & Play: UVC-compliant, free driver,easy operate.
-Applications: Small size 38x38mm, well embedded in kinds of machines, highly recommended for medical imaging, industrial inspection, Research & Development,medical machine (image analysis), high-speed photographic apparatus, photo scanner……
–Compatible with muti software & operating system: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…
Comptible with Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time , Webcam Viewer,TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam….
Specification
| Model | ELP-USB48MP01-KAF70 (70 degree lens)
ELP-USB48MP01-KAF100 (100 degree lens) |
| Sensor | GM1 |
| Max. Resolution | 8000 (H) *6000 (V) |
| Lens Size | 1/2 inch (4:3) |
| Compression Format | MJPEG / YUY2 (YUYV) |
| Resolution & Frame Rate | 8000×6000 @ 3fps MJPEG / 4000×3000 @ 12fps MJPEG 3840×2160 @ 30fps MJPEG / 1920×1080 @ 30fps MJPEG 1280×720 @ 30fps MJPEG |
| Surface Mount Technology | SMT |
| Focus Speed | Fast About 200ms |
| Central Definition | 1000LW/PH (Center) |
| S/N Ratio | 36dB |
| Dynamic Range | 82dB |
| Sensitivity | 1.4V/lux-sec@550nm |
| Min illumination | 0.3lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port Type | USB2.0 High Speed |
| AEC | Support |
| AWB | Support |
| Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
| White balance, Exposure | |
| Lens Parameter |
Size1/2 DFOV About 82degree HFOV About 70degree Mount M8.15*P0.35 |
| Power Supply | USB BUS POWER 4P-2.0mm Socket |
| Operating Voltage | DC5V |
| Working Current | 550mA- 610mA |
| Board Size | Double-Sided PCB, 38mm × 38mm |
| Storage Temperature | -20°C to 80°C |
| Working Temperature | 0°C to 70°C |
| USB Cable | Standard 2m / optional 1m,3m… |
| Operating System Request | Win XP/Vista/Win7/Win8 / Win10/ Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
Product Display

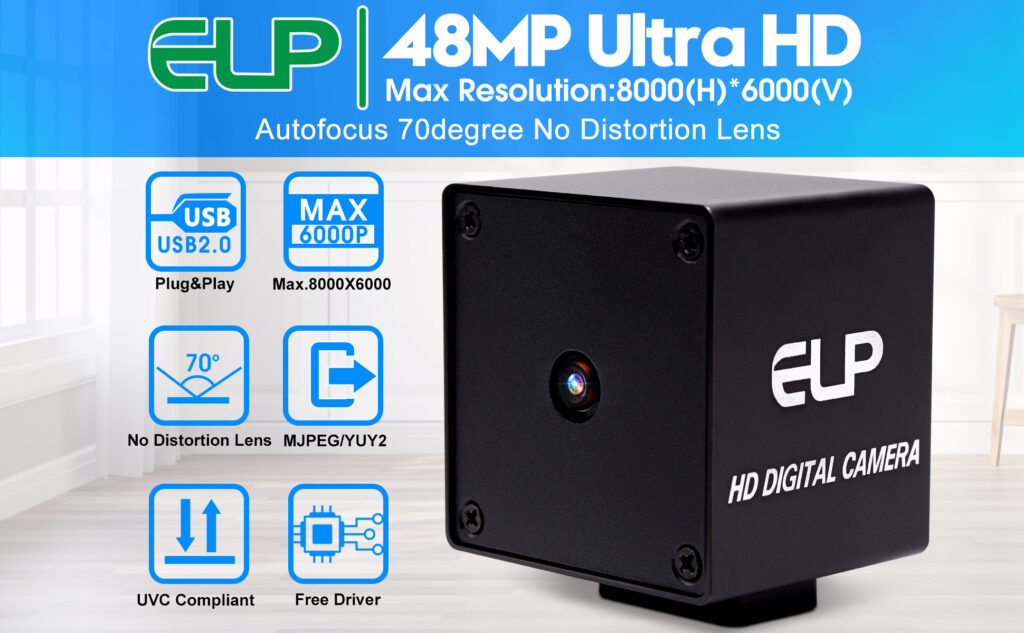

Ultra HD 48 Megapixel, Up to 8000*6000 Resolution USB PC Camera, super Image reality, real color reproduction
Fast Auto Focus 200mS, Shoot objects in close and far distance on the same webcam, automatically controlled without lens adjustament tool, clearer amd easier than the fixed focus usb cameras. Suitable for application which need to capture objest in different distance
-Wide angle 70 degree view. (100 degree lens optional)
UVC-compliant, Can work with Windows, Linux, Android, Mac OS
just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Support living streaming software, Skype, Zoom, Facetime, Youtube…
Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2….
Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS…

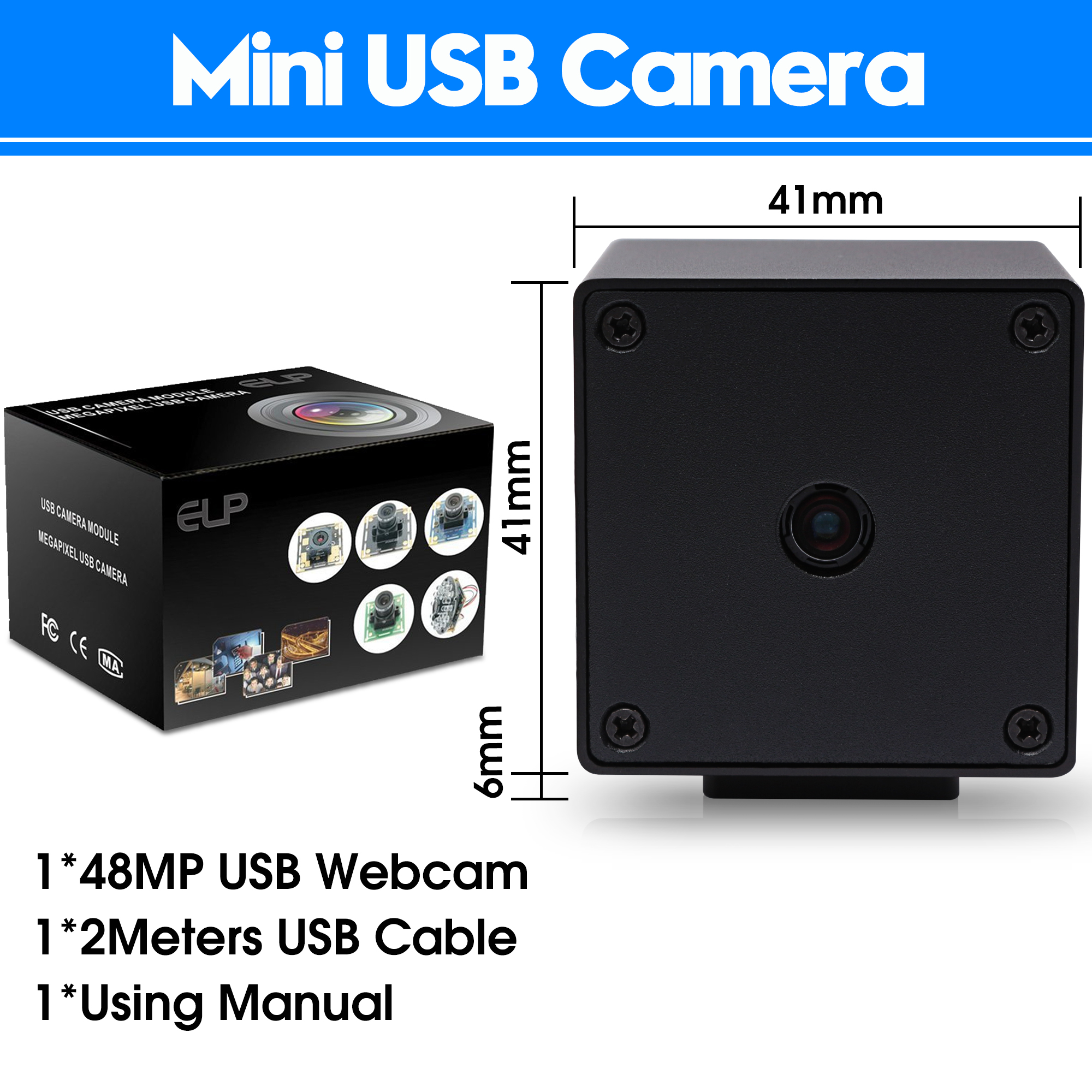

PERFECT COMPACT SIZE: With dimensions of 41×41mm, this lightweight board camera fits perfectly into tight spaces for embedded projects, robotics, or portable monitors
Application
1. Video Conferencing: With the rise of remote work and online meetings,a 48MP autofocus USB camera module can be used to provide high-quality video forvideo conferencing applications.
2. Live Streaming: Content creators and streamers can use a 48MP autofocus USB camera module to capture high-resolution video with autofocus capabilities,providing high-quality footage for their audience.
3. Security and Surveillance: A 48MP autofocus USB camera module can be used in security and surveillance applications,providing high-resolution images and videos with autofocus capabilities for better analysis and identification.
4. Medical Imaging: In the medical field,a 48MP autofocus USB camera module can be used for imaging applications, such as telemedicine and remote diagnosis.
5. Industrial Inspection: A 48MP autofocus USB camera module can be used in industrial inspection applications, providing high-resolution images withautofocus capabilities for quality control and analysis.
6. Research and Development : A 48MP autofocus USB camera module can be used in scientific research applications, such as microscopy and spectroscopy,to capture high-resolution images and videos with autofocus capabilities forbetter analysis and documentation.
7. Education and Training: A 48MP autofocus USB camera module can be used in education and training applications,providing high-quality videos with autofocus capabilities for better demonstrations and lectures.
Overall,a 48MP autofocus USB camera module can be used in a wide range of applications where high-resolution images and videos with autofocus capabilities are required.
