Description

ELP-U3GS05B10C-H100 is ELP’s latest high-performance global shutter USB3.0 industrial camera, featuring an 1/2.5 inch OmniVision OG05B10 global shutter sensor with 2592×1944 (5MP) resolution that eliminates jelly effect completely. Supporting USB3.0 connectivity, it delivers full-resolution MJPEG 60fps / YUY2 35fps high frame rate output while maintaining USB2.0 compatibility. Compatible with both MJPEG and YUY2 formats, the camera maintains sharp image quality in low-light conditions with 0.1lux minimum illumination. Equipped with AEC/AGC/AWB auto-adjustment and customizable manual parameters, it comes standard with an f=3.24mm no distortion 98 degree wide-angle lens and multiple M12 lens options. Built with SMT manufacturing process and a compact 38×38×48.5mm body, it features USB3.0 Type-C interface (20-pin connector optional), USB-powered 5V low-power design, and external LED fill light capability. Compatible with Windows, Linux, Mac, Android systems via UVC plug and play technology, this camera is widely used in professional applications including machine vision inspection, high-speed motion capture, embedded vision systems, and industrial automation, etc.



Package includes

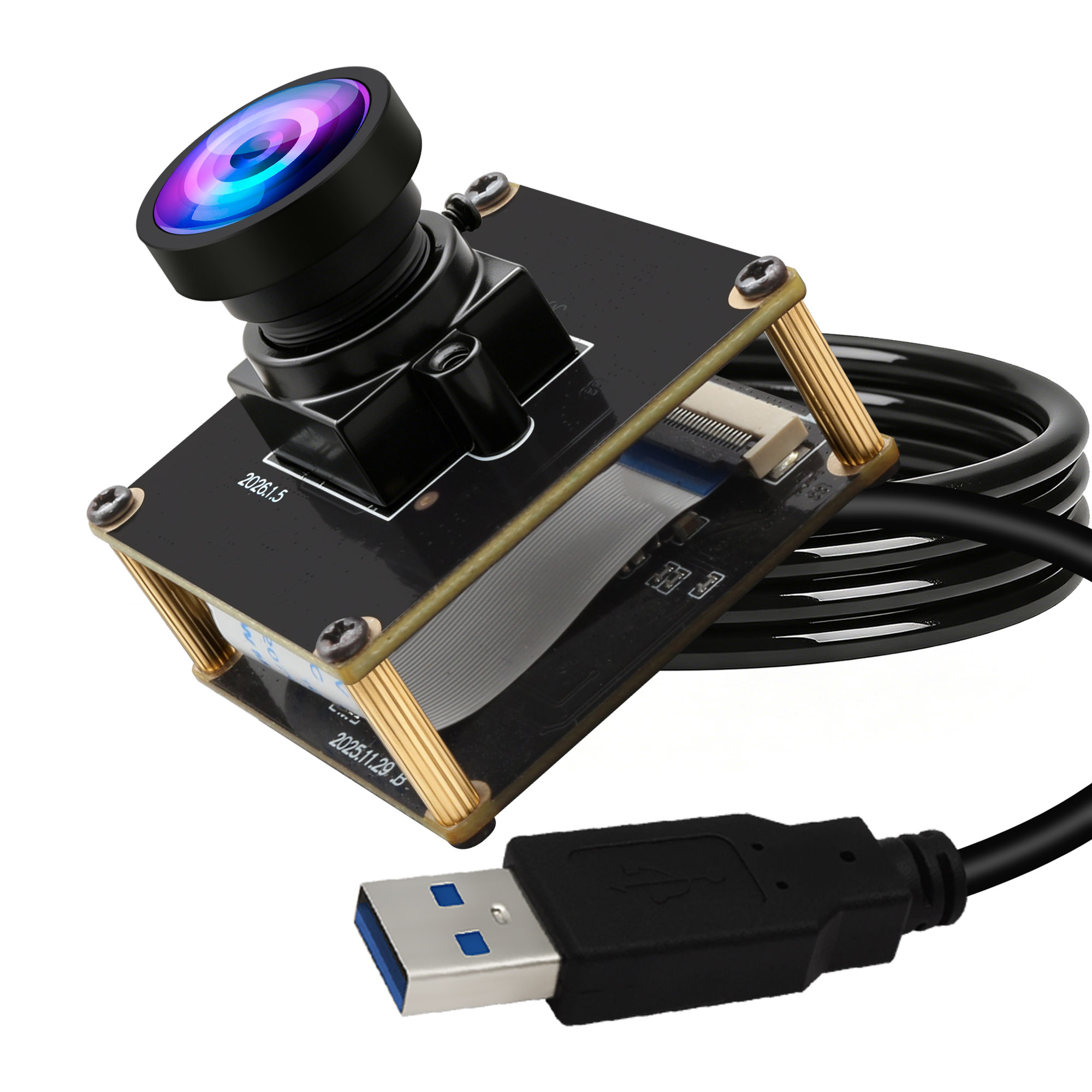

1) 1pc of 5MP Global Shutter USB3.0 Camera with no distortion lens.

2) 1pc of 1.2m USB Cable. (2M/3M/5M … Optional )

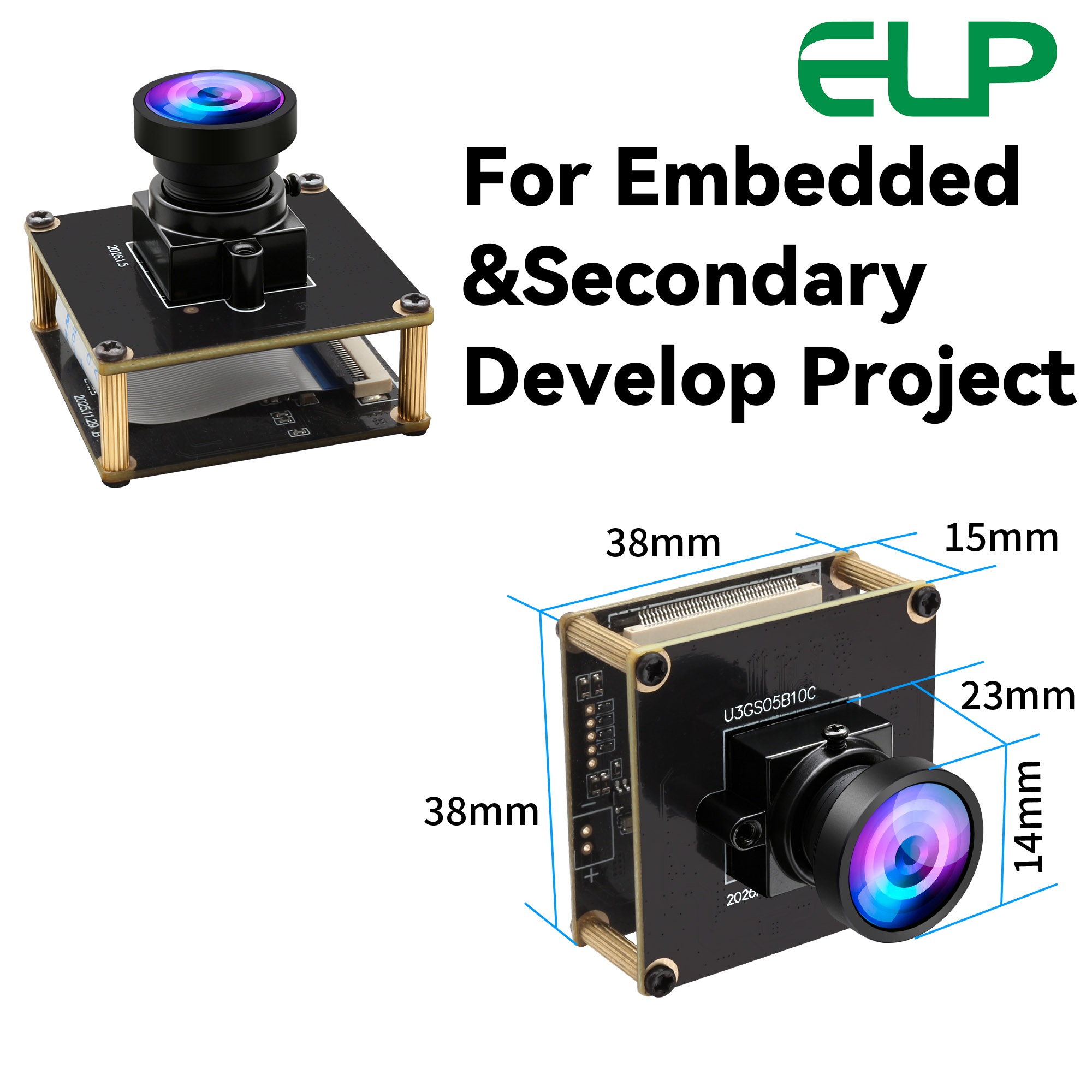

Mini size 38mm x 38mmx 48.5mm, Lightweight and convenient. Portable and suitable for embedded use and various scenarios.

Features



1) Global Shutter Sensor——OmniVision OG05B10 Color Global Shutter Sensor without Distortion or Lag.

2) 60FPS High Frame Rates——2592×1944 MJPEG 60fps/ YUY2 35fps 2560×1440 MJPEG 60fps/ YUY2 35fps

1920×1080 MJPEG 60fps/ YUY2 60fps

3) 5MP Full HD Resolution——5MP Max Resolution 2592X1944 for High quality Still Picture & Video.

4) Equipped with USB3.0 interface——it enables high-speed data transfer.

5) Wide angle 98 degree no distortion lens. (other lens optional)

6) Mini Compact PCB Board Size 38mm x 38mmx 48.5mm——Suitable for Many Embedded Application.

7) Adjustable Features——Brightness, Exposure, White Balance, Saturation, Contrast, Hue, etc, allows you customize the camera’s performance according to your needs.

8) Ease of Use——Free driver, simply connect to a USB port then Plug & Play,No need additional hardware, driver or complex setup processes.

9) Easy Integration & High Compatibility——Support Android, Windows, Linux. Mac OS etc. compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms.

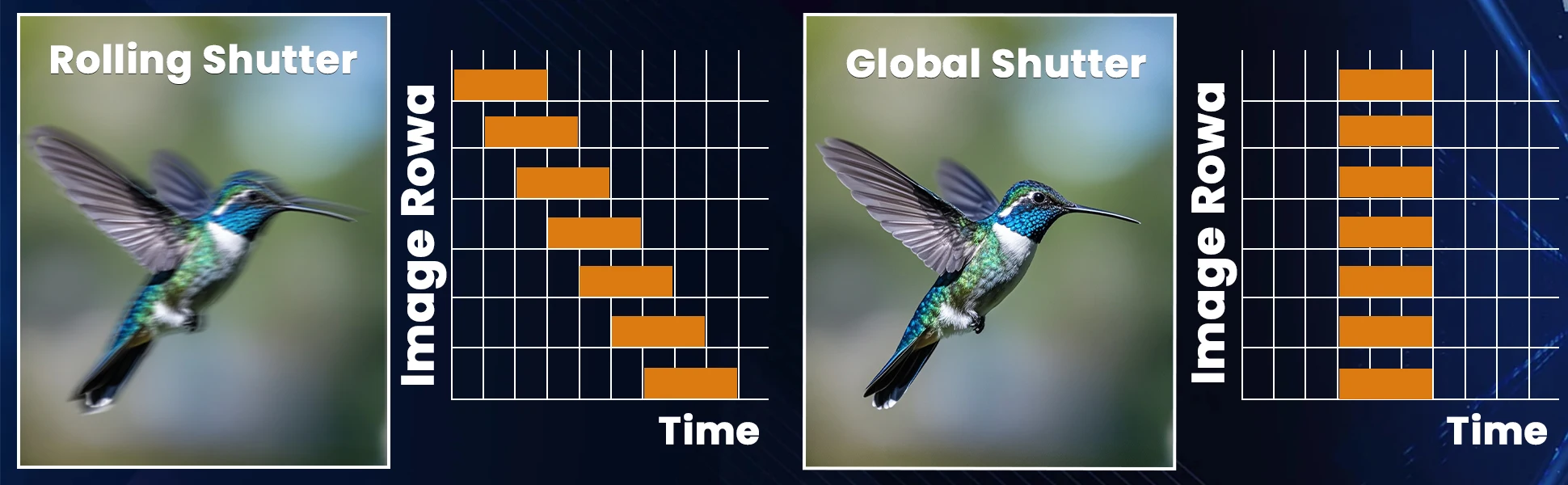

Why Global Shutter Cameras?

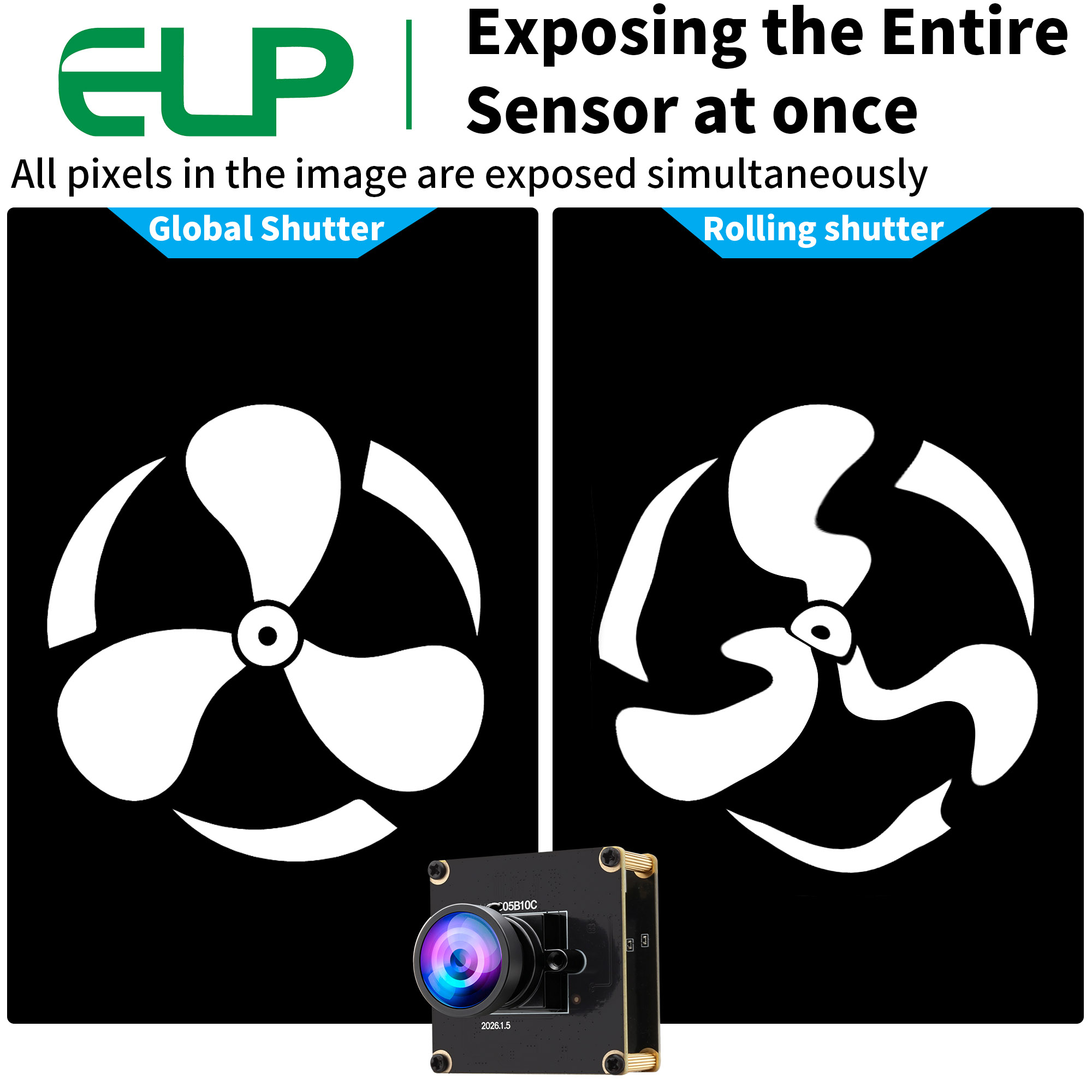

A global shutter camera is a type of digital camera that captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.

Specification

Optional Models	ELP-U3GS05B10C-V6  (HFOV 51 degree) ELP-U3GS05B10C-LC1100  (HFOV 69 degree) ELP-U3GS05B10C-H90 (HFOV 75 degree) ELP-U3GS05B10C-V83 (HFOV 86 degree) ELP-U3GS05B10C-V100 (HFOV 85 degree) ELP-U3GS05B10C-H100  (HFOV 98 degree) ELP-U3GS05B10C-H110 (HFOV 115 degree) ELP-U3GS05B10C-H120 (HFOV 125 degree)
Sensor	OmniVision OG05B10(1/2.5”) Global Shutter
Max Resolution	2592 (H) *1944 (V)
Sensor Size	1/2.5 inch (4:3)
Image Array Area	5737μmx4312μm
Pixel Size	2.2μmx 2.2μm
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate USB 3.0	2592×1944 MJPEG 60fps/ YUY2 35fps 2560×1440 MJPEG 60fps/ YUY2 35fps 2048×1536 MJPEG 60fps/ YUY2 50fps     1600×1200 MJPEG 60fps/ YUY2 60fps 1920×1080 MJPEG 60fps/ YUY2 60fps 1280×960 MJPEG 60fps/ YUY2 60fps 1280×720 MJPEG 60fps/ YUY2 60fps        640×480 MJPEG 60fps/ YUY2 60fps 512×512 MJPEG 60fps/ YUY2 60fps
Resolution & Frame rate USB 2.0	2592×1944 MJPEG 60fps/ YUY2 1fps        2560×1440 MJPEG 60fps/ YUY2 1fps 2048×1536 MJPEG 60fps/ YUY2 1fps        1600×1200 MJPEG 60fps/ YUY2 1fps 1920×1080 MJPEG 60fps/ YUY2 1fps        1280×960 MJPEG 60fps/ YUY2 1fps 1280×720 MJPEG 60fps/ YUY2 1fps           640×480 MJPEG 60fps/ YUY2 30fps 512×512 MJPEG 60fps/ YUY2 10fps
Surface Mount Technology	SMT
Interface & Connector	USB 3.0 Type C Port (USB 3.0 20-Pin Connector optional)
Focus	Fixed	Central Definition		1000LW/PH (Center)
S/N Ratio	38dB	Dynamic Range		72dB
Sensitivity	1.4V/lux-sec@550nm	Min Illumination		0.1lux
Shutter	Global Shutter	Interface		USB 3.0 Interface
AEC/AWB/AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure
Lens Parameters	f=3.24mm, No distortion, HFOV is approximately 98 degree
LED board power connector	Support 2P-2.0mm socket
Power Supply	USB Type-C Power Supply
Operating Voltage	DC 5V		Working Current		155mA- 195mA
Dimension	38mm x 38mmx 48.5mm
Storage Temperature	-20°C to 80°C		Working Temperature			-10°C to 70°C
USB Cable	1.2M (2M/3M/5M … Optional )
Operating System Request	Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or laterAndroid 4.0 or above with UVC

Product Display

Max resolution: 5 megapixels (2592×1944) at 60fps video and still photo. Multiple resolution adjustable.60FPS High Frame Rates

2592×1944 MJPEG 60fps/ YUY2 35fps

2560×1440 MJPEG 60fps/ YUY2 35fps

1920×1080 MJPEG 60fps/ YUY2 60fpsGlobal Shutter: all pixels in the image are exposed simultaneously, free of distortion, shooting high-speed moving objects in crisp sharp images.Wide angle 98 degree Low distortion lens. M12 mount lens interchangeable.

Actual photo of ELP-U3GS05B10C-V6, HFOV 51 degree.

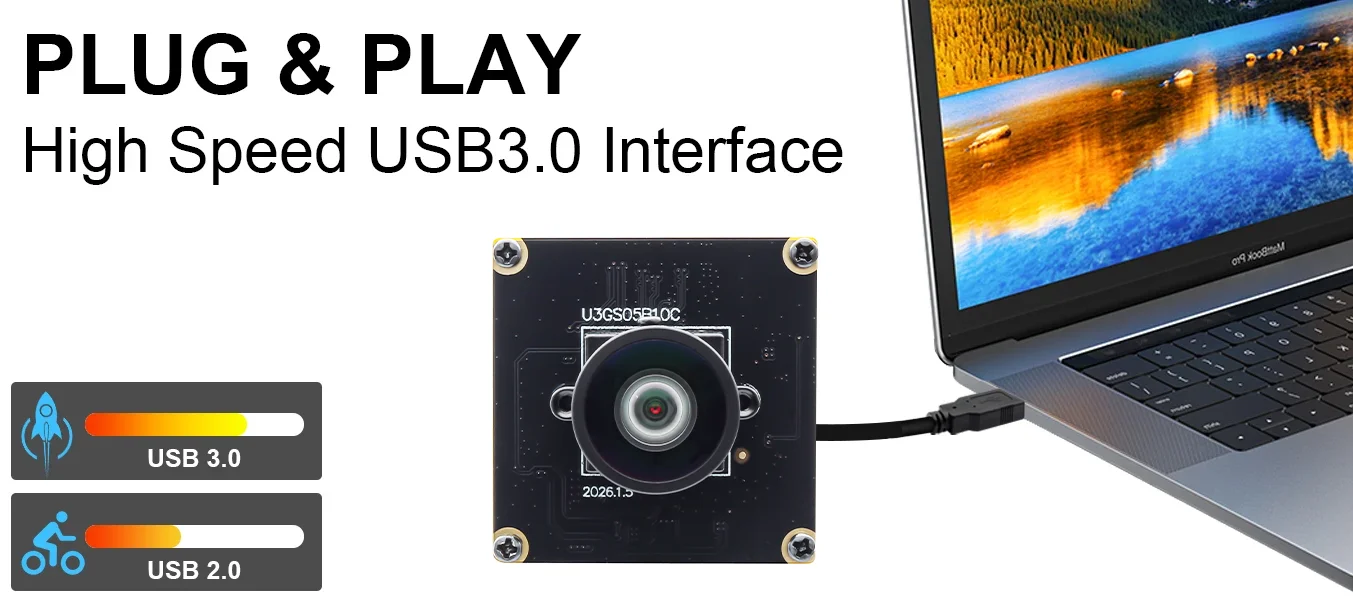

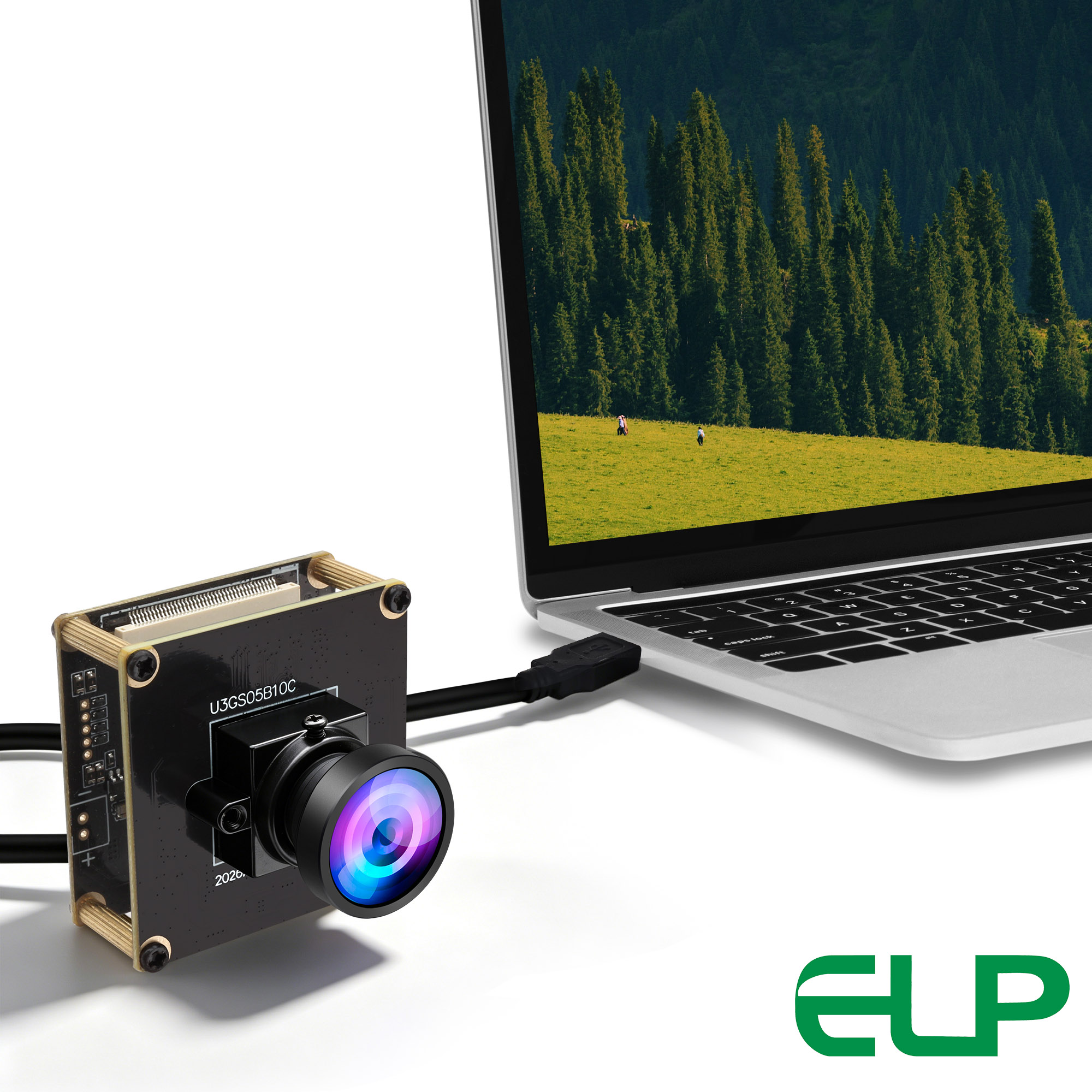

USB 3.0 supports high-speed transmission with 5 Gbps bandwidth, ensuring high-resolution and high-frame-rate real-time transmission. It features plug-and-play functionality without requiring a capture card.Driver-Free & Plug & Play

No driver or software required, easy to use.

Automatically recognized by Windows / Android / Linux systems.

Super mini usb camera for pc,computer,laptop,raspberry pi,android development board,Jetson Nano, etcWide compatibility

Compatible with Windows, Linux, MacOS, Android. Compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms, like Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Live streaming services etc. Stable connection, ready to work in seconds.
Applications

 Ideal for high-speed sports analysis, AI object recognition, laser engraving monitoring (Lightburn compatible), document scanners, traffic monitoring, and gesture/eye tracking
