Description

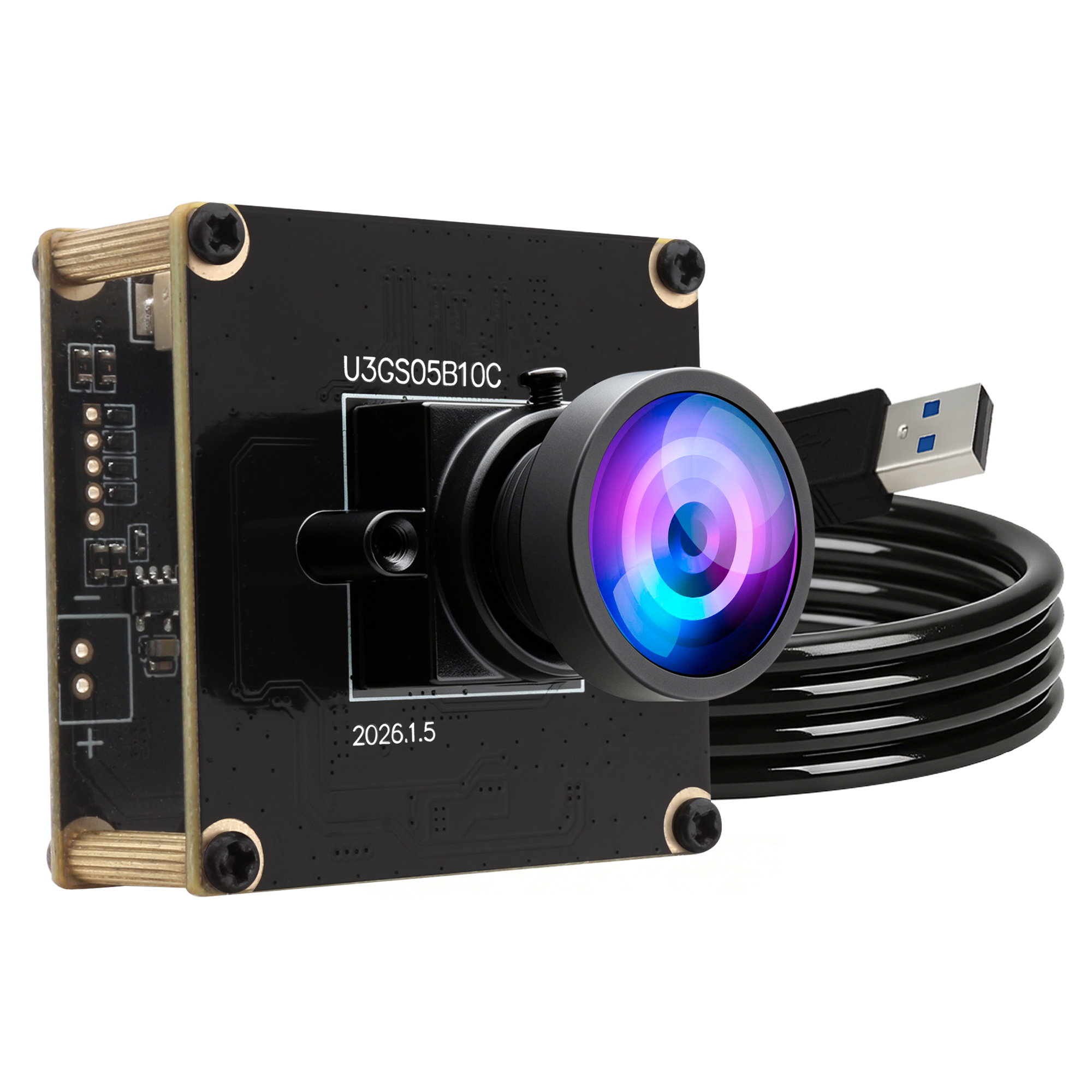

ELP-U3GS05B10C-L29, a cutting-edge 5MP USB3.0 global shutter camera designed for high-performance industrial imaging, machine vision, and motion capture applications. Equipped with an OmniVision OG05B10 global shutter sensor, it delivers distortion-free, sharp images even for fast-moving objects, with a maximum resolution of 2592×1944 and up to 60fps MJPEG streaming over USB3.0. Supporting multiple resolution/frame rate combinations, adjustable image parameters, and a wide range of optional M12 lenses, this compact camera offers plug-and-play UVC compatibility with Windows, Linux, Mac, and Android, making it ideal for industrial inspection, robotics, and high-speed capture scenarios.



Package includes

1) 1pc of 5MP Global Shutter USB3.0 Camera with no distortion lens.

2) 1pc of 1.2m USB Cable. (2M/3M/5M … Optional )

Mini size 38mm x 38mmx 48.5mm, Lightweight and convenient. Portable and suitable for embedded use and various scenarios.

Features



1) Global Shutter Sensor——OmniVision OG05B10 Color Global Shutter Sensor without Distortion or Lag.

2) 60FPS High Frame Rates——2592×1944 MJPEG 60fps/ YUY2 35fps 2560×1440 MJPEG 60fps/ YUY2 35fps

1920×1080 MJPEG 60fps/ YUY2 60fps

3) 5MP Full HD Resolution——5MP Max Resolution 2592X1944 for High quality Still Picture & Video.

4) Equipped with USB3.0 interface——it enables high-speed data transfer.

5) Wide angle 120 degree lens. (other lens optional)

6) Mini Compact PCB Board Size 38mm x 38mmx 48.5mm——Suitable for Many Embedded Application.

7) Adjustable Features——Brightness, Exposure, White Balance, Saturation, Contrast, Hue, etc, allows you customize the camera’s performance according to your needs.

8) Ease of Use——Free driver, simply connect to a USB port then Plug & Play,No need additional hardware, driver or complex setup processes.

9) Easy Integration & High Compatibility——Support Android, Windows, Linux. Mac OS etc. compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms.

Why Global Shutter Cameras?

A global shutter camera is a type of digital camera that captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.

Specification

Optional Models	ELP-U3GS05B10C-L21 (2.1mm HFOV 115°) ELP-U3GS05B10C-L281 (2.8mm HFOV 110°) ELP-U3GS05B10C-L29 (2.9mm HFOV 120°) ELP-U3GS05B10C-L361 (3.6mm HFOV 89°) ELP-U3GS05B10C-L60 (6mm HFOV 57°) ELP-U3GS05B10C-L80 (8mm HFOV 43°) ELP-U3GS05B10C-L12 (12mm HFOV 25°) ELP-U3GS05B10C-L16 (16mm HFOV 21°) ELP-U3GS05B10C-L25 (25mm HFOV 12°) ELP-U3GS05B10C-F2812 (2.8-12mm )
Sensor	OmniVision OG05B10(1/2.5”) Global Shutter
Max Resolution	2592 (H) *1944 (V)
Sensor Size	1/2.5 inch (4:3)
Image Array Area	5737μmx4312μm
Pixel Size	2.2μmx 2.2μm
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate USB 3.0	2592×1944 MJPEG 60fps/ YUY2 35fps 2560×1440 MJPEG 60fps/ YUY2 35fps 2048×1536 MJPEG 60fps/ YUY2 50fps     1600×1200 MJPEG 60fps/ YUY2 60fps 1920×1080 MJPEG 60fps/ YUY2 60fps 1280×960 MJPEG 60fps/ YUY2 60fps 1280×720 MJPEG 60fps/ YUY2 60fps        640×480 MJPEG 60fps/ YUY2 60fps 512×512 MJPEG 60fps/ YUY2 60fps
Resolution & Frame rate USB 2.0	2592×1944 MJPEG 60fps/ YUY2 1fps        2560×1440 MJPEG 60fps/ YUY2 1fps 2048×1536 MJPEG 60fps/ YUY2 1fps        1600×1200 MJPEG 60fps/ YUY2 1fps 1920×1080 MJPEG 60fps/ YUY2 1fps        1280×960 MJPEG 60fps/ YUY2 1fps 1280×720 MJPEG 60fps/ YUY2 1fps           640×480 MJPEG 60fps/ YUY2 30fps 512×512 MJPEG 60fps/ YUY2 10fps
Surface Mount Technology	SMT
Interface & Connector	USB 3.0 Type C Port (USB 3.0 20-Pin Connector optional)
Focus	Fixed	Central Definition		1000LW/PH (Center)
S/N Ratio	38dB	Dynamic Range		72dB
Sensitivity	1.4V/lux-sec@550nm	Min Illumination		0.1lux
Shutter	Global Shutter	Interface		USB 3.0 Interface
AEC/AWB/AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure
Lens Parameters	2.9mm lens
LED board power connector	Support 2P-2.0mm socket
Power Supply	USB Type-C Power Supply
Operating Voltage	DC 5V		Working Current		155mA- 195mA
Dimension	38mm x 38mmx 48.5mm
Storage Temperature	-20°C to 80°C		Working Temperature			-10°C to 70°C
USB Cable	1.2M (2M/3M/5M … Optional )
Operating System Request	Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or laterAndroid 4.0 or above with UVC

Product Display

Max resolution: 5 megapixels (2592×1944) at 60fps video and still photo. Multiple resolution adjustable.60FPS High Frame Rates

2592×1944 MJPEG 60fps/ YUY2 35fps

2560×1440 MJPEG 60fps/ YUY2 35fps

1920×1080 MJPEG 60fps/ YUY2 60fpsGlobal Shutter: all pixels in the image are exposed simultaneously, free of distortion, shooting high-speed moving objects in crisp sharp images.



USB 3.0 supports high-speed transmission with 5 Gbps bandwidth, ensuring high-resolution and high-frame-rate real-time transmission. It features plug-and-play functionality without requiring a capture card.Driver-Free & Plug & Play

No driver or software required, easy to use.

Automatically recognized by Windows / Android / Linux systems.

Super mini usb camera for pc,computer,laptop,raspberry pi,android development board,Jetson Nano, etcWide compatibility

Compatible with Windows, Linux, MacOS, Android. Compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms, like Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Live streaming services etc. Stable connection, ready to work in seconds.
Applications

 Ideal for high-speed sports analysis, AI object recognition, laser engraving monitoring (Lightburn compatible), document scanners, traffic monitoring, and gesture/eye tracking
