Description
Upgrade Your Vision Projects with Our 720P USB Camera Module!

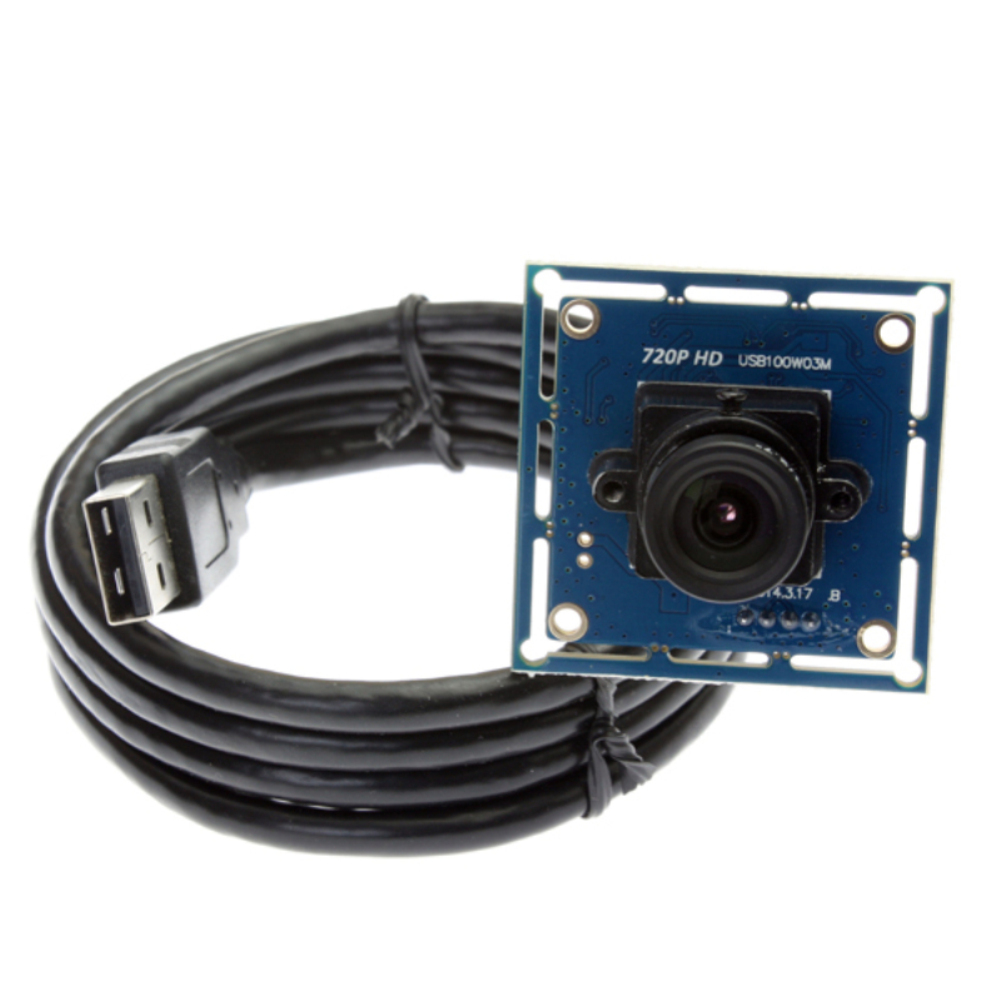

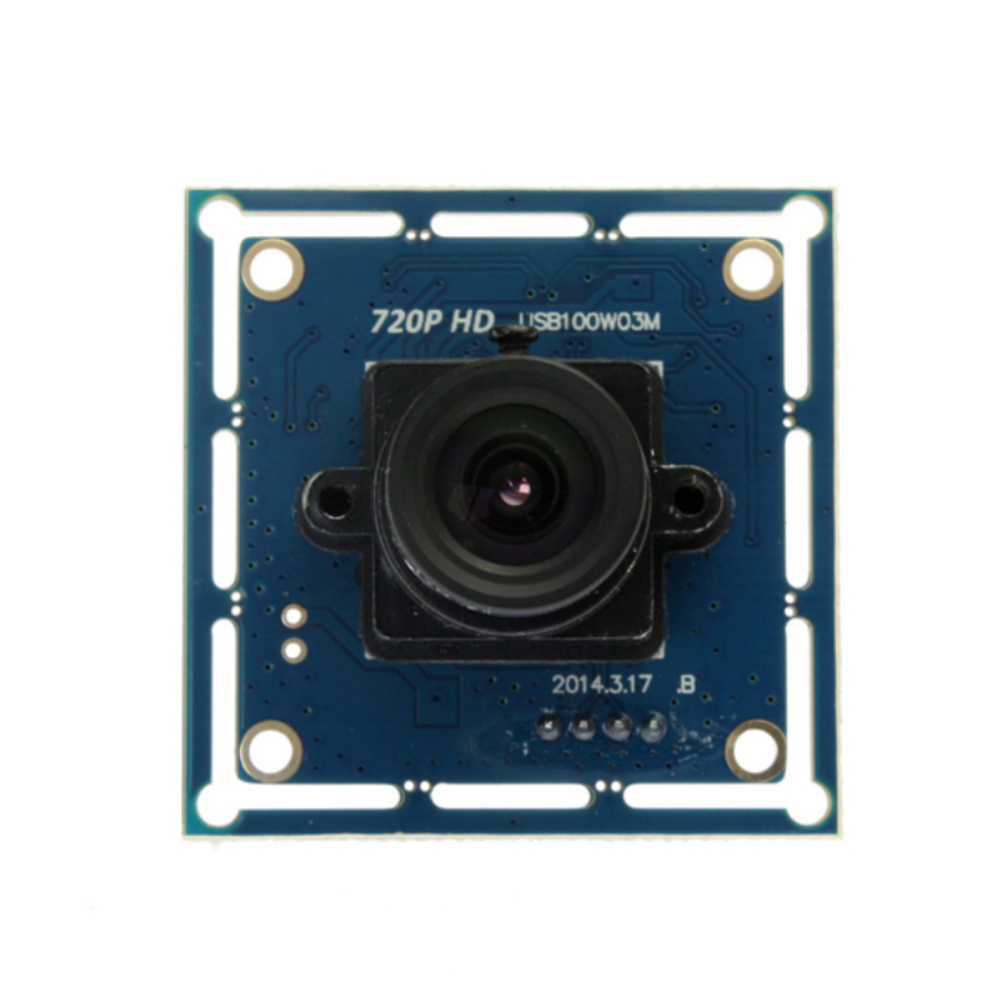

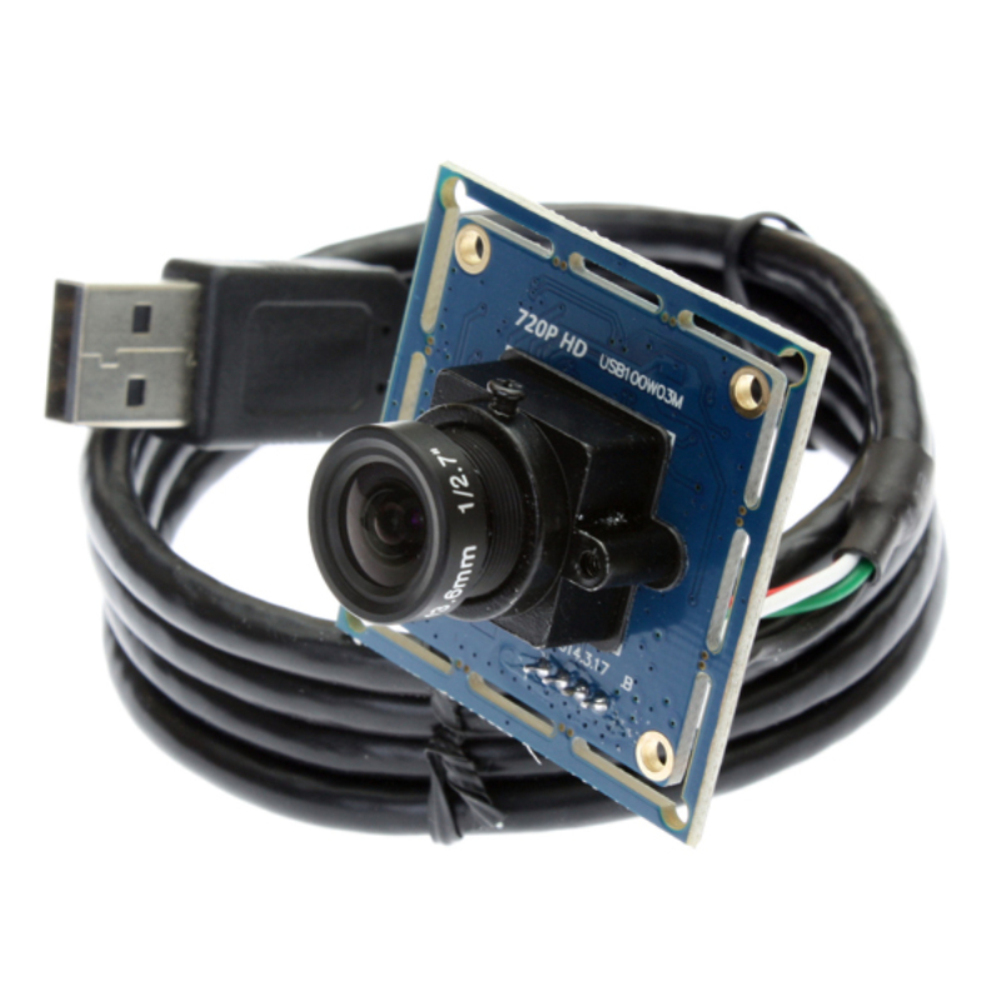

Looking for a reliable, high-quality, and affordable camera module for your next tech project or application? Our 720P USB Camera Module is the perfect solution. Packaged in a compact and industry-standard 38x38mm size, this tiny but powerful board delivers smooth HD video through a simple USB connection.
Why Choose Our Camera Module?
Engineered for versatility and ease of use, this module eliminates complexity. Just connect the included USB cable to your device, and it’s ready to work. Its UVC (USB Video Class) compliance ensures broad compatibility across operating systems without the hassle of installing special drivers.
Whether you’re building a smart home security system, adding vision to your robot, creating a custom webcam for streaming, or developing AI-based face recognition software, this module provides the essential eye you need. It’s a favorite among Raspberry Pi enthusiasts and professionals in industrial automation alike.
Technical Excellence Meets Practical Design
The module features a low-power CMOS sensor that balances performance with efficiency, producing stable video in various lighting conditions. The standard M12 lens mount allows you to swap lenses (optional) for different fields of view, from wide-angle to telephoto.
Get Started Today!

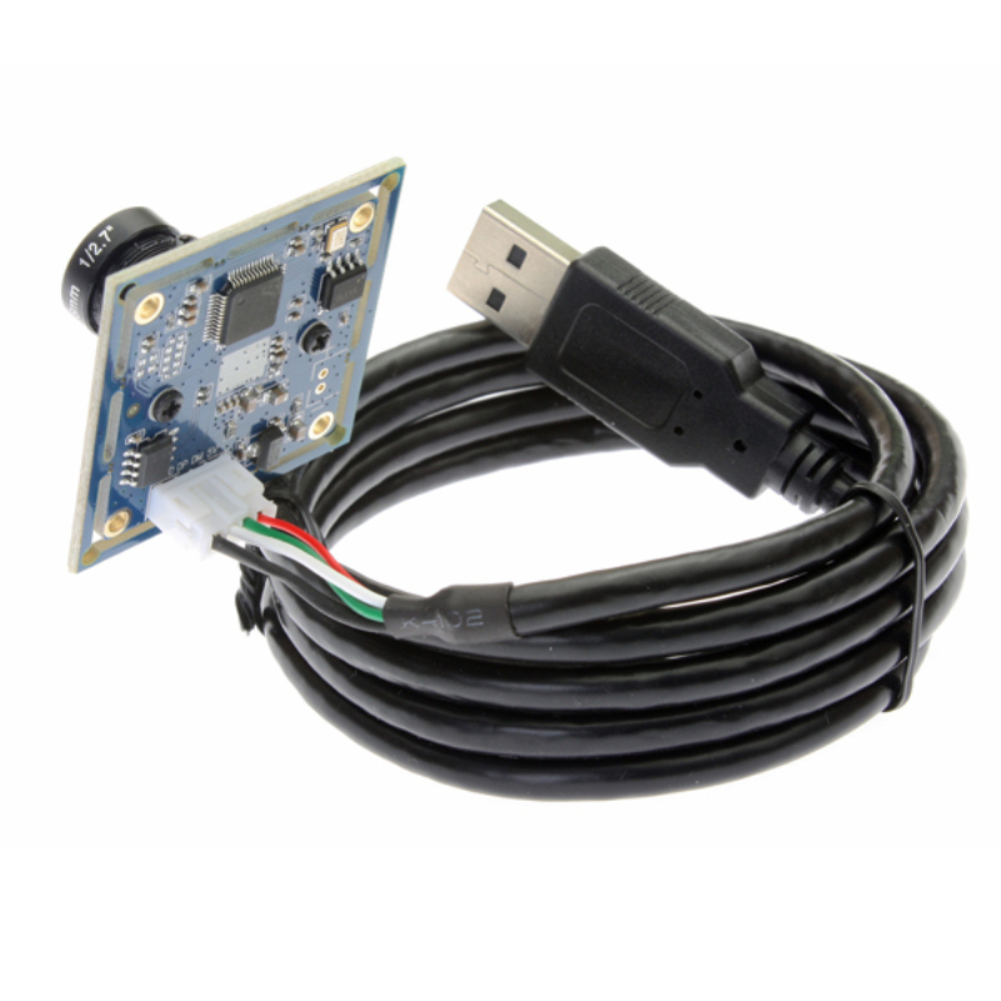

Jumpstart your innovation. This all-in-one camera module comes with everything required to begin capturing video immediately. Order now and bring your visionary ideas to life!
Features
*High-quality USB camera adopted CMOS OV9712 image sensor with max resolution 1280×720 for great picture performance, keep the purity and clarity of images. Compression format: MJPG / YUY2; Saturation, Contrast, White balance adjustable.

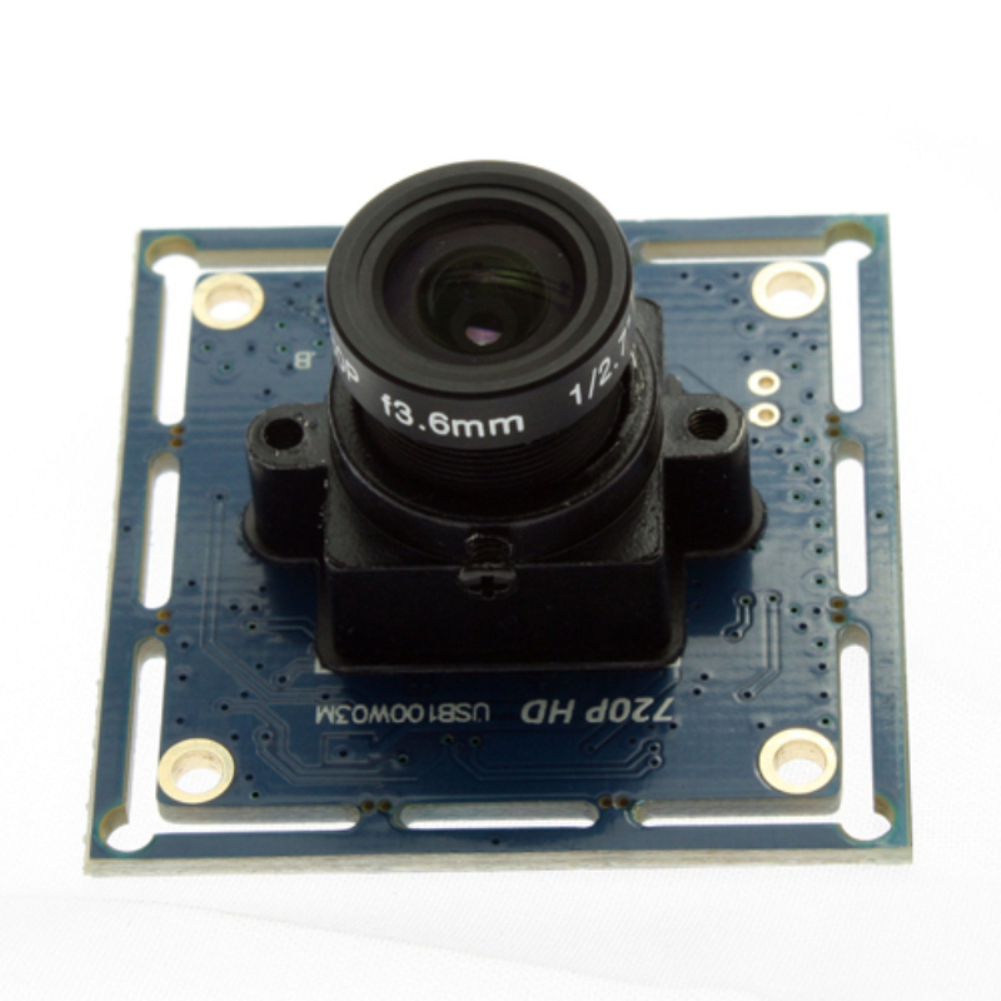

*M12 lens, 2.1/2.8/3.6/6/8/12/16mm optional,which provides the different Field of View to choose

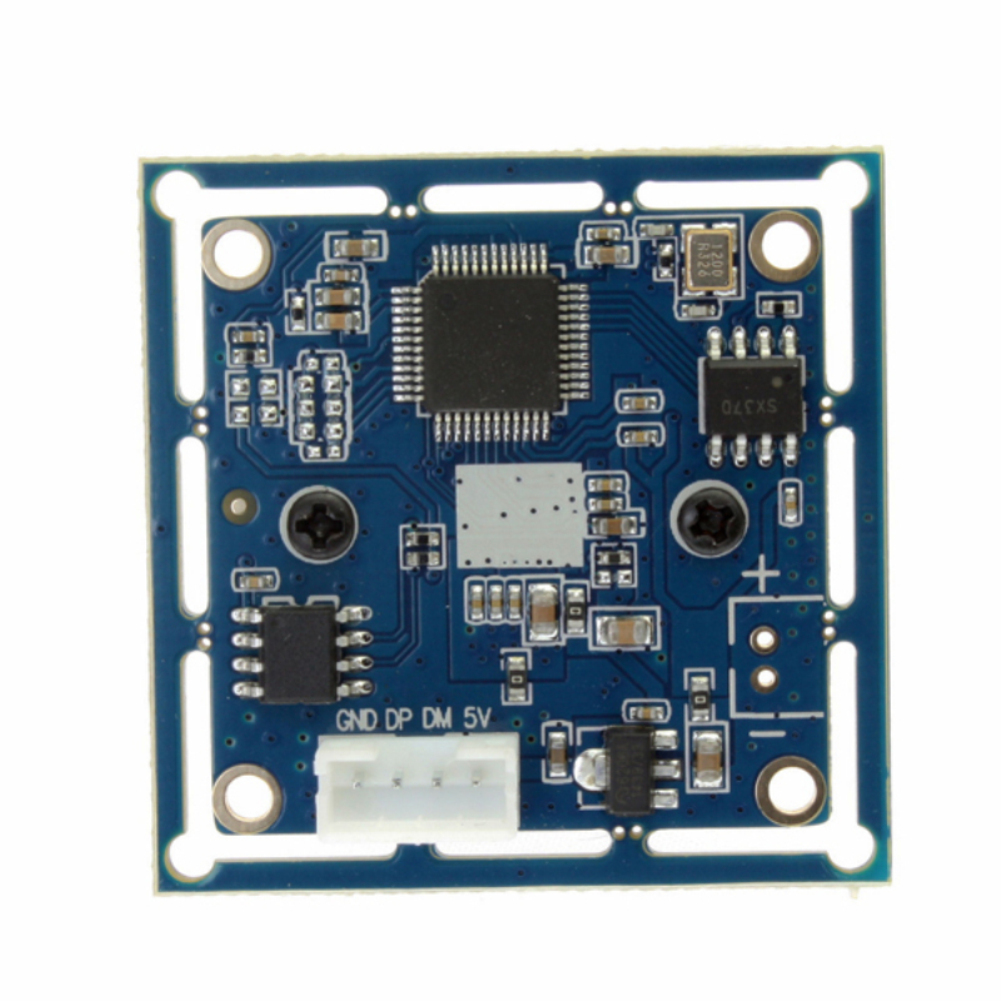

*Plug&Play: mini-sized, no driver required. The USB camera board is equipped with a 4pin to USB connector on the back for direct PC connection, compatible with the various platforms such as Linux, Windows, Andriod, and Mac OS; it also supports the use of Zoom/Skype/Facetime and other video streaming APP
*Applications: This small 38mmx38mm camera board is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, or other machine vision application
*Developer Ready – Supports popular programming tools like OpenCV and Python, perfect for students, engineers, and hobbyists
Specification
| Optional models | ELP-USB100W03M-L21(2.1mm lens) ELP-USB100W03M-L28(2.8mm lens) ELP-USB100W03M-L36(3.6mm lens) ELP-USB100W03M-L60(6mm lens) ELP-USB100W03M-L80(8mm lens) ELP-USB100W03M-L12(12mm lens) ELP-USB100W03M-L170(Fisheye lens) ELP-USB100W03M-FV(2.8-12mm lens) |
| Sensor | OV9712 |
| Lens size | 100W, 1.0megapixel, 1280X720 |
| Max. Resolution | 640X480 VGA |
| Picture format | YUY2 MJPEG |
| USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Frame rate | 1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 10fps 960 (H) x 720 (V) pixels MJPEG 30fps YUY2 15fps 800 (H) x 600 (V) pixels MJPEG 30fps YUY2 20fps 640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps 352(H) x 288 (V) pixels MJPEG 30fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 30fps YUY2 30fps 176(H) x 144 (V) pixels MJPEG 30fps YUY2 30fps 160 (H) x 120 (V) pixels MJPEG 30fps YUY2 30fps |
| Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
| Night vision | optional, can choose IR board |
| view angle | 30-180 degree optional |
| voltage | DC 5V |
| current | 150mA |
| work temperature | DEGREES(-20~70) |
| Size | 32x32mm or 38x38mm |
| Support OS | WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above |
