Description

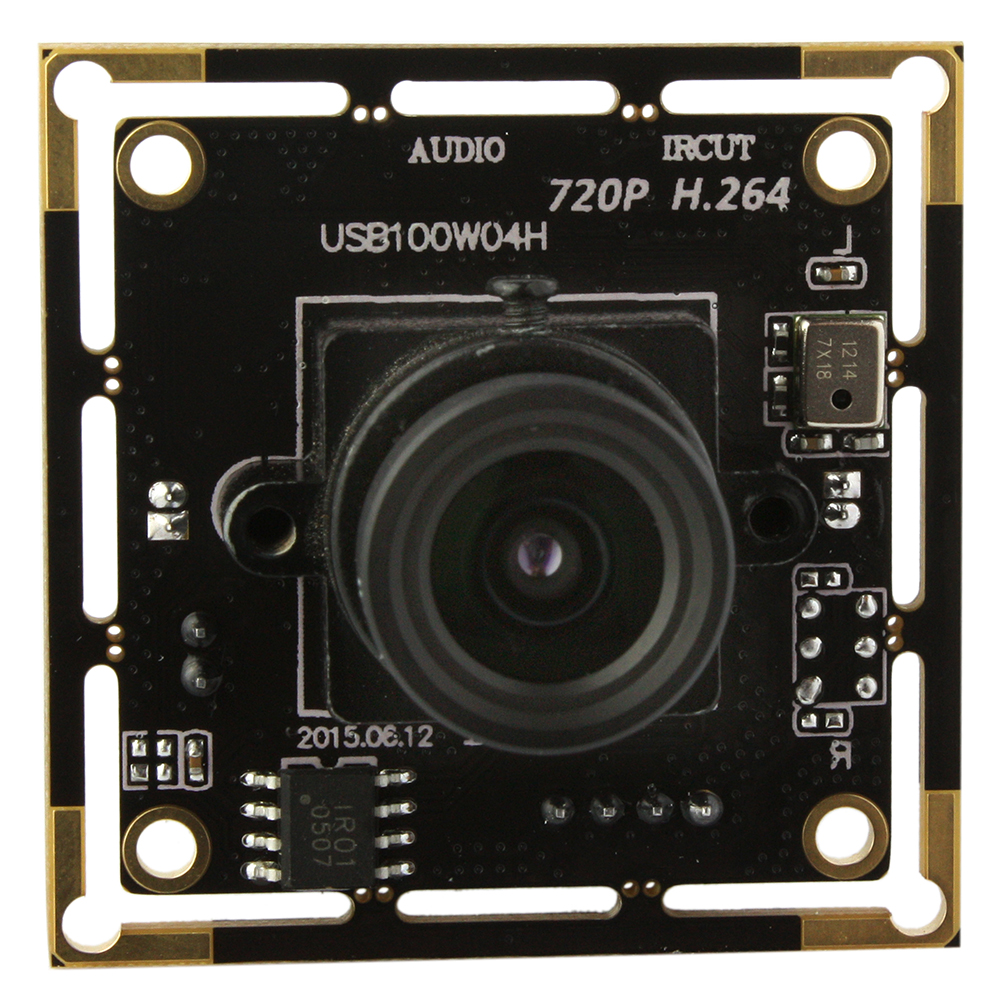

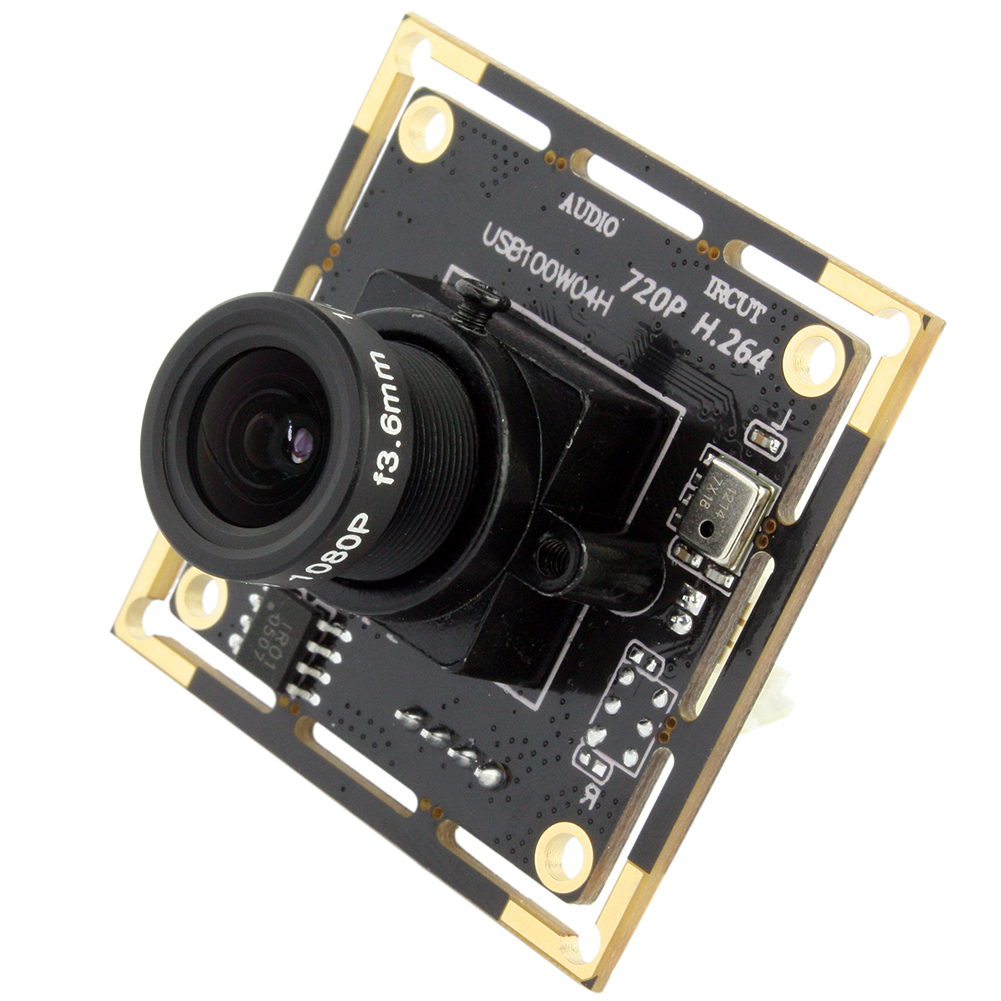

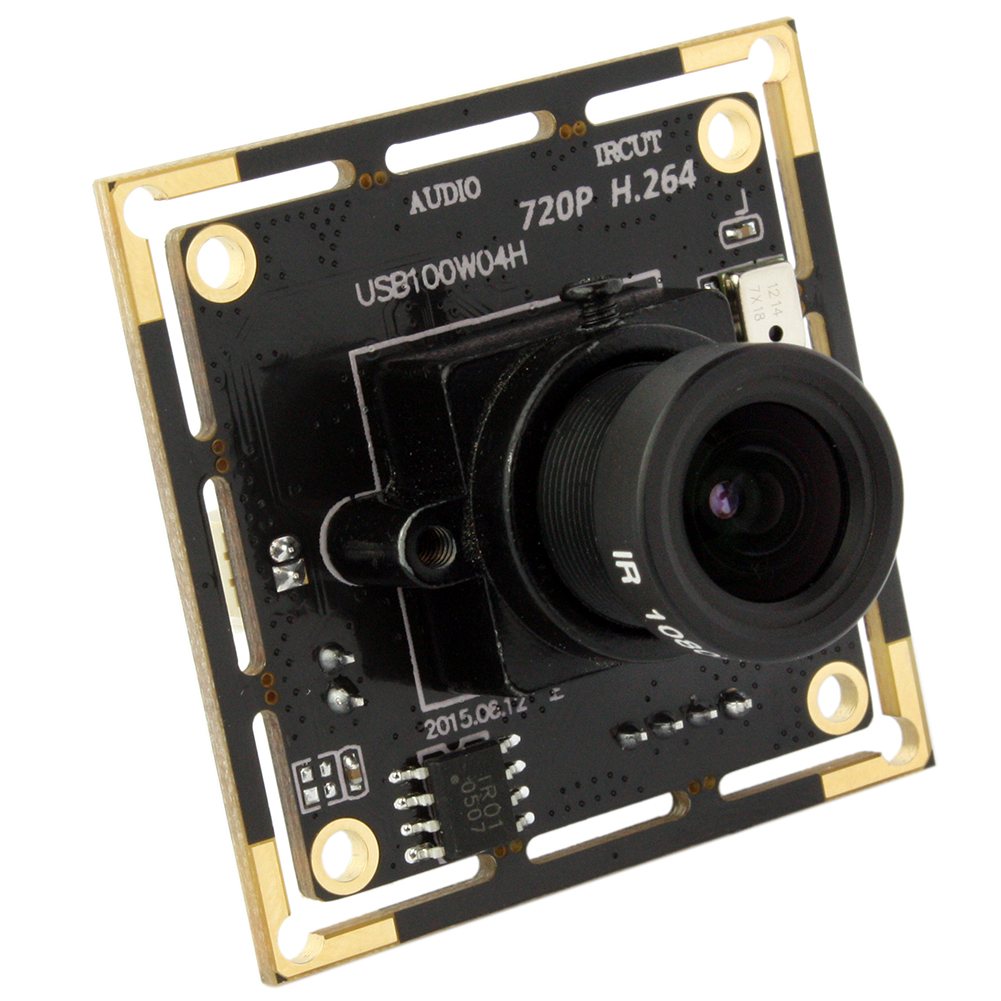

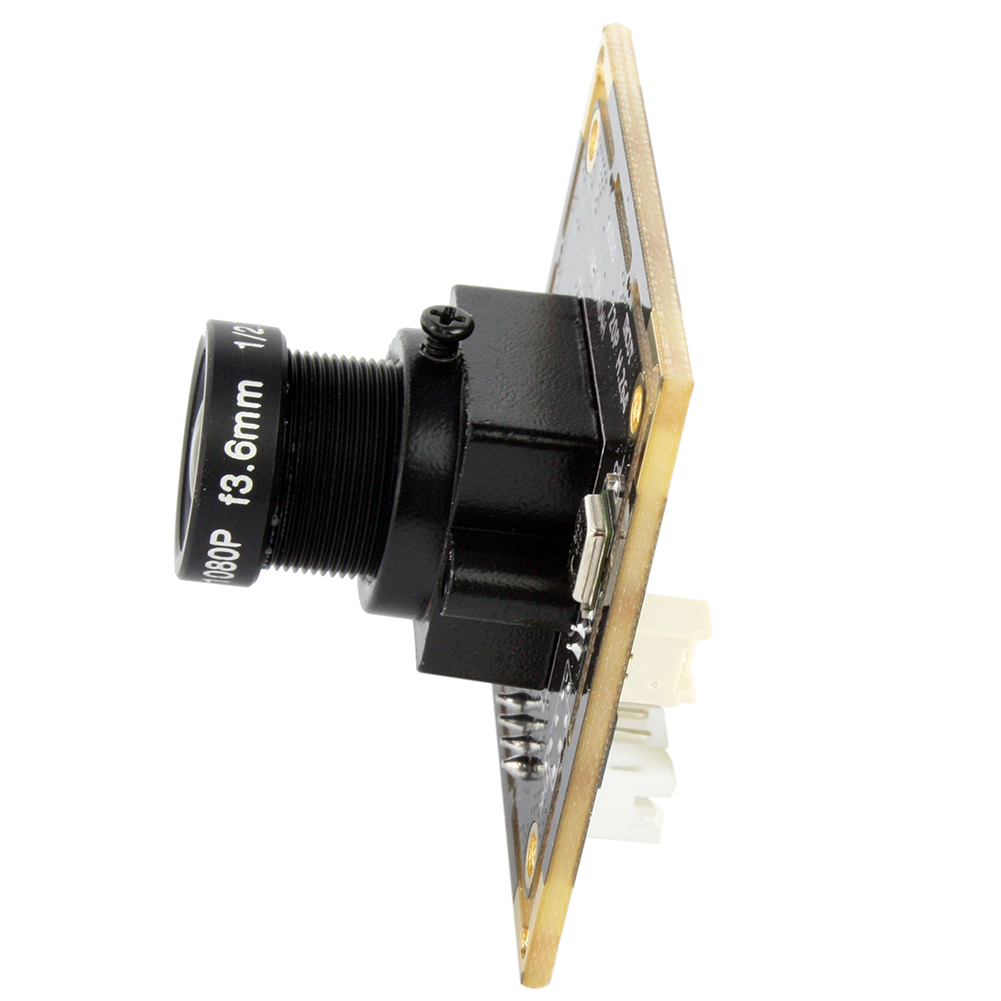

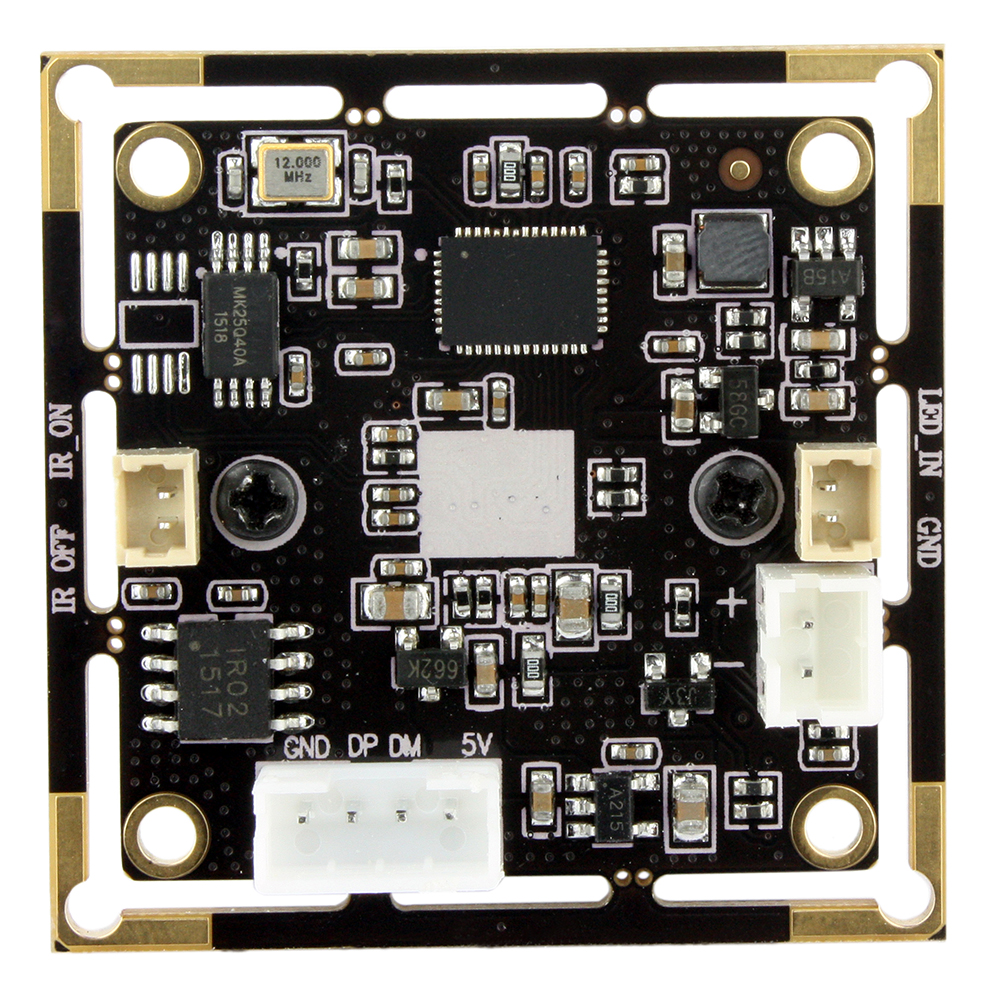

The HD 720P USB CMOS board camera module(model: ELP-USB100W04M serials) is ideal for many applications like security
systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by
OmniVision, one of the world leaders in this field of electronics.
Features
●1MP 720P HD USB camera Module – Max Resolution 1280X720
● H.264 on board encoding – reduces bandwidth/ storage demands without compromising quality
●High Frame Rate 720P 30fps Webcam Module for real time video transfer
●With one pcs Integrated microphone – for synchronized audio video capture.
●Mini Compact 32*32/38*38mm board Size for embedded apllication
●Easy Integration – seamlessly integrate with many OS like Android, Windows, Linux. Mac OS etc.
●High Compatibility -compatible with a wide range of applications and platforms,
●Mini OTG USB Webcam for pc,computer,laptop,raspberry pi,android development board, Jetson Nano,etc
●Wide Application – Scanner, 3D printer, Simple surveillance, Robot, ATM face recognition, kiosk interactive displays, Game cabinet, Machine vision inspection etc.
Specification
| Optional models | ELP-USB100W 04H-L21(2.1mm lens) ELP-USB100W04H-L28(2.8mm lens) ELP-USB100W04H-L36 (3.6mm lens) ELP-USB100W04H-L60(6mm lens) ELP-USB100W04H-L80(8mm lens) ELP-USB100W04H-L12(12mm lens) ELP-USB100W04H-L170(fisheye lens) |
| Sensor | OV9712 |
| Lens size | 100W, 1.0megapixel, 1280X720 |
| Max. Resolution | 640X480 VGA |
| Picture format | YUY2 MJPEG |
| USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Frame rate | 1280 (H) x 720 (V) pixels H.264 30fps MJPEG 30fps YUY2 10fps 800 (H) x 600 (V) pixels H.264 30fps MJPEG 30fps YUY2 20fps640 (H) x 480 (V) pixels H.264 30fps MJPEG 30fps YUY2 30fps 640 (H) x 360 (V) pixels H.264 30fps YUY2 30fps |
| Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
| Night vision | optional, can choose IR board |
| view angle | 30-150 degree optional |
| voltage | DC 5V |
| current | 150mA |
| work temperature | DEGREES(-20~70) |
| Size | 32x32mm |
| Support OS | WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above |
