Description
This is a mini Compact Size 1080p Full HD High Speed webcam, Max Frame Rate up to 100fps. Which used in applications that require capturing fast-moving objects or events with high temporal resolution. These cameras are capable of capturing a large number of frames per second (fps), allowing for detailed analysis, motion tracking, and slow-motion playback.
Based on 1/2.7″ OV2710 image sensor, Fixed focus, 1.67mm fisheye lens, UVC compliant USB 2.0 camera. Its Mini size, light weight and Low Power consumption which is suitbale for many embedded application and Portable Device.
Features
* High Quality Sensor: 1/2.7″ CMOS OV2710 Sensor
* Full HD 1080P: Max Resolution 1920×1080
* Huigh Speed, high FPS:1920×1080 Mjpeg 30FPS, 1280×720 Mjpeg 60FPS, 640×480 Mjpeg 100FPS
* 180 degree Fisheye lens:FOV > 180 degree (Many other lens optional 2.1mm/2.8mm/3.6mm/6mm/8mm/12mm/fisheye lens/ no distortion lens…)
* Micro usb camera with small size: 38x38mm (Compatible 32x32mm)
* USB Cable: With 1m usb cable (2m/3m/5m/0.3m/0.5m…optional)
* UVC: free driver, Plug & Play
* OTG support: can connect android tablet, smartphone… via OTG cable
* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.
* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..
* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera…

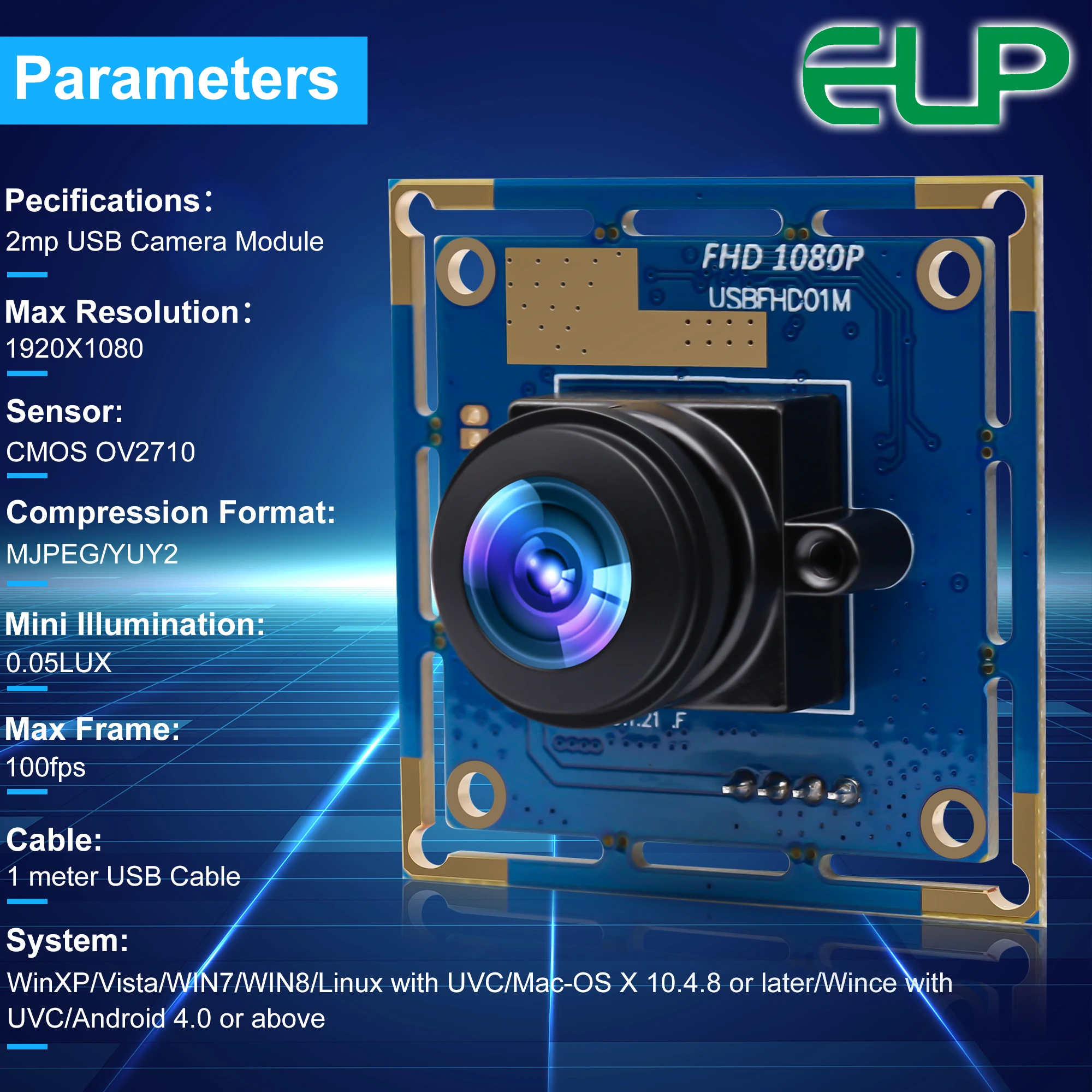

Specification
| Optional models |
ELP-USBFHD01M-L180 (180degree fisheye lens)
|
| Sensor | 1/2.7″ CMOS OV2710 |
| Lens size | 200W, 2.0megapixel, 1920(H)x1080(V)pixels |
| Max. Resolution | 1920X1080 |
| Picture format | MJPEG |
| USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Frame rate | 1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps 640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps 352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fps |
| Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
| Night vision | optional, can choose IR board |
| view angle | 1.67mm fisheye lens |
| voltage | DC 5V |
| current | 150mA |
| work temperature | DEGREES(-20~70) |
| Size | 32x32mm/38*38 |
| Support OS | WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above |
Product Display

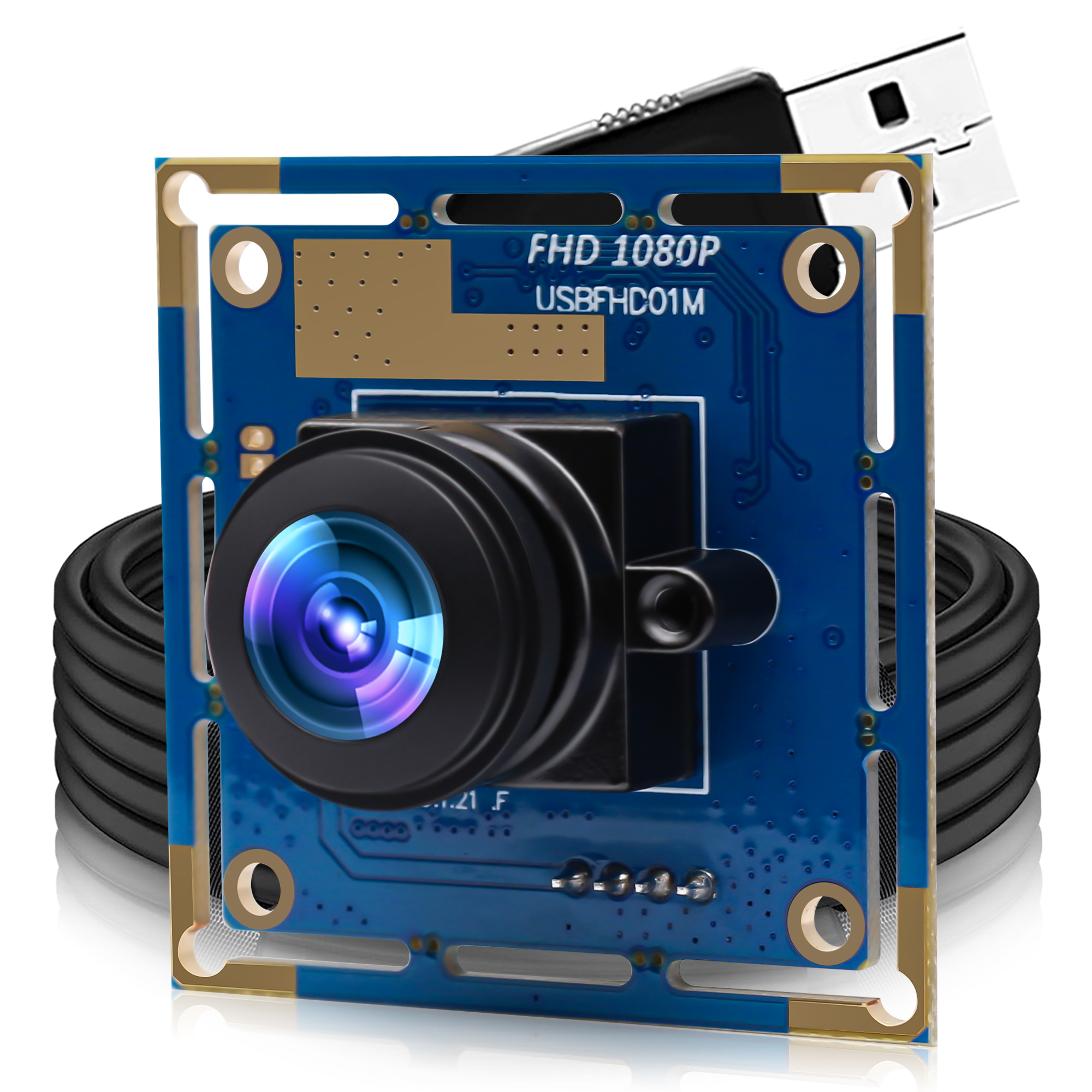

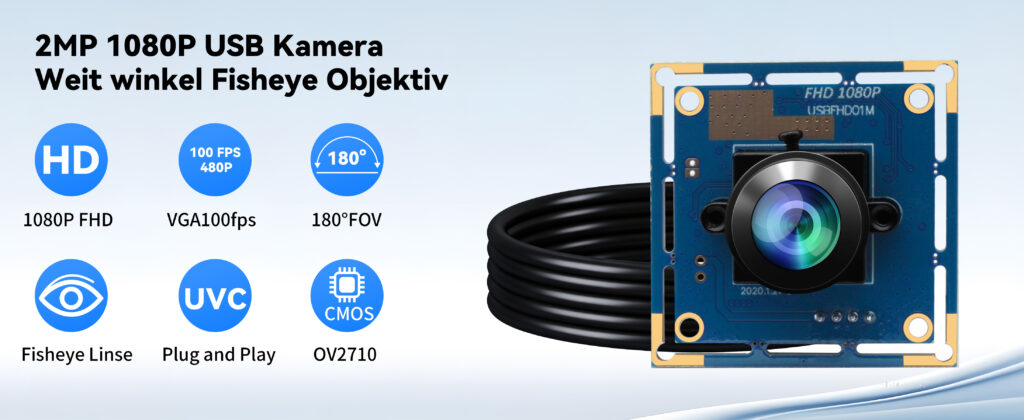

-2MP USB Camera Module
-Max Resolution: 1920×1080 , Full HD 1080P webcam
-Compression: Mjpeg /YUY2
-Mjpeg 30FPS at 1920X1080 , Mjpeg 60FPS at 1280×720, Mjpeg 100-120FPS at 640×480
-Cable: With 1m cable (Other length optional)
-Support different systems.

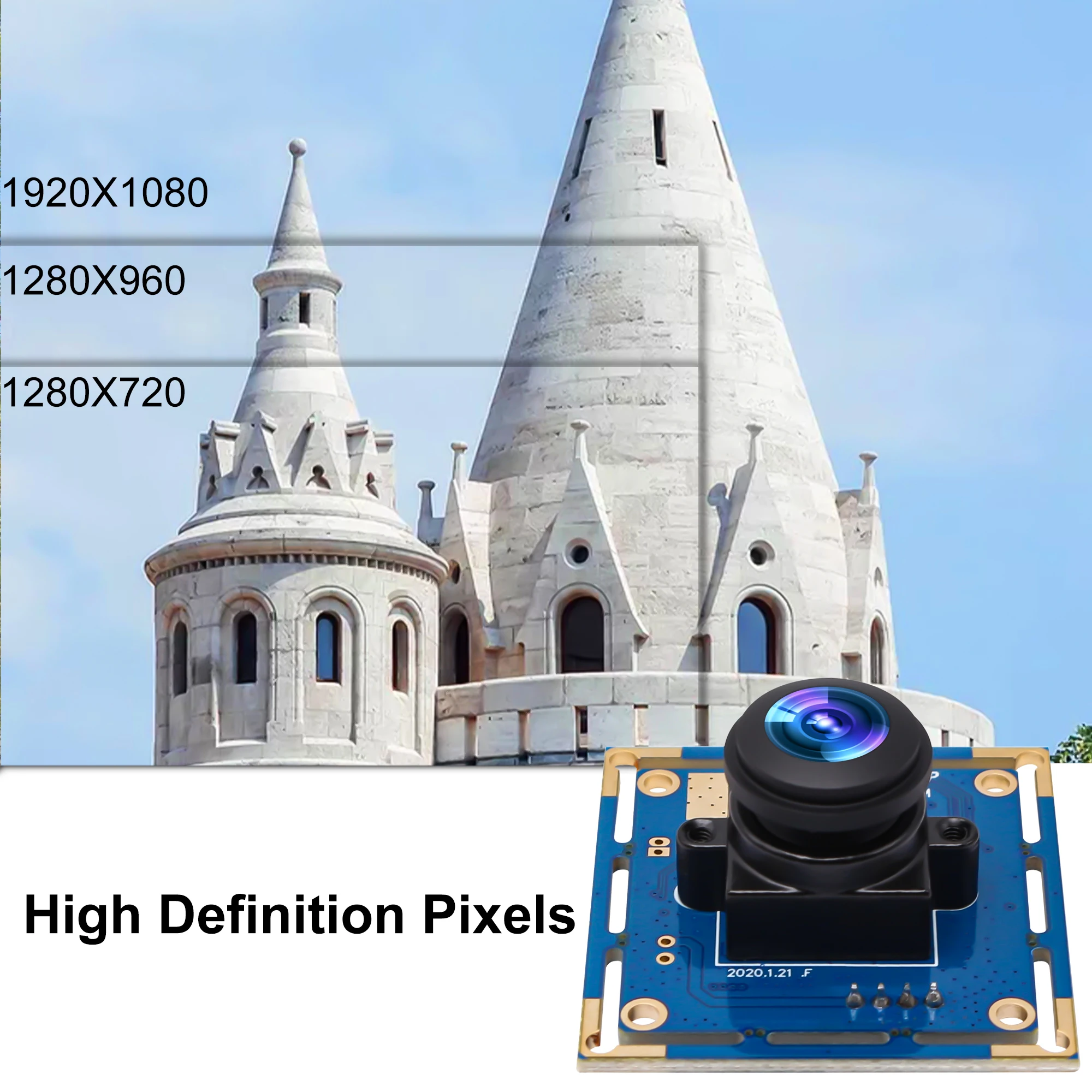

-Full HD 1080P, 1920×1080
-High resolution 1080P usb camera module
-Much clear than 960P 720P

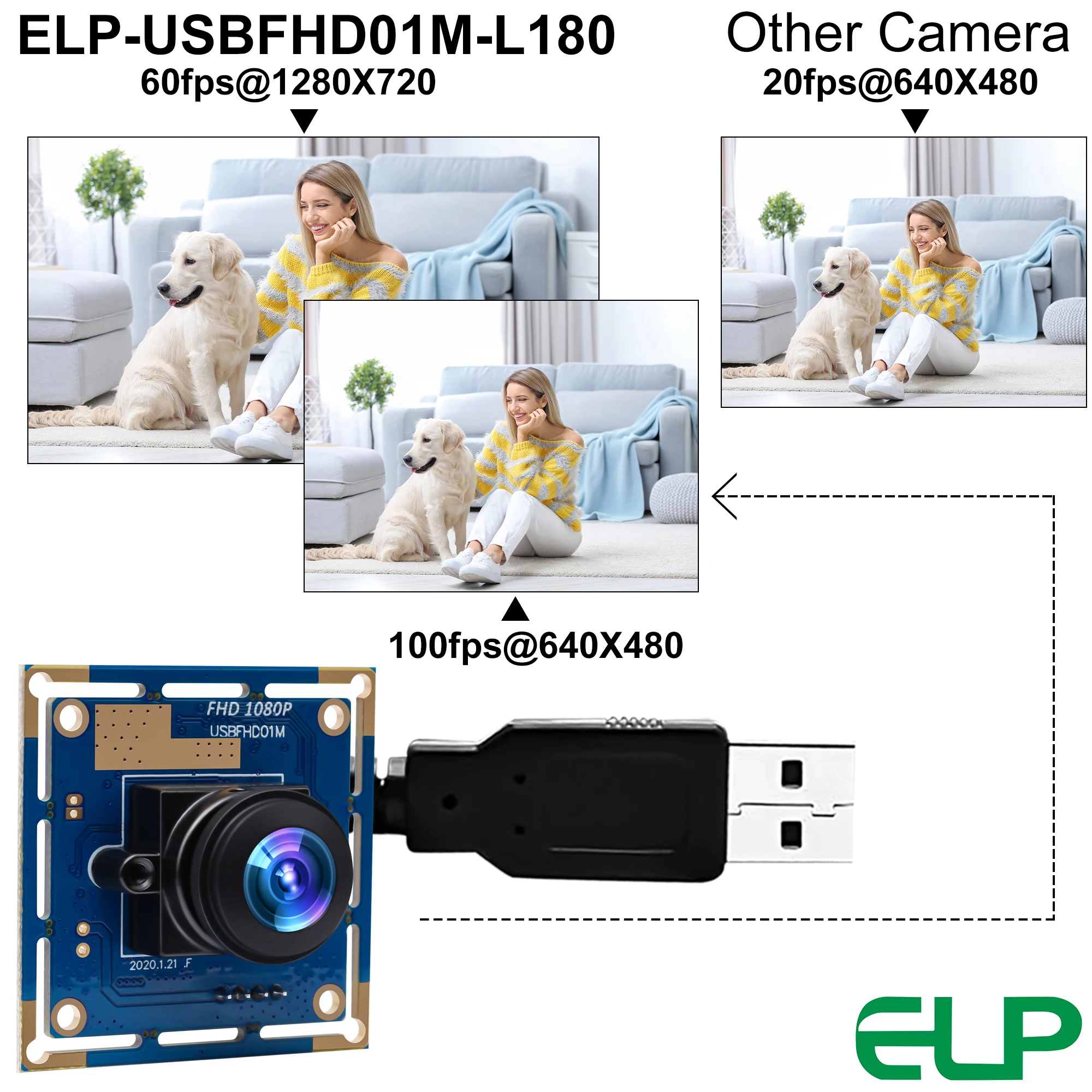

-High speed USB Camera Module well used for fast moving object shooting.
-1920×1080 Mjpeg 30FPS
1280×720 Mjpeg 60FPS
640X480 Mjpeg 100FPS

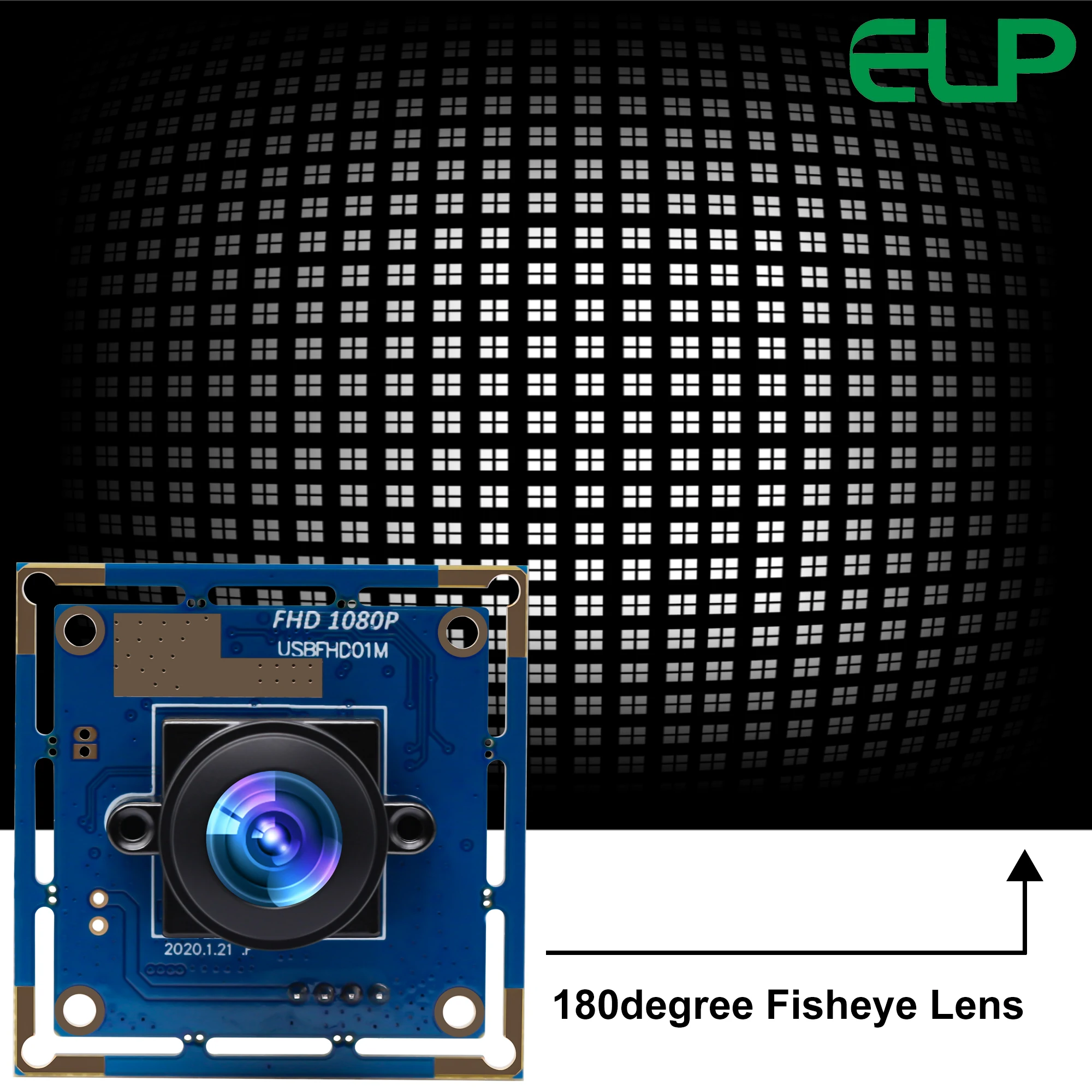

-With 180 degree fisheye lens, FOV bigger than 180 degree.
-Many other lens optional 2.1mm/2.8mm/3.6mm/6mm/8mm/12mm/fisheye lens/No distortion lens optional

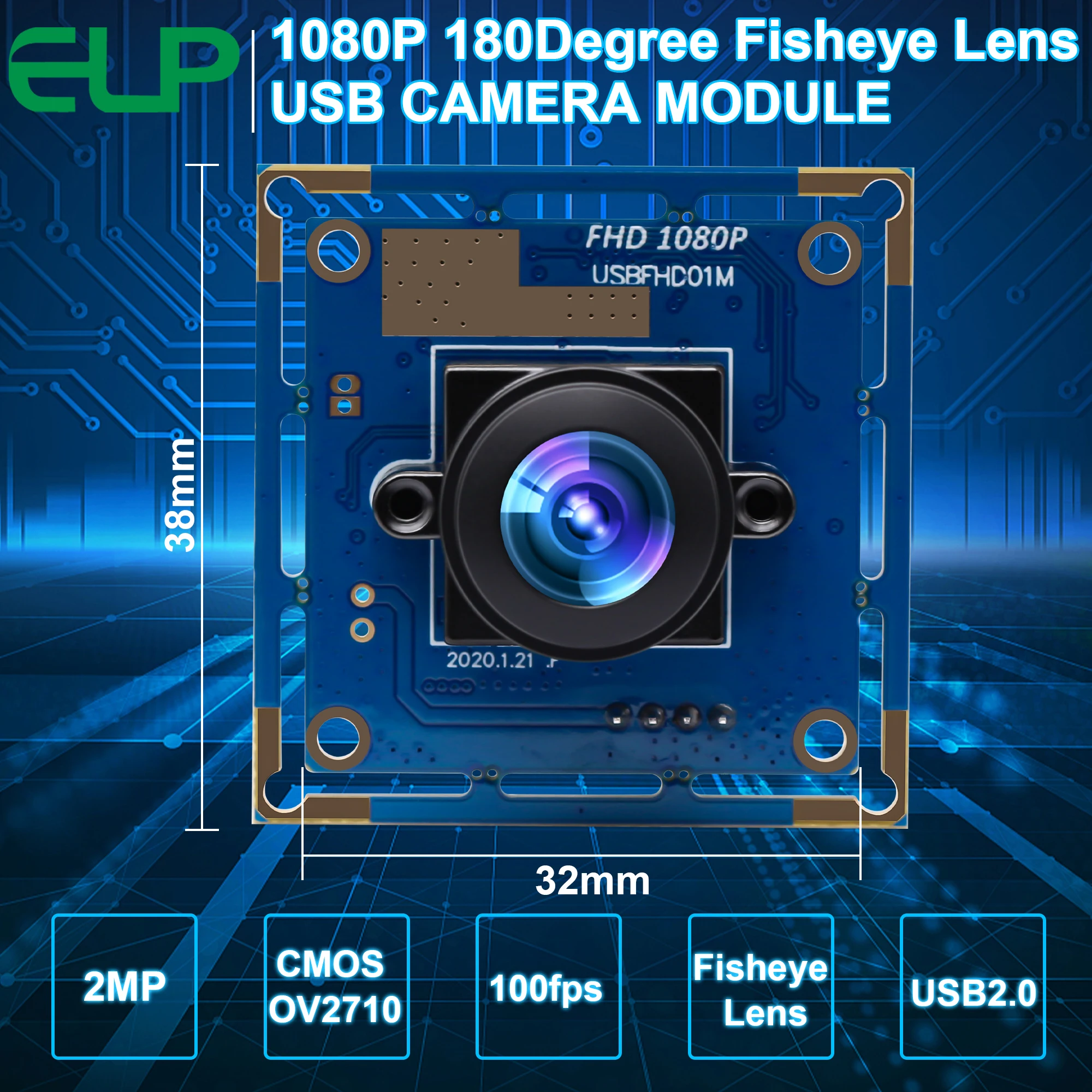

-Small Size, 38x38mm, Remove the surouding edge get 32x32mm
-CMOS OV2710 Sensor
-High speed 100fps 120fps camera
-USB 2.0 interface
-With wide angle 180 degree fisheye lens.

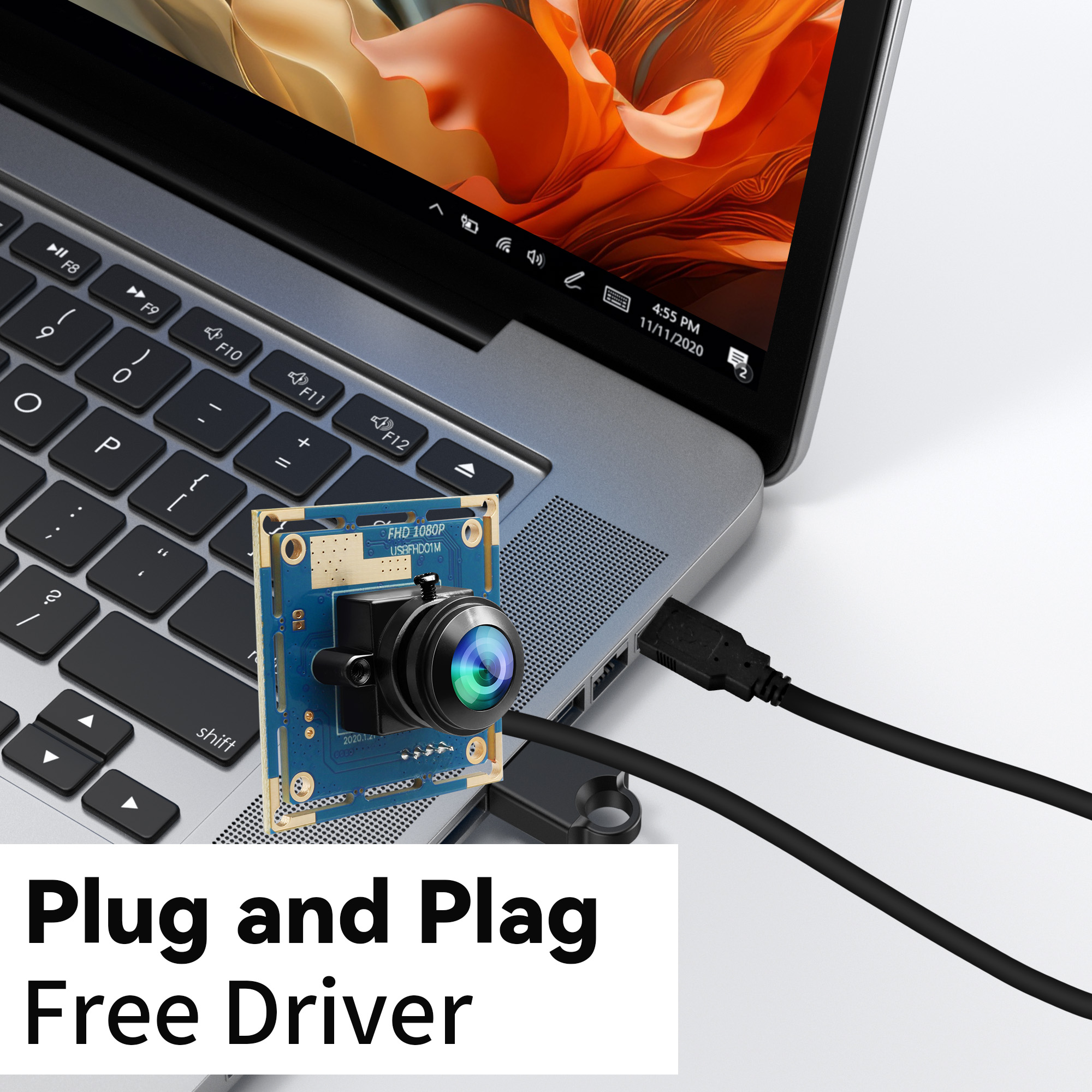

-UVC, free driver, USB Plug & Play
-Support OTG cable, USB 2.0 to mirco USB

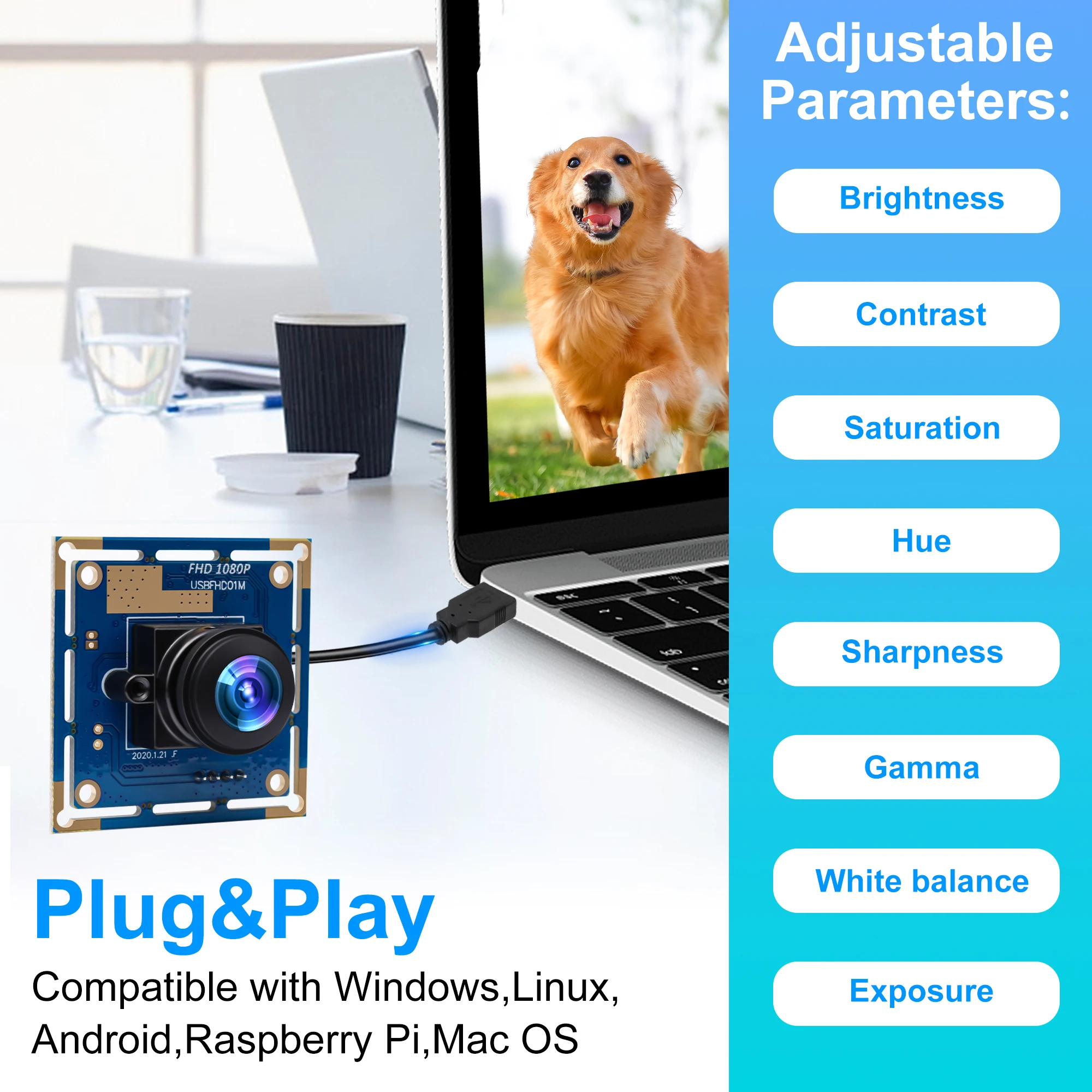

-Parameters adjustable: Brightness, Contrast, Saturation, Hue, Sharpness, White Balance, Gamma, Exposure, Gamma… changeable.
-Support OTG, can connect android tablet, smartphone via OTG Cable.
-Support living streaming software, Skype, Zoom, Facetime, Youtube…
-Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2….

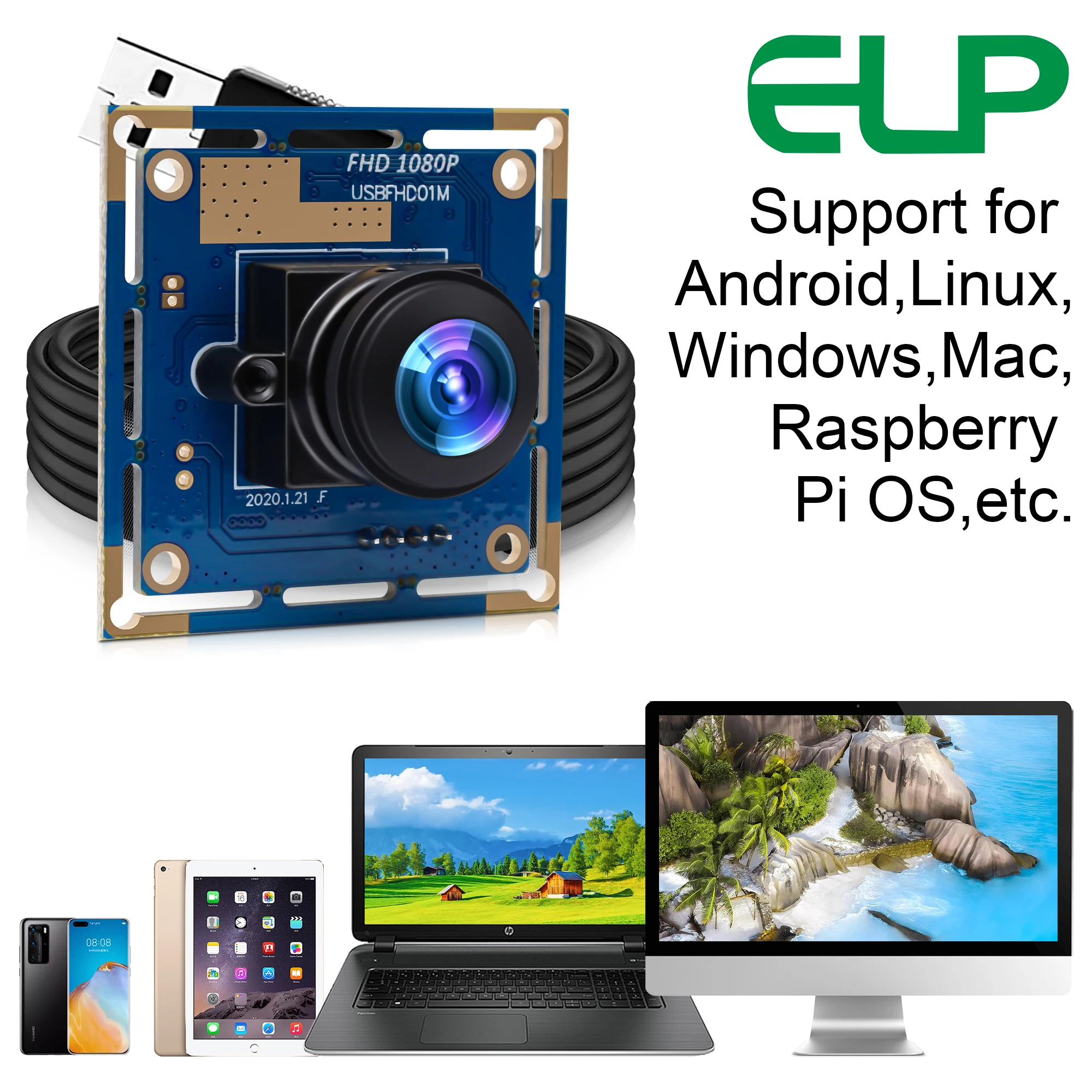

-Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS…
-Support OTG, well connect to Android smartphone, tablet…via OTG cable
-For PC: support different operating system, Windows, Linux, Android, Mac OS, Ubuntu…
-For Pi: support Linux Raspberry Pi
-For Android Development Board
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
Used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
