Description
This is a mini Compact Size 1080p Full HD High Speed webcam, Max Frame Rate up to 120fps. Which used in applications that require capturing fast-moving objects or events with high temporal resolution. These cameras are capable of capturing a large number of frames per second (fps), allowing for detailed analysis, motion tracking, and slow-motion playback.
Based on 1/2.7″ OV2710 image sensor, Fixed focus, 3.6mm lens, UVC compliant USB 2.0 camera. Its Mini size, light weight and Low Power consumption which is suitbale for many embedded application and Portable Device.
Features
-High frame rate–deliver120fps @ 640*480, 60fps @1280X720,30 fps in 1920X1080 resolution.
-3.6mm Wide-Angle Lens Webcam Module, Other Lens exchangeable
-CMOS 1/2.7inch OV2710 sensor for high quality image and low power consumption.
-High speed USB 2.0 interface for high resolution PC camera interface.
-Support OTG, can connect to your mobilephone, Tablet, mini PC via OTG Cable
-Super small outline and thin profile for embedded applications.Mini size :32*32mm/38*38mm, customization available.
-Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS
-High Compatibility, can work with many software like Ubuntu, Raspberry Pi, Mac OS…-Support living streaming software,
Skype, Zoom, Facetime, Youtube, Amcap, OpenCV, PC default Webcam software, VLC, V4L2…
Specification
| Model No.: |
With Normal Lens: ELP-USBFHD01M-BL21( 2.1mm lens, HFOV 117 degree) ELP-USBFHD01M-BL28( 2.8mm lens, HFOV 113 degree) ELP-USBFHD01M-BL36( 3.6mm lens, HFOV 91 degree) ELP-USBFHD01M-BL60( 6mm lens, HFOV 56 degree) ELP-USBFHD01M-BL80( 8mm lens, HFOV 42 degree) ELP-USBFHD01M-BL12( 12mm lens, HFOV 25 degree) With Fisheye Lens: ELP-USBFHD01M-BL170( L170 fisheye lens, HFOV 156 degree) ELP-USBFHD01M-BL180( L180 fisheye lens, HFOV >180 degree) |
| Sensor | 1/2.7 inch OV2710 |
| Pixel Size | 3.0um X 3.0um |
| Image area | 5856 µm x 3276 µm |
| Max. Resolution | FULL HD 1920(H)X1080(V) |
| Compression format | MJPEG / YUV2（YUYV） |
| Resolution & Frame Rate | 320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps 640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps 1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps 1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps |
| Special function | Lens correction/ Defective pixel correction/ Black sun cancellation |
| Min illumination | 0.05lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Sensitivity | 3.7V/lux-sec@550nm |
| Connecting Port type | USB2.0 High Speed（Support USB2.0 HS/FS, USB2.0 OTG） |
| USB Protocol | USB2.0 HS/FS USB1.1/USB1.0 |
| Connecting Port type | USB2.0 High Speed |
| OTG Protocol | USB2.0 OTG |
| Free Drive Protocol | USB Video Class（UVC） |
| AEC | Support |
| AWB | Support |
| AGC | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure |
| Lens Parameter | Standard 2.1mm M12 lens,
2.8/3.6/6/8/12mm, No distortion lens, Fisheye lens Optional |
| Night vision | Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Operating Voltage | DC5V |
| Working current | 120mA~220mA |
| Working temperature | 0～60℃ |
| Storage temperature | -20～75℃ |
| Board size /Weight | 38X38mm (Compatible 32X32mm)/ about 30g |
| Cable | Standard 3M (optional 1M,2M,5M) |
| Operating system request | WinXP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |

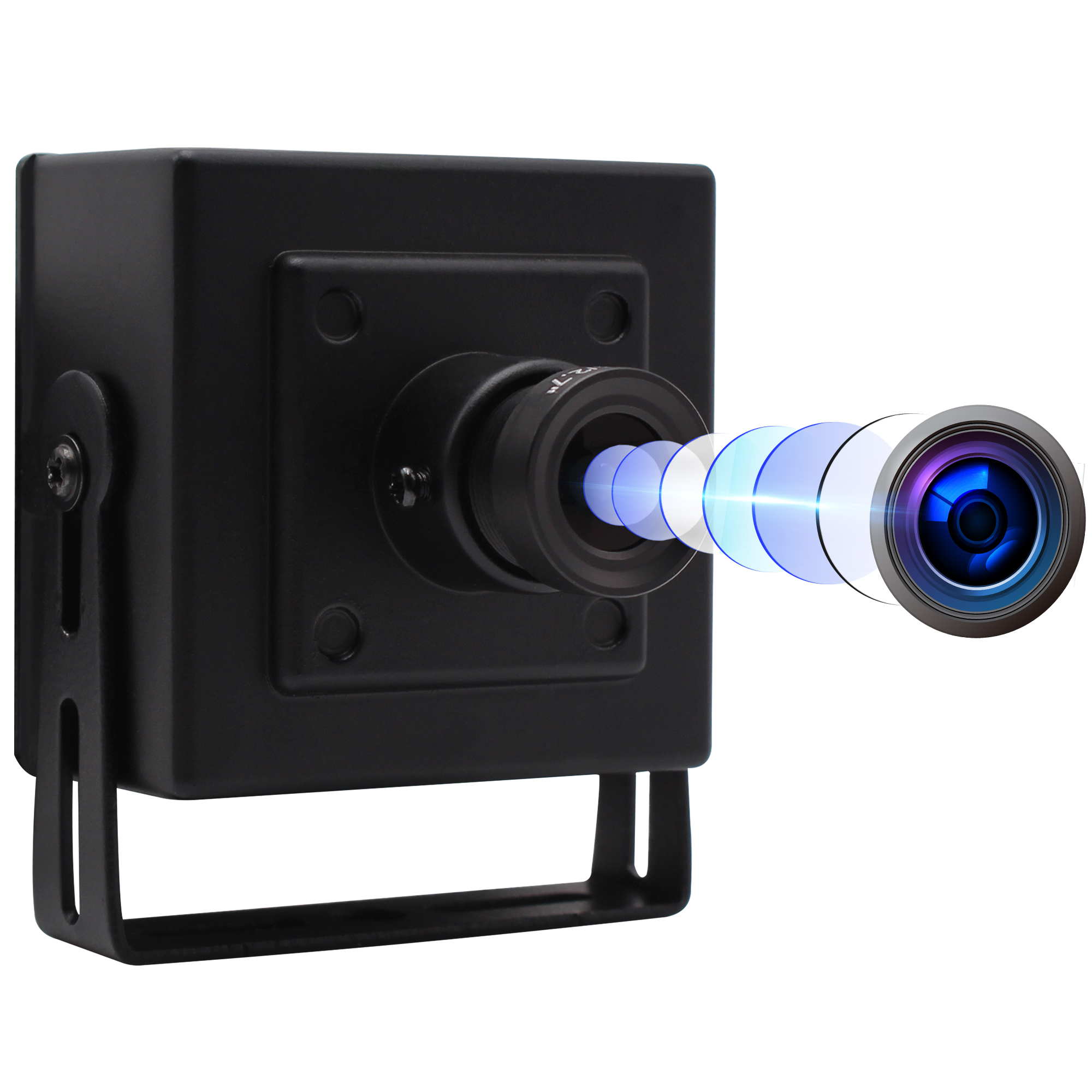

Product Display
High frame Rate USB Camera Module MJPEG 120 fps @ 640X480 Resolution 60fps @ 1280 x 720 Resolution , 30fps @ 1920 x 1080

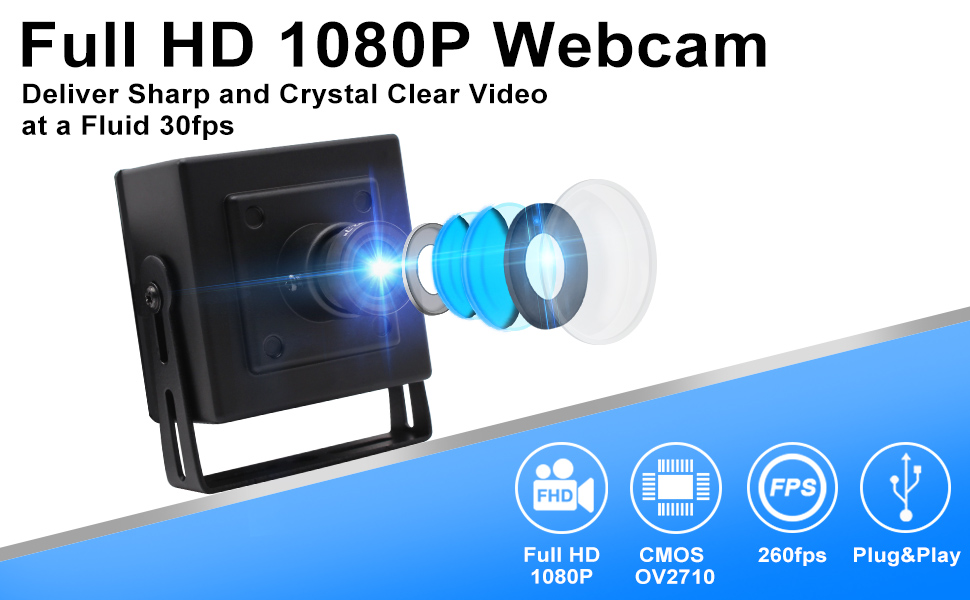

2 megapixel Full HD 1080P USB Camera High Pixel Technology for Sharp Image and Accurate Color Reproduction
Easy to Set up & Plug and Play – You don’t need to install any driver, just simply plug it in and play, the HD 1080P webcam is a perfect for your computer,phone and tablet. High quality with exquisite appearance. It can stand as you like.
OTG Support , Can be Connected to computer,laptop,pc,Android development board,Raspberry Pi development board,Jetson Nano,etc
Wide Compatibility
– Versatile 1080P webcam usb camera for Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Livestreaming services,
– Widely works with WinXP/Vista/Windows 7/8,Windows 10 Linux with UVC（above linux-2.6.26）MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
Applications
This High frame rate USB cameras are used in applications that require capturing fast-moving objects or events with high temporal resolution.
1. Sports Analysis enable capturing fast-paced sports actions, such as golf swings, tennis strokes, or soccer kicks, in slow motion for detailed analysis. Coaches, athletes, and sports commentators can study the mechanics of movements, identify flaws, and provide insightful commentary.
2. Motion Analysis and Biomechanics: help capture and analyze human and animal movements, study gait analysis, evaluate athletic performance, and understand the mechanics of various movements.
3. Industrial Inspection: for quality control and inspection in industrial settings.
4. Robotics and Automation: provide real-time visual feedback for robot navigation, object detection, and motion tracking. allows robots toreact quickly to changes in the environment and perform precise actions, enhancing their efficiency and accuracy.
5. Scientific Research: enable the study of fast events and phenomena, such as chemical reactions, fluid dynamics, combustion processes, or material testing.
6. Entertainment and Media Production: for film production, special effects, and virtual reality applications.
