Description

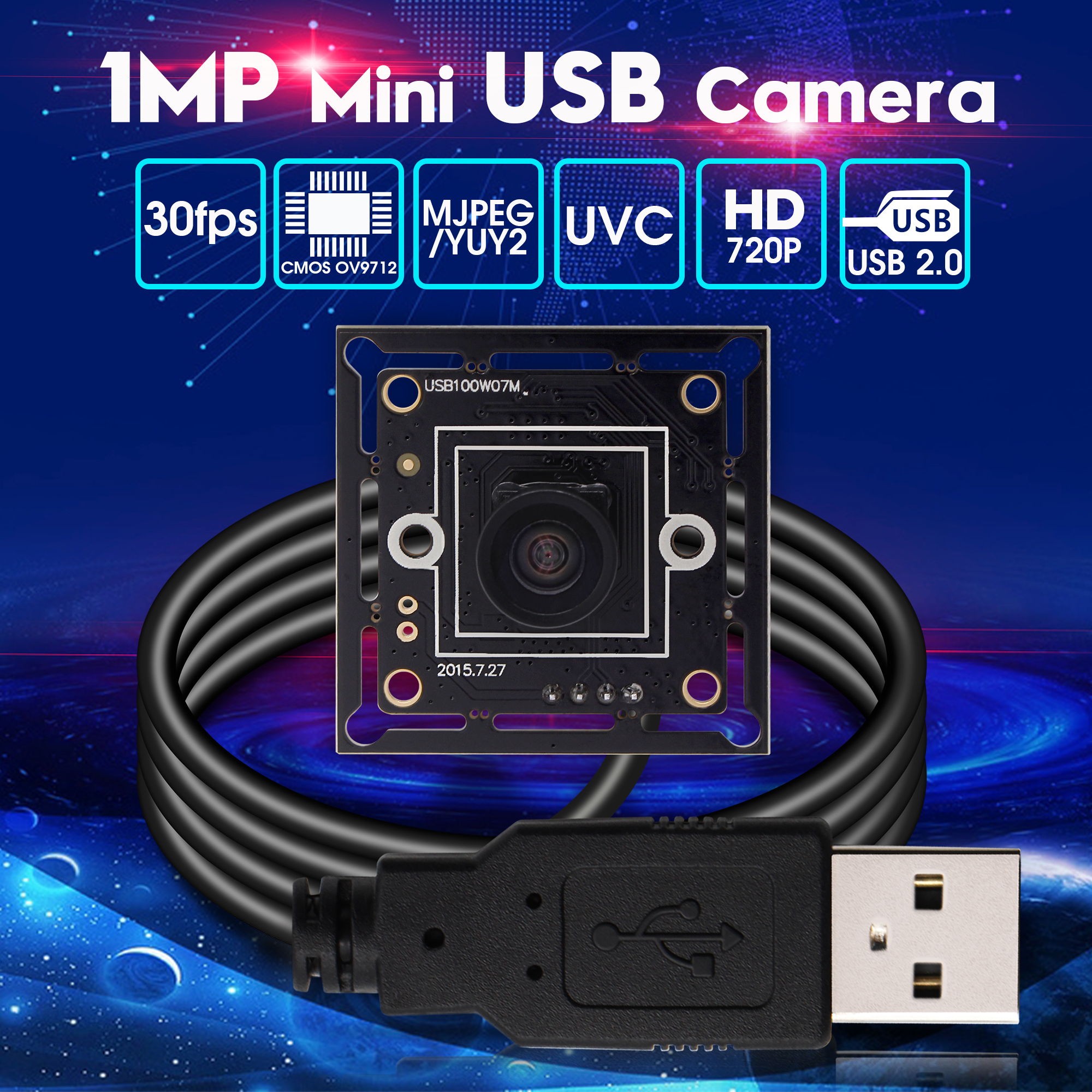

The HD 720P USB CMOS board camera module(model: ELP-USB100W07M serials) with very small size and low height is easy to insert in many machines, ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys.
Features
* 1MP HD 720P resolution: 1 megapixel 1280×720
* High Quality Sensor: 1/4″ OV9712
* Micro usb camera module with size 32x32mm (compatible 26x26mm)
* small lens, 45 degree, FOV about 50 degree. (100 degree, 120 degree lens optional)
* 720P 30FPS: 1280×720 Mjpeg 30fps
* With standard 1m cable (2m/3m/5m/0.3m/0.5m…optional)
* UVC: free driver, Plug & Play
* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.
* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..
* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera…
Specification
| Optional models | ELP-USB100W07M-MHV45 (45 degree lens) ELP-USB100W07M-MHV100 (100 degree lens) ELP-USB100W07M-MHV120 (120 degree lens) |
| Sensor | 1/4″ CMOS OV9712 |
| Lens size | 100W, 1.0megapixel, 1280X720 |
| Max. Resolution | 1280×720 Mjpeg 30fps |
| Picture format | YUY2 MJPEG |
| USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Frame rate |
1280 x 720 : MJPEG 30fps YUY2 5fps
800 x 600 : MJPEG 30fps YUY2 15fps
640 x 480 : MJPEG 30fps YUY2 30fps
640 x 360 : MJPEG 60fps YUY2 30fps
352 x 288 : MJPEG 30fps YUY2 30fps
320 x 240 : MJPEG 30fps YUY2 30fps
|
| Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
| Night vision | optional, can choose IR board |
| view angle | about 45 degree |
| voltage | DC 5V |
| current | 150mA |
| work temperature | DEGREES(-20~70) |
| Size | 32x32mm or 38x38mm |
| Support OS | WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above |
Product Display

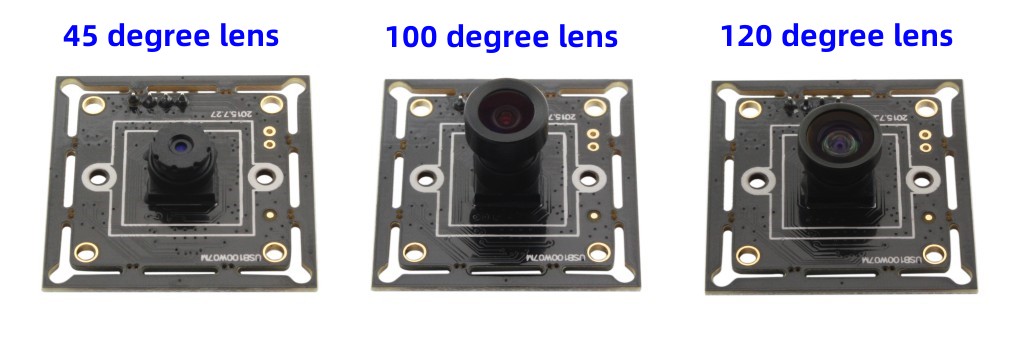

-With 45 degree lens /100 degree lens/ 120 degree lens optional
-Max Resolution: 1280×720 Mjpeg 30FPS
-Standard with 1m usb cable (other length cable optional 0.3m/0.5m/2m/3m/5m….optional)

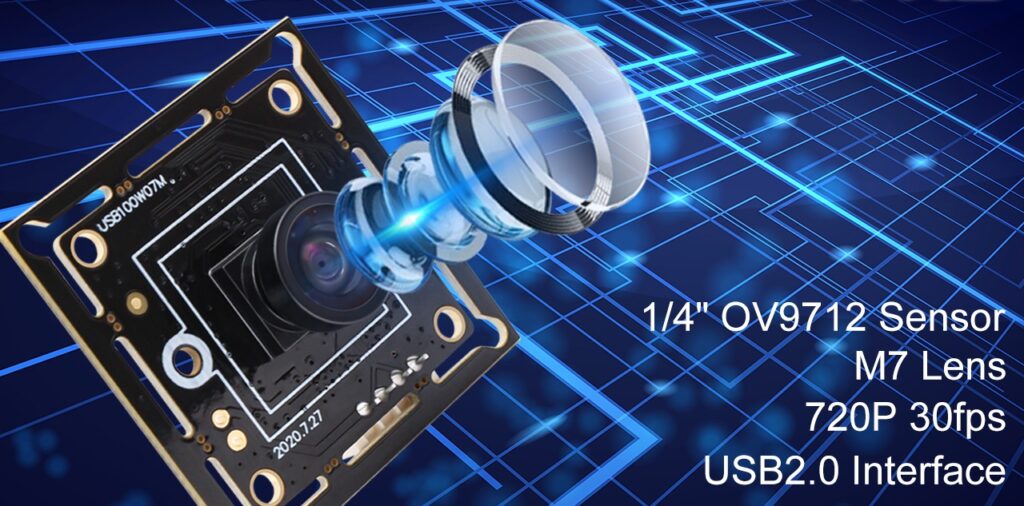

-With 1/4″ OV9712 Sensor
-Compression Mjpeg/YUY2

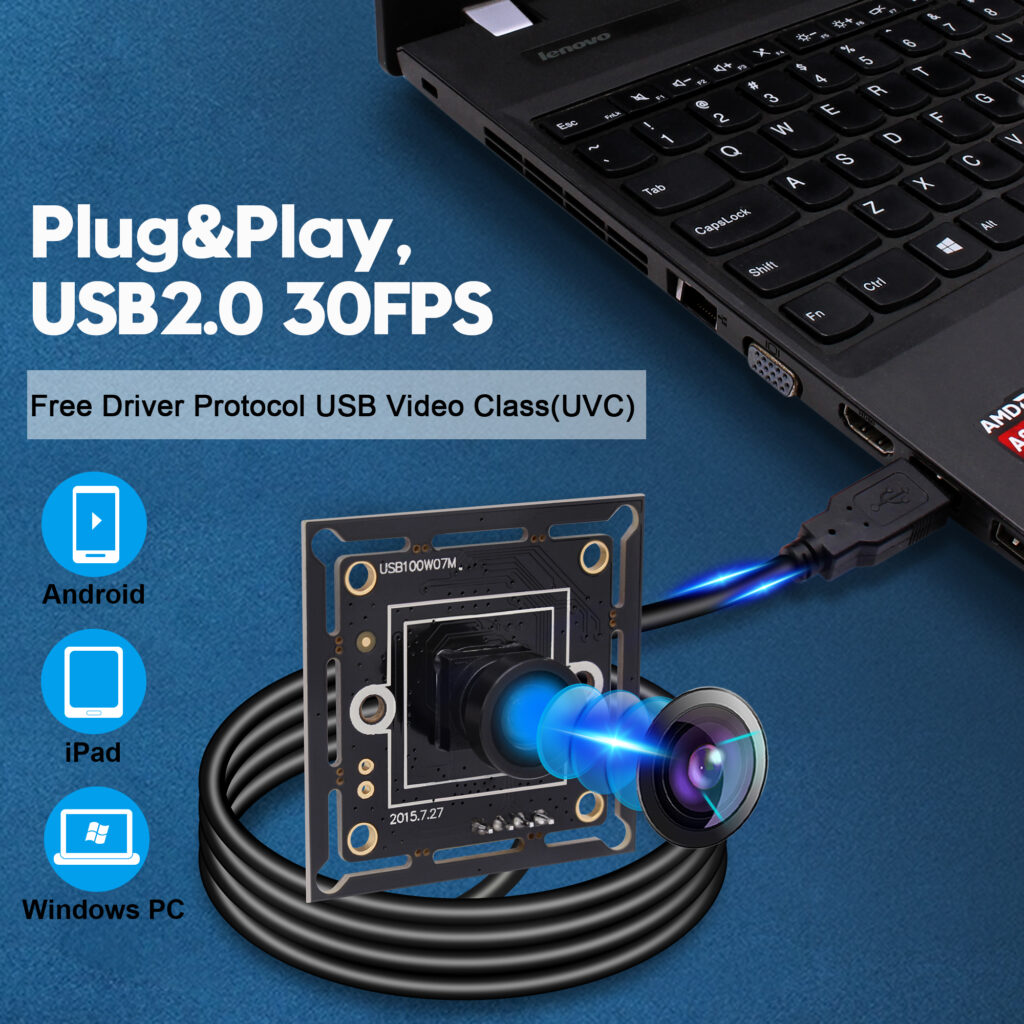

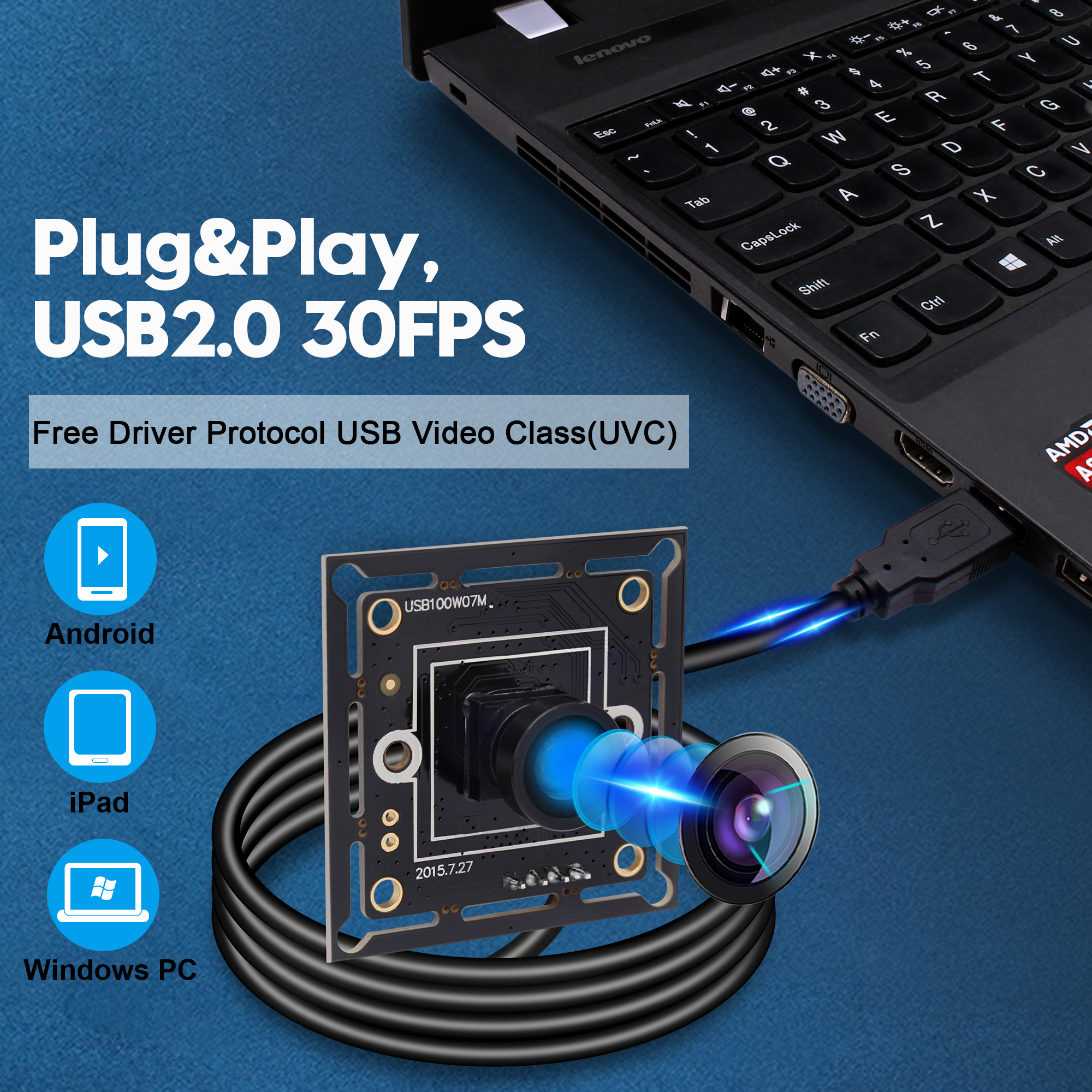

-UVC, driver free, Plug and Play
-Free driver Protocol USB Video Class
-Support OTG, can connect android tablet, smartphone via OTG cable
-Support living streaming software, Skype, Zoom, Facetime, Youtube…
-Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2….
-Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS…

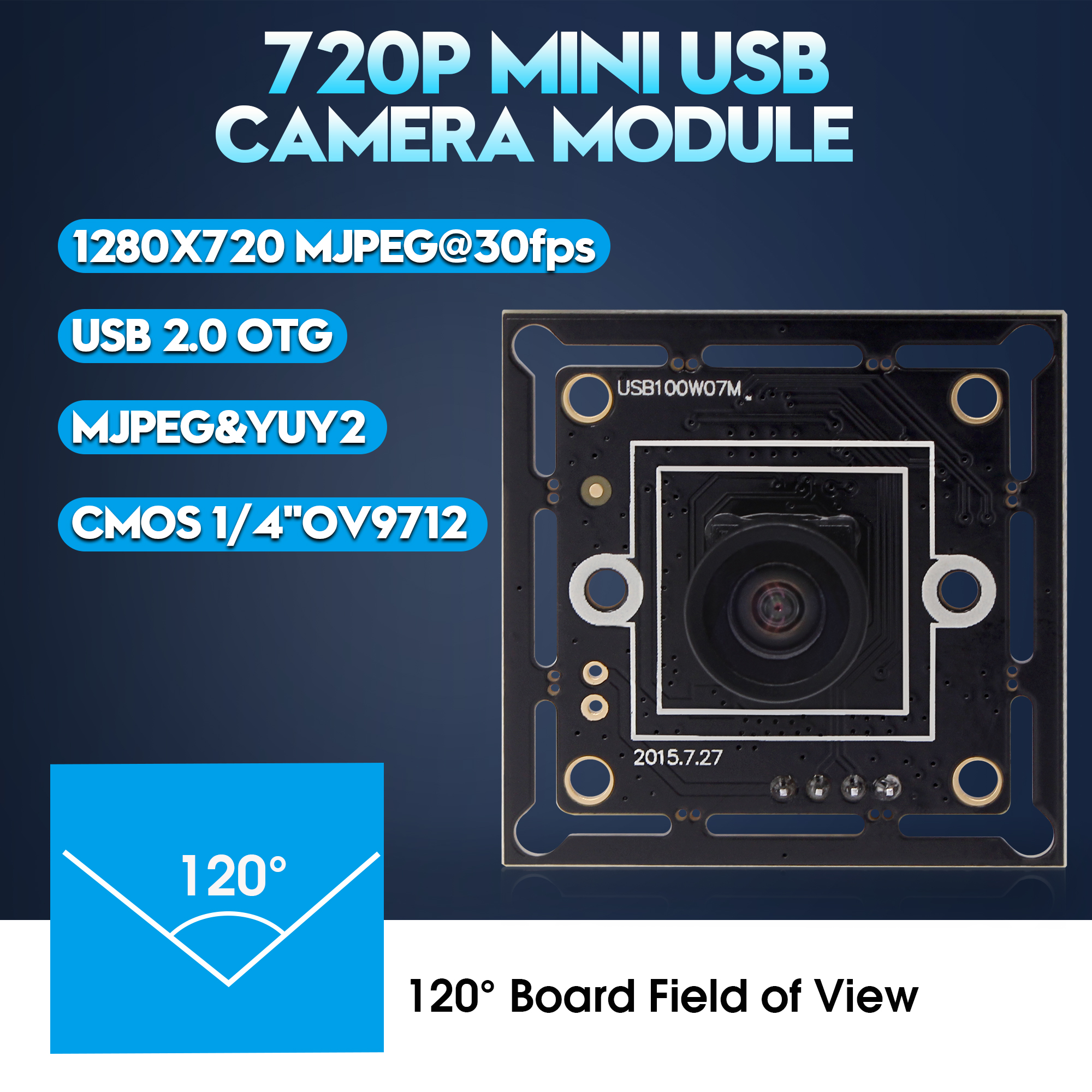

-With 120 degree lens, (100 degree, 45 degree lens optional)

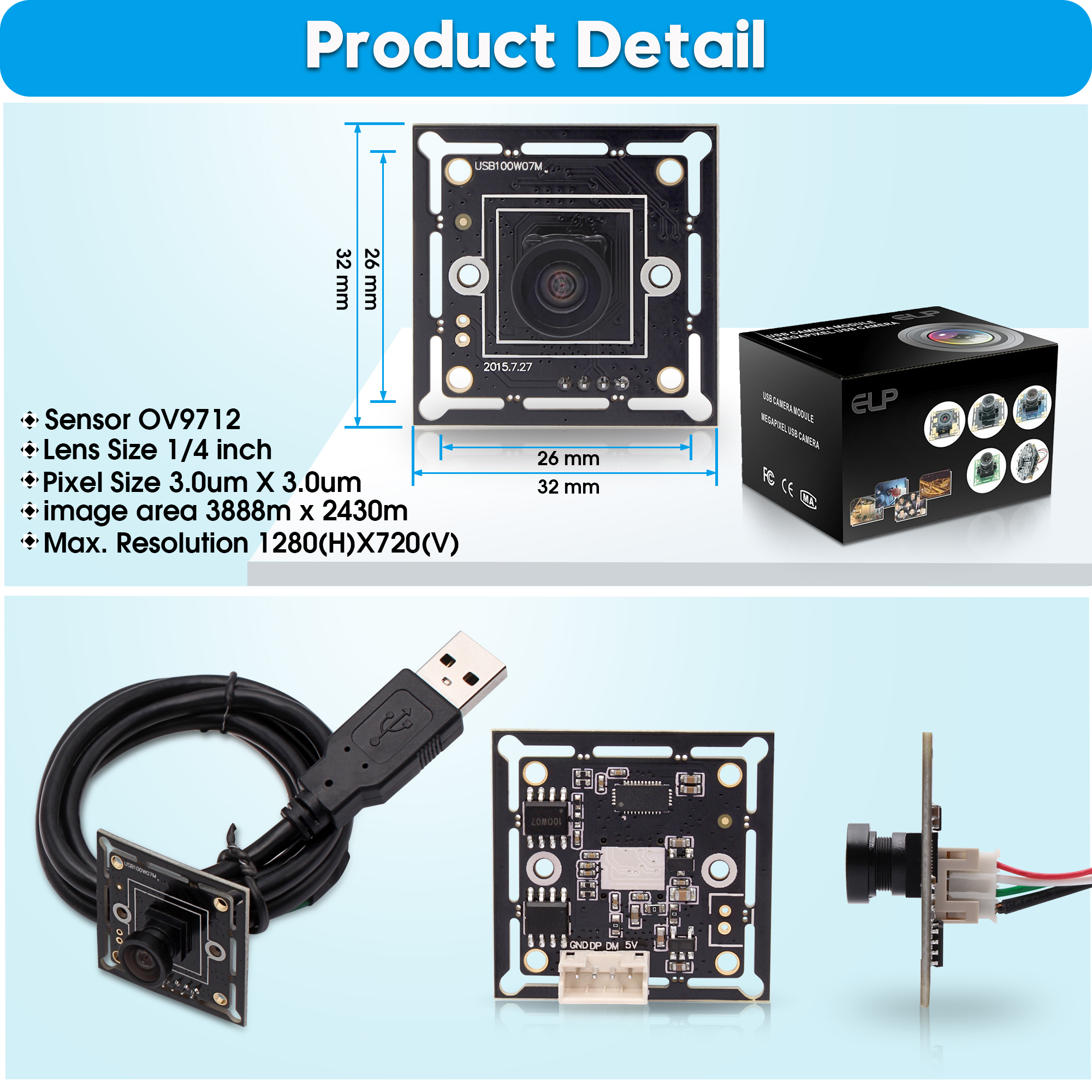

-Micro usb camera module, with size 32x32mm (Remove the surrouding edges, get 26x26mm)
Mini USB camera module that widely used in security monitoring, industrial equipment, driving recorders, POS machines, advertising machines, inquiry machines, etc
