Feature
1)High-quality USB camera adopted CMOS OV2710 image sensor with max resolution 1920×1080 for great picture performance, keep the purity and clarity of images. High frame rate: 1080P@30fps, Compression format: MJPG / YUY2; Saturation, Contrast, White balance adjustable

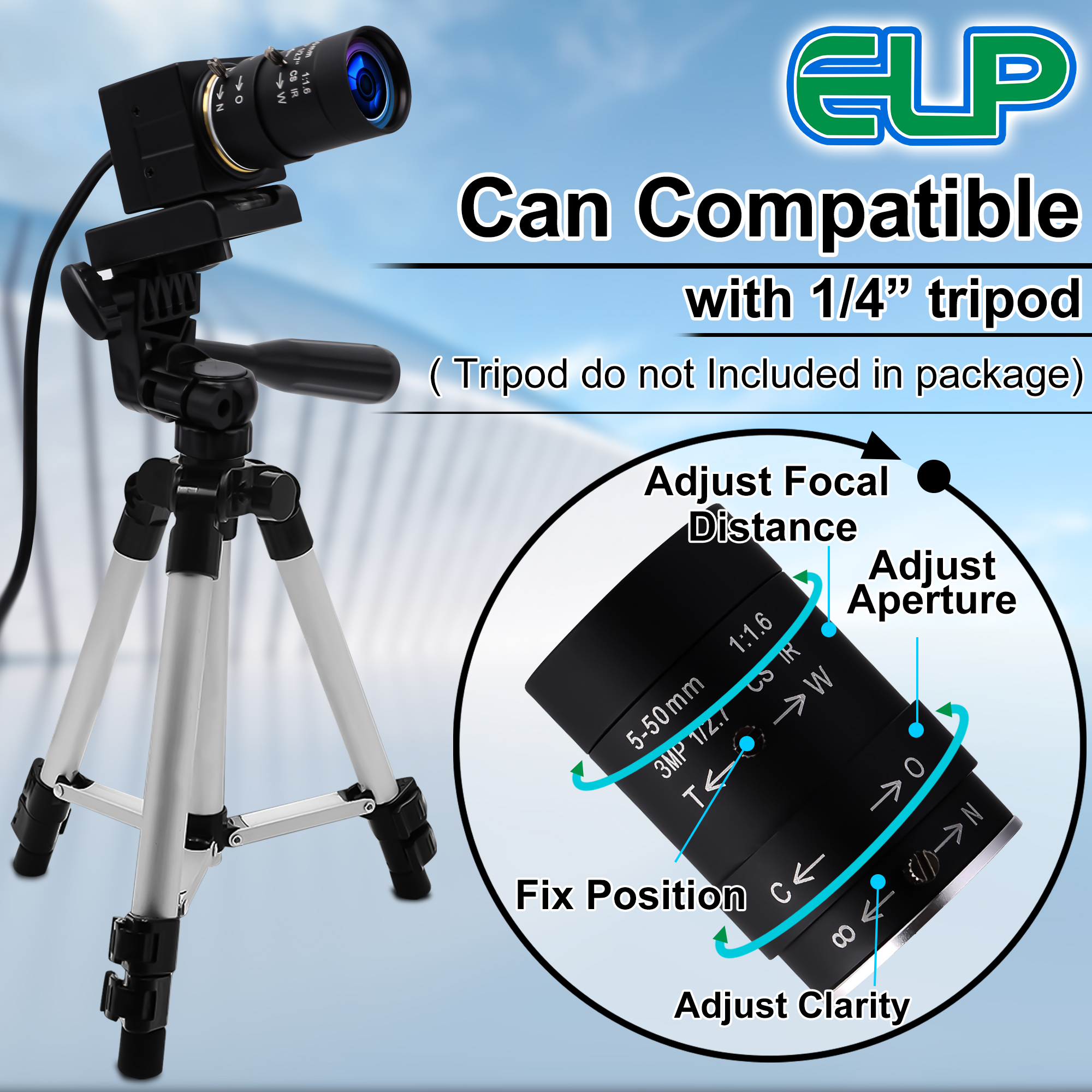

2)High quality HD 2.8-12mm and 5-50mm Manual varifocal CS Mount lens ,4/6/8mm manual focus CS lens,manually adjustable focal length provides you with an ultra-clear image detail to reflect a more realistic environment.
3)High frame rate– deliver 120fps in 640X480 resolution, 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.

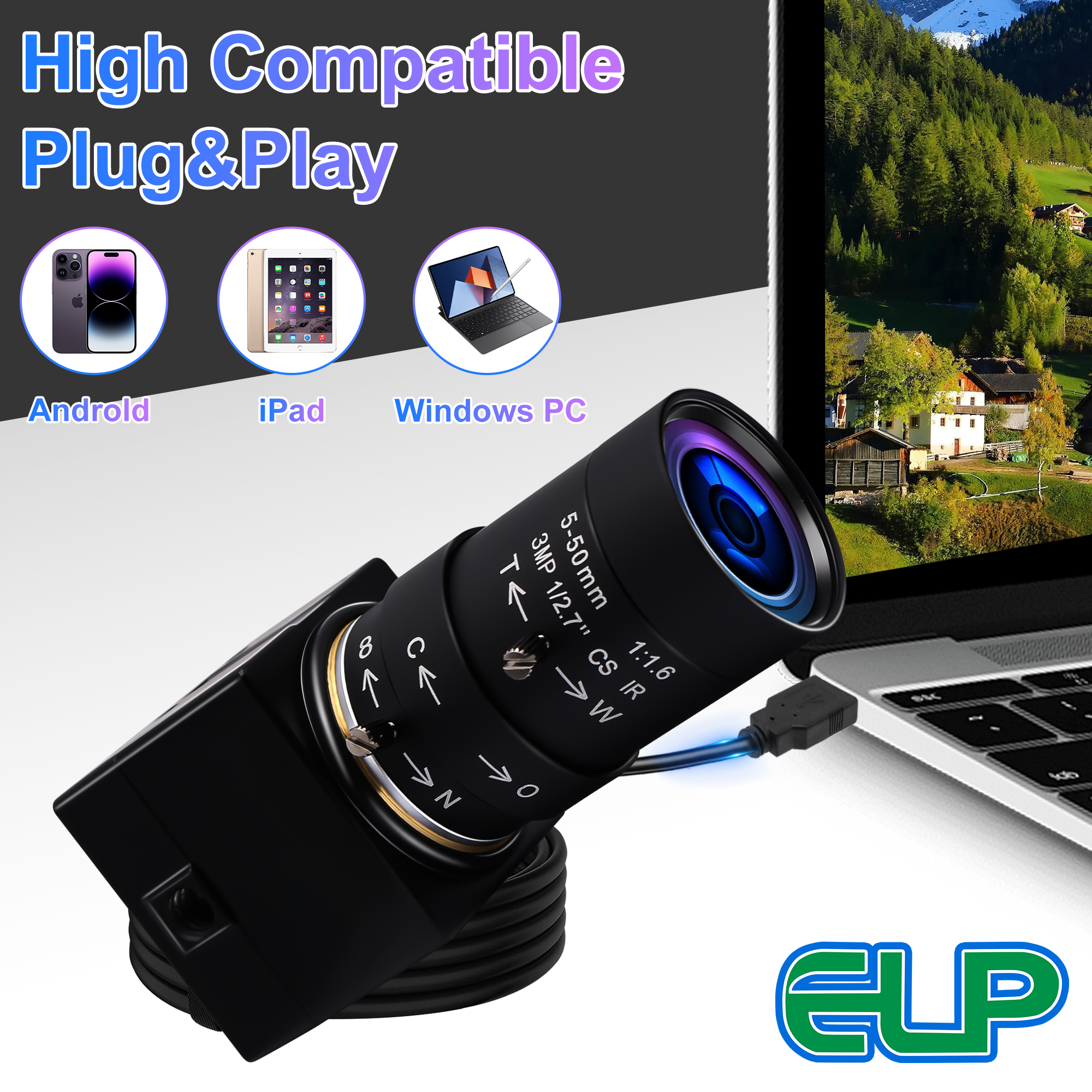

4)Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
5)Applications: this tiny camera board can be installed in narrow position for a home surveillance system, monitoring 3D Printer, object recognition and tracking or other machine vision application.
Cable: 3m USB cable (2M/3M/5M optional)
Specification

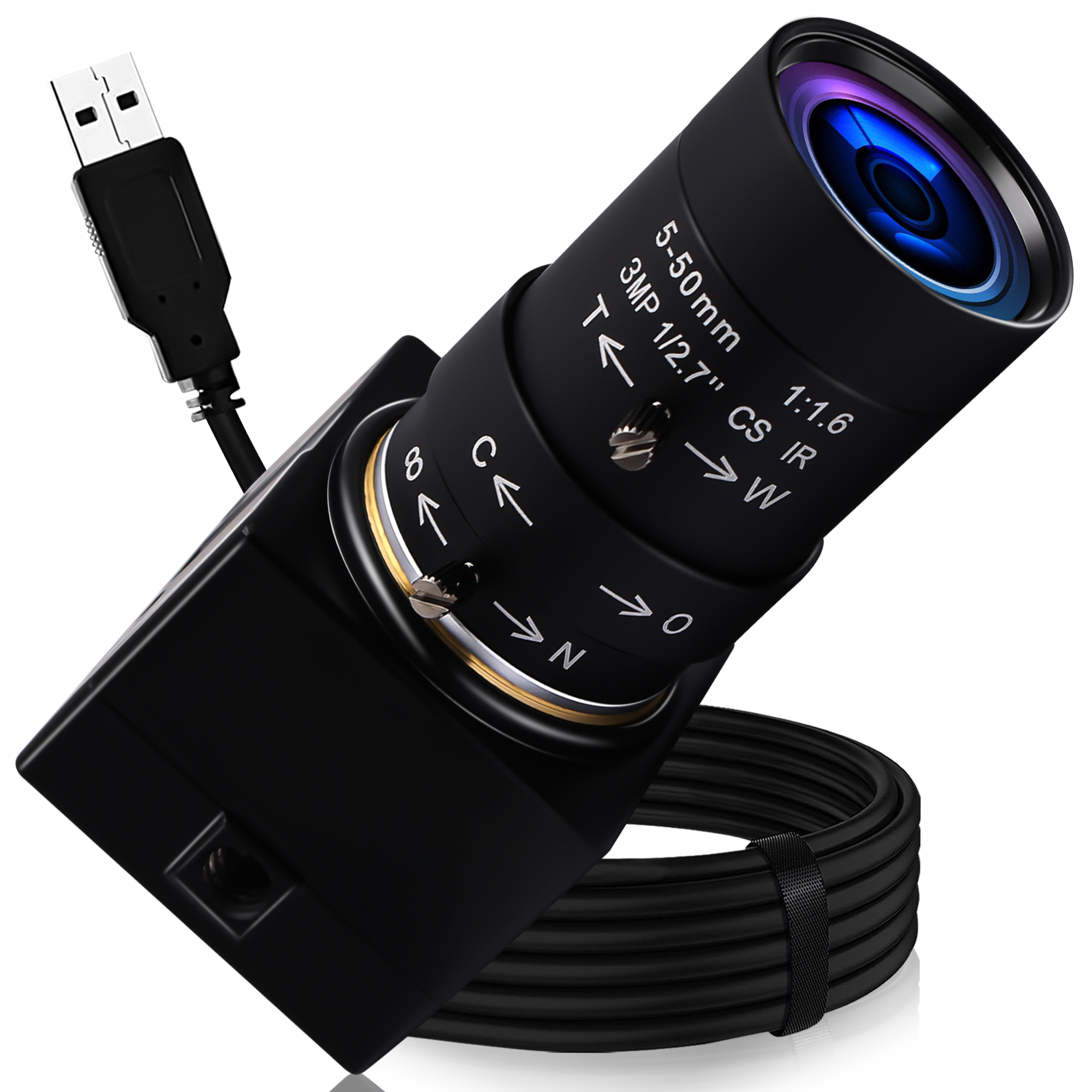

| Optional Models | ELP-USBFHD01M-SFV(2.8-12mm) ELP-USBFHD01M-SFV(5-50mm) |
| Sensor | OV2710 |
| Lens Size | 1/2.7 inches |
| Pixel Size | 3.0um X 3.0um |
| Image Area | 5856 µm x 3276 µm |
| Max. Resolution | FULL HD 1920(H)X1080(V) |
| Compression Format | MJPEG / YUV2（YUYV） |
| Resolution & Frame rate | 320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps 640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps 1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps 1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps |
| Special Function | Lens correction/ Defective pixel correction/ Black sun cancellation |
| Mini illumination | 0.05lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Sensitivity | 3.7V/lux-sec@550nm |
| Connecting Port Type | USB2.0 High Speed（Support USB2.0 HS/FS, USB2.0 OTG） |
| USB Protocol | USB2.0 HS/FS USB1.1/USB1.0 |
| Connecting Port Type | USB2.0 High Speed |
| OTG Protocol | USB2.0 OTG |
| Free Drive Protocol | USB Video Class (UVC) |
| AEC | Support |
| AWB | Support |
| AGC | Support |
| Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure |
| Lens Parameter | CS 5-50mm lens (CS 2.8-12mm, 6-60mm, 4mm, 6mm,8mm…optional) |
| Night Vision | Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board |
| LED Board Power Connector | Support 2P-2.0mm socket |
| Power Supply | USB BUS POWER 4P-2.0mm socket |
| Operating Voltage | DC 5V |
| Working Current | 120mA~220mA |
| Working Temperature | -10～70℃ |
| Storage Temperature | -20～85℃ |
| Weight | About 360-370g |
| Cable | Standard 3m (optional 0.3m/0.5m/1/2/5m…optional) |
| Operating system request | WinXP/Vista/Win7/Win8 /Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
