Feature

* 2MP HD 1080P: 2 megapixel 1920×1080

* High Quality Sensor: 1/2.7″ CMOS OV2710 Sensor

* CS 2.8-12mm varifocal lens,about 4X manual optical zoom.

* Lens changeable: Many other lens optional,CS 4mm,6mm,8mm,12mm,CS 5-50mm, 6-60mm…

* With aluminum small box case

* Compression:Mjpeg/YUY2

* High Speed: 1920×1080 Mjpeg 30FPS, 1280×720 Mjpeg 60FPS, 640X480 Mjpeg 100FPS

* With 3m usb cable (1m/2m/5m/0.3m/0.5m…optional)

* UVC: free driver, Plug & Play

* OTG support: can connect android tablet, smartphone via OTG cable

* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.

* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..

* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera…

* Many applications, well used for printers, Vision analysis, High resolution devices, Medical machine…

Specification

Optional Models	ELP-USBFHD01M-UFV(2.8-12) ELP-USBFHD01M-UFV(5-50)
Sensor	OV2710
Lens Size	1/2.7 inches
Pixel Size	3.0um X 3.0um
Image Area	5856 µm x 3276 µm
Max. Resolution	FULL HD 1920(H)X1080(V)
Compression Format	MJPEG / YUV2（YUYV）
Resolution & Frame rate	320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps 640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps 1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps 1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps
Special Function	Lens correction/ Defective pixel correction/ Black sun cancellation
Mini illumination	0.05lux
Shutter Type	Electronic rolling shutter / Frame exposure
Sensitivity	3.7V/lux-sec@550nm
Connecting Port Type	USB2.0 High Speed（Support USB2.0 HS/FS, USB2.0 OTG）
USB Protocol	USB2.0 HS/FS USB1.1/USB1.0
Connecting Port Type	USB2.0 High Speed
OTG Protocol	USB2.0 OTG
Free Drive Protocol	USB Video Class (UVC)
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure
Lens Parameter	CS 2.8-12mm lens (CS 5-50mm, 6-60mm, 4mm, 6mm,8mm…optional)
Night Vision	Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board
LED Board Power Connector	Support 2P-2.0mm socket
Power Supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC 5V
Working Current	120mA~220mA
Working Temperature	-10～70℃
Storage Temperature	-20～85℃
Weight	About 360-370g
Cable	Standard 3m (optional 0.3m/0.5m/1/2/5m…optional)
Operating system request	WinXP/Vista/Win7/Win8 /Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC

Product Display

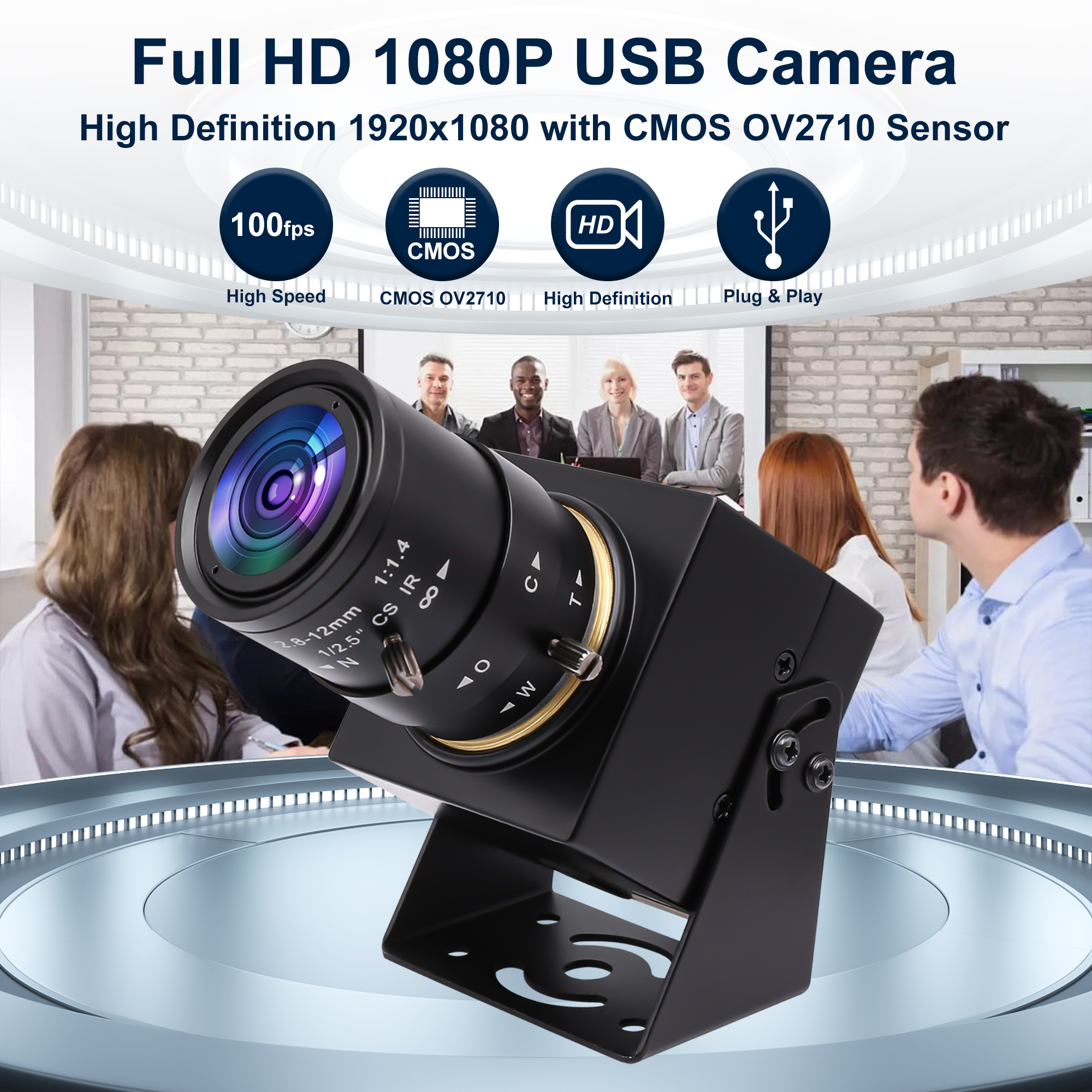

-CMOS OV2710 Sensor
-HD 1080P Full HD Resolution 1920×1080
-High speed: 1920×1080 Mjpeg 30FPS; 1280X720 Mjpeg 60FPS; 640×480 Mjpeg 100FPS
-UVC, Free driver, Plug & Play
-Parameters adjustable. (Exposure, Brightness, White Balance, Hue…)

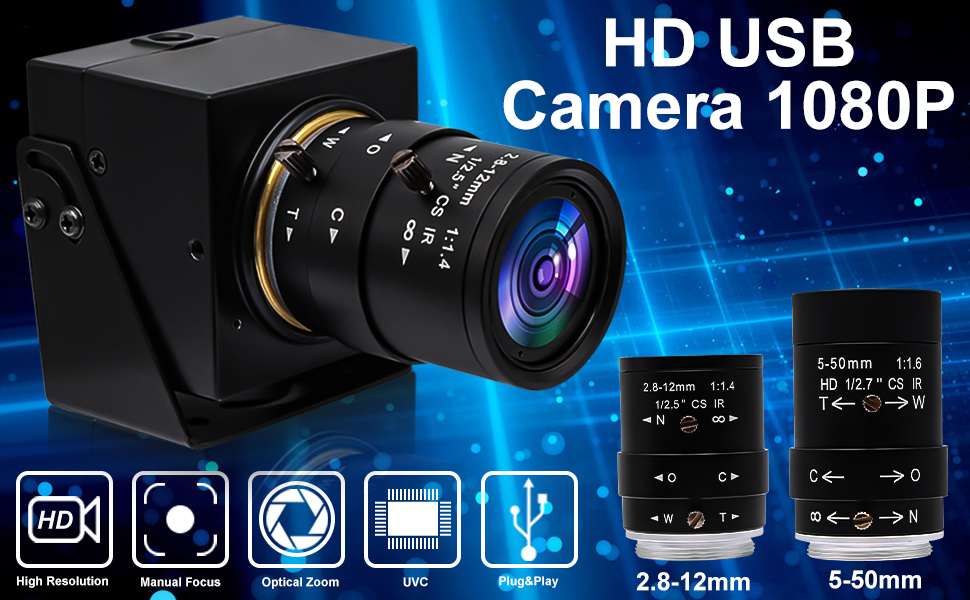

-With CS 2.8-12mm Lens (Other CS lens optional, 5-50mm, 4mm, 6mm, 8mm…)

-High speed, High FPS, VGA 100FPS, 720P 60FPS, 1080P 30FPS

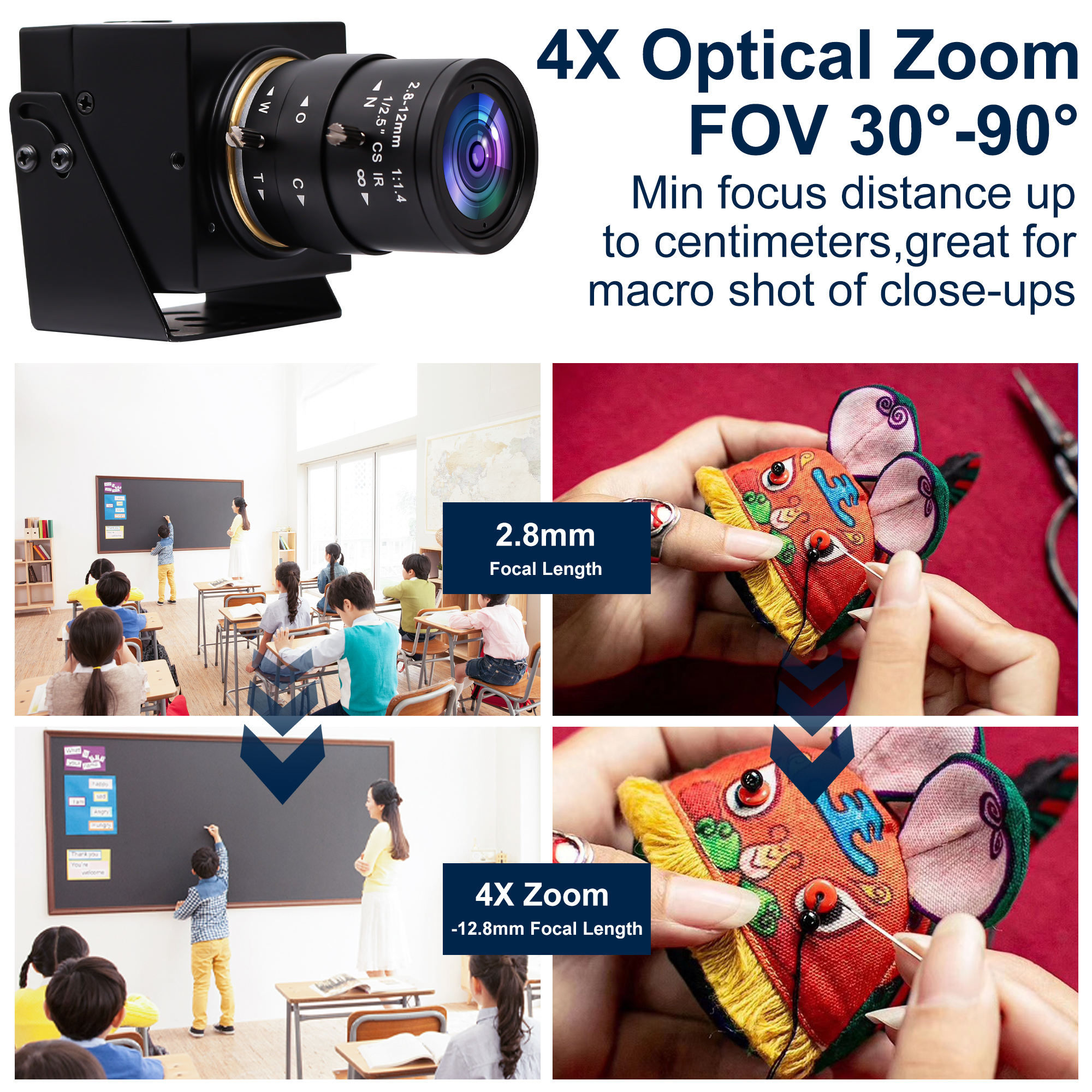

-Varifocal webcam, 4X manual zoom
-Can see the objects at near or far distance via adjust the lens.
-Adjust the lens to 12mm, zoom in, enlarge the object in the image. Move the lens to 2.8mm, can see much wider view angle.

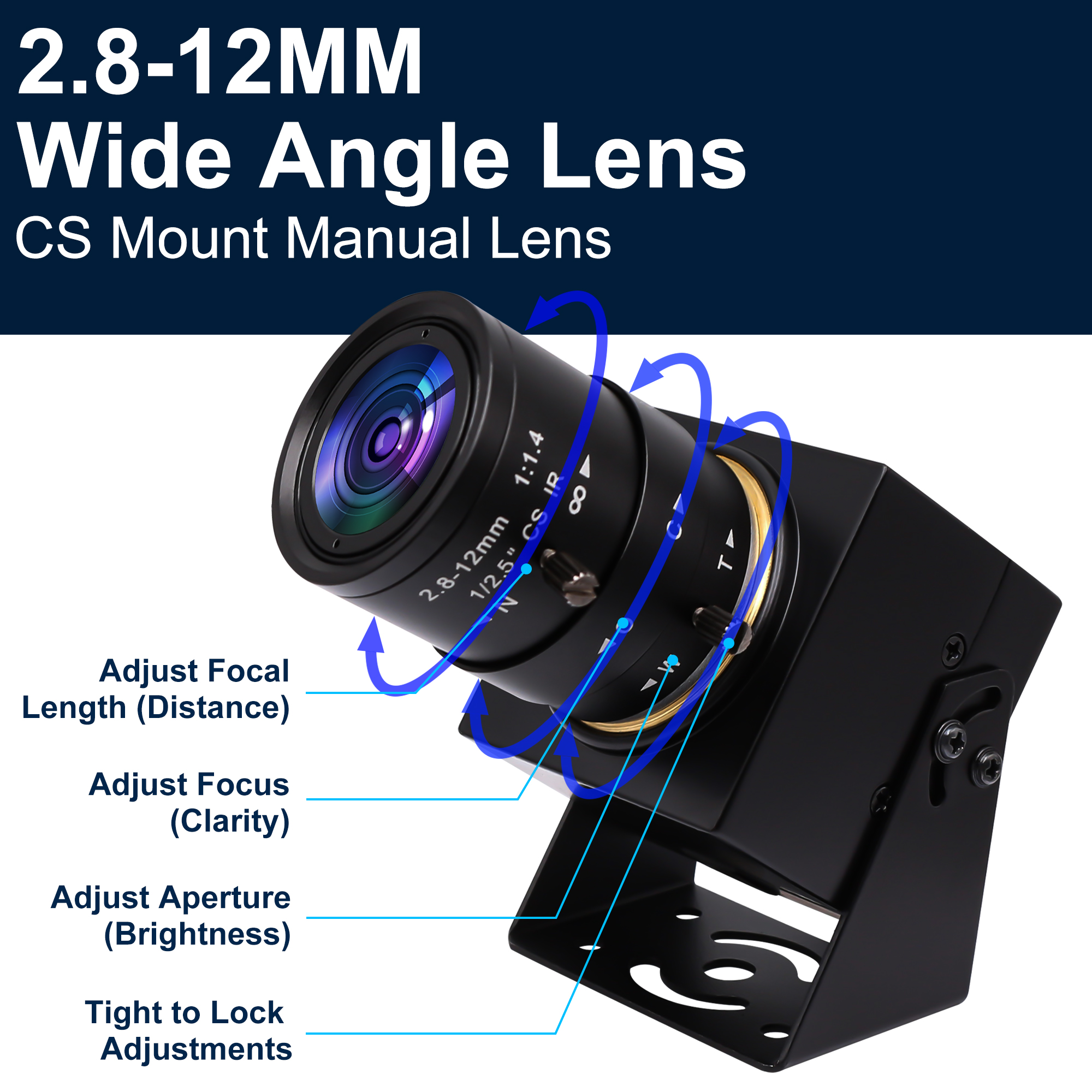

-Adjust the focus, Aperture, Position, Clarity on the lens.

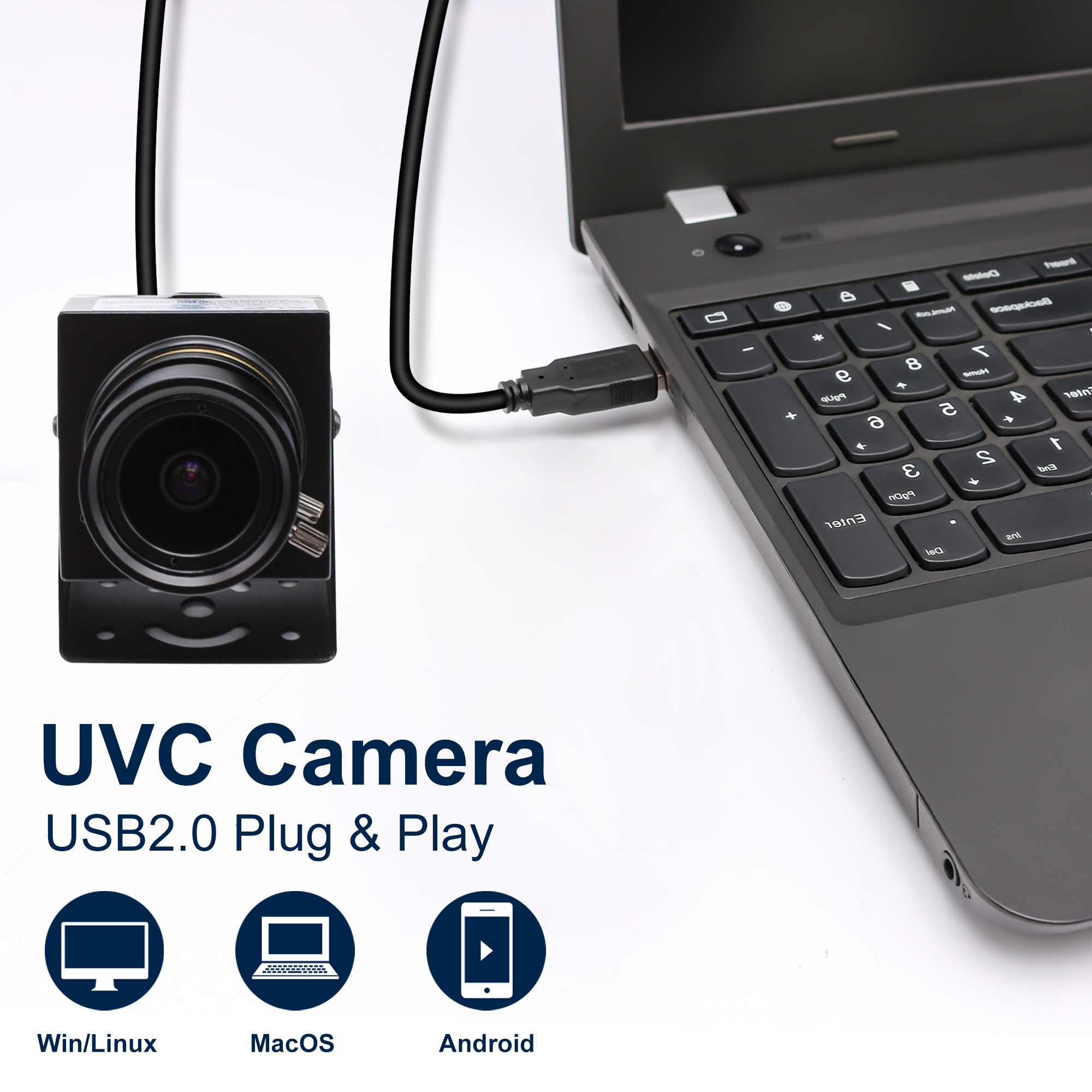

-UVC, Plug and Play.
-Easy to use, suitable for kinds of users.

-Support living streaming software, Skype, Zoom, Facetime, Youtube…
-Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2….

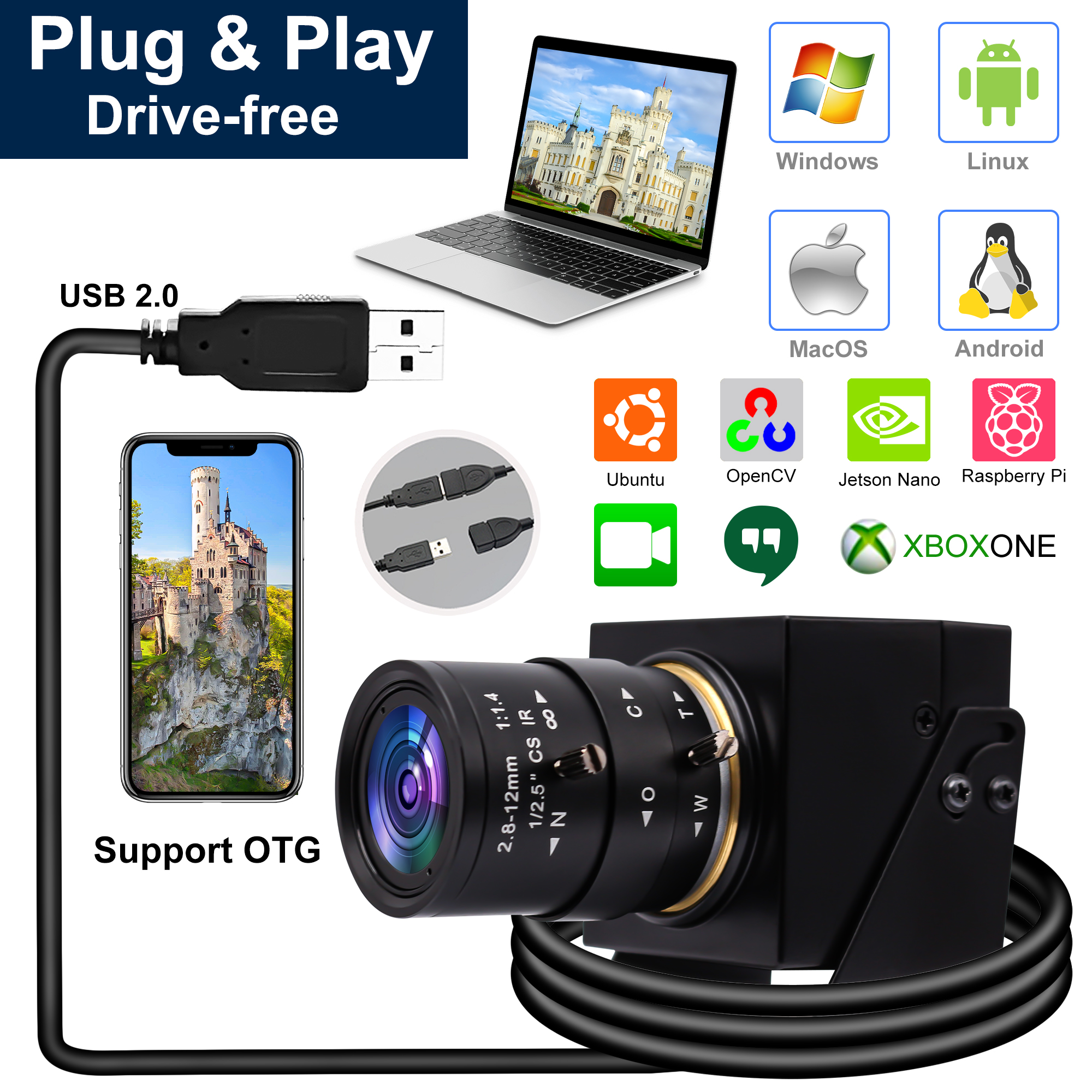

-Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS…
-Support OTG, can connect android tablet, smartphone via OTG cable

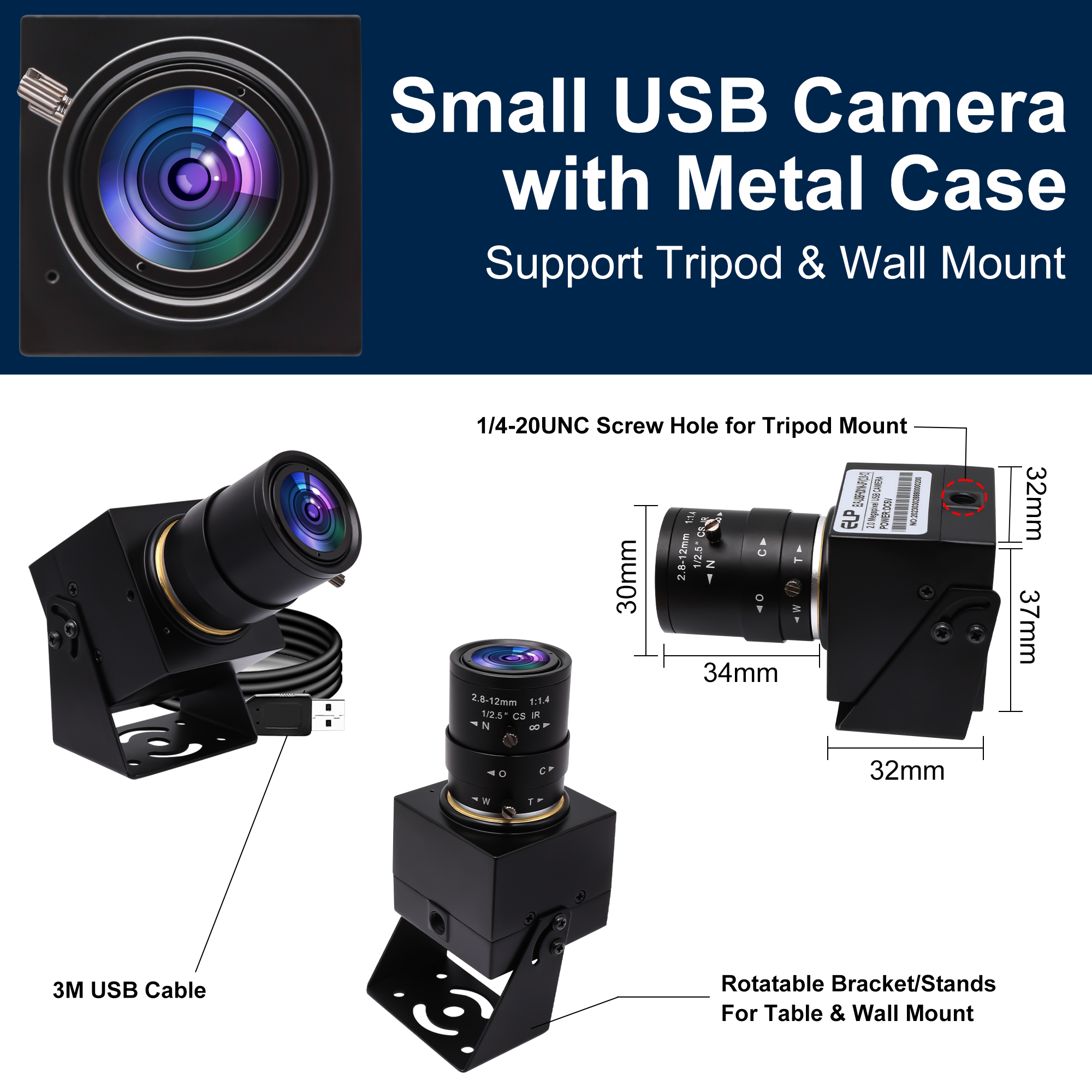

Metal Case: This UVC camera comes with a metal case, which makes it looks more textured and safe. making use more reassuring.

Industrial Camera, environmental monitoring, Remote site Monitoring,  Oil filed equipment, Simple security system, teaching system, teaching system,  high speed video shooting Device, exam system, Driving learning system….
