Features

* 13MP High resolution: 13 megapixel 3840×2880

* No distortion Lens: 100 degree lens, HFOV 67 degree (Many other lens optional)

* With 1m USB cable (2m/3m/5m/0.3m/0.5m…optional)

* High Quality Sensor: CMOS IMX214 Sensor for super sharp image.

* UVC: free driver, Plug & Play

* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.

* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..

* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera…

Specification

	No distortion lens: ELP-USB13M02-V100(V100 no distortion Lens, HFOV67 degree)Normal Lens: ELP-USB13M02-L21 (2.1mm Lens, HFOV 82 degree) ELP-USB13M02-L28 (2.8mm lens, HFOV about 80) ELP-USB13M02-L36 (3.6mm Lens, HFOV 70 degree) ELP-USB13M02-L60 (6mm Lens, HFOV 40 degree) ELP-USB13M02-L80 (8mm Lens, HFOV 30 degree) ELP-USB13M02-L12 (12mm Lens, HFOV 20 degree) Fisheye Lens: ELP-USB13M02-L170 (L170 Fisheye Lens, HFOV 113 degree) ELP-USB13M02-L180 (L180 Fisheye Lens, HFOV 174 degree)
Sensor	IMX214 (1/3” )
Max. Resolution	3840(H) *2880 (V)
Sensitivity	1000mV/Lux-sec
Image area	6100µmx4524µm
Maximum Image Transfer Rate	3840×2880@10fps MJPEG/ 3264×2448@ 15fps MJPEG 3840×2160@ 15fps MJPEG / 2592×1944@ 20fps MJPEG 2048×1536@ 30fps MJPEG /1600×1200@ 30fps MJPEG 1920×1080@ 30fps MJPEG/ 1280×1024@30fps MJPEG 1280×960@30fps MJPEG/1280×720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640×480@ 30fps MJPEG /  320×240@ 30fps MJPEG
Focus	Fixed
Resolution	1000LW/PH (Center)
interface	USB 2.0 High Speed
protocol	USB Video Class（UVC）
S/N Ratio	33dB
Shutter	Rolling shutter/ frame exposure
AGC/AEC/AWB/ABF	Auto
Output Formats	YUYV/MJPEG
Adjustable parameter	Brightness Contrast Hue Saturation Sharpness Gamma White Balance  Exposure Focus
Lens Parameter	No distortion lens, 2.1/2.8/6/8/12mm lens, fisheye lens optional
LED board power connector	Support  2P-2.0mm socket
Power supply	USB BUS POWER  4P-2.0mm socket
Operating Voltage	DC5V
Power consumption	220mW
Module Size	38mm × 38mm
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 60°C
USB Cable	1M(2M/3M/5M Optional)
Operating system request	Win XP/Vista/Win7/Win8 /Win9/Win10/ Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

Product Display

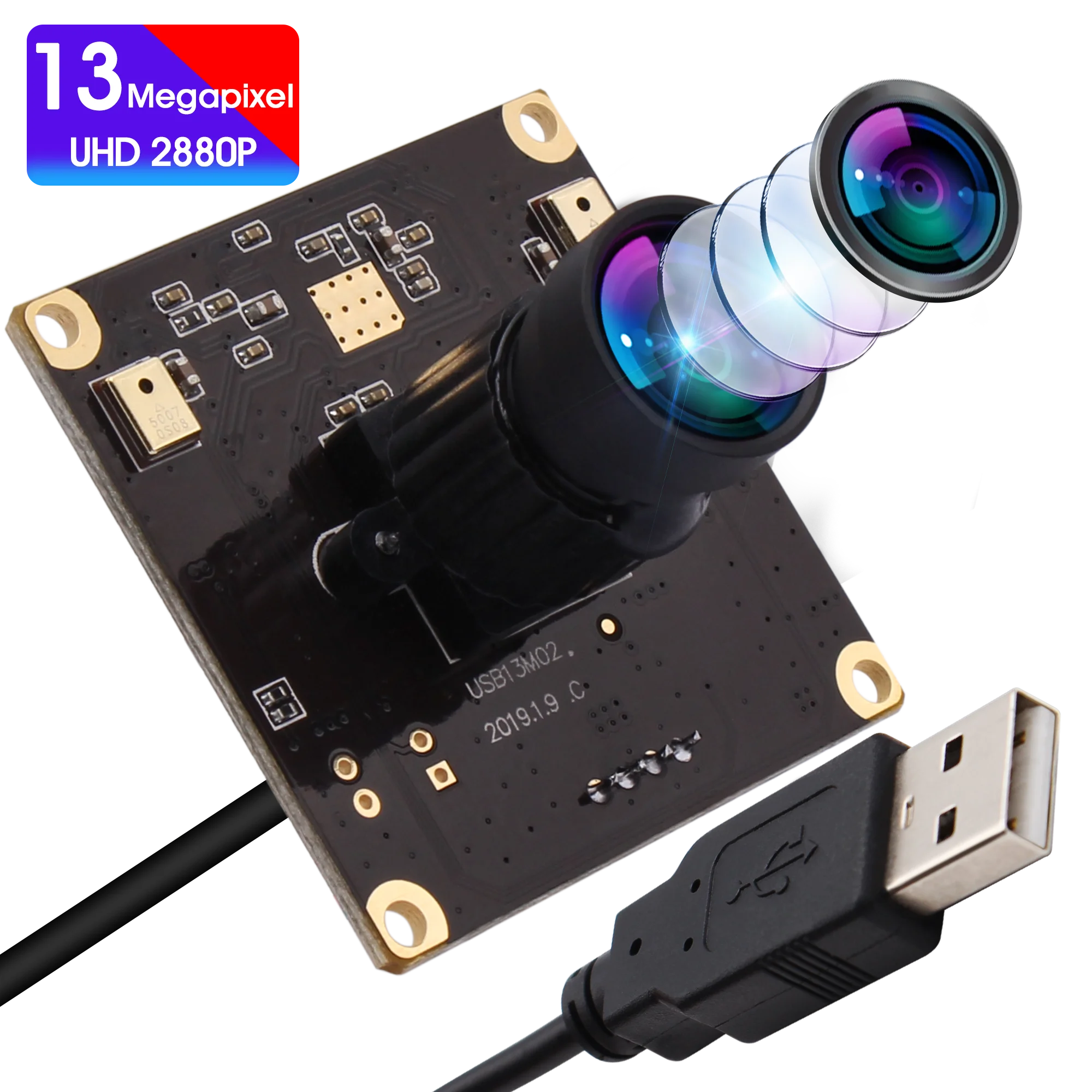

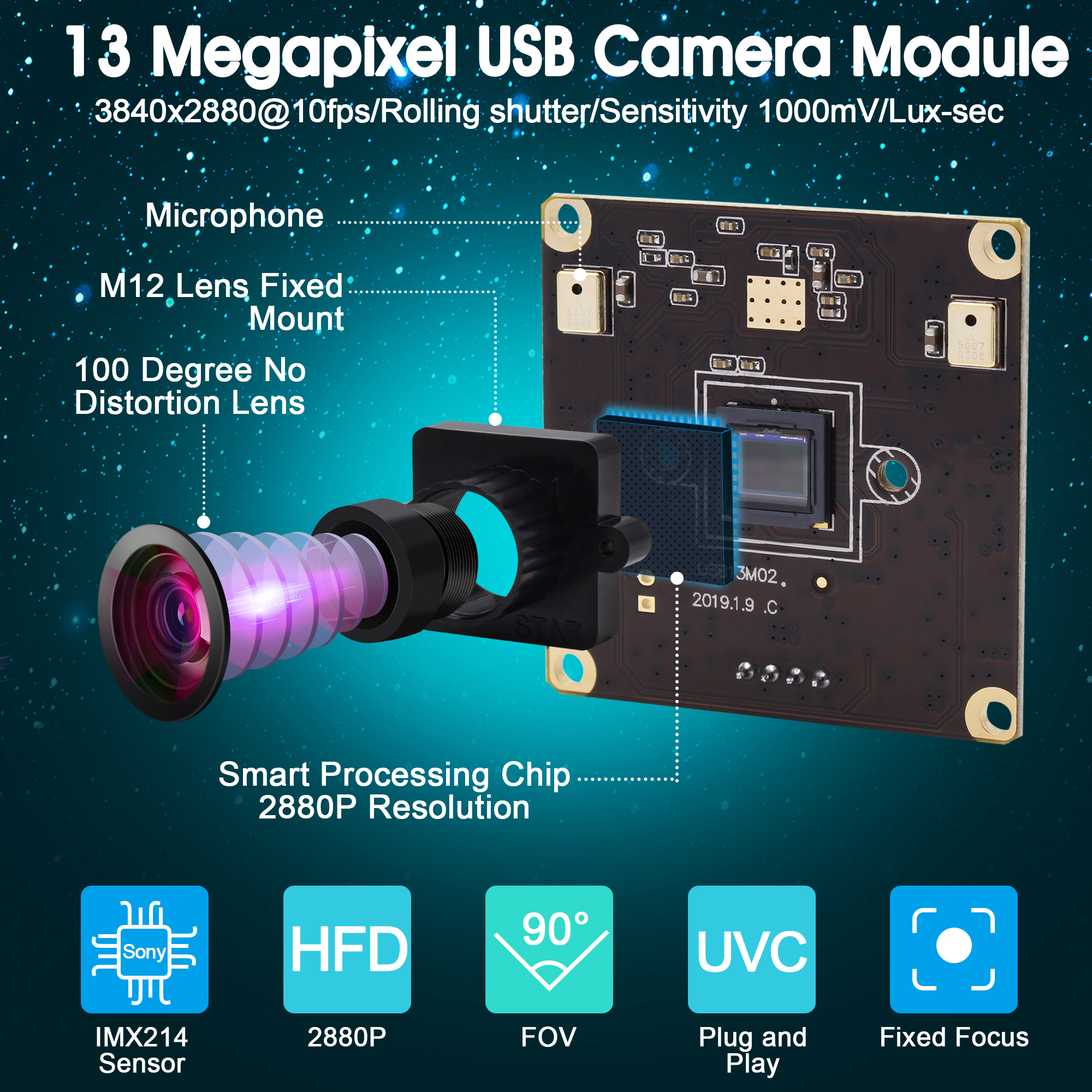

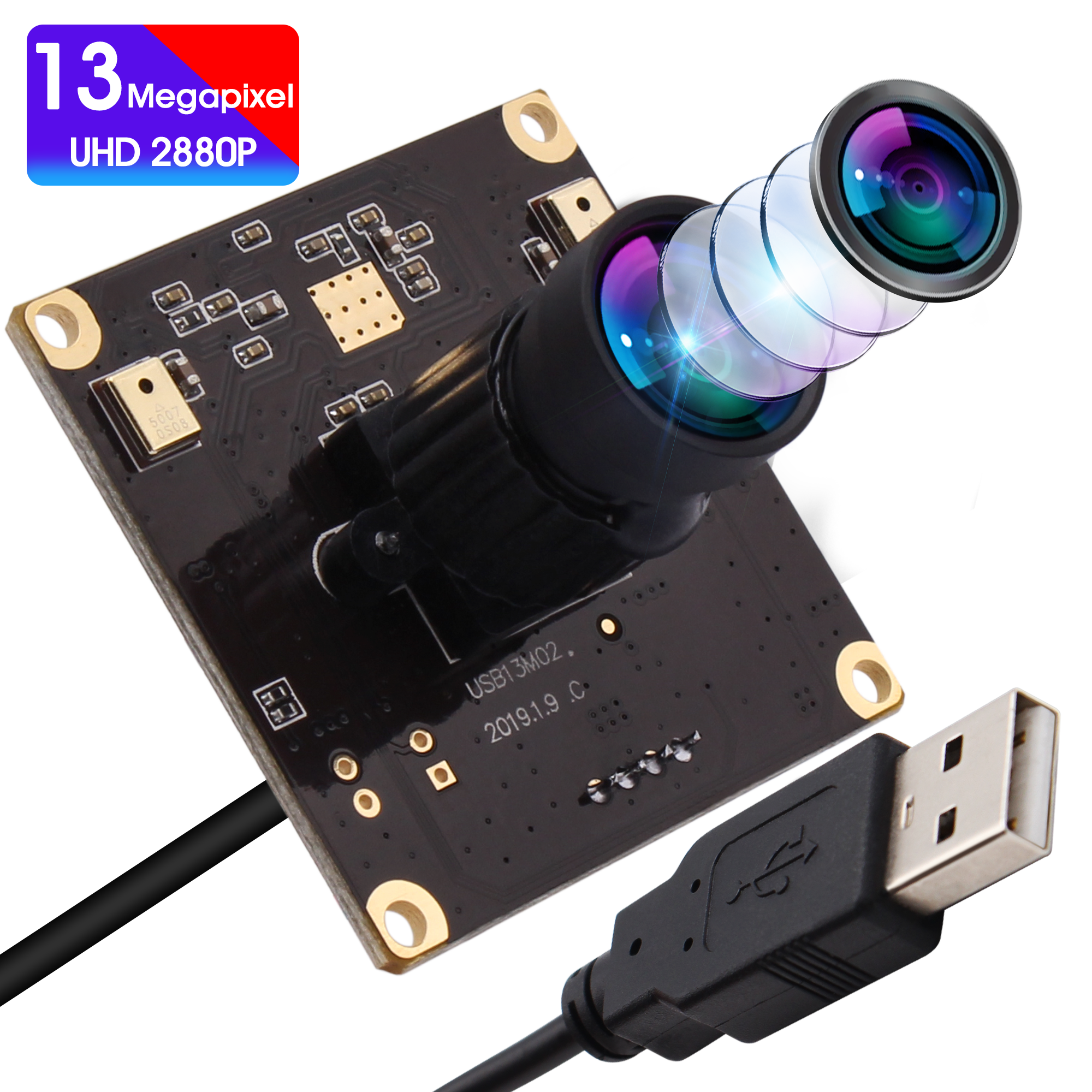

Max Resolution:3840X2880

Sensor:IMX214

Compression Format:MJPEG/YUY2 optional

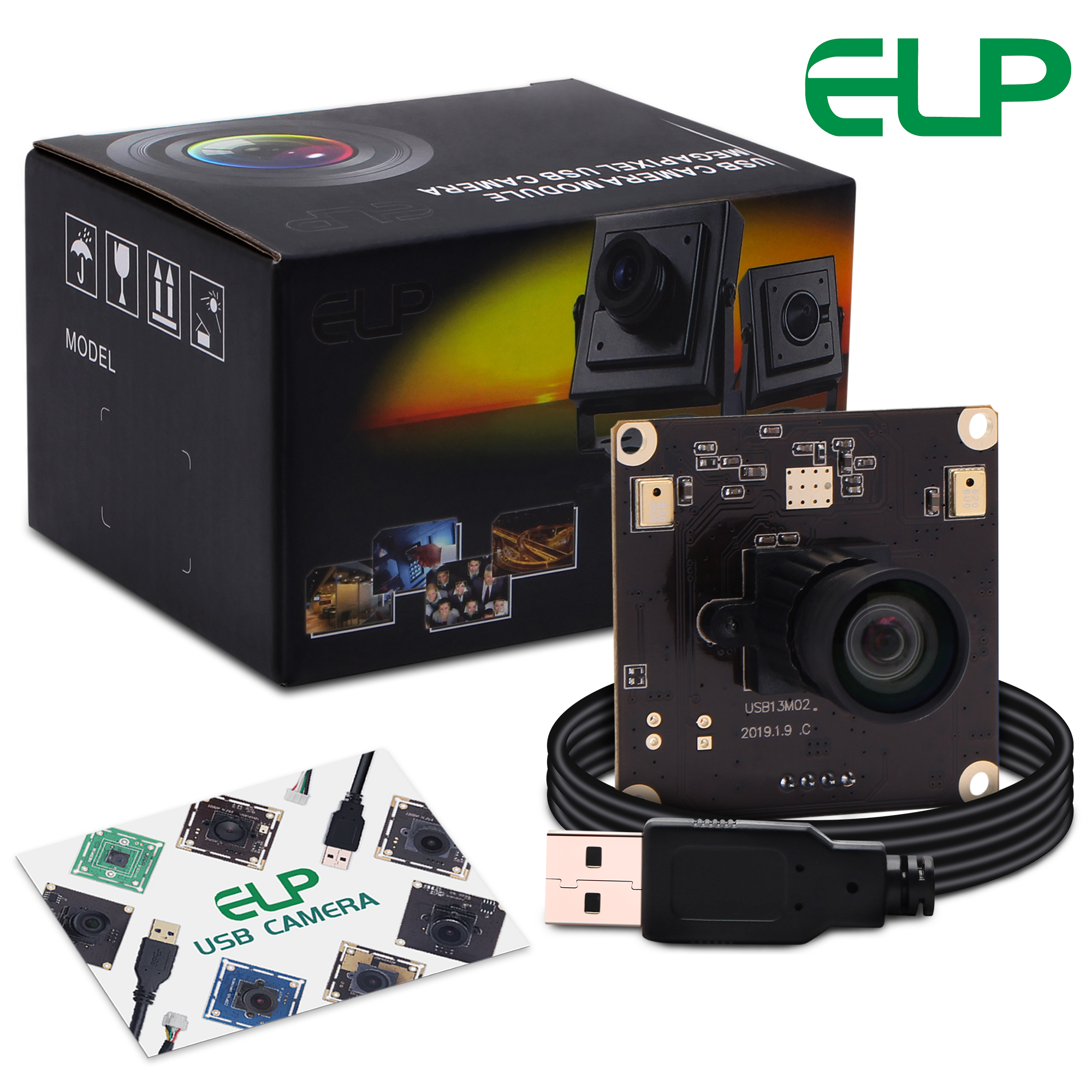

Default 1 meter USB cable

With two microphones, can record audio

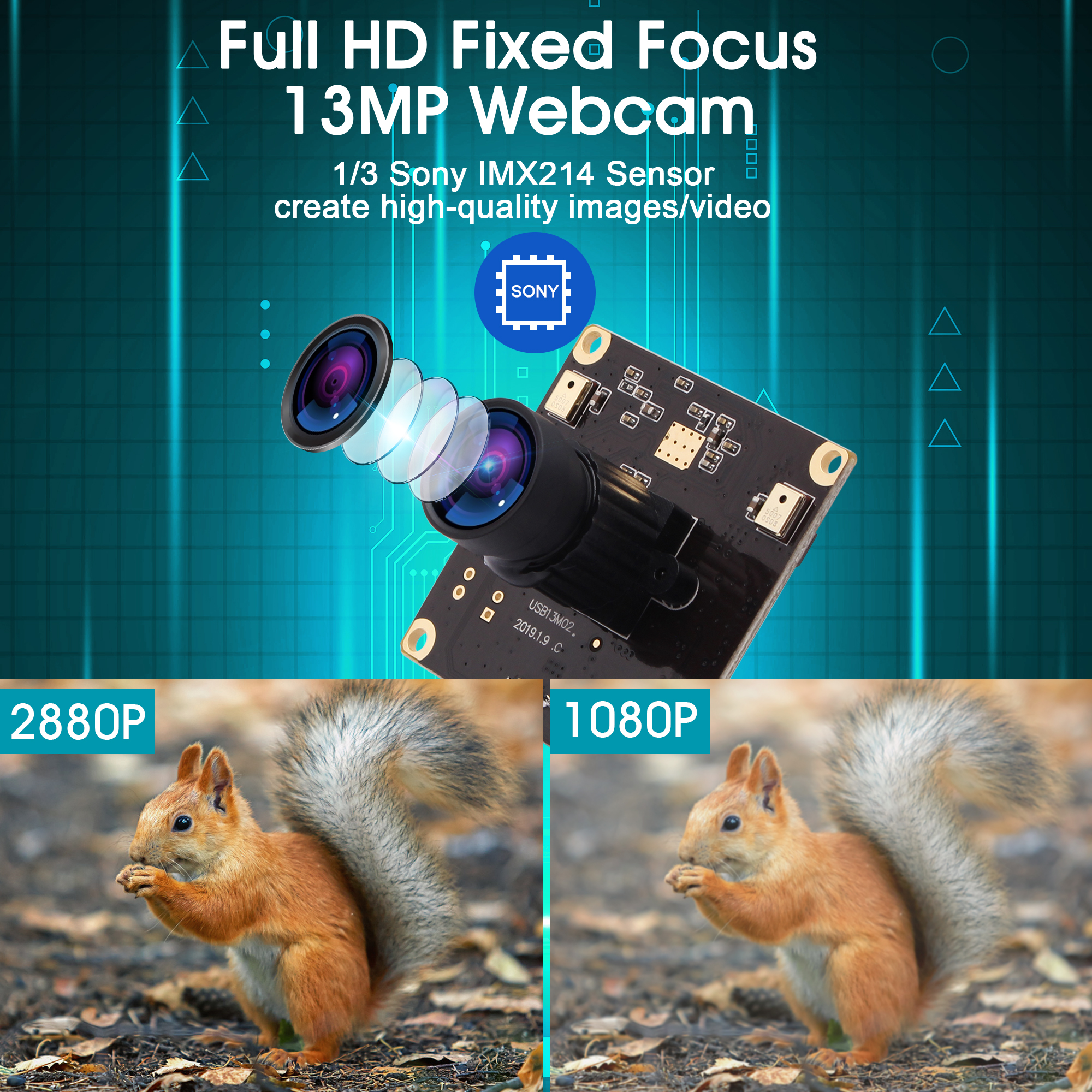

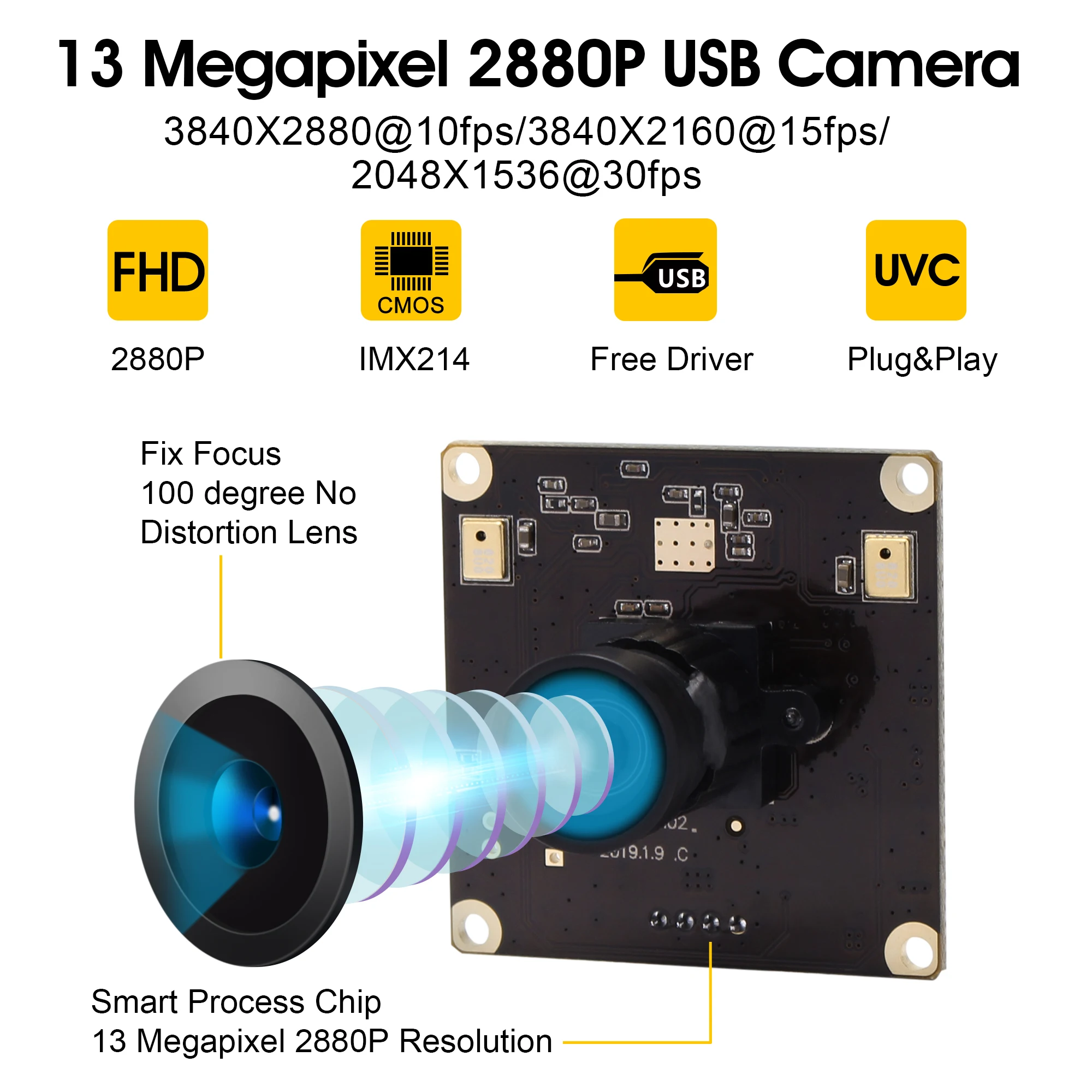

13MP resolution,support 3840X2880@10fps,3264X2448@15fps,2048×1536@30fps and YUV video streaming. Mini 70 degree no-distortion Lens USB camera can view 8CM-100M long distance,true and no distortion color image.

No distortion lens, supports full HD video calling over the internet without delay

2.1/2.8/3.6/6/8/12mm lens, fisheye lens optional

Plug&Play, UVC compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed

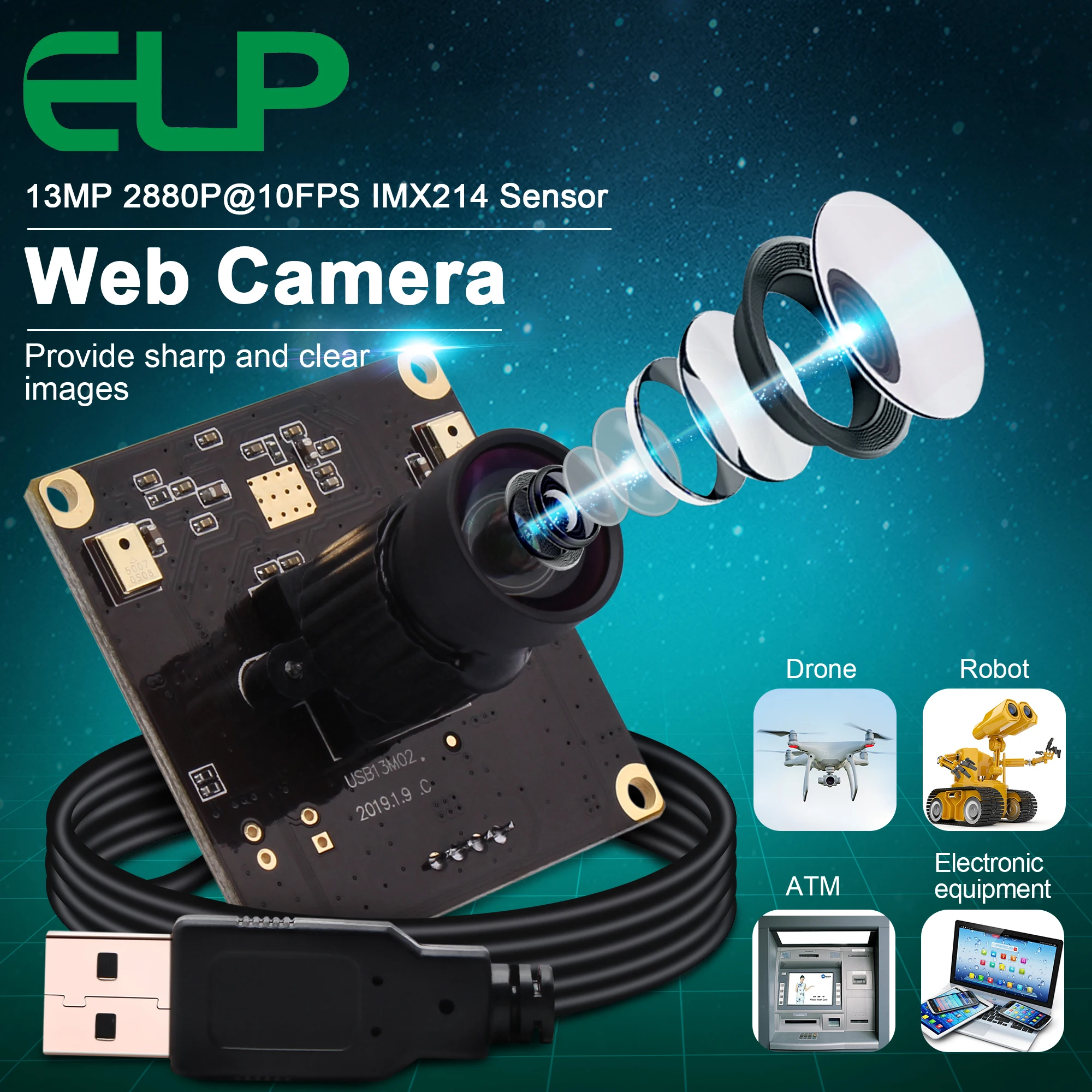

Application: Family Chat ,Conference Call ,Smart TV ,Education streaming ,Long Distance Object Capture.
