Features

* 13MP High resolution: 13 megapixel 3840×2880

* No distortion Lens: 100 degree lens, HFOV 67 degree (Many other lens optional)

* With 3m USB cable (1m/2m/5m/0.3m/0.5m…optional)

* High Quality Sensor: CMOS IMX214 Sensor for super sharp image.

* UVC: free driver, Plug & Play

* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.

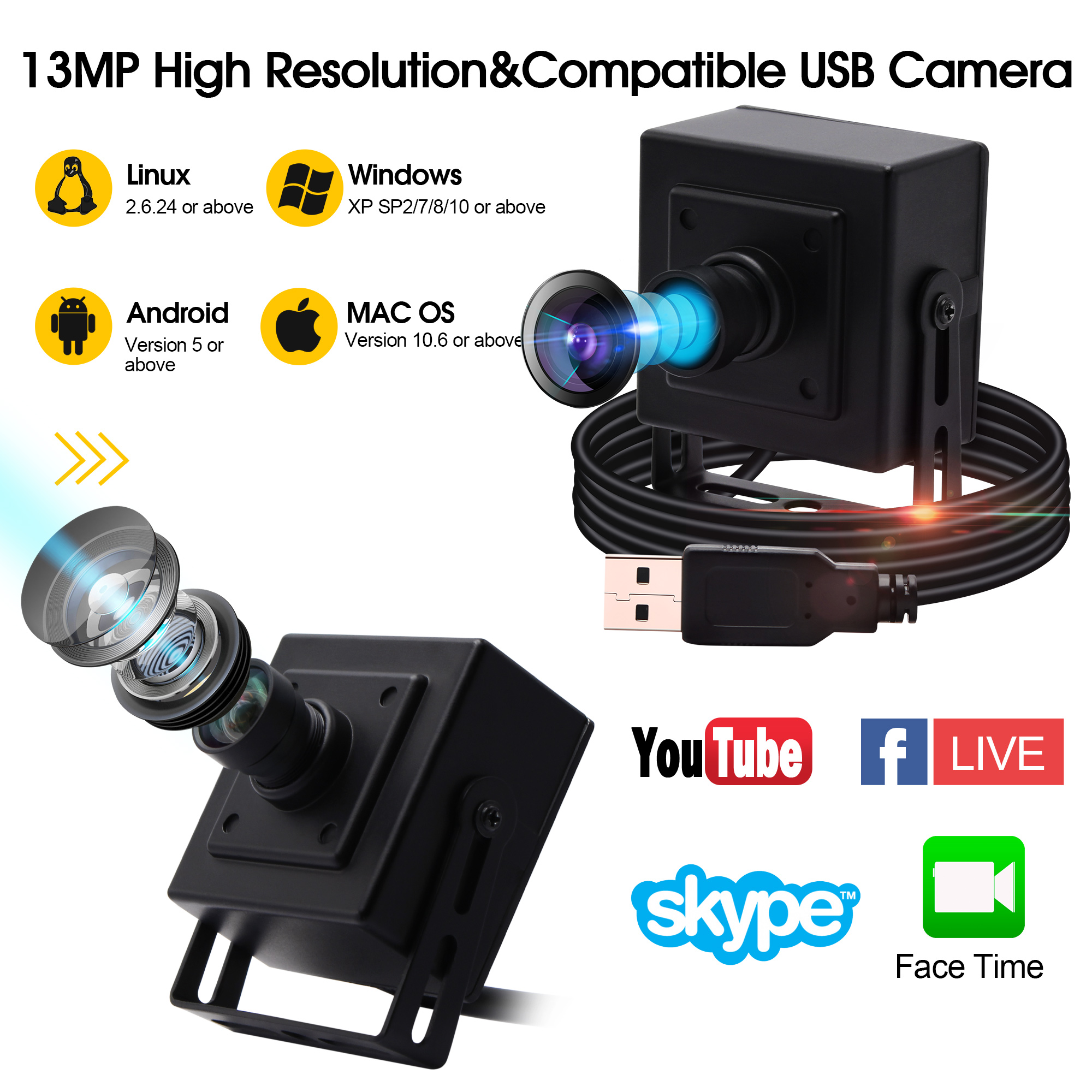

* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..

* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera…

Specification

	No distortion lens: ELP-USB13M02-BV100(V100 no distortion Lens, HFOV67 degree)Normal Lens: ELP-USB13M02-BL21 (2.1mm Lens, HFOV 82 degree) ELP-USB13M02-BL28 (2.8mm lens, HFOV about 80) ELP-USB13M02-BL36 (3.6mm Lens, HFOV 70 degree) ELP-USB13M02-BL60 (6mm Lens, HFOV 40 degree) ELP-USB13M02-BL80 (8mm Lens, HFOV 30 degree) ELP-USB13M02-BL12 (12mm Lens, HFOV 20 degree)Fisheye Lens: ELP-USB13M02-BL170 (L170 Fisheye Lens, HFOV 113 degree) ELP-USB13M02-BL180 (L180 Fisheye Lens, HFOV 174 degree)
Sensor	IMX214 (1/3” )
Max. Resolution	3840(H) *2880 (V)
Sensitivity	1000mV/Lux-sec
Image area	6100µmx4524µm
Maximum Image Transfer Rate	3840×2880@10fps MJPEG/ 3264×2448@ 15fps MJPEG 3840×2160@ 15fps MJPEG / 2592×1944@ 20fps MJPEG 2048×1536@ 30fps MJPEG /1600×1200@ 30fps MJPEG 1920×1080@ 30fps MJPEG/ 1280×1024@30fps MJPEG 1280×960@30fps MJPEG/1280×720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640×480@ 30fps MJPEG /  320×240@ 30fps MJPEG
Focus	Fixed
Resolution	1000LW/PH (Center)
interface	USB 2.0 High Speed
protocol	USB Video Class（UVC）
S/N Ratio	33dB
Shutter	Rolling shutter/ frame exposure
AGC/AEC/AWB/ABF	Auto
Output Formats	YUYV/MJPEG
Adjustable parameter	Brightness Contrast Hue Saturation Sharpness Gamma White Balance  Exposure Focus
Lens Parameter	No distortion lens, 2.1/2.8/6/8/12mm lens, fisheye lens optional
LED board power connector	Support  2P-2.0mm socket
Power supply	USB BUS POWER  4P-2.0mm socket
Operating Voltage	DC5V
Power consumption	220mW
Module Size	38mm × 38mm
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 60°C
USB Cable	3M(1M/2M/5M Optional)
Operating system request	Win XP/Vista/Win7/Win8 /Win9/Win10/ Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

Product Display

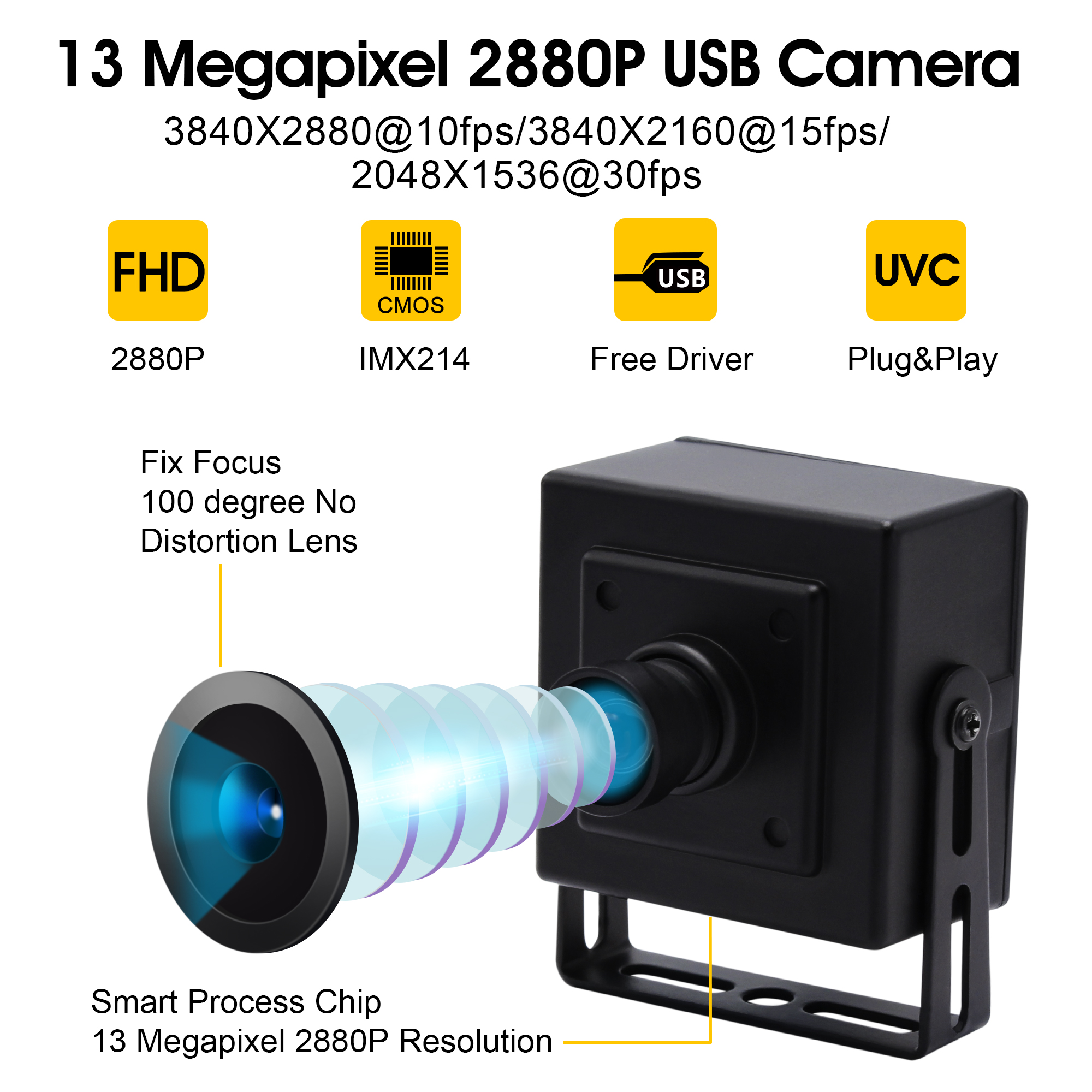

Max Resolution:3840X2880

Sensor:IMX214

Compression Format:MJPEG/YUY2 optional

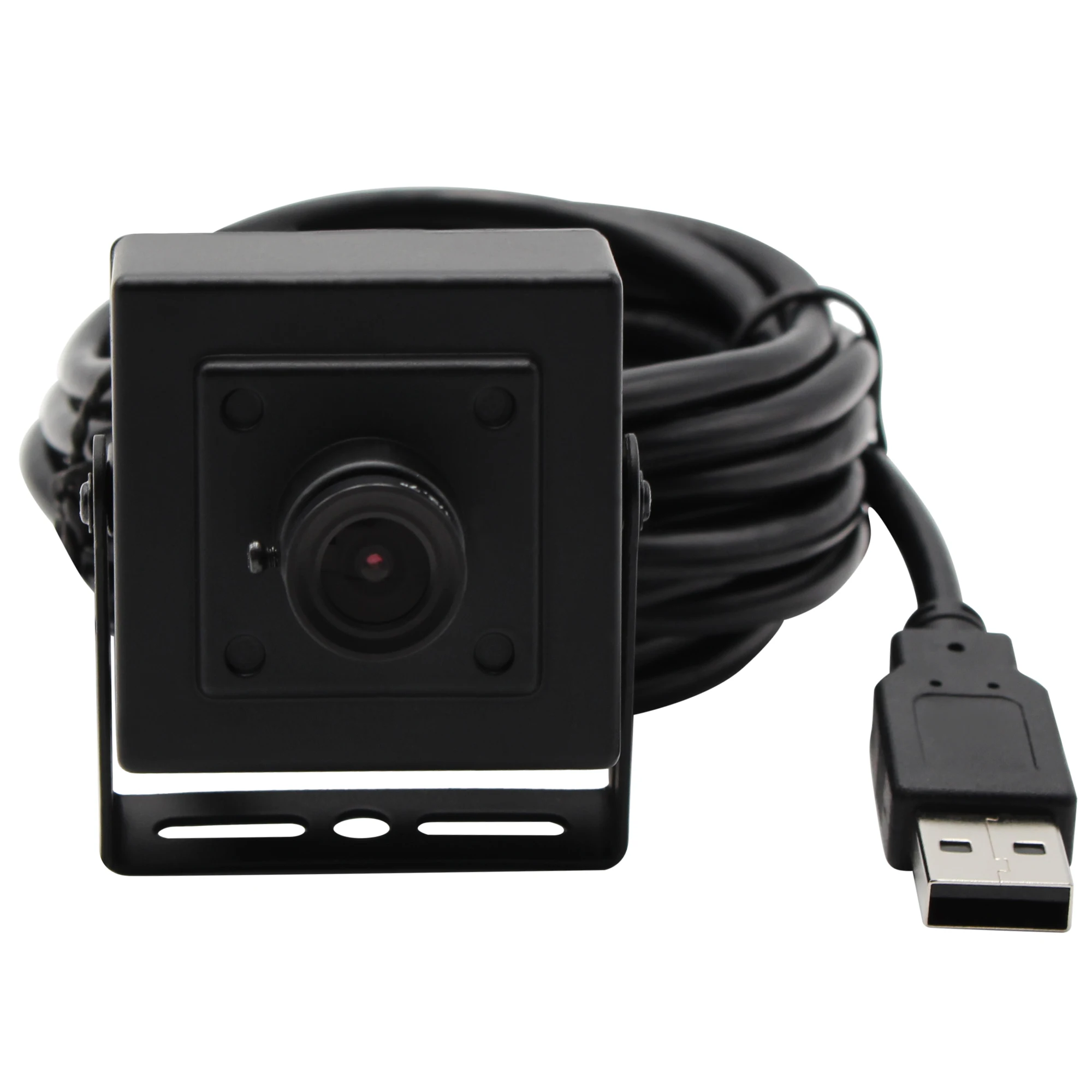

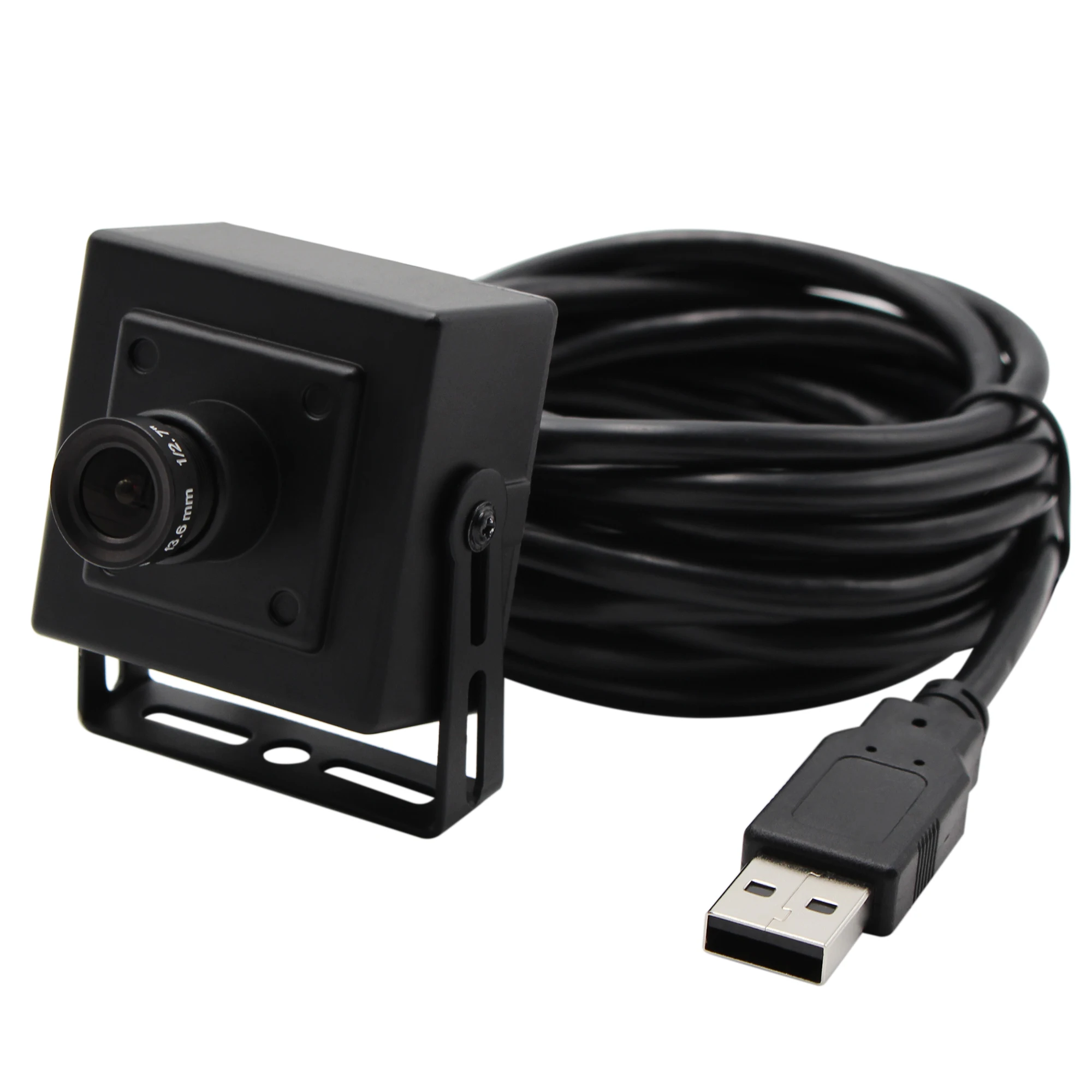

Default 3 meter USB cable

With two microphones, can record audio

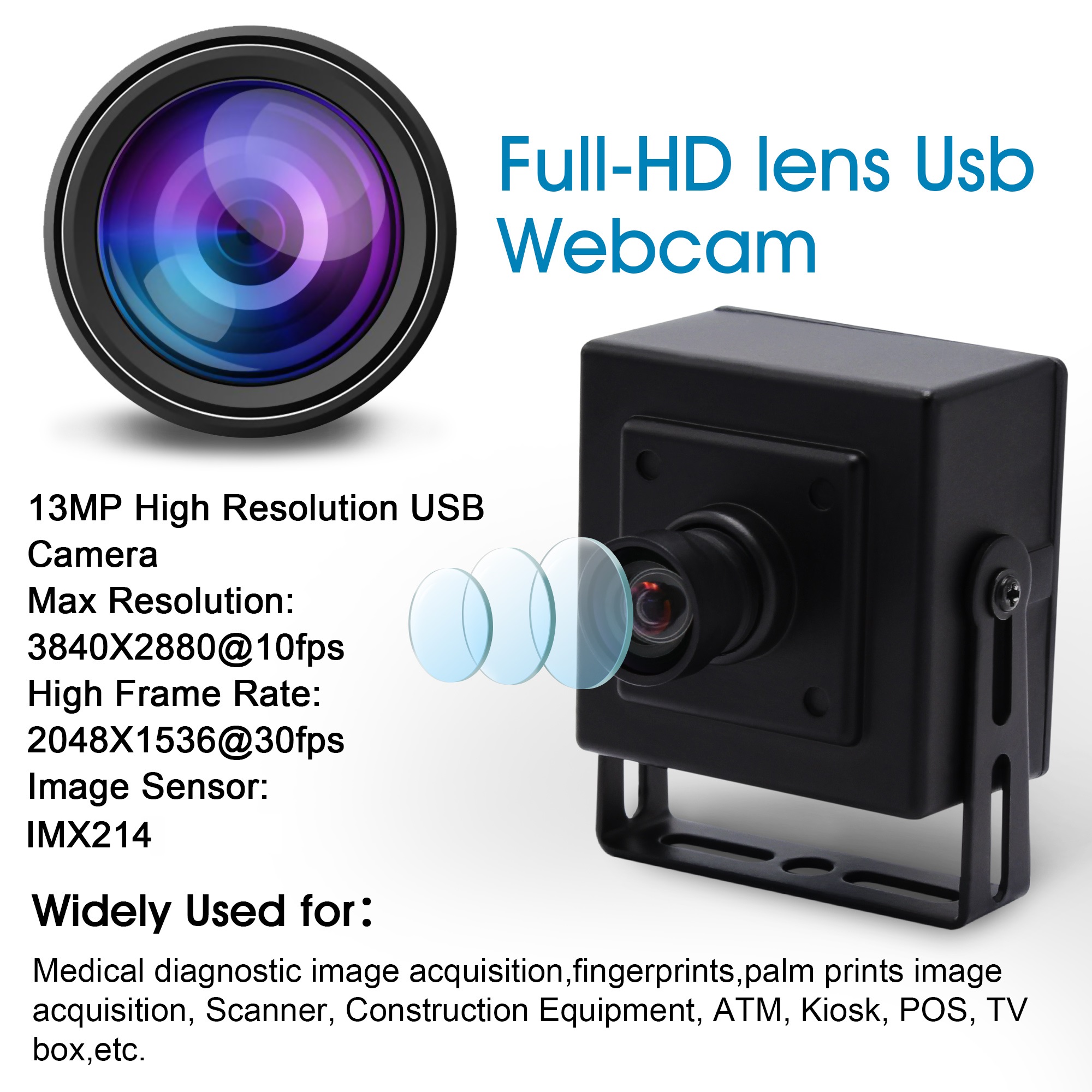

13MP resolution,support 3840X2880@10fps,3264X2448@15fps,2048×1536@30fps and YUV video streaming. degree no-distortion Lens USB camera can view 8CM-100M long distance,true and no distortion color image.

No distortion lens, supports full HD video calling over the internet without delay

2.1/2.8/3.6/6/8/12mm lens, fisheye lens optional

Plug&Play, UVC compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed

Wide aplication for Machine vision,Traffic and transport (ITS),Medical technology (and laboratory automation),Safety technology,Mechanical engineering,Surface inspection,Biotechnology and life sciences,Electronics inspection,Pharma and healthcare,Endless web inspection
