Features

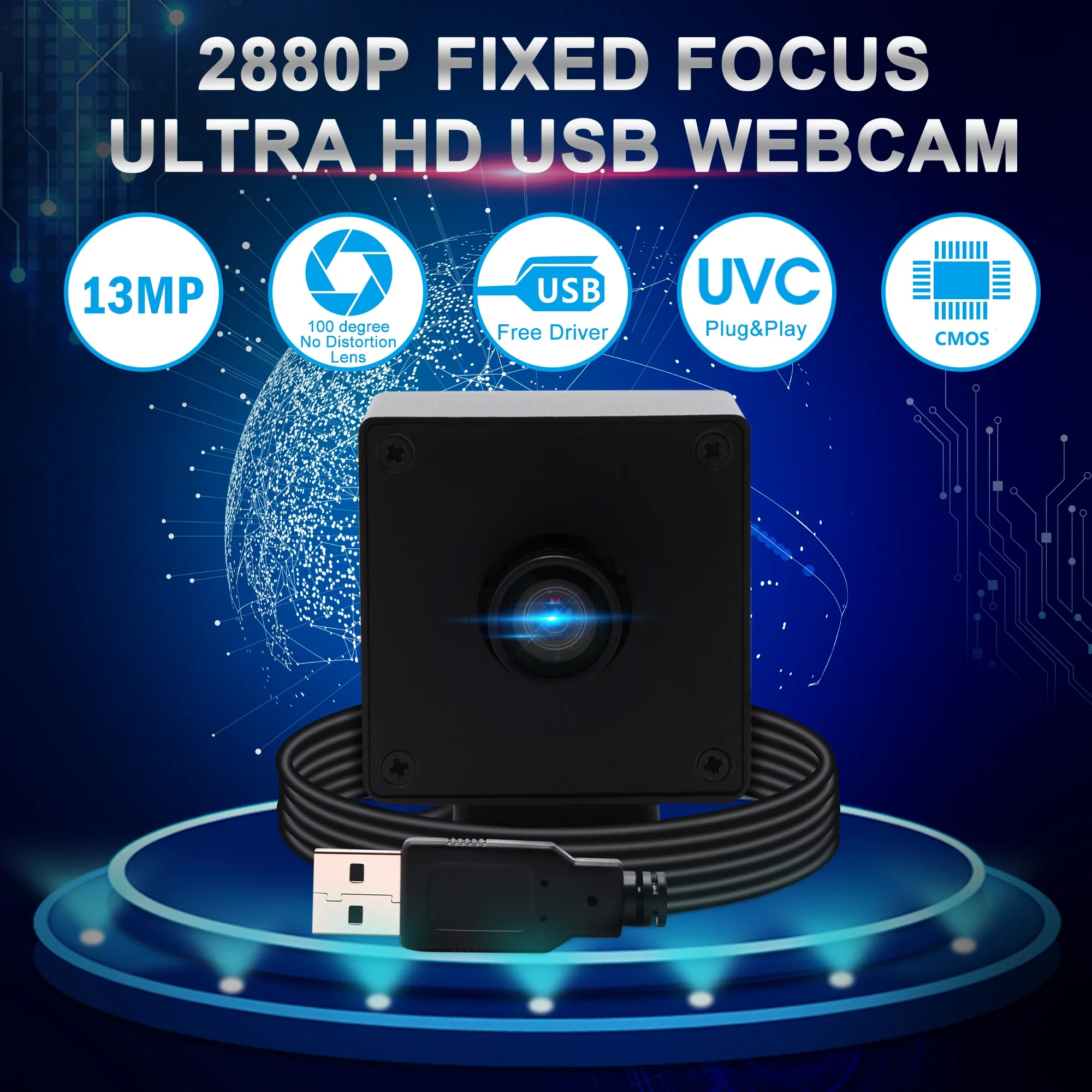

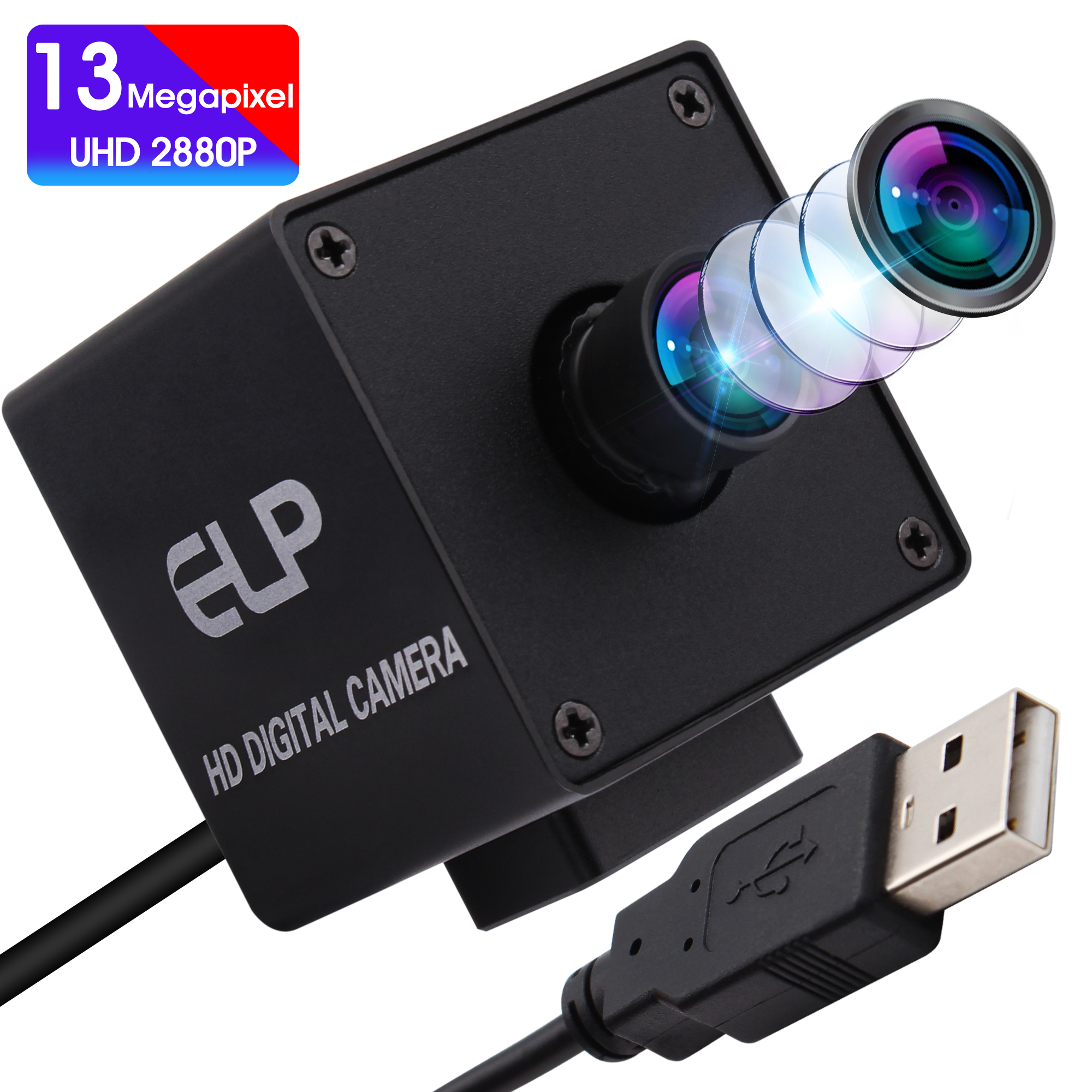

1. High Resolution 13 megapixel USB Camera
2. USB webcam with CMOS Imx214 sensor
3. Mini Micro webcam USB with non distortion lens
4. About 67 degree view wide angle usb web camera
5. USB with Camera, with standard 3m cable ( other length optional)
6. Support different operating system, Windows, Linux, Android, Mac OS
7. Support Raspberry PI

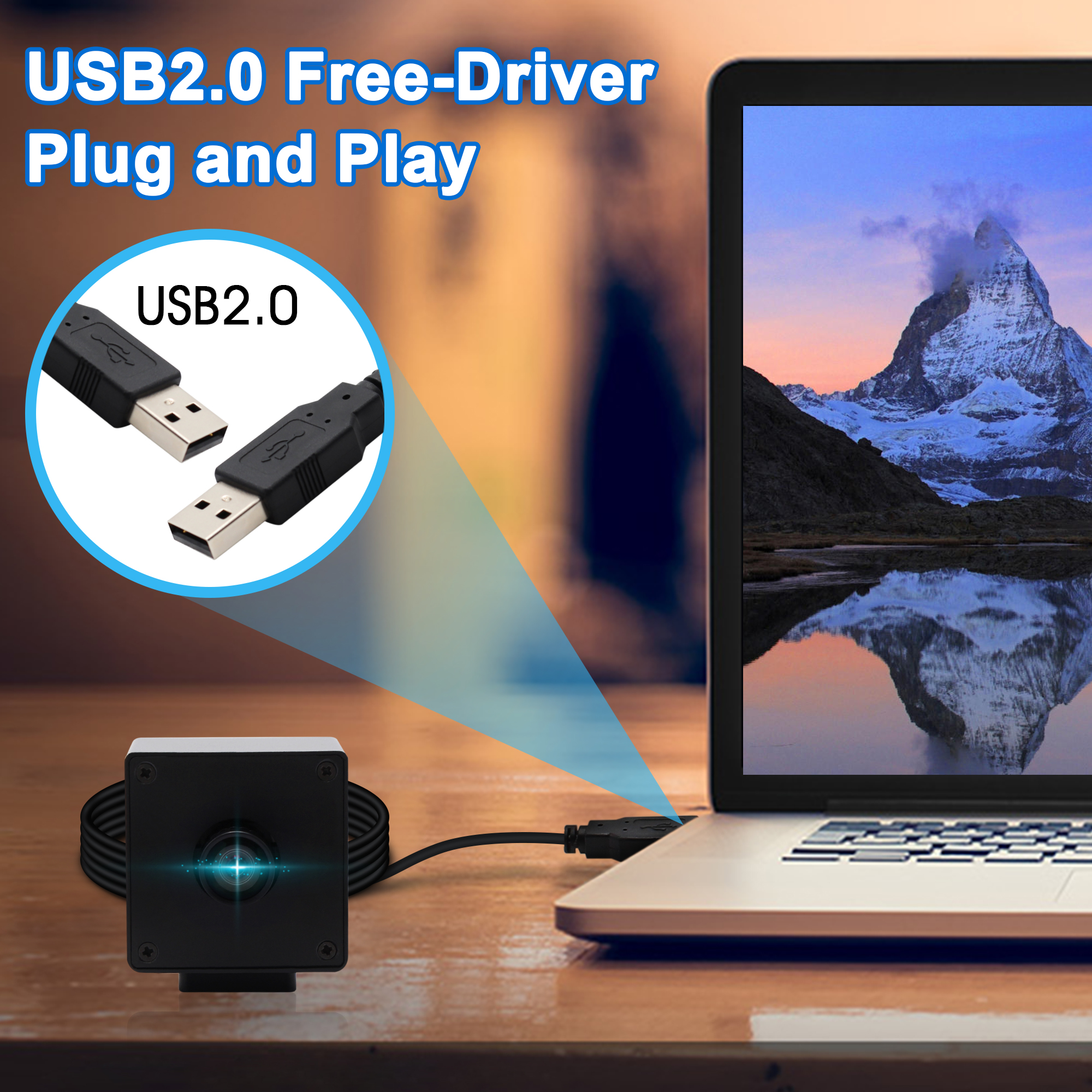

8. UVC, free driver, Plug & Play
9. Compatible with different preview software, Amcap, Ispy, USB Camera, OpenCV, VLC, V4L2, Fswebcam, Photo Booth, Face Time, Quick time. Webcam Viewer, Yawcam, Zone Minder, CameraFi…
Specification
| No distortion lens: ELP-USB13M02-KV100(V100 no distortion Lens, HFOV67 degree) Normal Lens: |
|

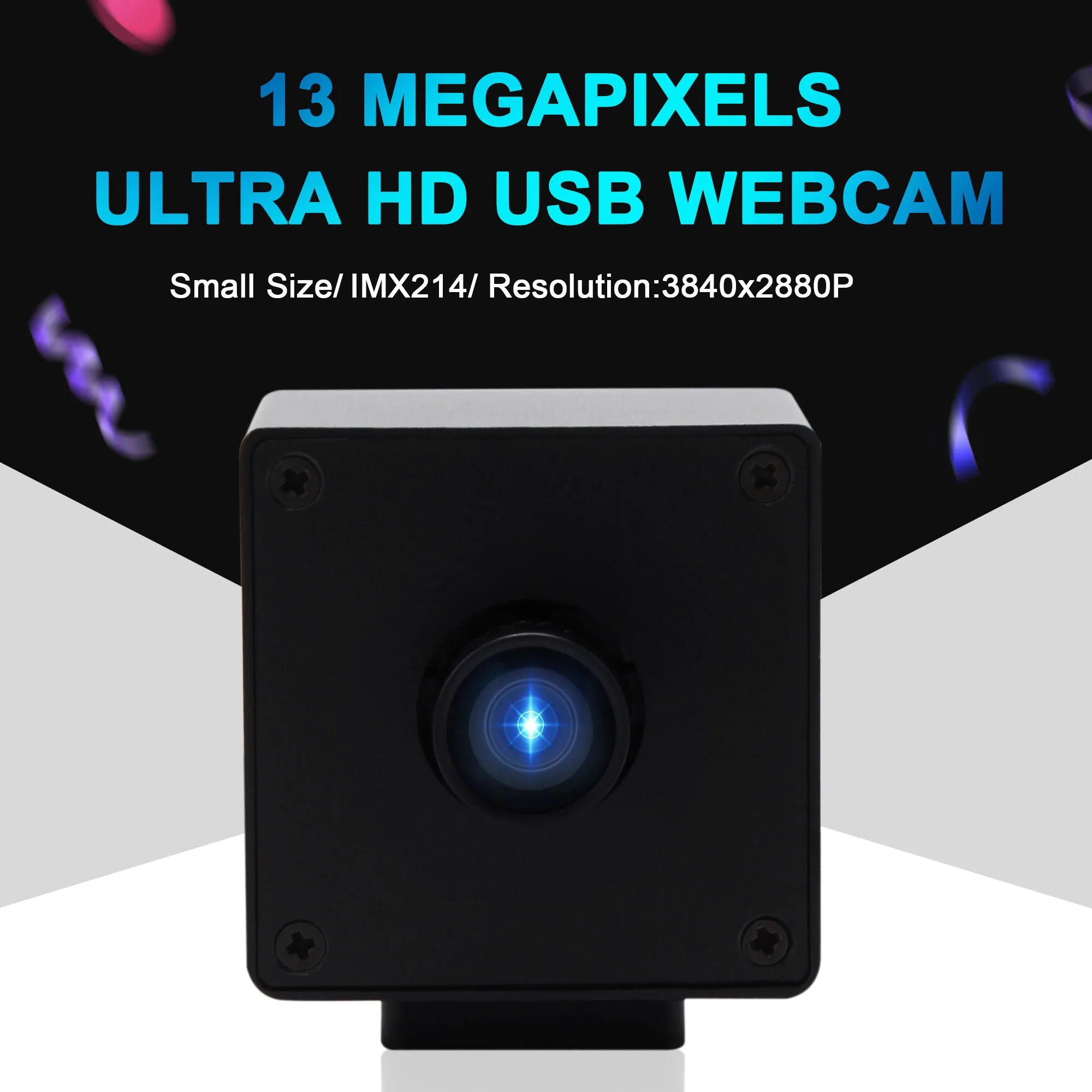

| Sensor | IMX214 (1/3” ) |
| Max. Resolution | 3840(H) *2880 (V) |
| Sensitivity | 1000mV/Lux-sec |
| Image area | 6100µmx4524µm |
| Maximum Image Transfer Rate | 3840×2880@10fps MJPEG/ 3264×2448@ 15fps MJPEG
3840×2160@ 15fps MJPEG / 2592×1944@ 20fps MJPEG 2048×1536@ 30fps MJPEG /1600×1200@ 30fps MJPEG 1920×1080@ 30fps MJPEG/ 1280×1024@30fps MJPEG 1280×960@30fps MJPEG/1280×720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640×480@ 30fps MJPEG / 320×240@ 30fps MJPEG |
| Focus | Fixed |
| Resolution | 1000LW/PH (Center) |
| interface | USB 2.0 High Speed |
| protocol | USB Video Class（UVC） |
| S/N Ratio | 33dB |
| Shutter | Rolling shutter/ frame exposure |
| AGC/AEC/AWB/ABF | Auto |
| Output Formats | YUYV/MJPEG |
| Adjustable parameter | Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus |
| Lens Parameter | No distortion lens, 2.1/2.8/6/8/12mm lens, fisheye lens optional |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Operating Voltage | DC5V |
| Power consumption | 220mW |

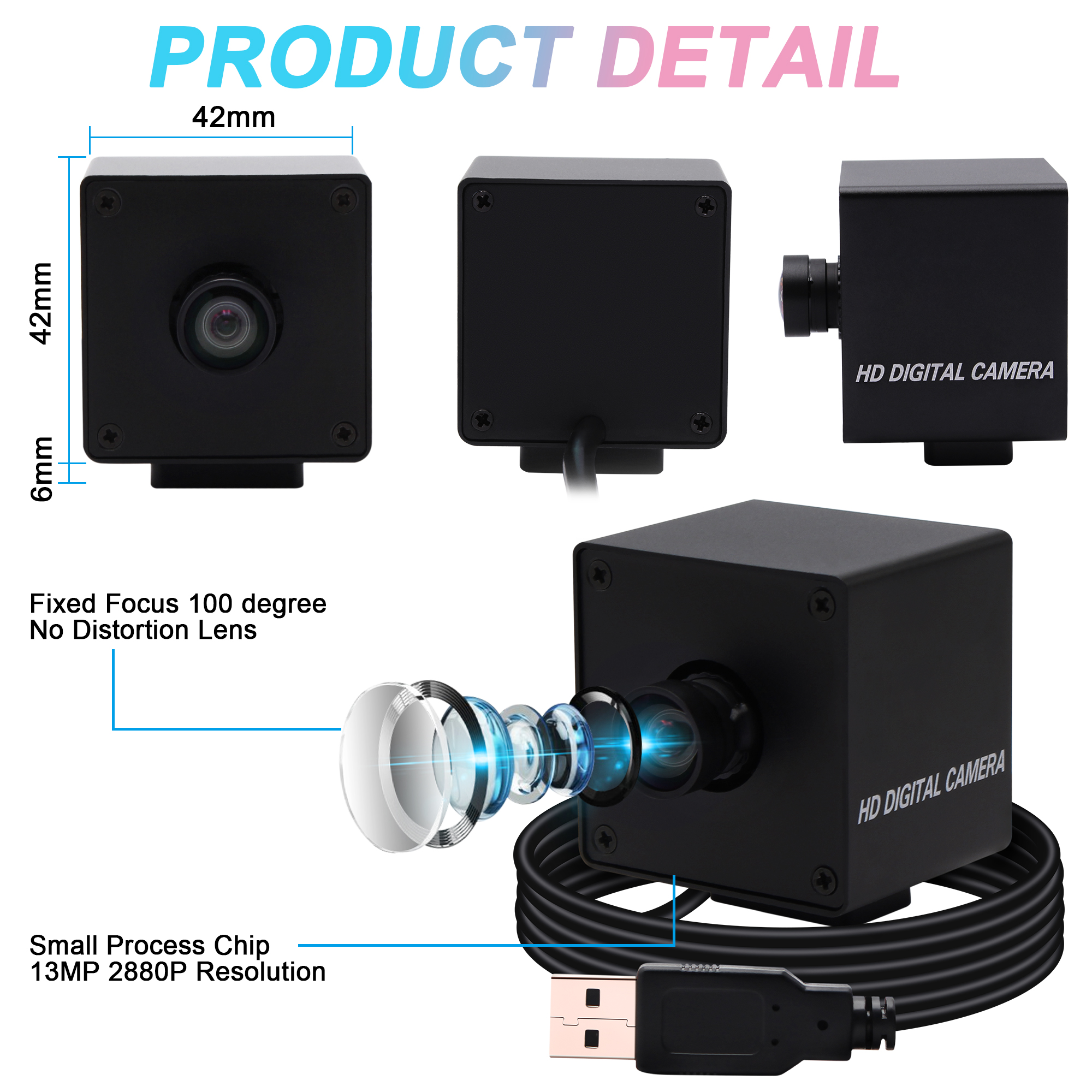

| Module Size | 38mm × 38mm |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 60°C |
| USB Cable | 3M(1M/2M/5M Optional) |
| Operating system request | Win XP/Vista/Win7/Win8 /Win9/Win10/ Win11 etc.
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Product Display
