Description

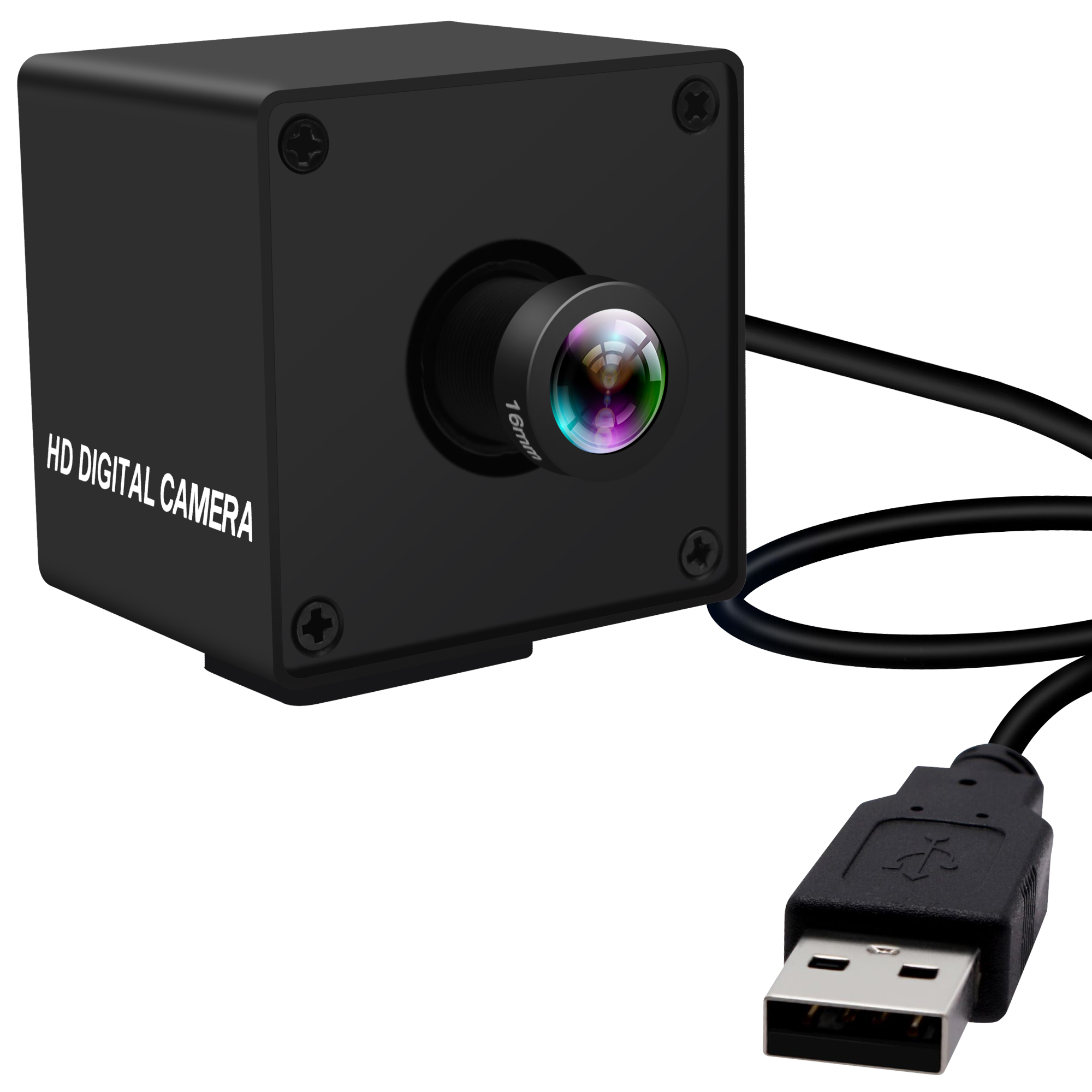

This is a mini Compact Size 1080p Full HD High Speed webcam, Max Frame Rate up to 100fps. Which used in applications that require capturing fast-moving objects or events with high temporal resolution. These cameras are capable of capturing a large number of frames per second (fps), allowing for detailed analysis, motion tracking, and slow-motion playback.
Based on 1/2.7″ OV2710 image sensor, Fixed focus, 125 degree wide angle no distortion lens, UVC compliant USB 2.0 camera. Its Mini size, light weight and Low Power consumption which is suitbale for many embedded application and Portable Device.
Features
* High Quality Sensor: 1/2.7″ CMOS OV2710 Sensor
* Full HD 1080P: Max Resolution 1920×1080
* Huigh Speed, high FPS:1920×1080 Mjpeg 30FPS, 1280×720 Mjpeg 60FPS, 640×480 Mjpeg 100FPS
* Low Distortion: This camera module has a 125°(H) Low-Distortion (<3%) M12 Lens, which minimizes the imaging distortion and provides a wilder Field of View (FoV) than the most stock lens
* Micro usb camera with small size: 38x38mm (Compatible 32x32mm)
* USB Cable: With 3m usb cable (2m/3m/5m/0.3m/0.5m…optional)
* UVC: free driver, Plug & Play
* OTG support: can connect android tablet, smartphone… via OTG cable
* Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.
* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..
* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera…
Specification
| Optional models | ELP-USBFHD01M-KH100 (FOV 100) ELP-USBFHD01M-KH110 (FOV 113) ELP-USBFHD01M-KH120 (FOV 125) ELP-USBFHD01M-KL297 (FOV 92) ELP-USBFHD01M-KL100 (FOV 87) ELP-USBFHD01M-KV100 (FOV 85) ELP-USBFHD01M-KLC1100 ( FOV 68) All above models, specifications are same, just lens different H110 H120 micro distortion about 3%, others no distortion. |
| Sensor | 1/2.7″ CMOS OV2710 |
| Lens size | 200W, 2.0megapixel, 1920(H)x1080(V)pixels |
| Max. Resolution | 1920X1080 |
| Picture format | MJPEG |
| USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Frame rate | 1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps 640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps 352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fps |
| Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
| Night vision | optional, can choose IR board |
| view angle | No distortion lens FOV 125 degree (Many other lens optional) |
| voltage | DC 5V |
| current | 150mA |
| work temperature | DEGREES(-20~70) |
| Size | 32x32mm/38*38 |
| Support OS | WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above |
