Description

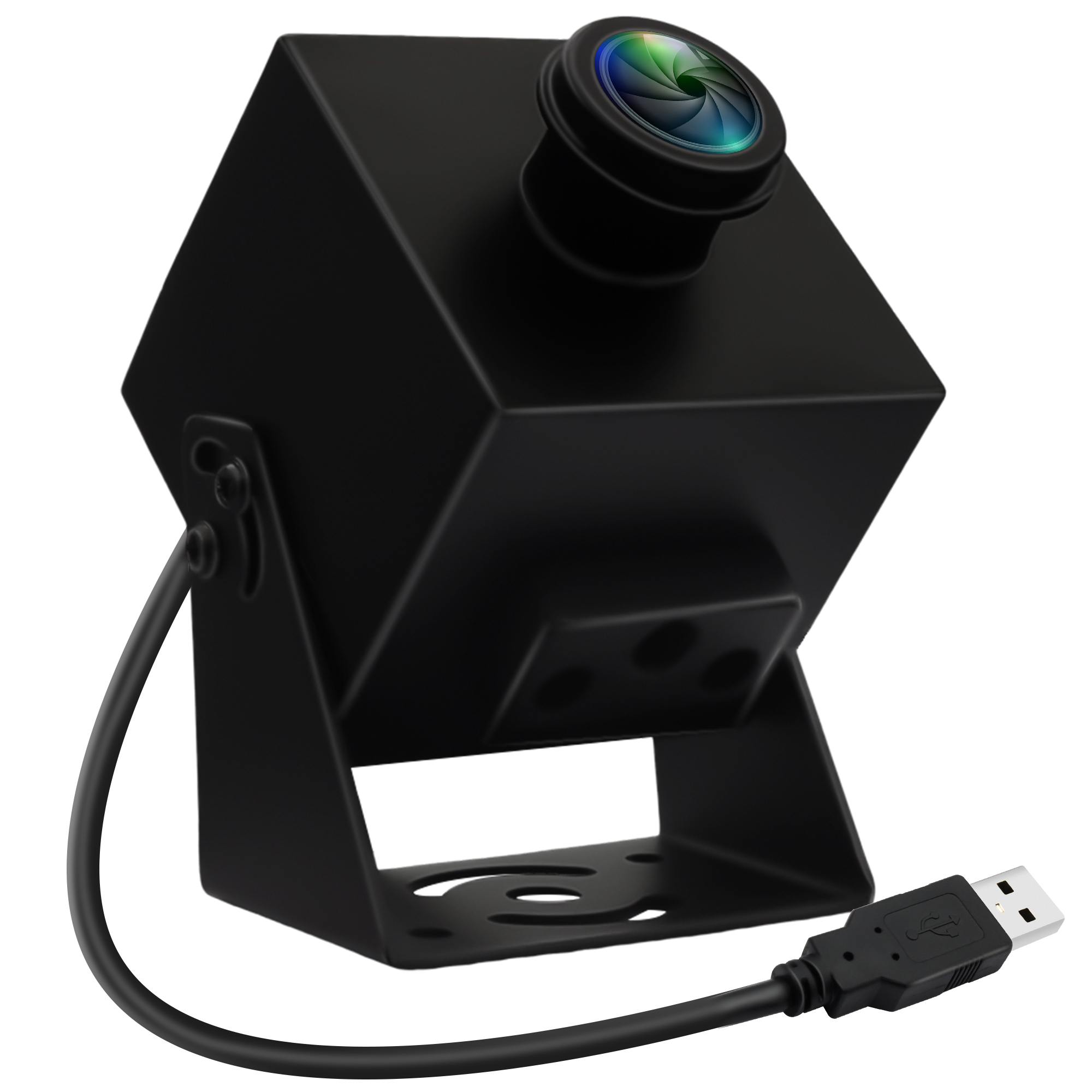

The ELP-USB48MP02-SL185 is a 48 megapixel high-definition industrial USB camera, featuring Sony IMX586 sensor with 8000×6000 resolution and 4K@30fps video output capability. Equipped with a 200 degree fisheye lens, M12 mount for compatibility with a wide range of microscopes, industrial lenses. Utilizing UVC driverlessprotocol and USB 2.0 plug-and-play technology, the camera is compatible with Windows, Linux, macOS, Android, and embedded platforms like Raspberry Pi. Its metal casing and anti-interference cables ensure robust stability and environmental adaptability. Widely applied in industrial vision inspection, laser engraving positioning, high-definition security surveillance, product photography, scientific imaging, and smart device integration, this industrial-grade USB camera module delivers exceptional resolution, wide zoom range, and versatile functionality.
Features
* 48MP High Resolution – CMOS IMX586 Sensor max resolution up to 8000X6000 for sharper and more detailed images
* Wide Angle Fisheye Lens – HFOV up to 200 degree
* High color reproduction and delicate image rendering – contribute to a more immersive, engaging, and visually pleasing experience
* Adjustable Features – many parameters adjustable, allows you customize the camera’s performance according to your needs.
* Ease of Use – Free driver,simply connect to a USB port then Plug & Play immediately. No need additional hardware, driver or complex setup processes
* High Compatibility – compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms
* Easy Integration – seamlessly integrate with different OS, including Android, Windows, Linux. Mac OS. OTG Support can work with many device, like Mini PC, Laptop, Desktop, Mobilephone, Tablet, Raspberry PI, Jetson Nano…
* Wide Applications in High resolution shooting – Like industrial camera, Video Conferencing,Live Streaming, Security, Medical device, Industrial Inspection,Scientific research and development , Education and Training, High Resolution Document Scan, High-speed photographic apparatus, Photo scanner etc.
Specification
| Model No. |
ELP-USB48MP02-SL25 (25mm lens, FOV 13°) ELP-USB48MP02-SL16 (16mm lens, FOV 23°) ELP-USB48MP02-SL12 (12mm lens, FOV 28°) ELP-USB48MP02-SLC1100 (no distortion lens, FOV 76°) ELP-USB48MP02-SV100 (no distortion lens, FOV 92°) ELP-USB48MP02-SL29 (2.9mm lens, FOV 138°) ELP-USB48MP02-SL170 (fisheye lens, FOV 178°) ELP-USB48MP02-SL185 (fisheye lens, FOV 200°) |
| Sensor | IMX586 |
| Max. Resolution | 8000 (H) *6000 (V) |
| Lens Size | 1/2 inch (4:3) |
| Compression Format | MJPEG / YUY2 (YUYV) |
| Resolution & Frame Rate | 8000×6000 @ 5fps MJPEG / 4000×3000 @ 12fps MJPEG
3840×2160 @ 30fps MJPEG / 1920×1080 @ 30fps MJPEG 1280×720 @ 30fps MJPEG 1920*1080 @5fps YUY2 / 800*600 @25fps YUY2 640*480 @20fps YUY2 |
| Focus Speed | Fast About 200ms |
| Central Definition | 1000LW/PH (Center) |
| S/N Ratio | 37dB |
| Dynamic Range | 82dB |
| Sensitivity | 1.4V/lux-sec@550nm |
| Min illumination | 0.3lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port Type | USB2.0 High Speed |
| AEC | Support |
| AWB | Support |
| Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
| White balance, Exposure | |
| Lens Parameter | With 200 degree fisheye lens,2.9/12/16/25mm lens, fisheye lens optional |
| Power Supply | USB BUS POWER 4P-2.0mm Socket |
| Operating Voltage | DC 5V |
| Working Current | 550mA- 610mA |

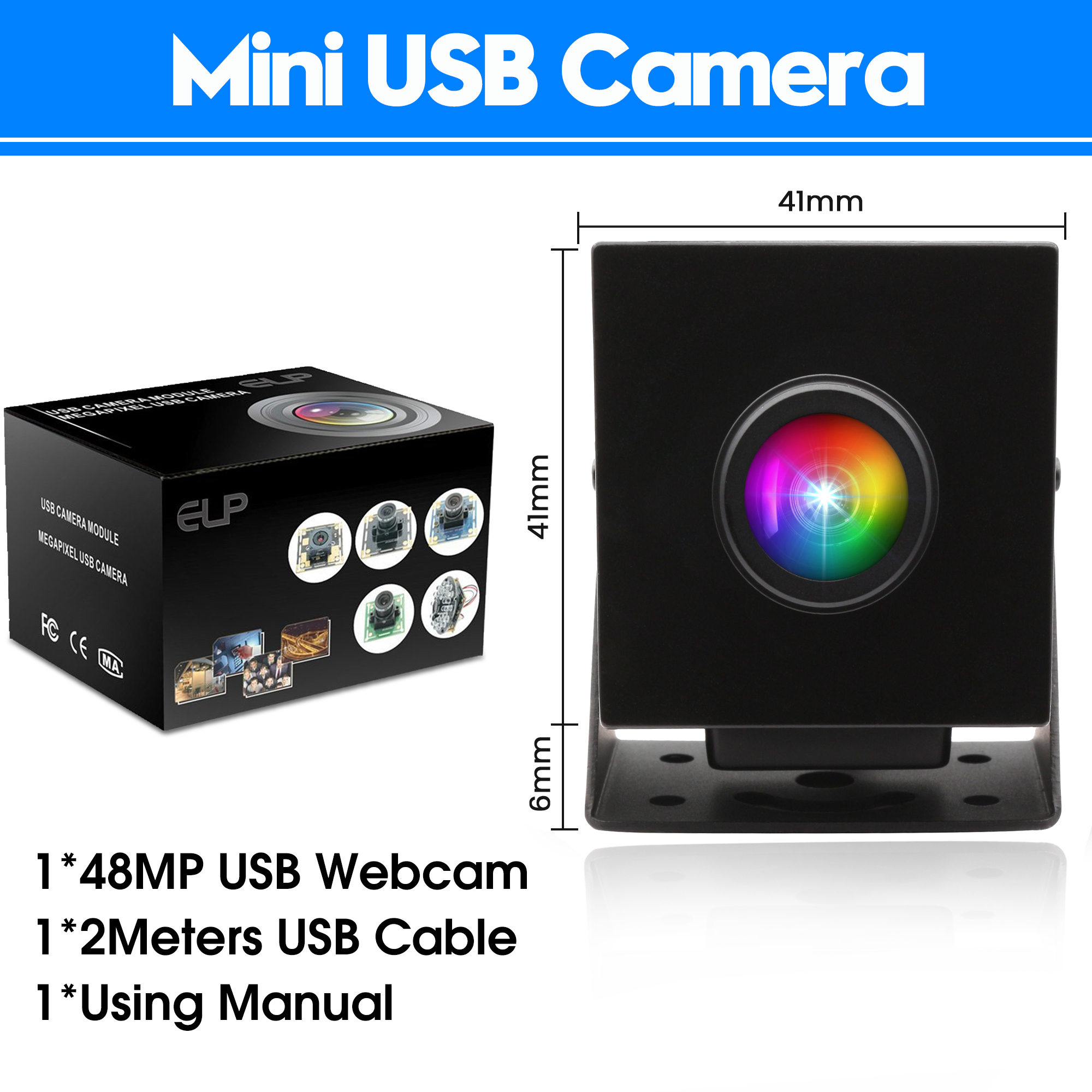

| Board Size | Double-Sided PCB, 38mm × 38mm |
| Storage Temperature | -20°C to 80°C |
| Working Temperature | 0°C to 70°C |
| USB Cable | Standard 2m, optional 1m/3m/1.5m |
| Operating System Request | Win XP/Vista/Win7/Win8 / Win10/ Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
Product Display
48MP High Definition USB Webcam- CMOS IMX586 Sensor Max Resolution up to 8000X6000 for Sharper and More Detailed Images

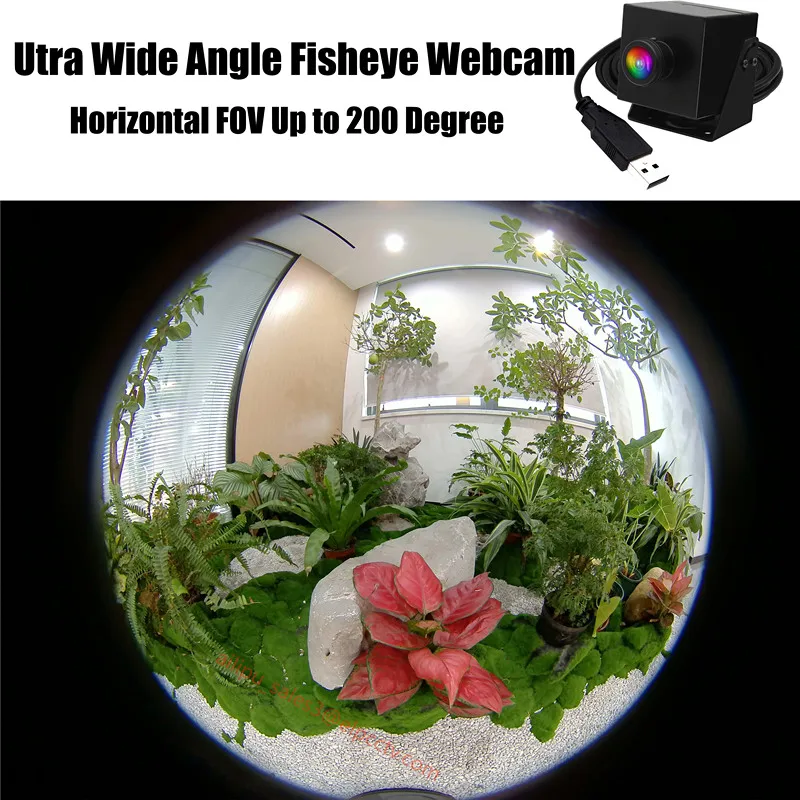

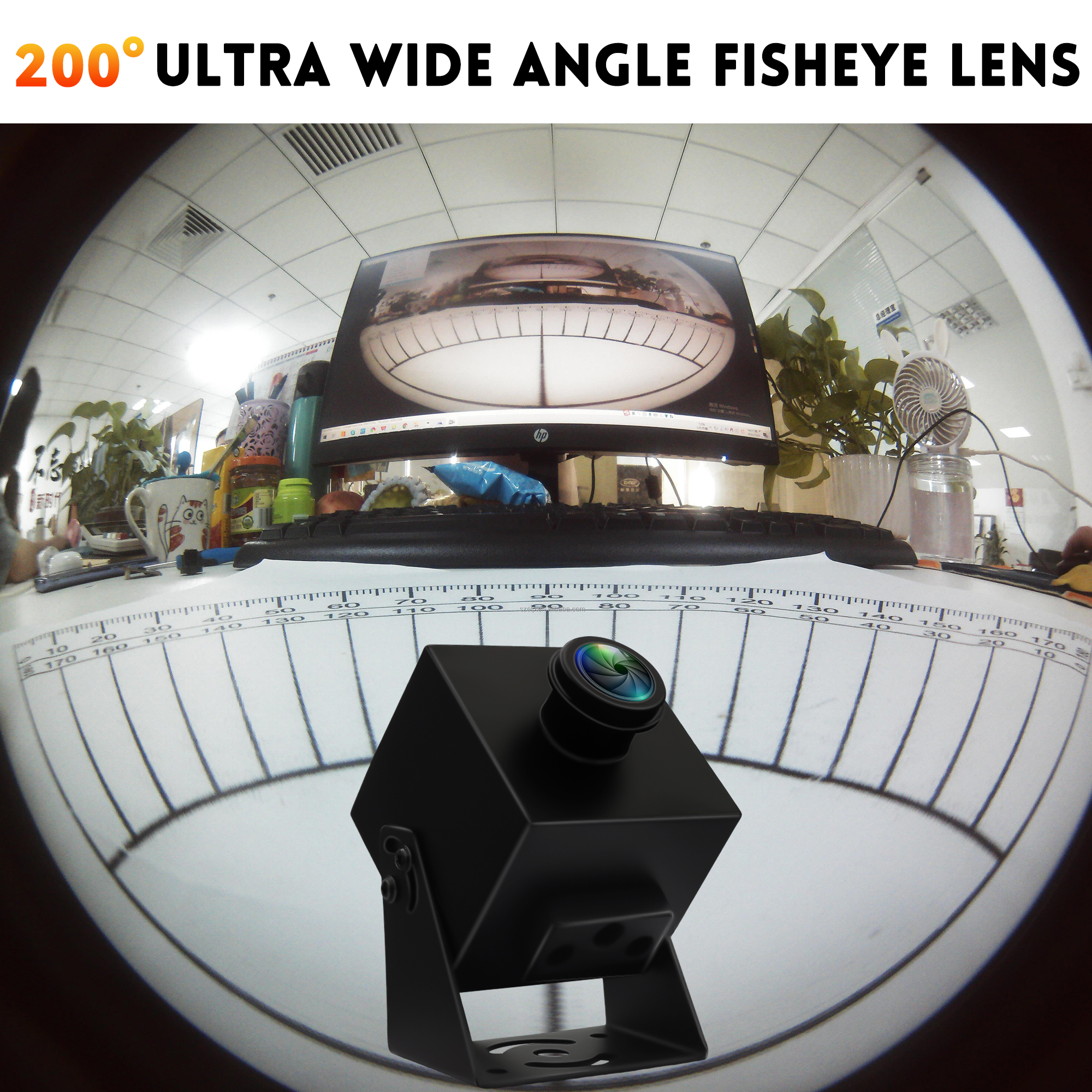

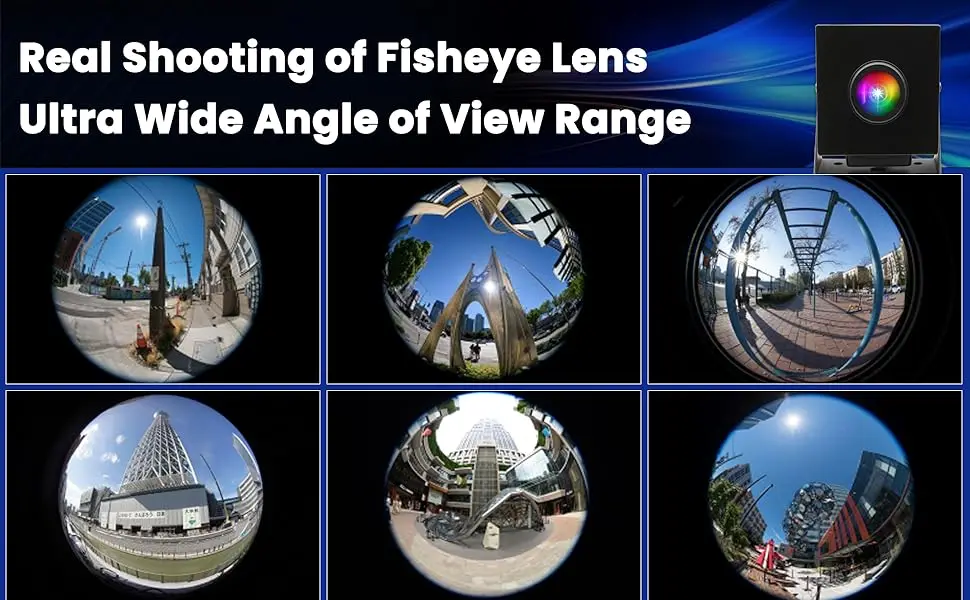

Wide Angle Fisheye Lens USB Camera – HFOV up to 200 degree
High color reproduction and delicate image rendering PC Camera – contribute to a more immersive, engaging, and visually pleasing experience
Adjustable Features – many parameters adjustable, allows you customize the camera’s performance according to your needs. Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Exposure

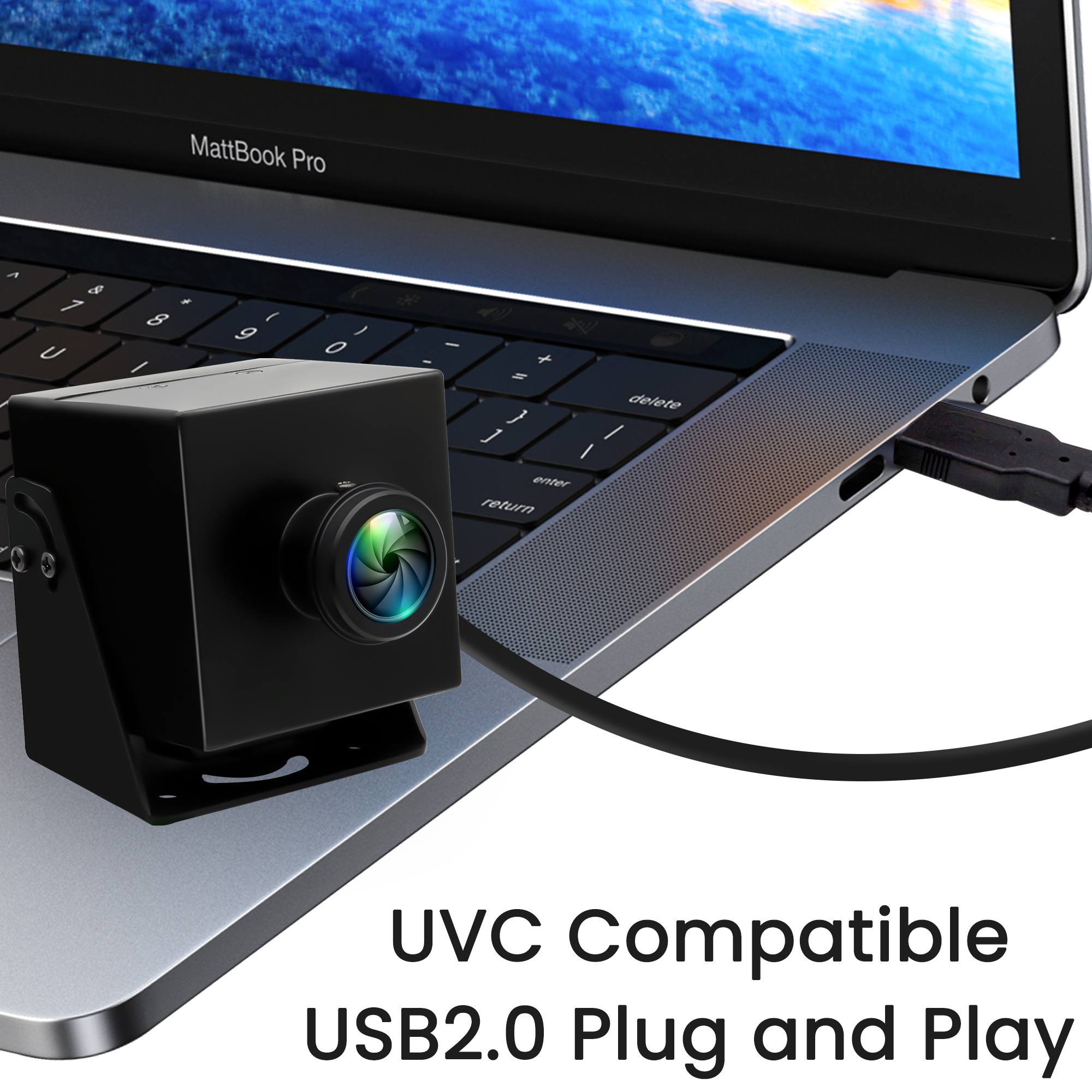

Ease of Use – Free driver,simply connect to a USB port then Plug & Play immediately. No need additional hardware, driver or complex setup processes
High Compatibility – compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms, like OpenCV, Ubuntu, Facetime, PotPlayer, Skype, Android TV, XBOX ONE, Zoom, Facebook etc.

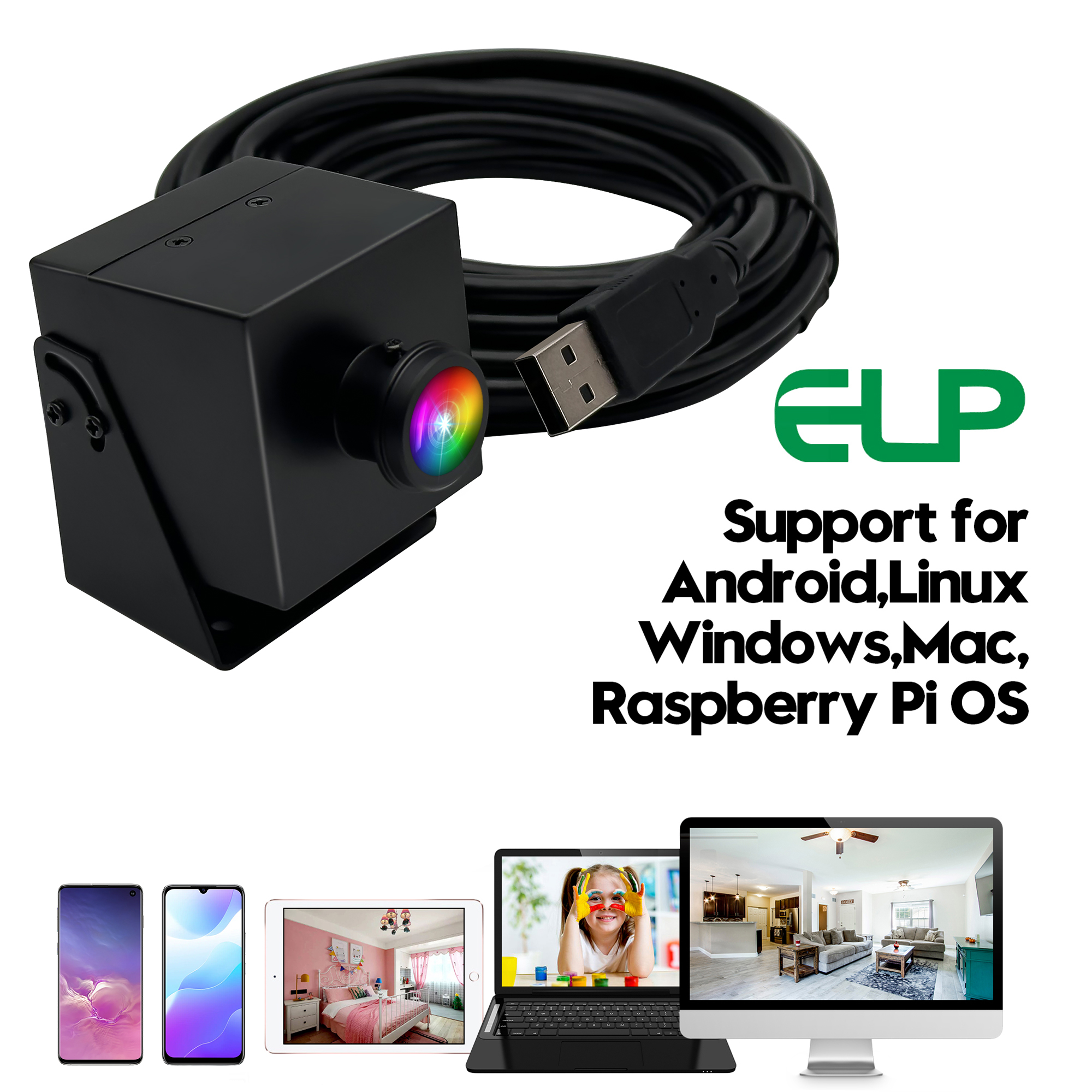

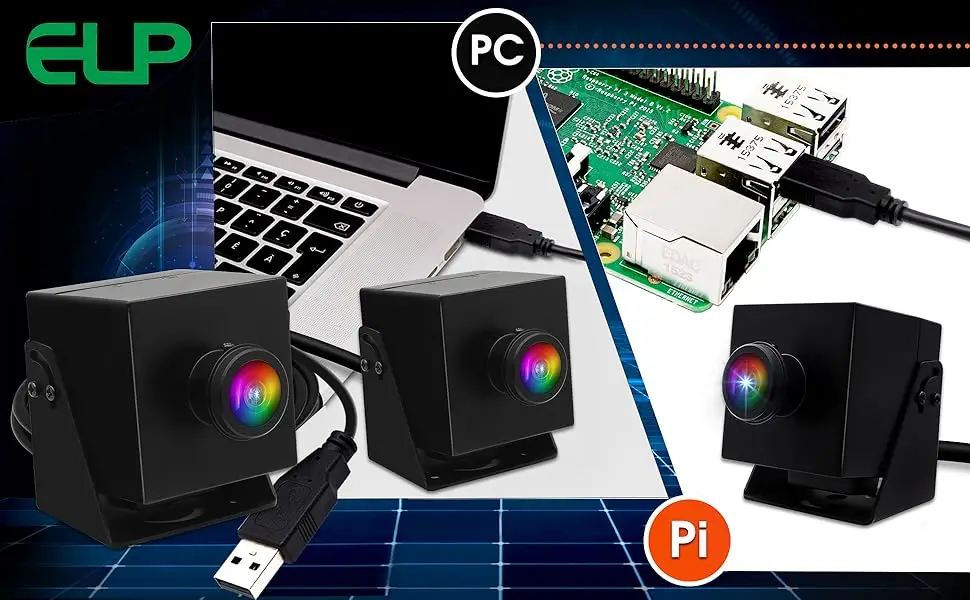

Easy Integration – seamlessly integrate with different OS, including Android, Windows, Linux. Mac OS. OTG Support can work with many device, like Mini PC, Laptop, Desktop, Mobilephone, Tablet, Raspberry PI, Jetson Nano…
Applications
Video Conferencing, Live Streaming, Security and Surveillance Medical Imaging,Industrial Inspection, Research and Development, Education and Training, high resolution document scan, high-speed photographic apparatus, photo scanner, 3D printer, Staic Scane, Altimeter, Micropscope… and so on.Overall,a 48MP fixed focus webcam can be used in a wide range of applications where high-resolution images and videos with autofocus capabilities are required.
