Description
High Resolution 48MP Variable Focus USB Camera
Based on big size 1/2” IMX586 image sensor, variable focus, USB 2.0 UVC compliant camera. No extra drivers needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera. Quickly shoot the images or record videos with super Image reality, real color reproduction. Its ultra 8000*6000 resolution can be used in a wide range of applications where high-resolution images and videos with zoom in and out capabilities are required.
Features
* Ultra HD 8000X6000 High Resolution 48MP USB Camera
* High Frame Rate 30fps 48MP Webcam, Can reach 30fps @ 3840*2160 4K Resolution
* With HD 3.6-10mm Varifocal lens, can Manually zoom in and out
* With industrial grade high quality sensor IMX586,
* Super Image reality, real color reproduction, without interpolation.
* UVC Free Driver , Plug and Play, easily used on different systems
* Multiple OS Suppport, Windows, Linux, Android, Mac OS, Ubuntu etc.
* OTG Support, Can connected to Smartphone, Tablet, Mini PC, Video Development Board, like Raspberry Pi. Jetson Nano etc.
* Wide WApplications in High resolution shooting, Like industrial camera, Video Conferencing,Live Streaming, Security, Medical device, Industrial Inspection,Scientific research and development , Education and Training, High Resolution Document Scan, High-speed photographic apparatus, Photo scanner etc.
Specification
| Model No. | ELP-USB48MP02-CFV (3.6-10) ( With HD 3.6-10mm Lens) |
| Sensor | IMX586 |
| Max. Resolution | 8000 (H) *6000 (V) |
| Lens Size | 1/2 inch (4:3) |
| Compression Format | MJPEG / YUY2 (YUYV) |
| Resolution & Frame Rate | 8000×6000 @ 5fps MJPEG / 4000×3000 @ 12fps MJPEG
3840×2160 @ 30fps MJPEG / 1920×1080 @ 30fps MJPEG 1280×720 @ 30fps MJPEG 1920*1080 @5fps YUY2 / 800*600 @25fps YUY2 640*480 @20fps YUY2 |
| Focus Speed | Fast About 200ms |
| Central Definition | 1000LW/PH (Center) |
| S/N Ratio | 37dB |
| Dynamic Range | 82dB |
| Sensitivity | 1.4V/lux-sec@550nm |
| Min illumination | 0.3lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port Type | USB2.0 High Speed |
| AEC | Support |
| AWB | Support |
| Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
| White balance, Exposure | |
| Lens Parameter | 3.6-10mm varifocus lens |
| Power Supply | USB BUS POWER 4P-2.0mm Socket |
| Operating Voltage | DC 5V |
| Working Current | 550mA- 610mA |
| Board Size | Double-Sided PCB, 38mm × 38mm |
| Storage Temperature | -20°C to 80°C |
| Working Temperature | 0°C to 70°C |
| USB Cable | Standard 2m, optional 0.3m/0.5m/1m/1.5m |
| Operating System Request | Win XP/Vista/Win7/Win8 / Win10/ Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
Product Display
Ultra HD 48MP, Up to 8000*6000 Resolution USB PC Camera, super Image reality, real color reproduction
Super Image reality, real color reproduction, without interpolation

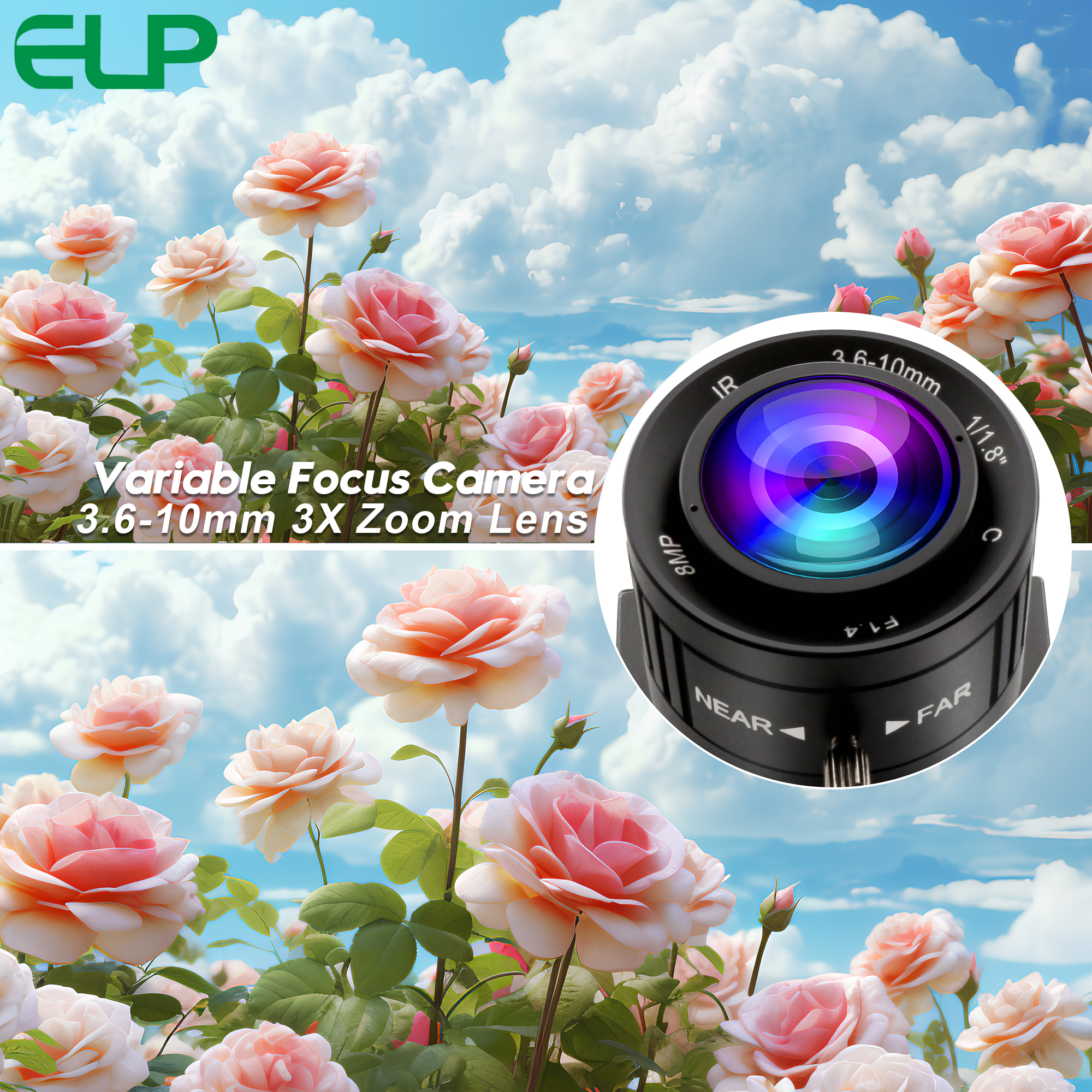

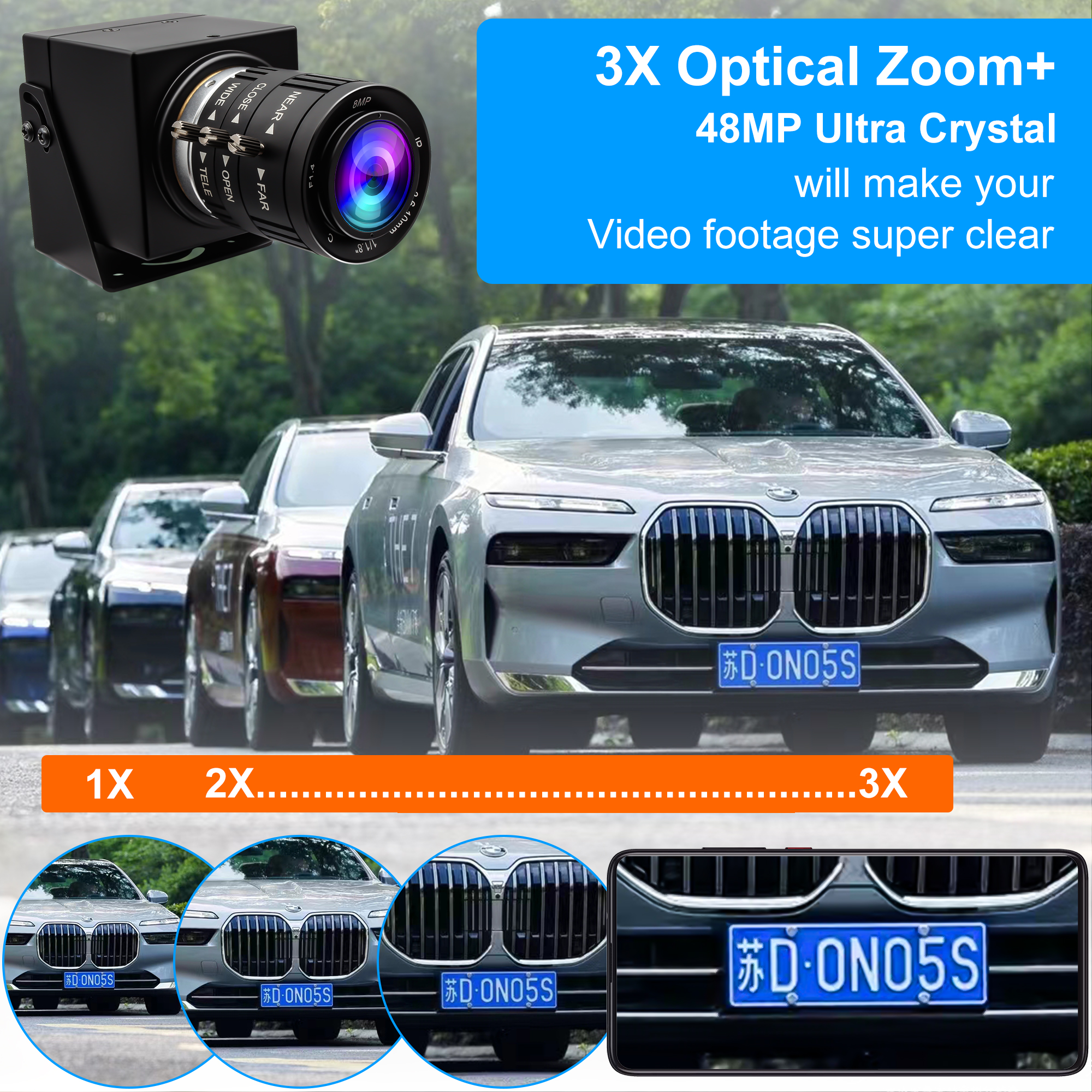

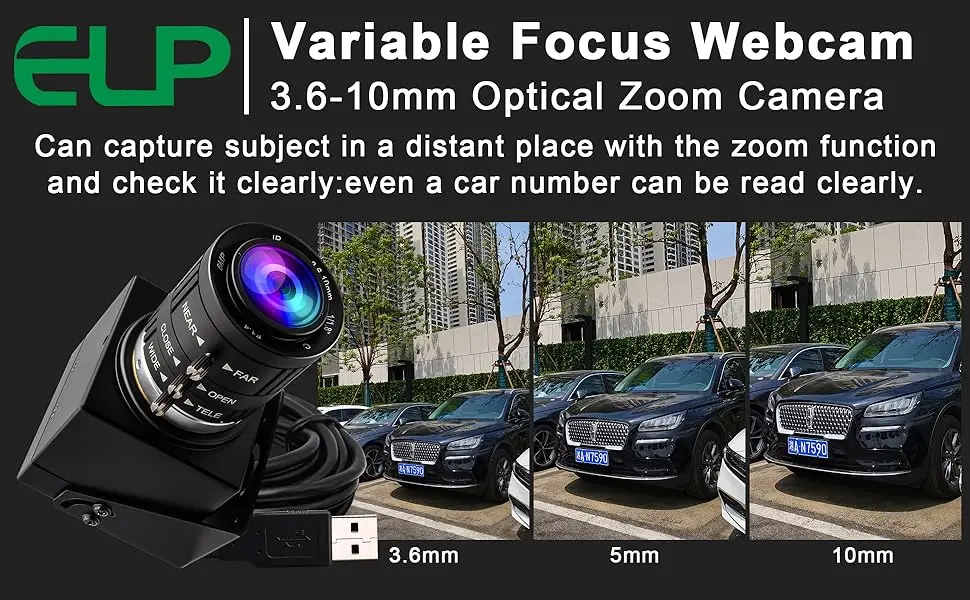

HD 3.6-10mm Varifocal Manual Focus & Zoom Lens for for Professional Manual Control:
Take full creative command with the 3.6-10mm manual zoom lens, featuring dedicated focus and aperture rings. Adjust zoom, focus, brightness, and clarity by simply rotating the lens to achieve the perfect shot at any distance.

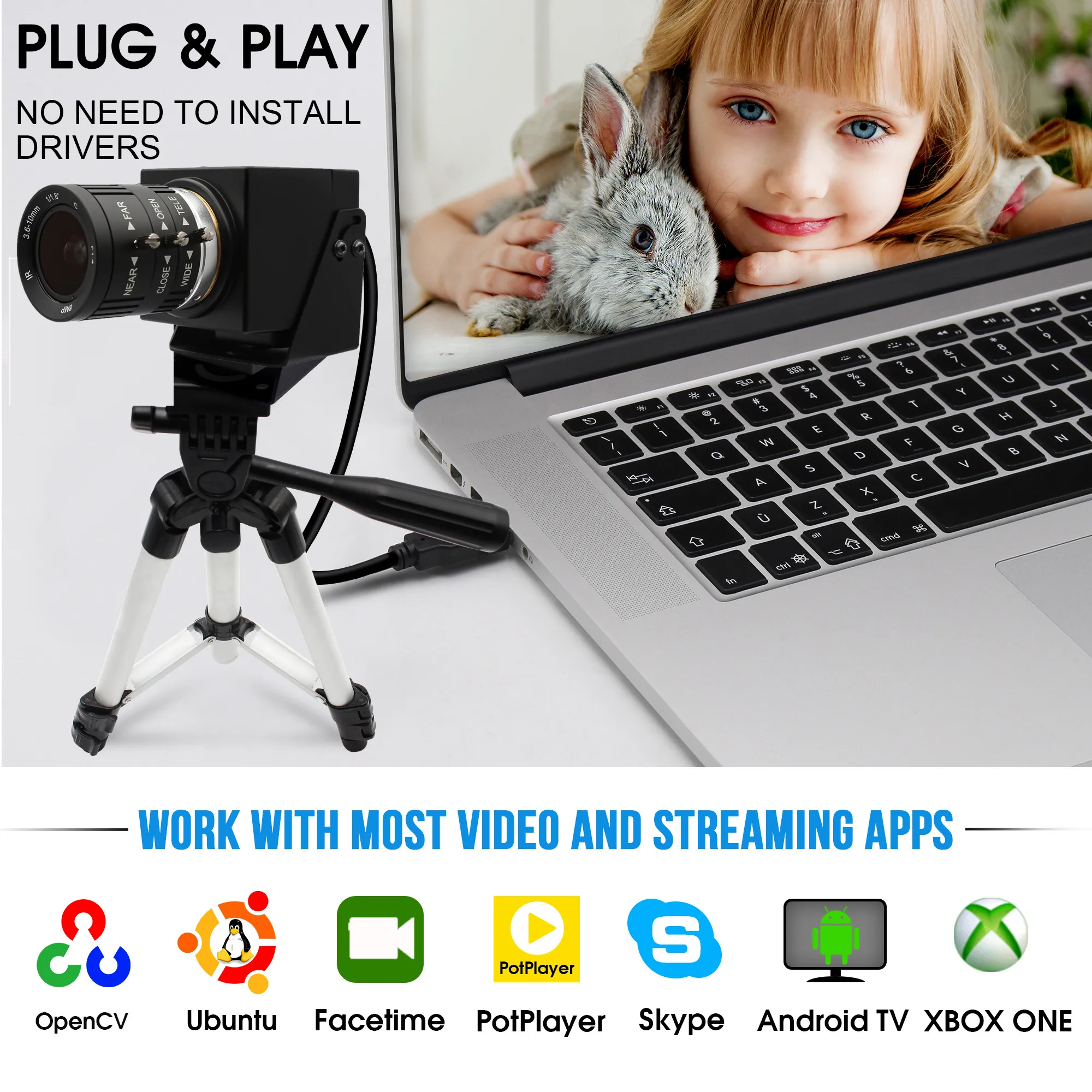

UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Exposure

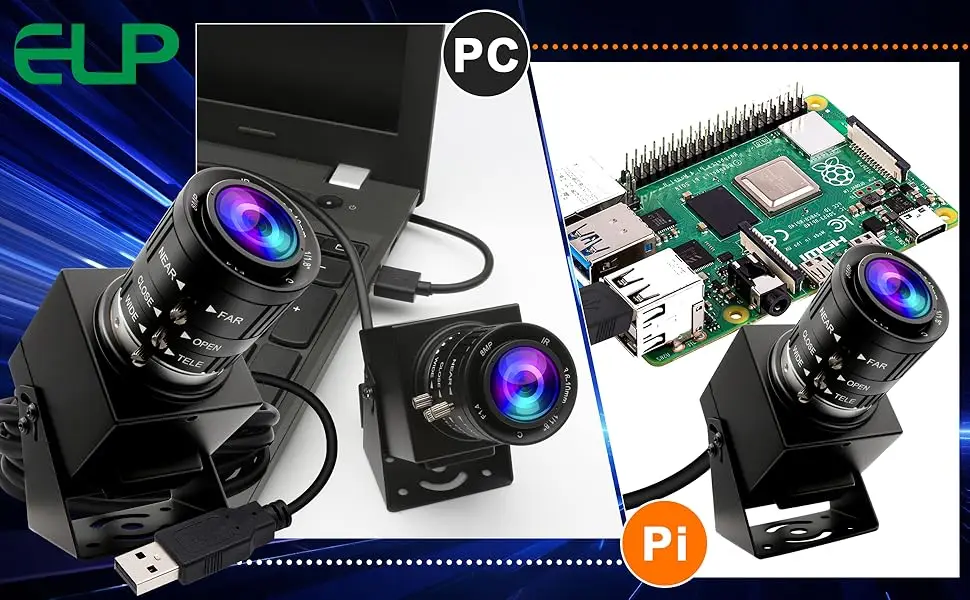

Mini Free Driver UVC usb camera for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc

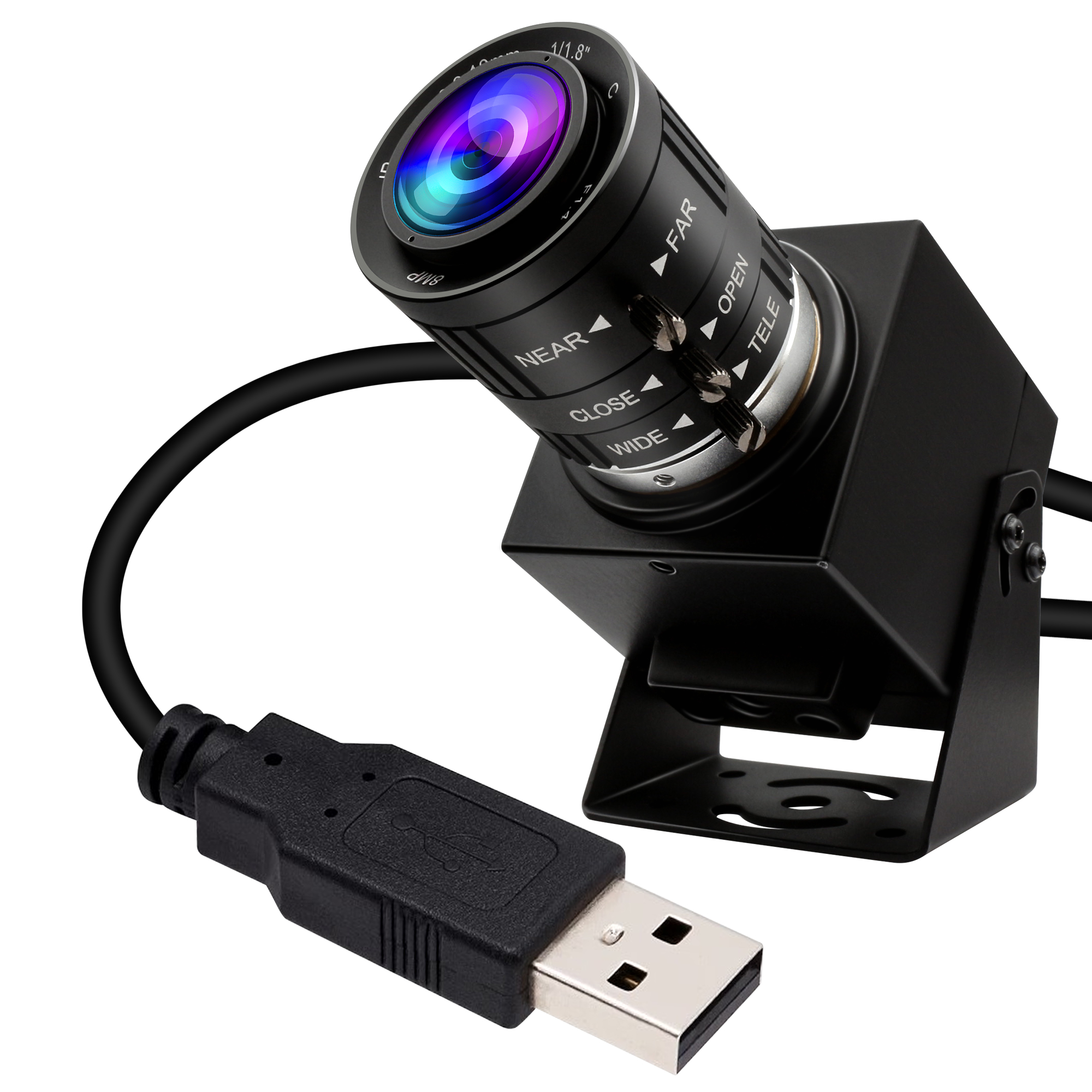

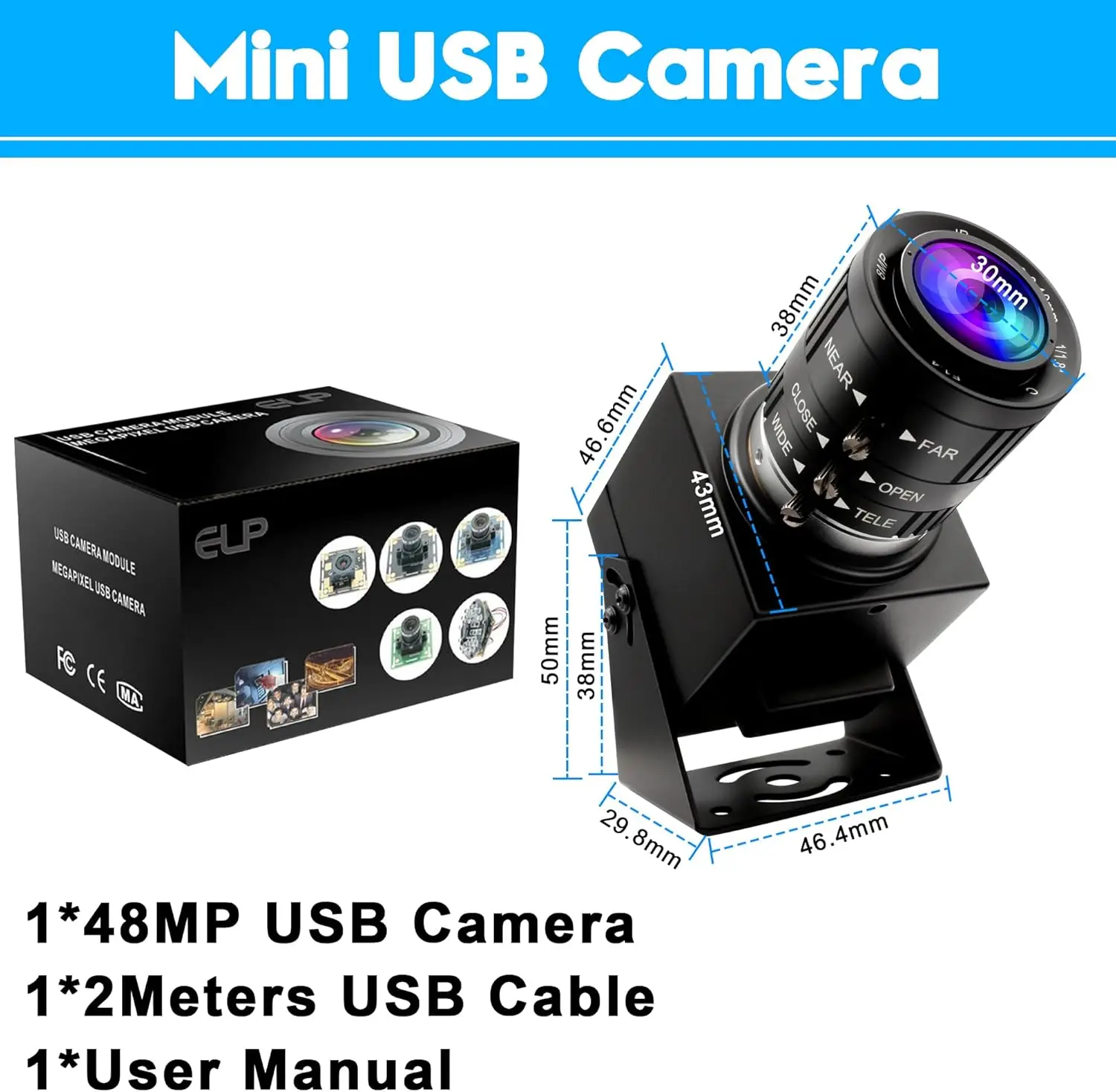

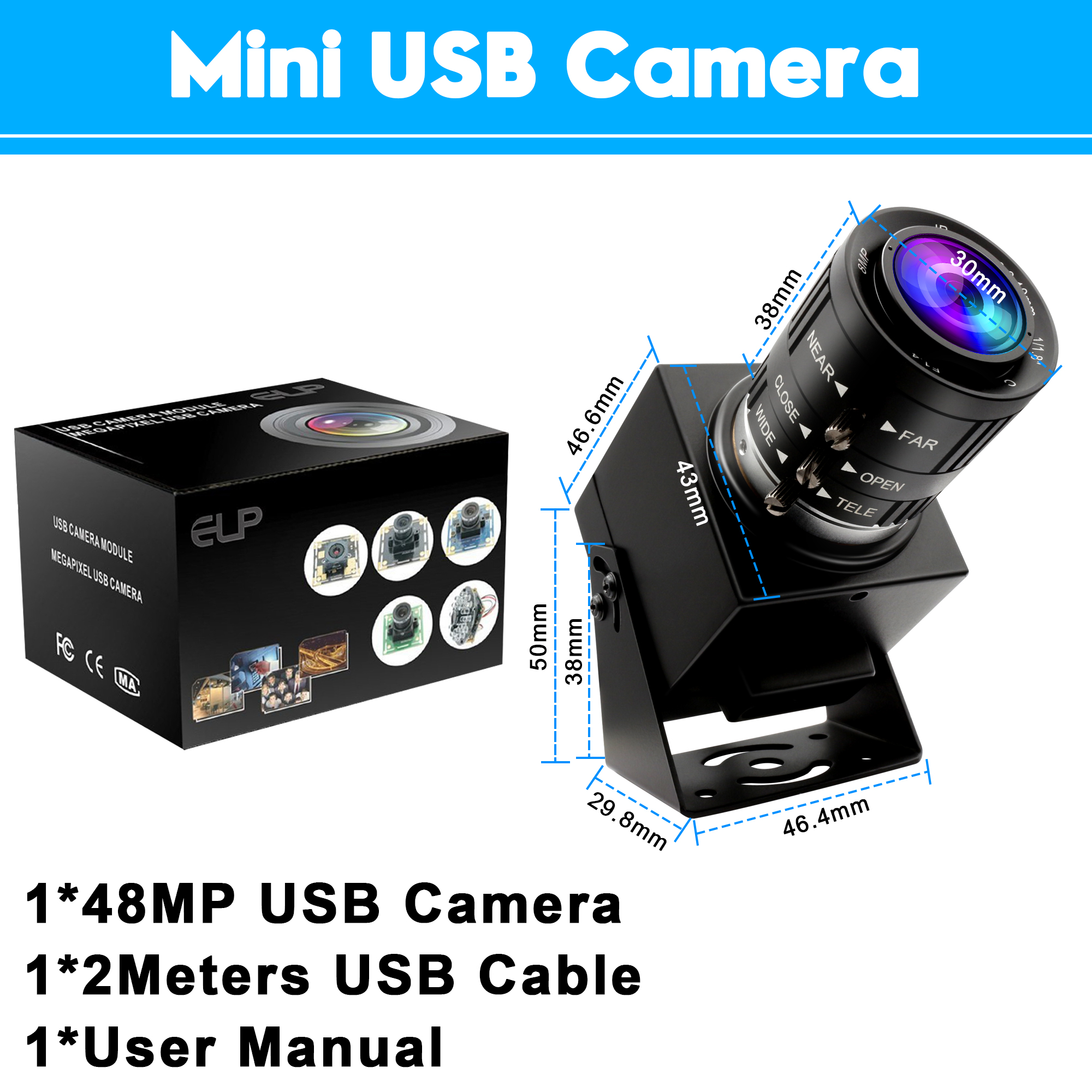

48MP Webcam With Mini Metal Industrial Housing, Suitable for bracket, wall mounting.

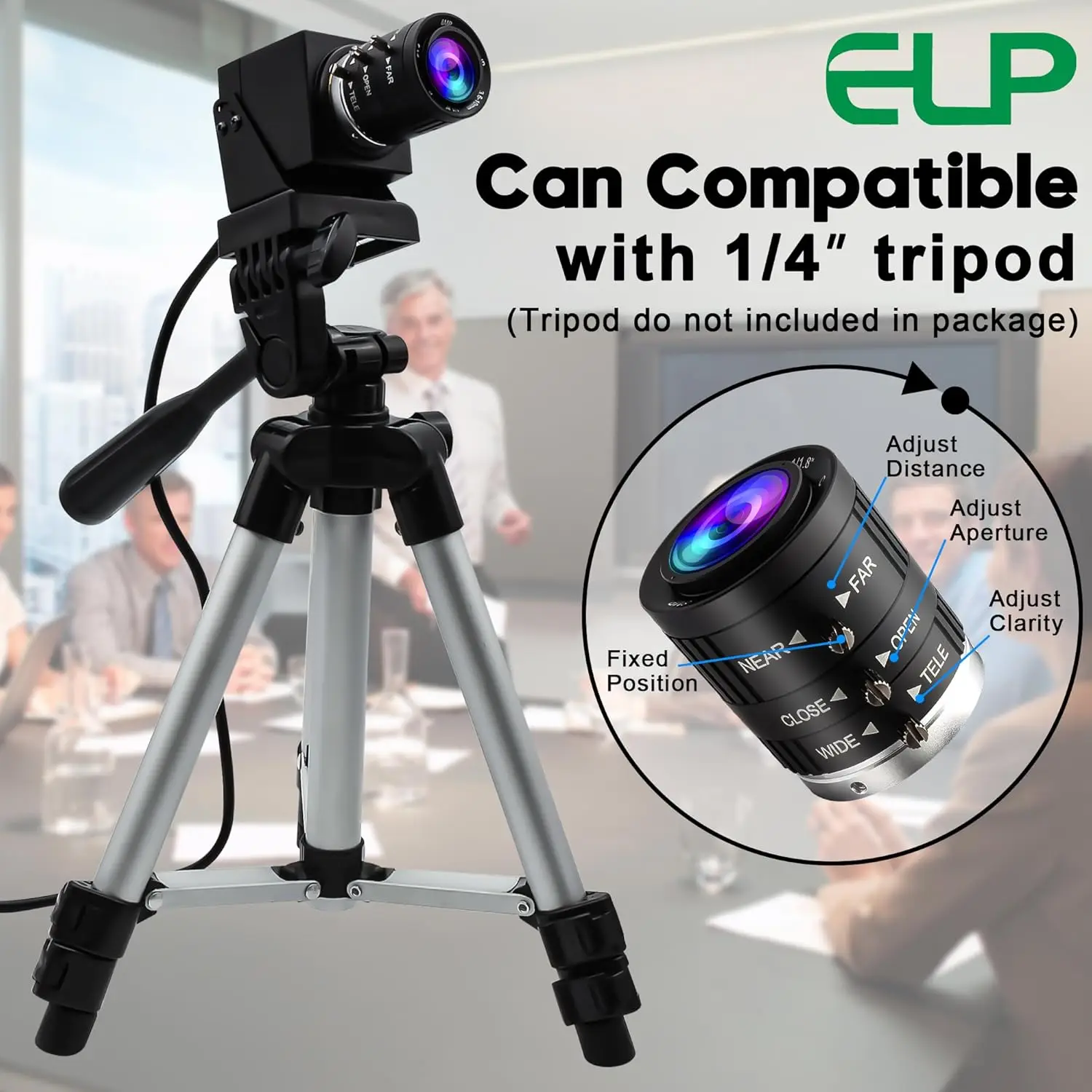

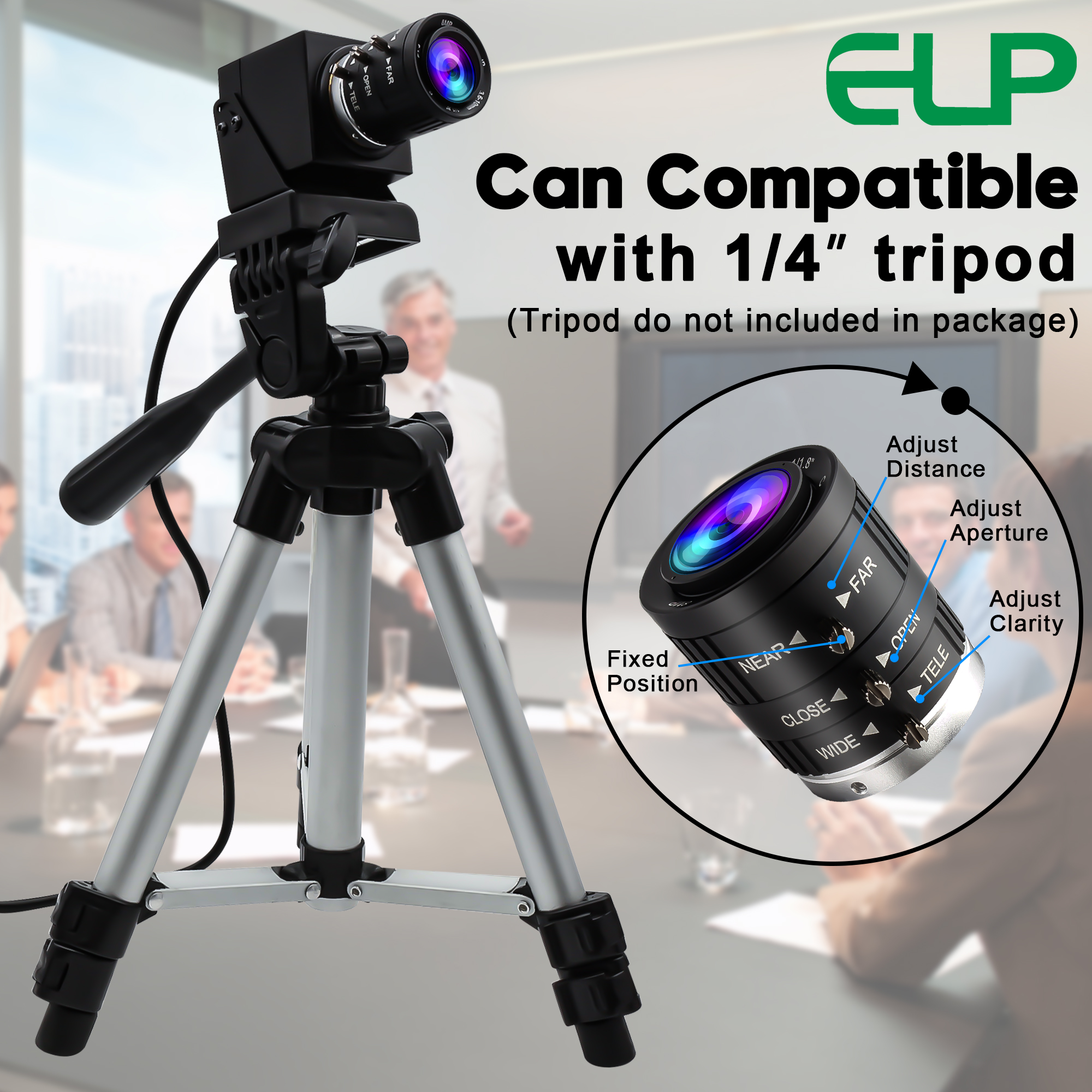

Can compatible with 1/4″ tripod: （tripod not included in the package
Application
Video Conferencing, Live Streaming, Security and Surveillance Medical Imaging,Industrial Inspection, Research and Development, Education and Training, high resolution document scan, high-speed photographic apparatus, photo scanner, 3D printer, Staic Scane, Altimeter, Micropscope… and so on.Overall,a 48MP fixed focus webcam can be used in a wide range of applications where high-resolution images and videos with autofocus capabilities are required.
