Description
The ELP-USB48MP02-V100 is a 48 megapixel high-definition industrial USB camera, featuring Sony IMX586 sensor with 8000×6000 resolution and 4K@30fps video output capability. Equipped with a M12 no distirtion lens, M12 mount for compatibility with a wide range of microscopes, industrial lenses. Utilizing UVC driverlessprotocol and USB 2.0 plug-and-play technology, the camera is compatible with Windows, Linux, macOS, Android, and embedded platforms like Raspberry Pi. Its metal casing and anti-interference cables ensure robust stability and environmental adaptability. Widely applied in industrial vision inspection, laser engraving positioning, high-definition security surveillance, product photography, scientific imaging, and smart device integration, this industrial-grade USB camera module delivers exceptional resolution, wide zoom range, and versatile functionality.
Features
1) 48MP Ultra HD Camera: Comes with 1/2 inch IMX586 CMOS image sensor, max resolution 8000(H)*6000(V), Supports 4K (3840×2160) @30fps MJPEG video recording for smooth playback.
2) Lens: 92 degree no distortion lens, Features standard M12 mount for compatibility with a wide range of microscopes, industrial lenses
3) UVC Compliant, Plug and Play: Support Windows, Linux, Mac, and Andriod with UVC, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed
4) Real Color Reproduction:Super Image reality, real color reproduction, without interpolation

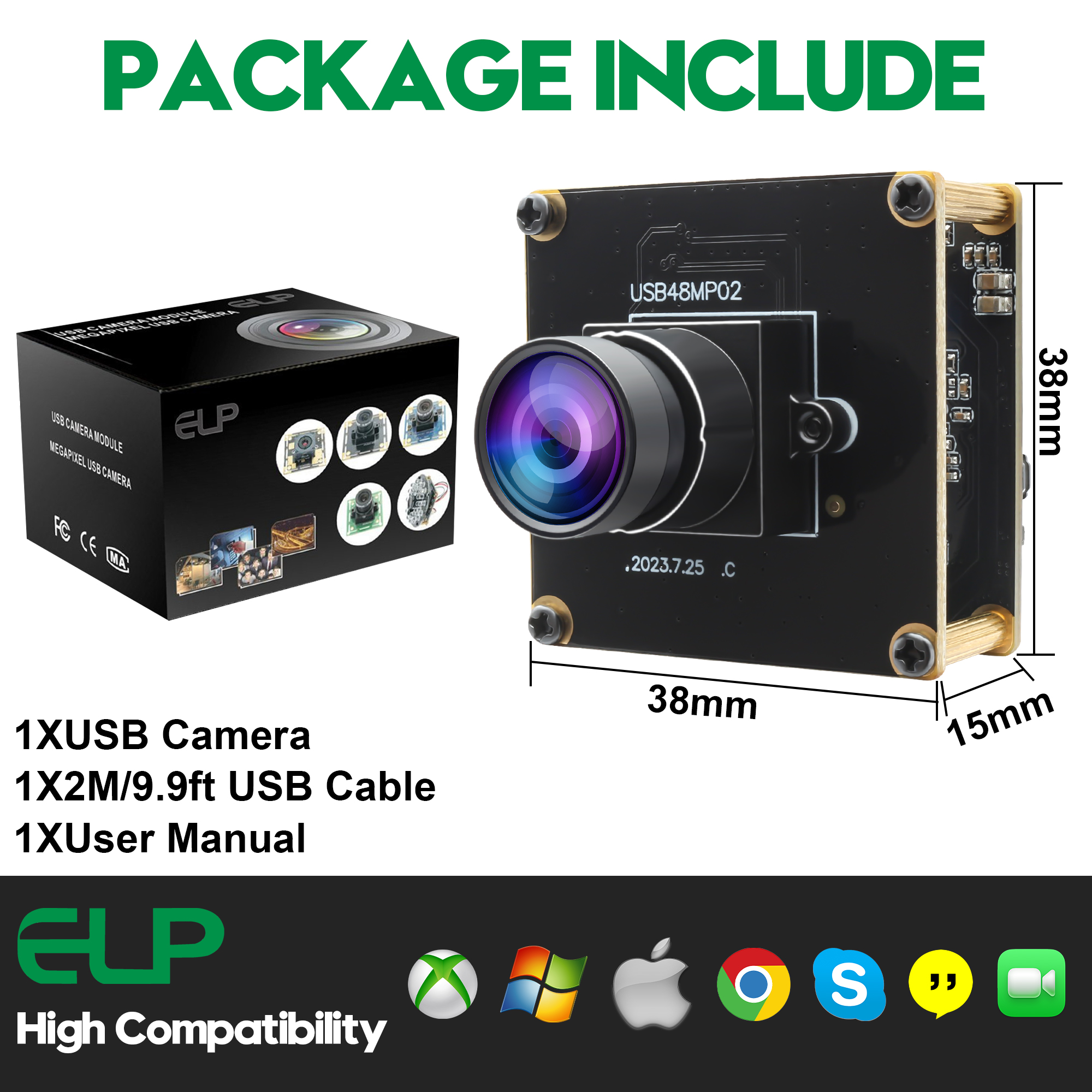

5) Mini 38×38mm Board Size, this lightweight board camera fits perfectly into tight spaces for embedded projects, robotics, or portable monitors
6) Support OTG Protocol: Can be external camera for mobile phone, Tablet and other device which support OTG
7) Low Power Consumption: ideal for portable equipment.
8) Wide Applications: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.
Specification
| Model No. |
ELP-USB48MP02-L25 (25mm lens, FOV 13°) ELP-USB48MP02-L16 (16mm lens, FOV 23°) ELP-USB48MP02-L12 (12mm lens, FOV 28°) ELP-USB48MP02-LC1100 (no distortion lens, FOV 76°) ELP-USB48MP02-V100 (no distortion lens, FOV 92°) ELP-USB48MP02-L29 (2.9mm lens, FOV 138°) ELP-USB48MP02-L170 (1.95mm fisheye lens, FOV 178°) ELP-USB48MP02-L185 (1.58 fisheye lens, FOV 200°) |
| Sensor | IMX586 |
| Max. Resolution | 8000 (H) *6000 (V) |
| Lens Size | 1/2 inch (4:3) |
| Compression Format | MJPEG / YUY2 (YUYV) |
| Resolution & Frame Rate | 8000×6000 @ 5fps MJPEG / 4000×3000 @ 12fps MJPEG
3840×2160 @ 30fps MJPEG / 1920×1080 @ 30fps MJPEG 1280×720 @ 30fps MJPEG 1920*1080 @5fps YUY2 / 800*600 @25fps YUY2 640*480 @20fps YUY2 |
| Focus Speed | Fast About 200ms |
| Central Definition | 1000LW/PH (Center) |
| S/N Ratio | 37dB |
| Dynamic Range | 82dB |
| Sensitivity | 1.4V/lux-sec@550nm |
| Min illumination | 0.3lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port Type | USB2.0 High Speed |
| AEC | Support |
| AWB | Support |
| Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
| White balance, Exposure | |
| Lens Parameter | With wide angle no distortion lens,2.9/12/16/25mm lens, fisheye lens optional |
| Power Supply | USB BUS POWER 4P-2.0mm Socket |
| Operating Voltage | DC 5V |
| Working Current | 550mA- 610mA |
| Board Size | Double-Sided PCB, 38mm × 38mm |
| Storage Temperature | -20°C to 80°C |
| Working Temperature | 0°C to 70°C |
| USB Cable | Standard 1m, optional 2m/3m/1.5m |
| Operating System Request | Win XP/Vista/Win7/Win8 / Win10/ Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
Product Display

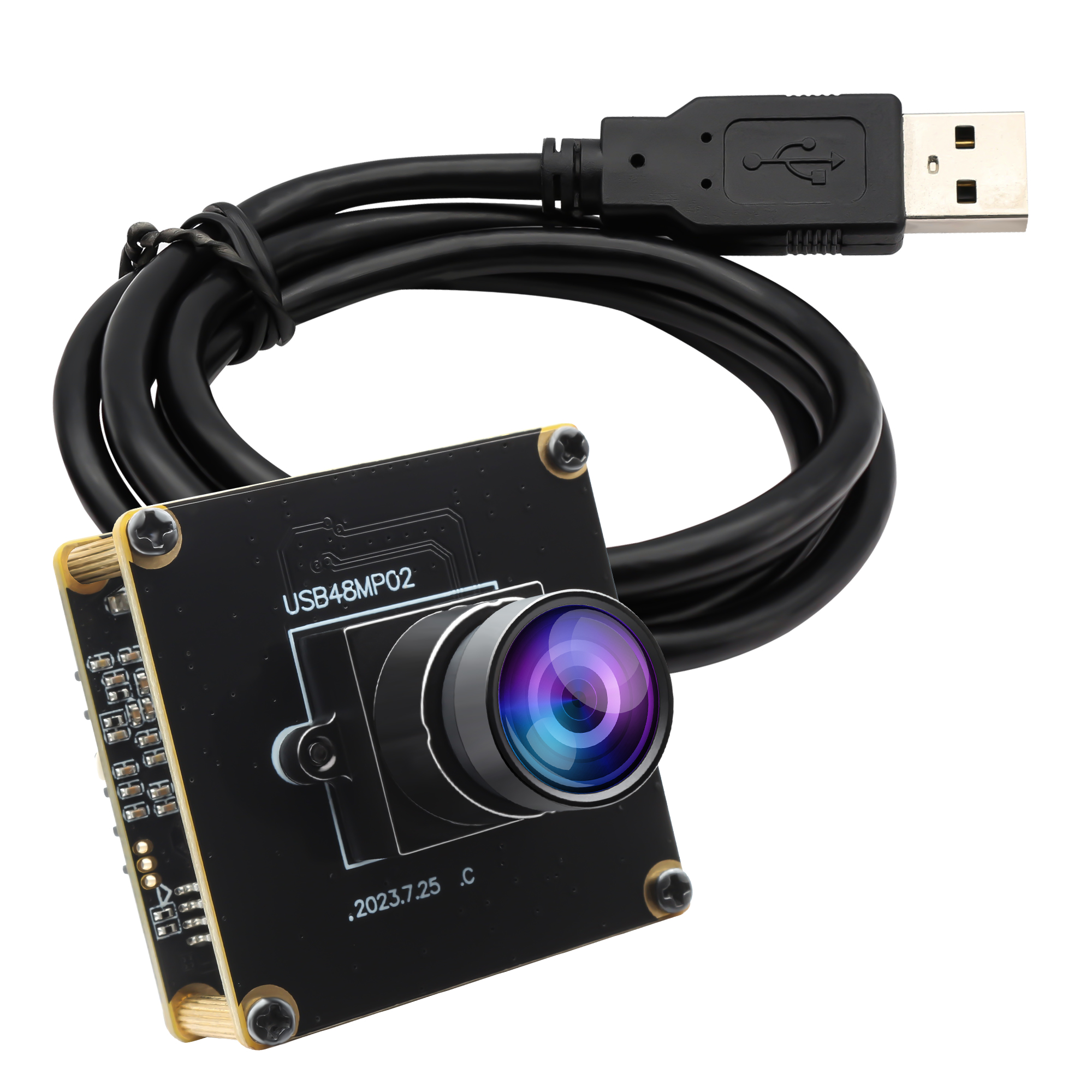

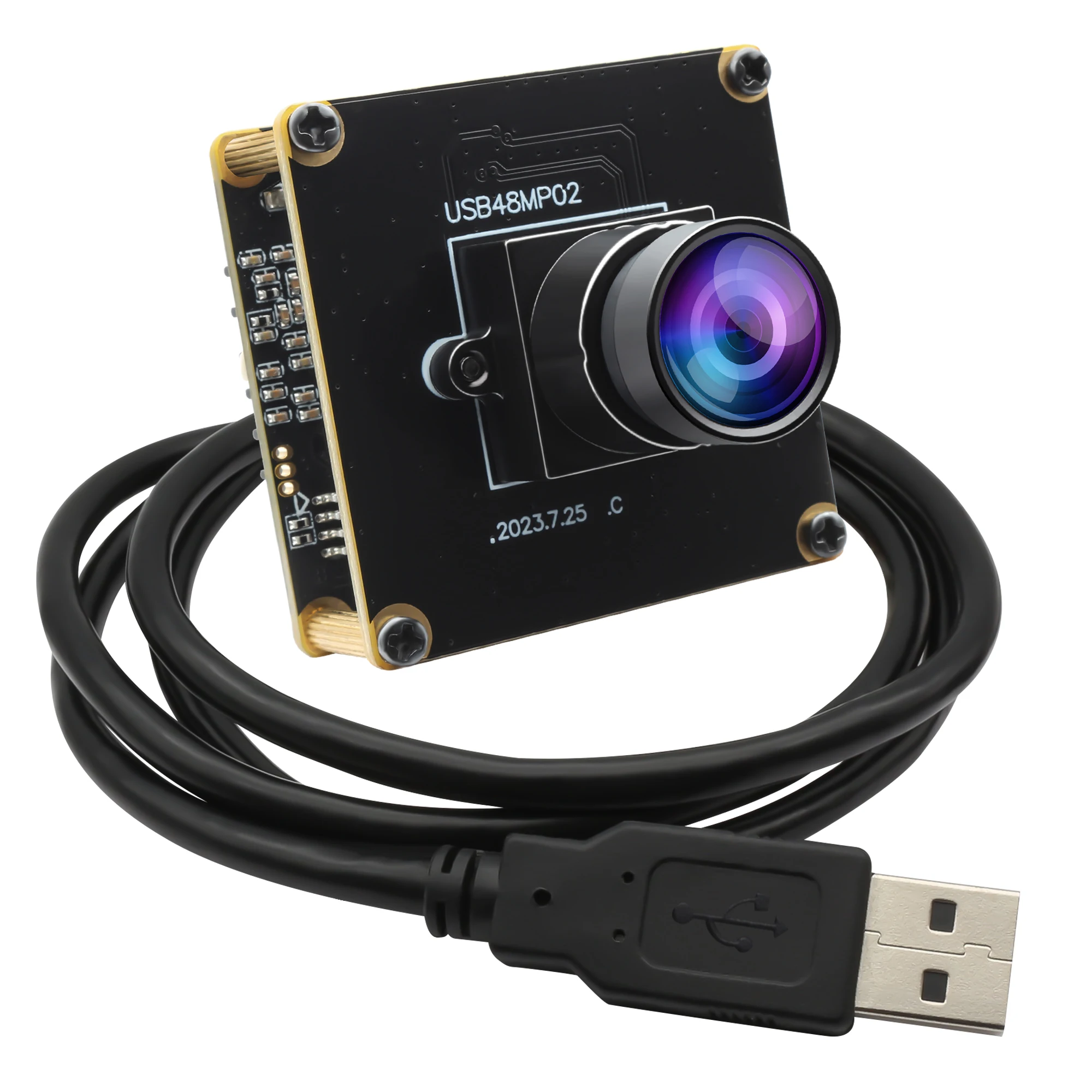

48MP 8000*6000 USB camera with 1/2 inch IMX586 sensor
High Quality Imaging: 8000×6000 resolution, adpots big 1/2″ IMX586 48mp sensor for sharp image
High Color fidelity: the camera works like human eye, get sharp image and accurate color reproduction. WIth super image reality
Lens: 2.9/12/16/25mm lens, Fisheye lens, No distortion lens optional

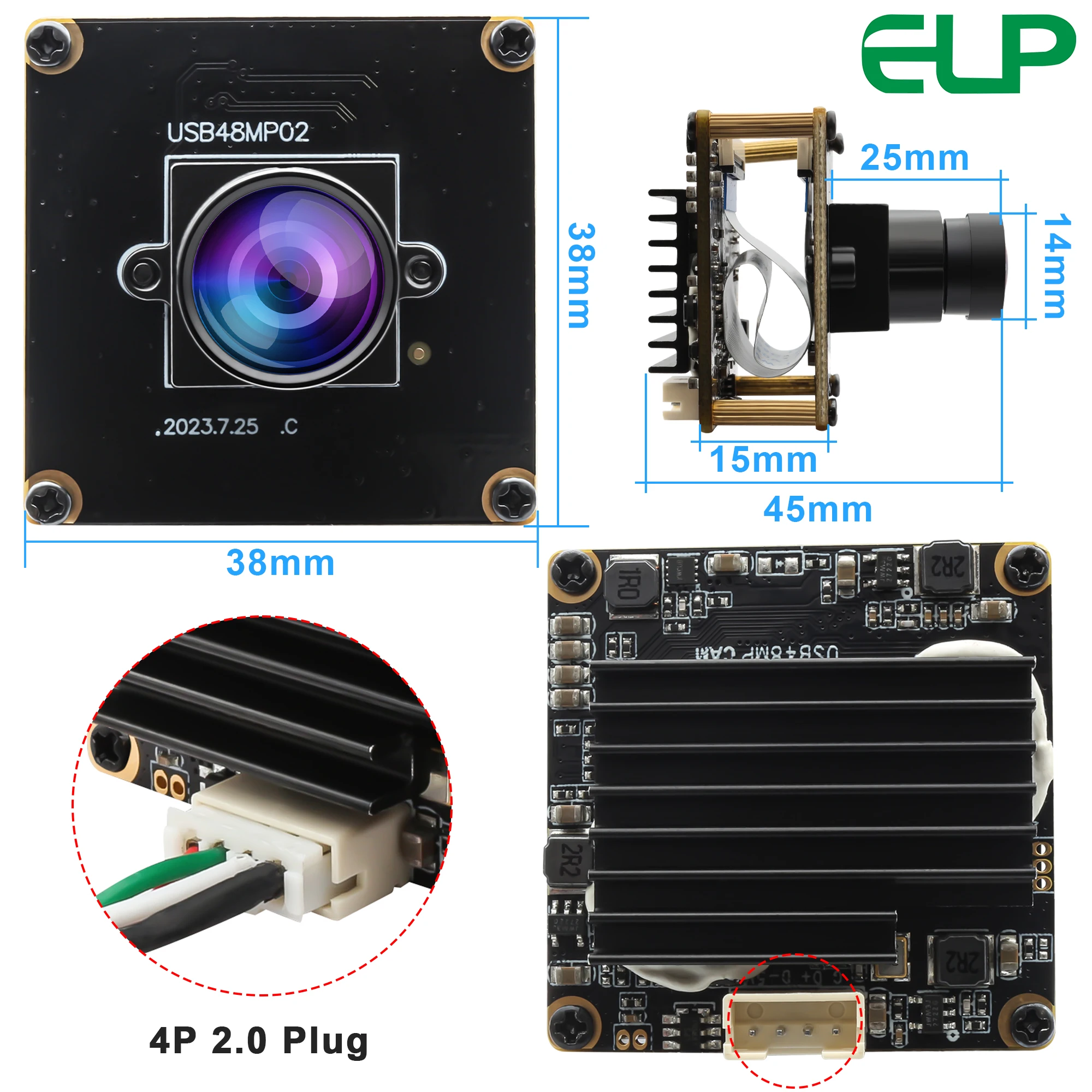

Mini 38*38mm Board for your lightburn laser engraver, compact lightburn laser camera for all kinds of machine vision

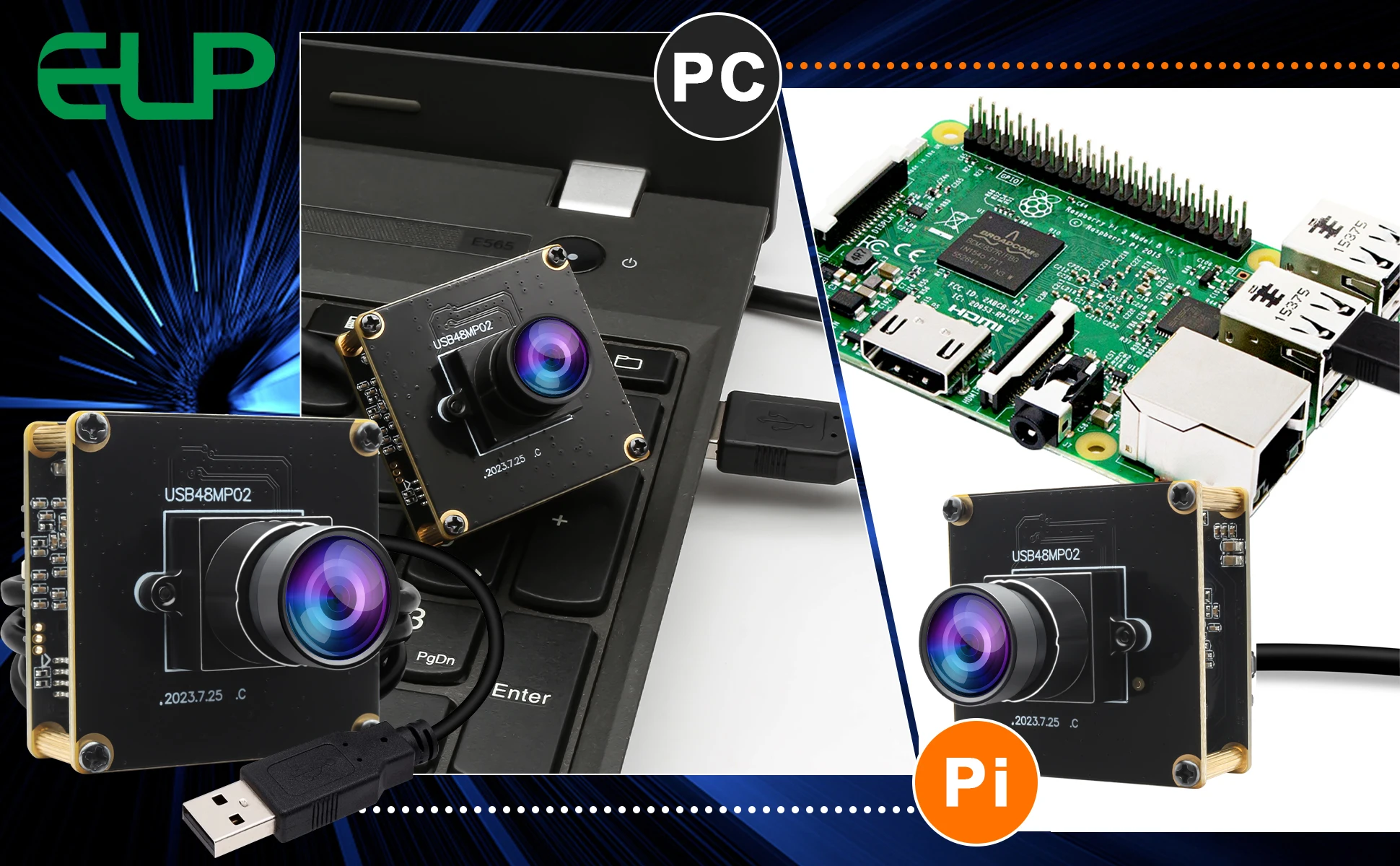

Plug&Play, UVC compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed
Compatible with muti software & operating system: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi, Jetson Nano…
Comptible with Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time , Webcam Viewer,TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam…
Applications: this tiny camera board can be installed in the most narrow position for a home video surveillance system, day&night low light vision security camera system, dashcam or other machine vision application.
